Automatic Paste Filling Line | Cream Lotion Liquid Filling Capping Machine

Introduction:

This cosmetic cream filling machine is ideal for handling medium to high-viscosity cream products across cosmetics, personal care, household chemical, and healthcare industries

Application:

Designed for producers handling creams, sauces, lotions, and other medium- to high-viscosity materials, this filling and capping system delivers reliable, repeatable dosing accuracy throughout

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Designed for producers handling creams, sauces, lotions, and other medium- to high-viscosity materials, this filling and capping system delivers reliable, repeatable dosing accuracy throughout

Package Type:

This liquid filling system is built specifically for bottle-based packaging, making it well-suited for creams, lotions, and other semi-viscous products in the cosmetics and pharmaceutical industries. It accommodates a broad variety of container types, including plastic, glass, PET, and HDPE bottles.

Automatic Paste Filling Line | Cream Lotion Liquid Filling Capping Machine

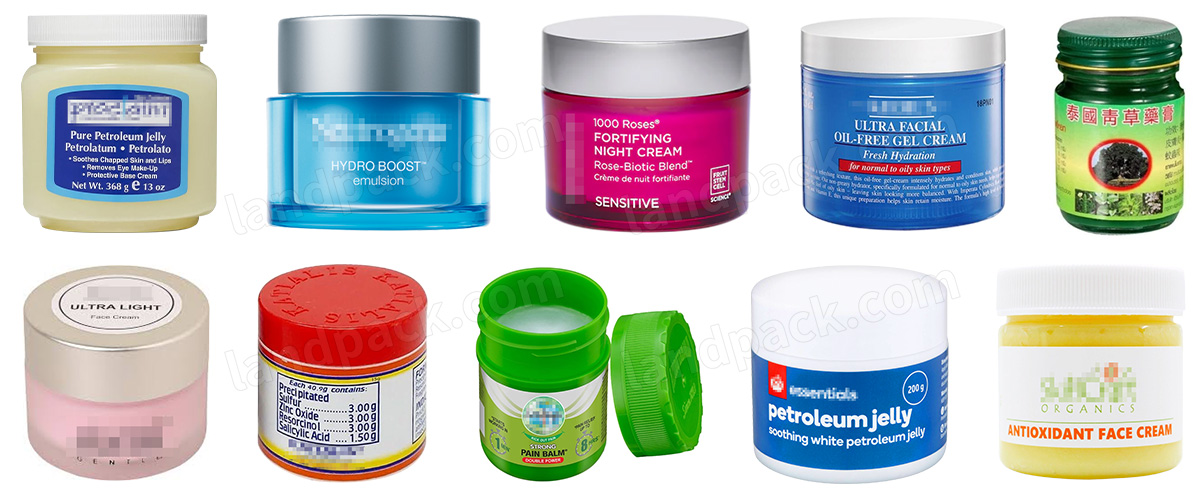

Suitable Products:

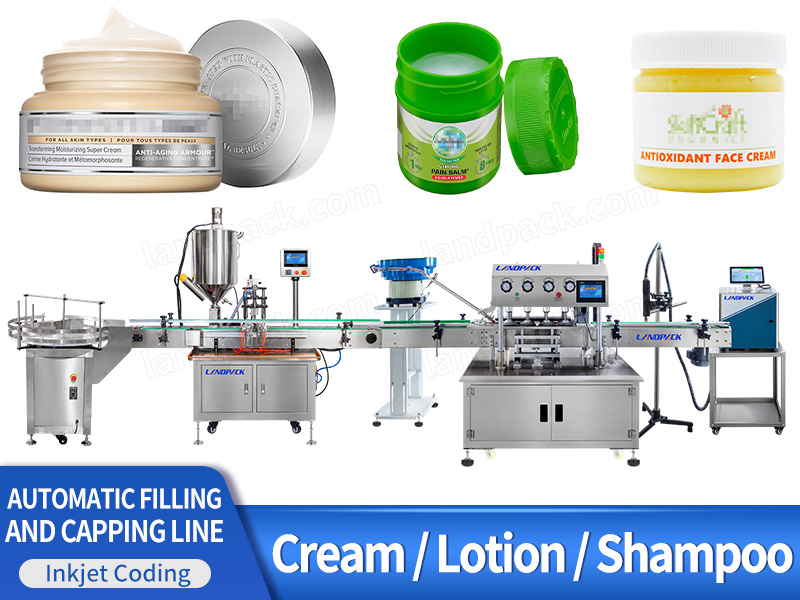

The cosmetic cream lotion filling machine—consisting of a bottle unscrambler, single-head gear pump filler, vibrating cap feeder, high-speed capping machine, and inkjet coder—is engineered for smooth, accurate, and hygienic filling of viscous products:

Personal Care & Cosmetics: facial creams, body lotion, moisturizing cream, cleansing gels.

Skincare Products: whitening cream, repair cream, anti-aging cream, sunscreen lotion.

Household & Daily Chemicals: hand cream, hand lotion, multipurpose soft creams.

Automatic Paste Filling Line | Cream Lotion Liquid Filling Capping Machine

FEATURES

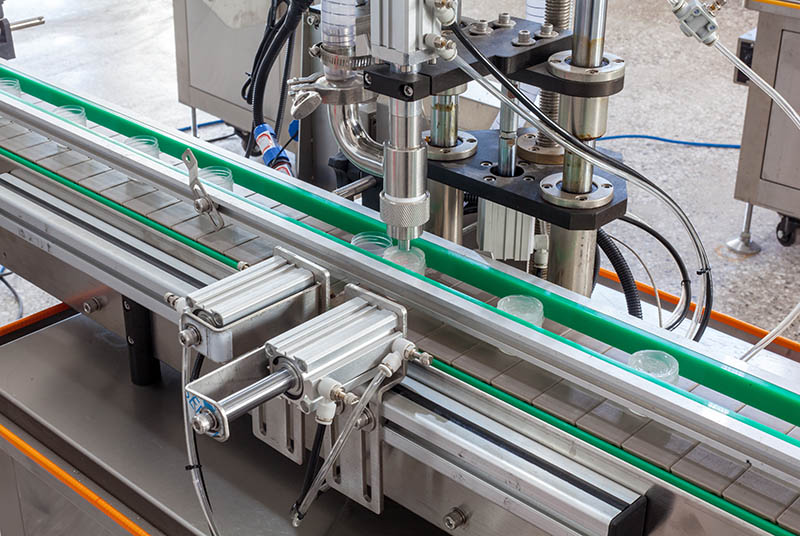

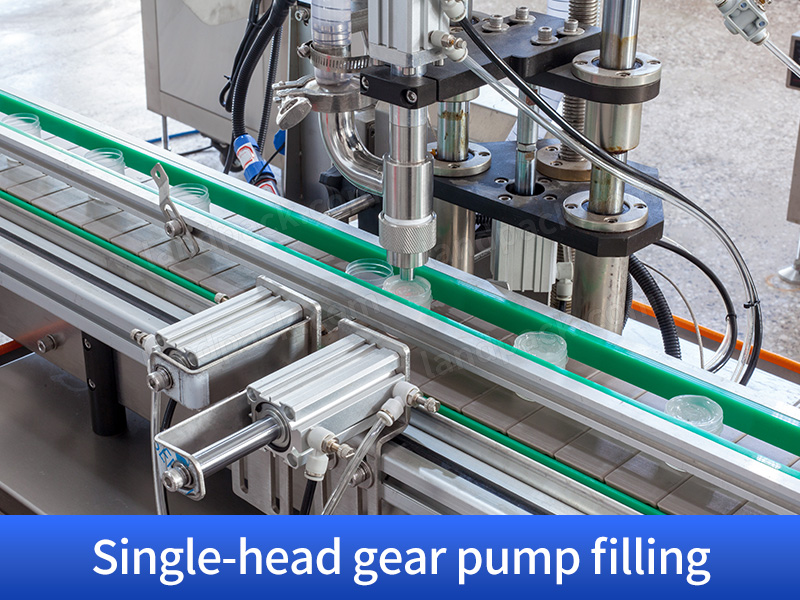

High-Precision Gear Pump Technology Utilizes a single-head gear pump that delivers stable, repeatable, and accurate filling performance, especially suitable for medium–high viscosity products like creams.

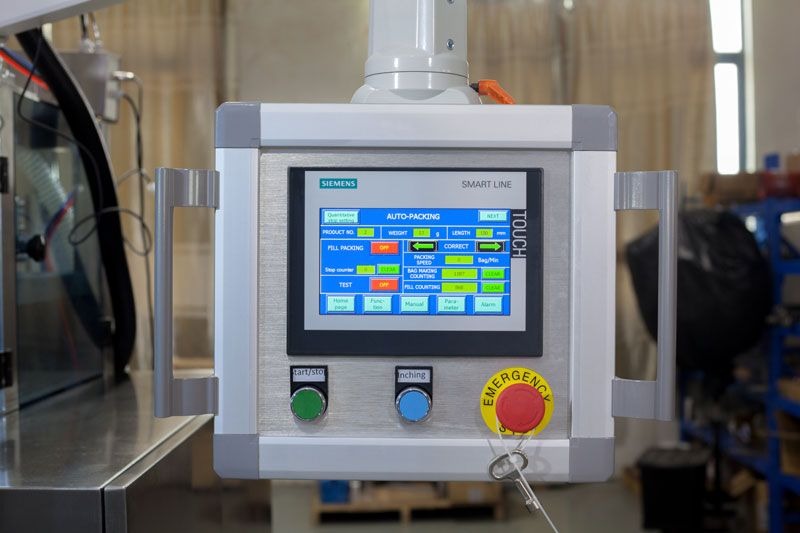

	Flexible Adjustment & Easy Operation Filling volume, speed, and parameters can be adjusted without tools, ensuring quick changeover and user-friendly operation for different bottle sizes.
Stable Bottle & Cap Handling System The bottle unscrambler and vibration bowl provide continuous, well-oriented feeding of bottles and caps, effectively reducing manual labor and production interruptions.

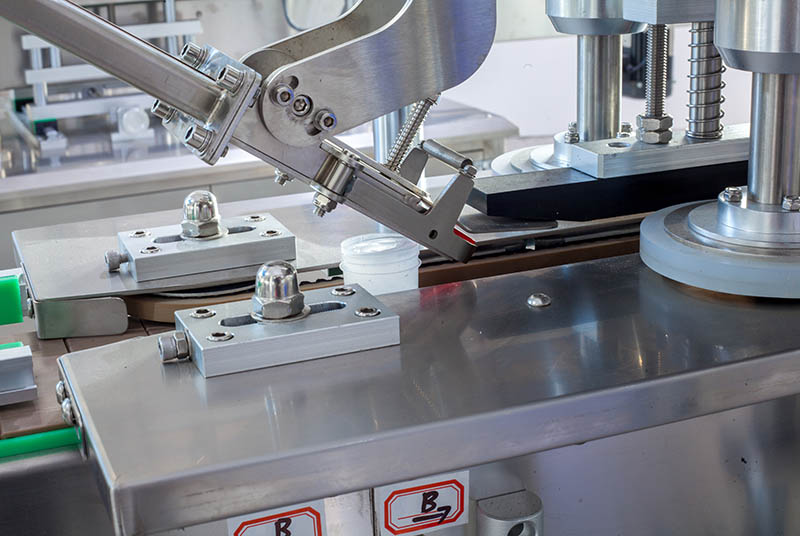

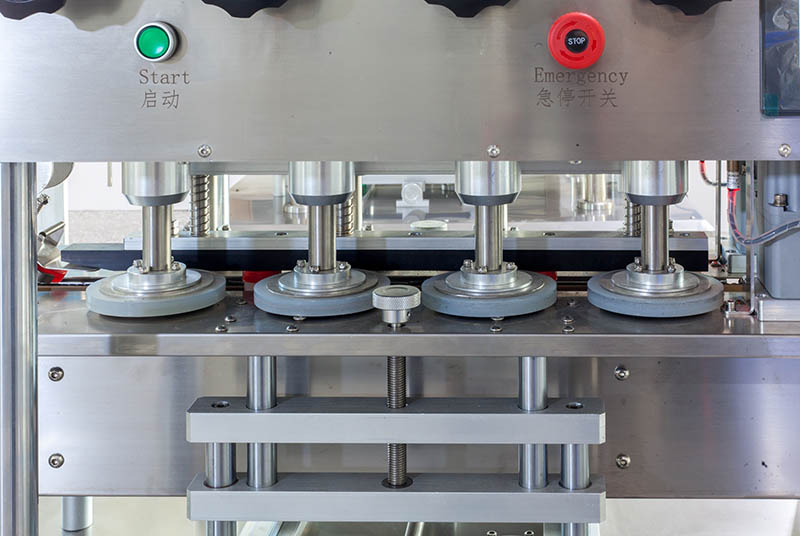

	High-Speed, Consistent Capping The capping system applies secure tightening torque, ensuring leak-proof and uniform closure for cosmetic, skincare bottles.
Integrated Coding Function Built-in inkjet printer supports real-time printing of dates, batch codes, and traceability information

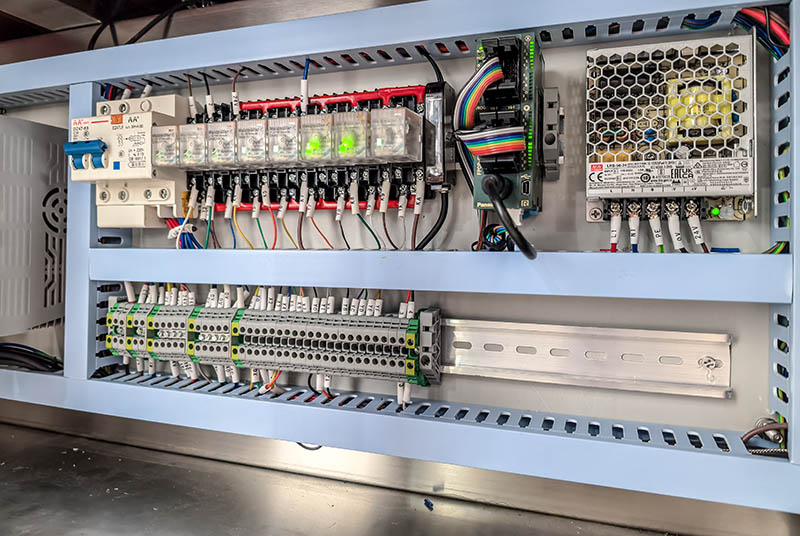

	Quality Electrical Components Equipped with reliable, internationally recognized electrical brands to ensure long machine life, stable performance.

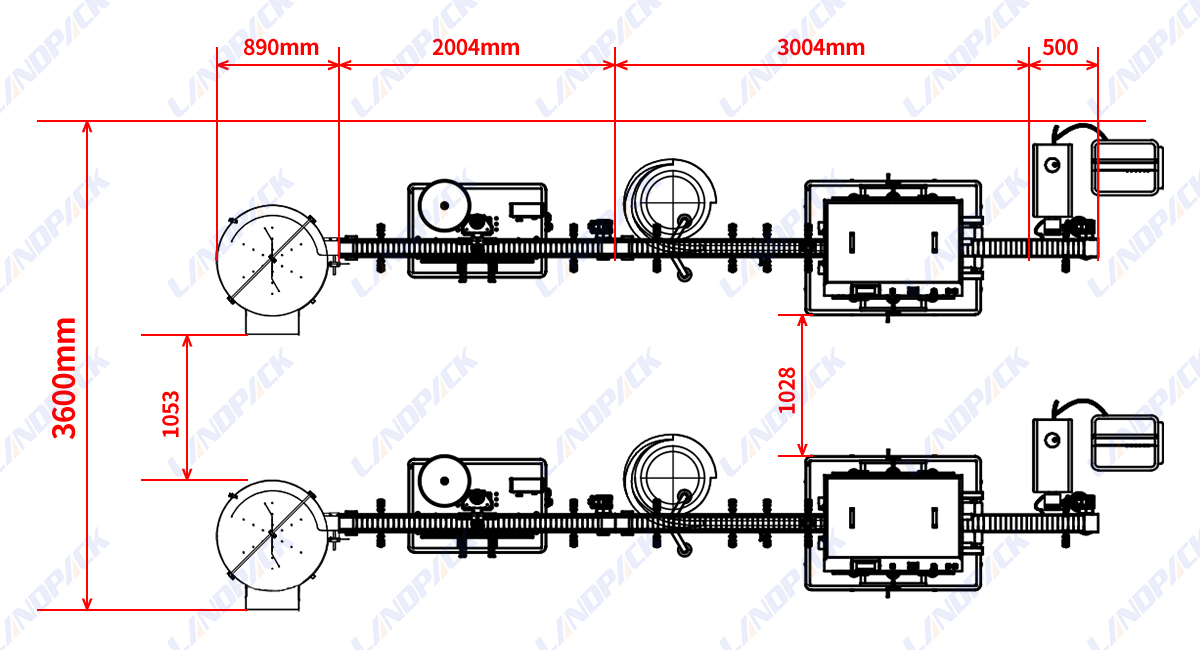

Machine Structure Overview:

1. Bottle Sorting Machine

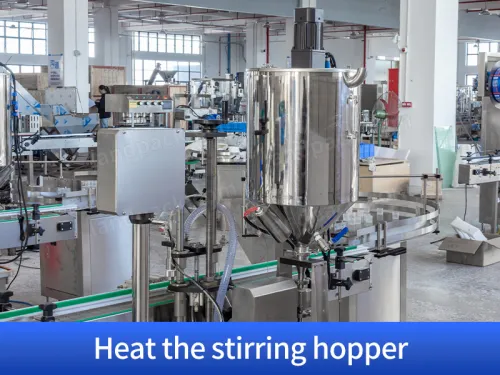

2. Single Head Gears Pump Filling Machine

3. Vibrating Tray Cap Feeder

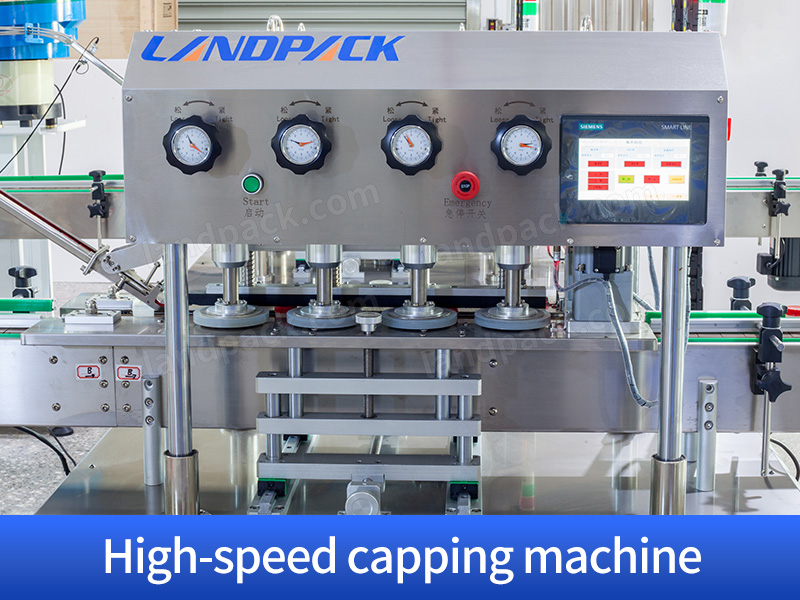

4. High-Speed Capping Machine

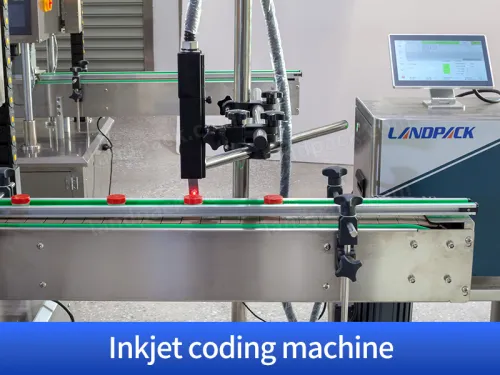

5. Inkjet Coding Machine

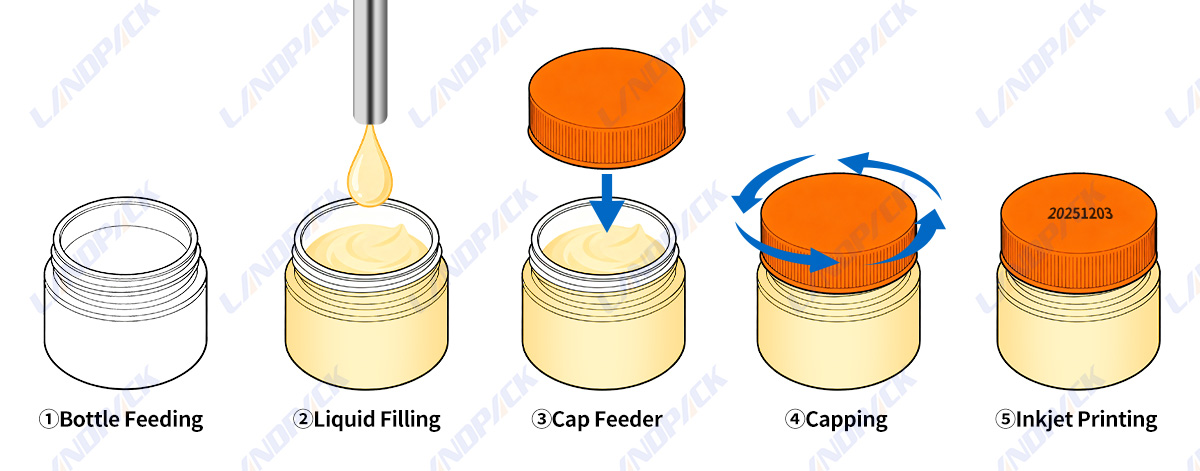

WORKFLOW

Bottle Sorting

Cream Filling

Cap Feeding

High-Speed Capping

Inkjet Coding

PARAMETER

Bottle Liquid filling machine
Model	LFZ-01/02/03/04	LFZ-06	LFZ-08	LFZ-10	LFZ-12
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min	<60 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

	Inkjet Printer Machine
	Power supply	220V 60Hz
	Printing speed	1024 seconds (5*7)
	Printing materials	paper,plastic products,pipes,food bags,metal,glass, paper cups,etc.
	Store information	The system can store 1000 print information
	Machine size	length 370mm width 260mm height 500mm
	Ink consumption	70 million words per print (5*7)
	Machine weight	21kg
	Package size	560350570mm
