Case Packing System | Intelligent Packaging System

Introduction:

This packing system integrates automatic case erecting, sealing, strapping, and case labeling into one compact end-of-line solution.

Application:

Designed for automatic end-of-line case handling of finished products such as snack bags, pillow pouches, sachets, bottled detergents, shampoo bottles, seasoning jars, canned foods, tissue boxes, hardware kits, and daily-use consumer goods.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Designed for handling packed products in cases and corrugated cases, supporting customized case sizes.

Compatible with products packed in pillow pouches, sachets, bags, bottles, jars, and cans.

Suitable Products:

Designed for end-of-line case packing and identification, this system handles a wide range of products after primary packaging.

Food & Beverage Products: Snack bags in cartons, bottled drinks, canned foods, seasoning boxes, dairy product cartons.

Daily & Household Products: Detergent bottles, tissue boxes, cleaning product cartons, personal care products.

Industrial & Consumer Goods: Hardware packs, electronic accessories, automotive parts, medical supplies in cartons.

Case Packing System | Intelligent Packaging System

FEATURES

1. Automatic Case Erector: Automatically retrieves, expands, and seals carton bottoms, ensuring uniform box geometry and stable downstream flow.

2. Case Sealing Unit: Delivers consistent and secure top closures for various carton dimensions with effortless adjustment.

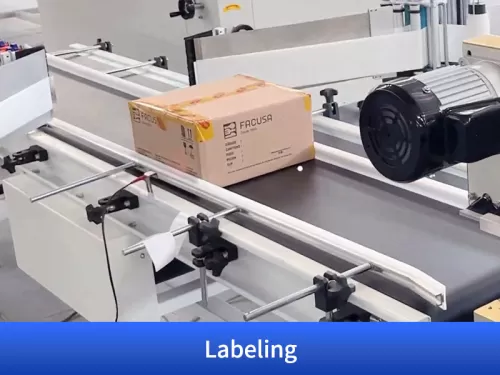

3. Traceability Labeling: Applies high-precision labels for batch coding, production data, and logistical tracking, enhancing product transparency.

4. Integrated Synchronization: All modules are linked via automated conveyors, ensuring a seamless, continuous workflow with minimal manual oversight.

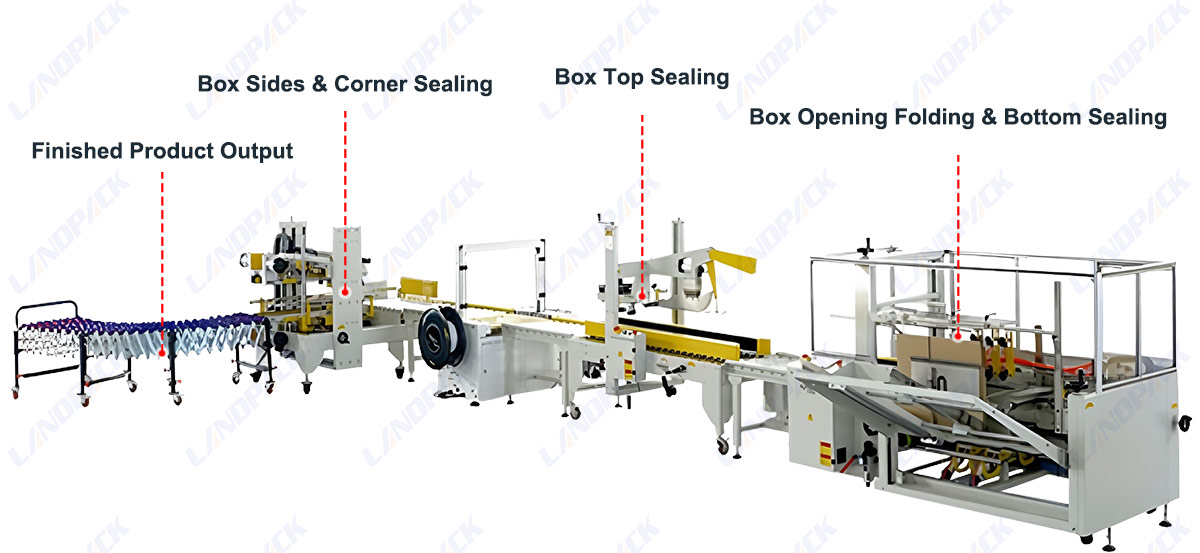

Machine Structure Overview:

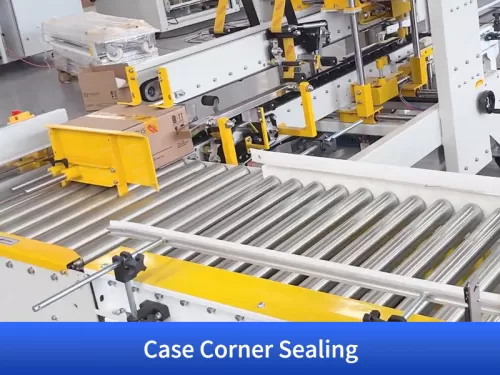

1. Box Sides & Corner Sealing

2. Finished Product Output

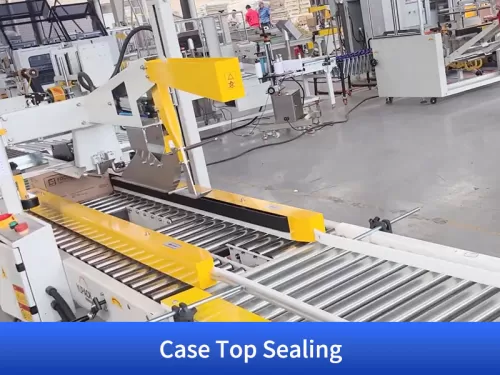

3. Box Top Sealing

4. Box Opening Folding & Bottom Sealing

Case Packing System | Intelligent Packaging System

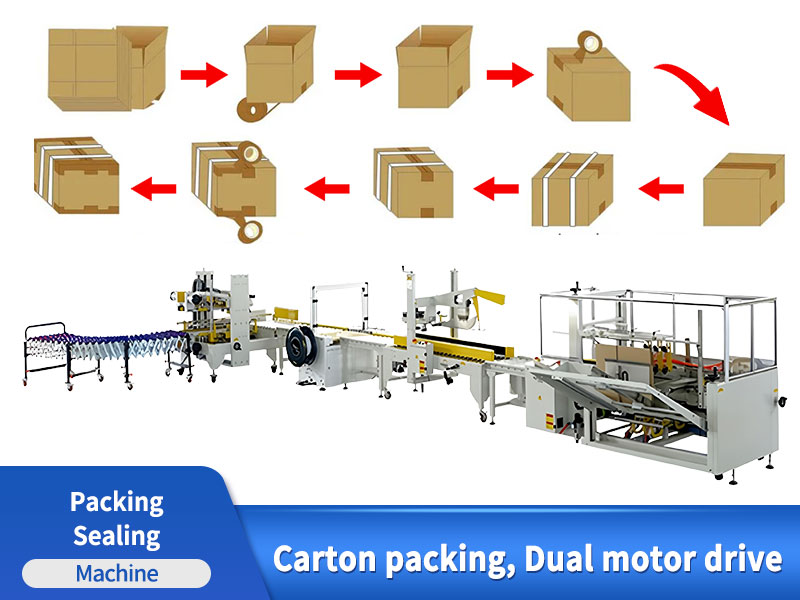

WORKFLOW

Carton Erecting

Product Infeeding

Carton Loading

Carton Sealing

Strapping (Optional)

Carton Labeling

Finished Carton Output

PARAMETER

Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
Stretch Wrapping
Pallet Size	L1200 × W1200 mm
Turntable Speed	Variable speed with soft start & stop function
Wrapping Height	1800 mm
Loading Weight	MP 303B: 2000 kg; MP 303A: 1000 kg
Pre-stretch Ratio	150%
Turntable Height	550 mm
Carriage Speed	3 m/minute
Cut Method	Heater-based cutting
Packing Speed	15–30 pallets/hour
Power	2.1 kW
Machine Voltage	3PH 380V, 50/60 Hz, 20A
Machine Weight	1800 kg
Control System	PLC programmable control
Working Method	Fully automatic, unmanned operation
Air Pressure	0.4–0.7 MPa
