Intelligent Food Packaging Systems With Robot Packer & Palletizer

Introduction:

Maximize efficiency with our automated food packaging systems. From robotic packing to smart palletizing, this system ensures high-speed, accurate, and hygienic packaging for various food products.

Application:

Our food packaging systems with robotic packers and palletizers are ideal for food factories, especially pickled and canned food production, cartoning and palletizing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Our food packaging systems with robotic packers and palletizers are ideal for food factories, especially pickled and canned food production, cartoning and palletizing.

Package Type:

This filling, packaging and palletizing line is made for different rigid packaging containers like tin cans plastic bottles, glass jars and other can-type sealed containers.

Intelligent Food Packaging Systems With Robot Packer

Suitable Products:

This filling, packing and palletizing line has been specifically designed for canned and pickled food.

Pickled Foods: It is ideal for packaging products made of pickled ingredients, such as olives, cucumbers, pickled eggs, kimchi and pickled onions.

Canned Foods: A wide variety of canned food items are used in production, such as canned tuna and canned tomatoes canned soup, canned beans and canned fruit.

FEATURES

1. Dual-head Powder Filling Machine: High-accuracy servo-driven fillers ensure rapid cycles and maximum throughput.

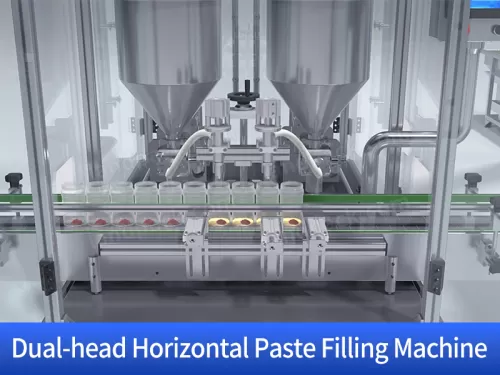

2. Dual-head Paste Filling Machine: Dual-head configuration delivers uniform dispensing for semi-liquids and high-viscosity materials.

3. Granule Turntable Filling Machine: Automates material measurement via a rotating mechanism for continuous, stable flow.

4. Liquid Filling Machine: Handles diverse liquids with exact precision, minimizing waste in a sanitary environment.

5. Automatic Capping Machine: Provides secure, high-speed sealing for bottles, canisters, and jars.

6. Labeling Machine: Applies labels with extreme precision to enhance product aesthetics and traceability.

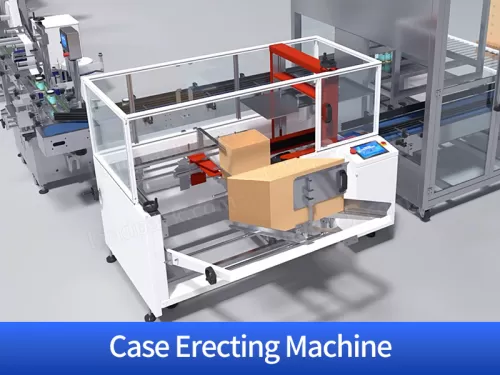

7. Case Erector: Shapes and seals carton bottoms to ensure structural rigidity for continuous production.

8. Case Packing Robot: Executes rapid product insertion, reducing labor while improving uniformity.

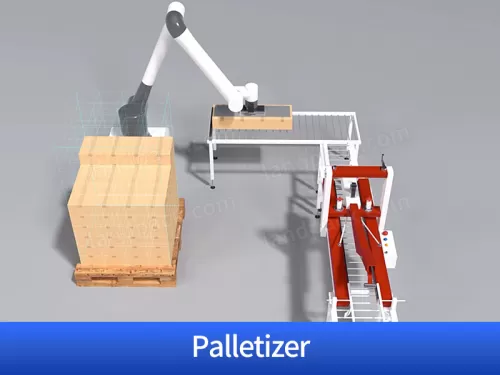

9. Robot Palletizer: Organizes cartons into pre-defined patterns, optimizing end-of-line logistics and labor efficiency.

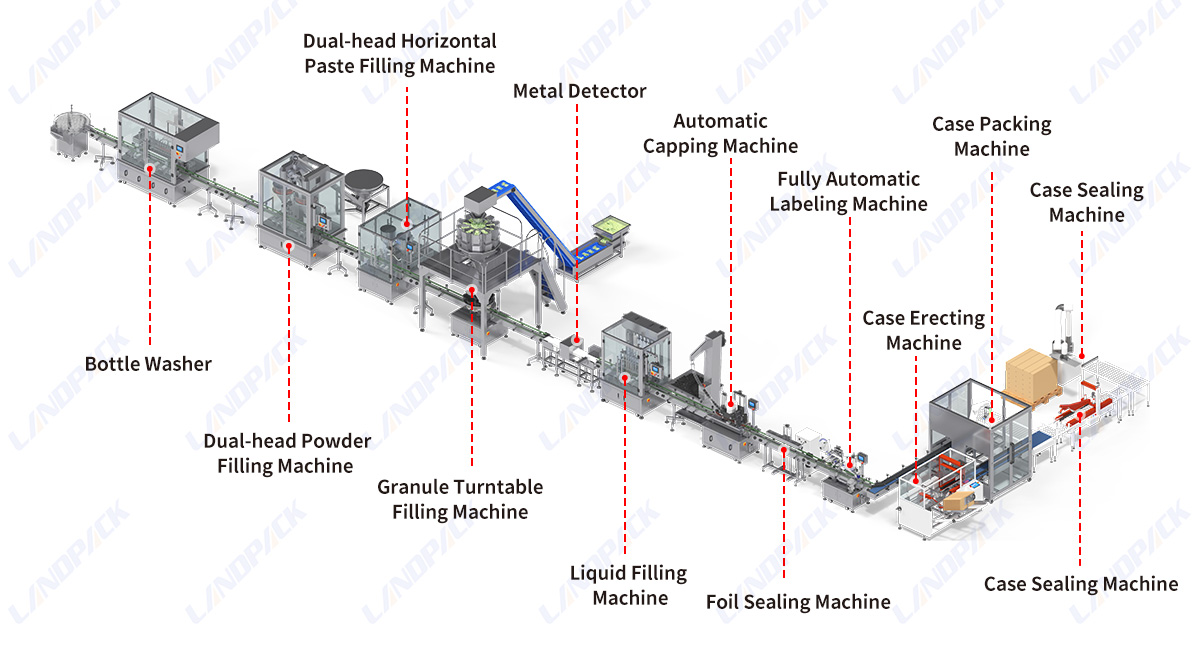

Machine Structure Overview:

1. Bottle Washer

2. Dual-head Powder Filling Machine

3. Dual-head Horizontal Paste Filling Machine

4. Granule Turntable Filling Machine

5. Metal Detector

6. Liquid Filling Machine

7. Automatic Capping Machine

8. Foil Sealing Machine

9. Case Packing Machine (Case Erector/Packer)

10. Case Sealing Machine

Intelligent Food Packaging Systems With Robot Packer

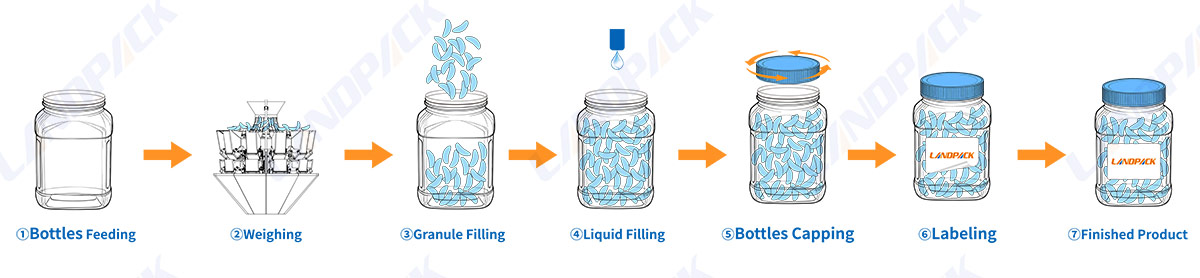

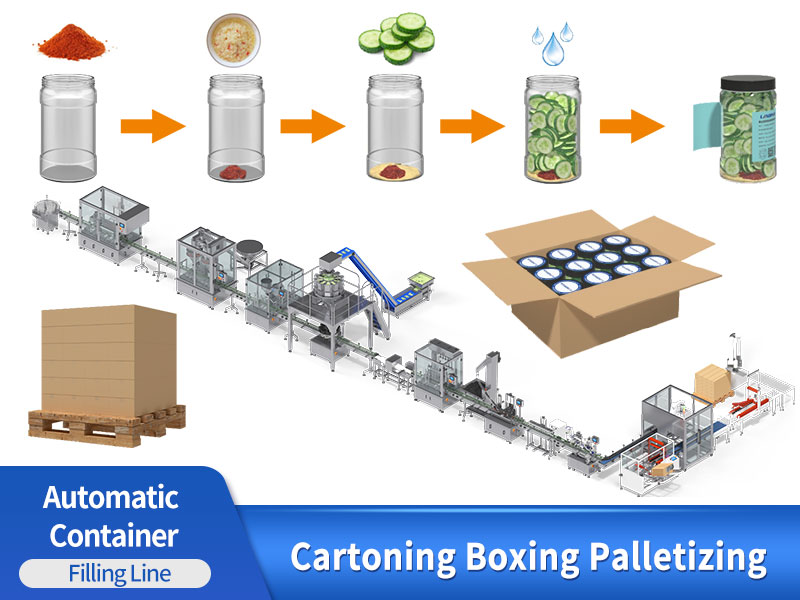

WORKFLOW

Seasoning Powder Filling

Garlic Filling

Pickled Vegetable Filling

Soup (Brine) Filling

Canning/Bottling & Labeling

Box Case Packing

Carton Sealing

Palletizing

PARAMETER

Powder filling machine
Measuring mod	Auger screw dosing model
Container size	Φ30-130mm H50-250mm(can be customized)
Filling weight	50g-500g(can be customized)
Filling accuracy	500g,≤±1%
Filling speed	20-30 bottles/min(depend on the material and weight)
Auger hopper	50L
Power supply	220V, 50Hz/60Hz
Piston filling machine
Filling head	2 Heads(can be customized)
Metering way	Piston pump
Filling range	100-1000ml(can be customized)
Filling speed	40-50 bpm
Bottle width/diameter	30-130mm(can be customized)
Machine body	SS 304
Granule filling machine
Material of machine	Stainless Steel 304, 1.2mm thickness
Filling Speed	25-30bpm(Whole line speed)
Measuring Method	Weighing system
Filling photocell sensor	Included, no bottle no filling
Filling Accuracy	0.5-1.0 g
Air Consumption	0.6-0.8 MPa, 0.03 m³/min
Machine weight	350kg
Conveyor belt motor	2.5KW, Single phase 220V 50/60Hz
Self-flow filling machine
Filling head	6 Heads(can be customized)
Metering way	Gravity self-flow
Filling range	100-1000ml(can be customized)
Filling speed	30-40 bpm
Bottle width/diameter	30-130mm(can be customized)
Pair Clamp type capping machine
Material of machine	SS304
Cover diameter	Diameter 30-80mm
Min Cover height	10mm
Bottle height size	100-250mm (Customized is acceptable)
Speed	30-40bpm (depends on material and cover size)
Conveyor size	(L)3000(W)114(H)900mm
Machine size	(L)2000(W)900*(H)1600mm
Machine weight	N.W250kg, G.W320kg
Power	220V, 50HZ, 2KW
Air consumption	0.5-0.7mpa
Automatic Aluminum foil sealing machine
Cooling mould	Water cooling
Sealing diameter	Max 60 mm(can be customized)
Sealing speed	1-20meters/min
Induction head size	(LWH) 670×125×95 mm
Main machine dimension	(LWH) 6004601100mm
Labeling Machine
Model	LD-RBL
Labeling Speed	20-60 bottles/min
Accuracy	± 1mm
Label Width	100-200mm (customizable)
Bottle Size	φ30-φ80mm (customizable)
Inner Diameter of label roll	φ76mm
Outer Diameter of label roll	φ330mm
Air Source	4-6 kg, 30 L/min
Dimension	20008001600mm
Voltage/Weight	220V, 50Hz/60Hz, 2000W
Carton erector
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Carton Box Case Sealer
Voltage	220V/380V, 50HZ/60HZ
Table height	600-750mm
Tape	W: 48-75mm
Speed	480*600 cartons/h
Carton size	L: 320-500W: 180-500H: 180-500mm
Machine weight	110kg+350kg
Machine size	191011501400
Robot palletizing
Structural form	Six-joint robot
Degree of freedom	Six-axis
Payload	25KG
Maximum radius of motion	1805
Motion range	1 axis: ±180°, 2 axis: -125°~+90°, 3 axis: -77°~202°, 4 axis: ±180°, 5 axis: ±125°, 6 axis: ±360°
Main body weight	191kg
Power	7.7KW
