Case Packing Robot | Packaging Systems

Introduction:

This automatic packing system is applied to an end-of-line packaging solution, integrating carton erecting, sealing, palletizing, and pallet wrapping into one continuous workflow.

Application:

This automatic packing system is designed for end-of-line carton packing and palletizing of finished products such as snacks, biscuits, confectionery, detergent, spice, frozen food, daily chemical products, and household goods.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This packaging systems are designed for automatic handling of cartons, cases, and boxes throughout erecting, sealing, and palletizing processes.

Case Packing Robot | Packaging Systems

Suitable Products:

This automated packing system is designed for carton erecting, carton sealing, and palletizing of products：

Food & Beverages: Snack cartons, biscuit boxes, chocolate bar boxes, bottled beverage cases, instant noodle boxes, dairy product cartons.

Daily Chemical Industry: Detergent cartons, shampoo and liquid soap boxes, tissue paper cases, household cleaner boxes, personal care product cartons.

Pharmaceutical & Health Products: Medicine cartons, health supplement boxes, vitamin bottle cases, medical supply cartons, nutraceutical product boxes.

Case Packing Robot | Packaging Systems

FEATURES

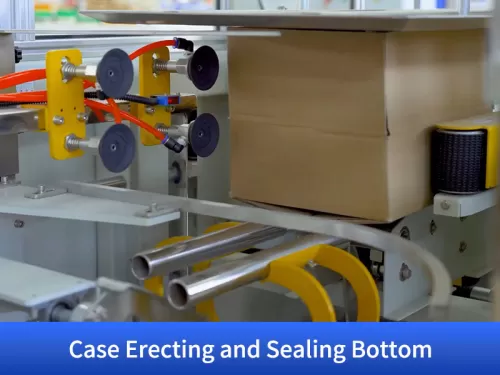

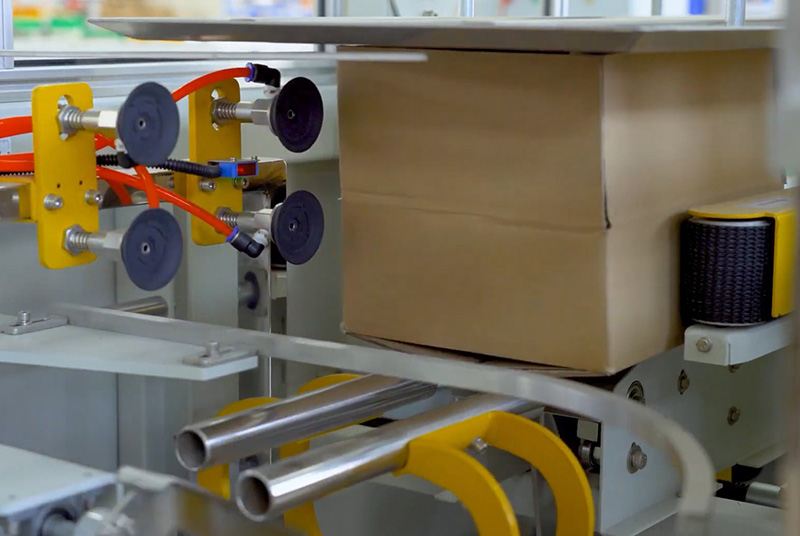

Automatic Case Erector Forms cartons accurately and continuously, ensuring stable box supply for downstream packing.

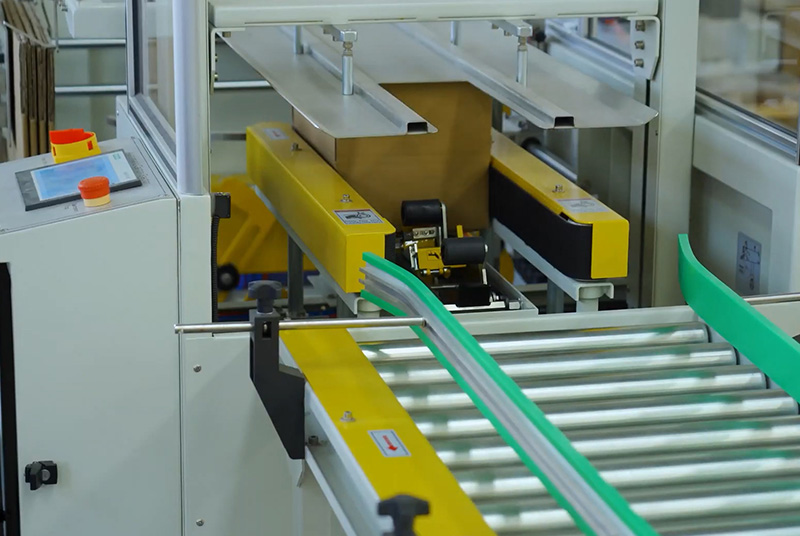

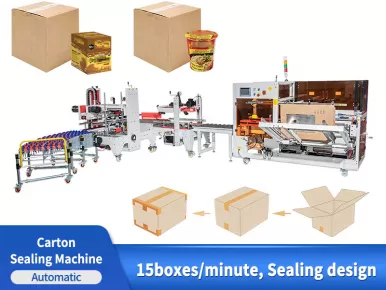

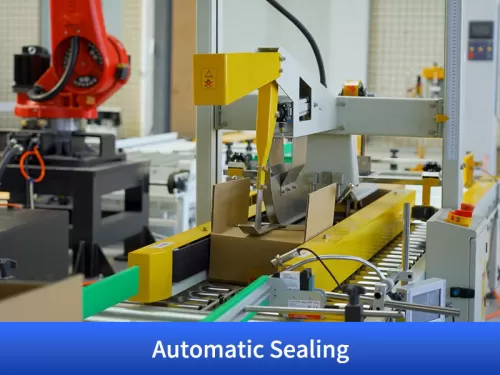

	Carton Sealing Machine Provides consistent I-shape or customized sealing, ensuring strong and reliable carton closure.

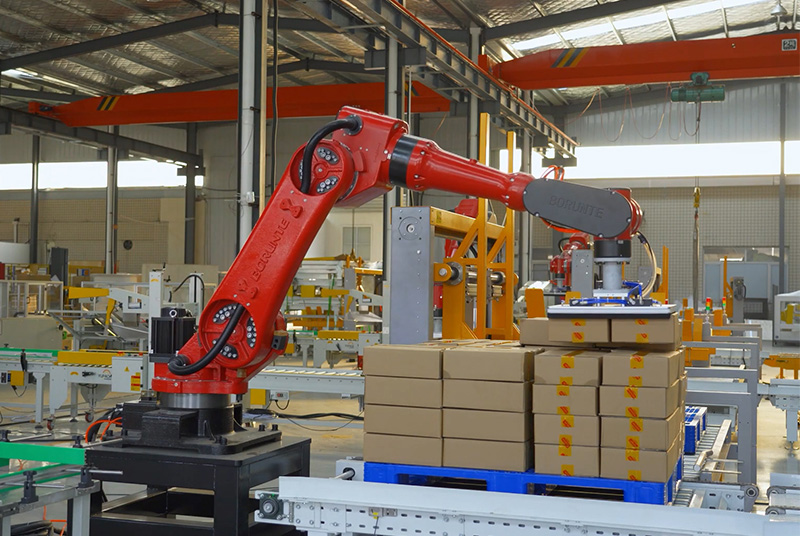

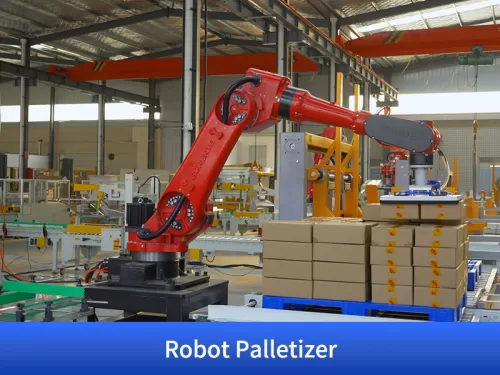

Robotic Palletizer Automatically stacks cartons with precise positioning, supporting multiple pallet patterns and layouts.

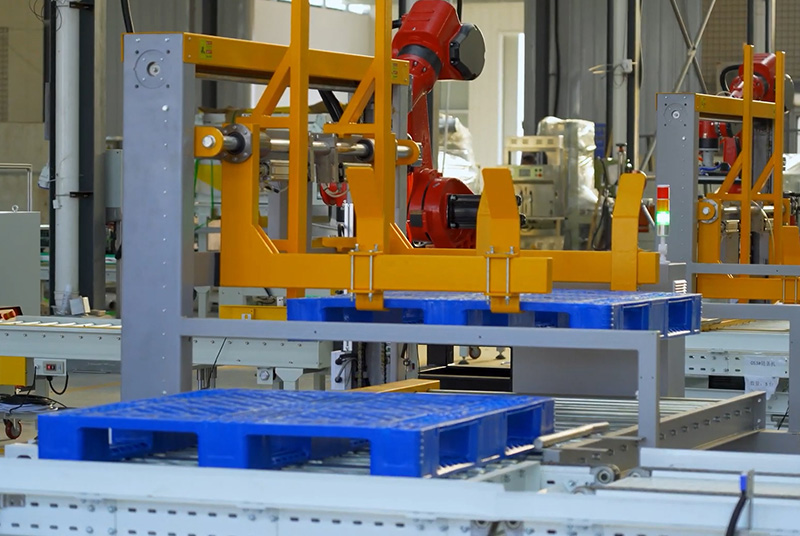

	Pallet Dispenser Automatically supplies empty pallets to the palletizing station, reducing manual handling and downtime.
Pallet Wrapping Machine Applies uniform stretch film wrapping to secure pallet loads and improve transport stability.

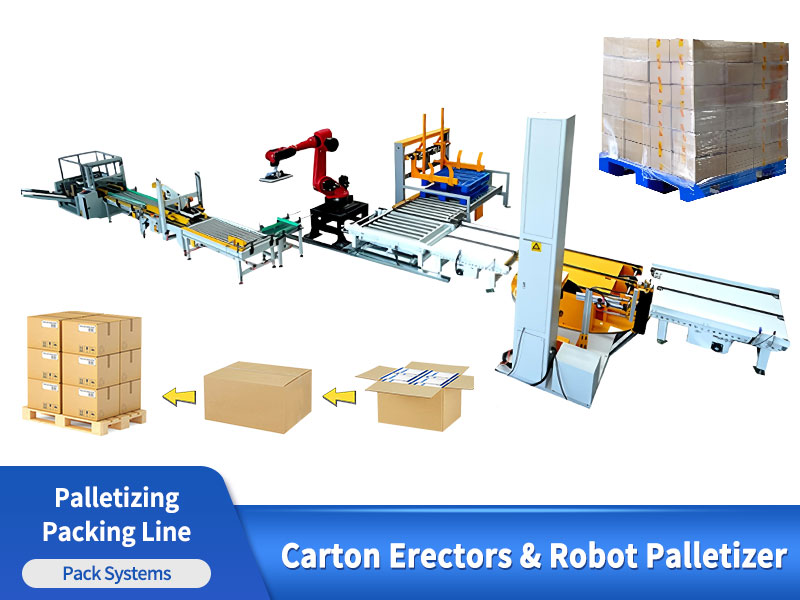

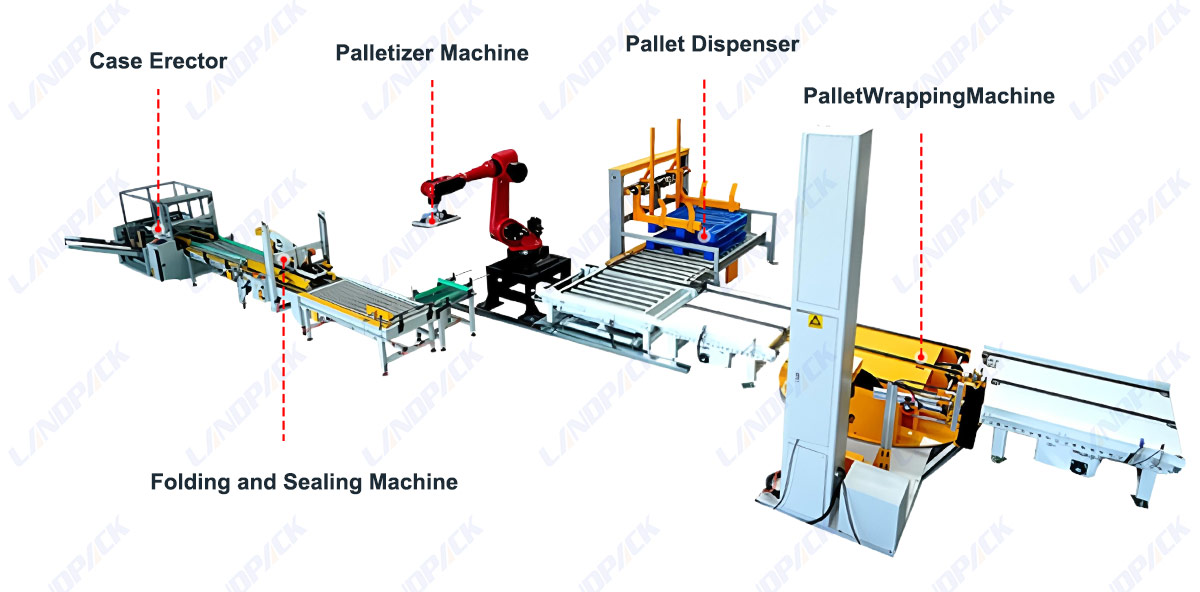

Machine Structure Overview:

1. Box Opening Folding& Bottom Sealing

2. Robot Palletizer

3. Box Case Sealer

Case Packing Robot | Packaging Systems

WORKFLOW

Carton Forming

Carton Sealing

Pallet Supplying

Palletizing

Pallet Wrapping

PARAMETER

Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
palletizer machine
Palletizing Speed	17 cycles/minute
Payload Capacity	130 kg / 180 kg
Repeatability	±0.5 mm
Reach (Arm Span)	3,255 mm
Degrees of Freedom	4-axis
Mounting	Floor-mounted
Protection Rating	IP67 (standard); Optional IP69K for washdown
Stretch Wrapping
Pallet Size	L1200 × W1200 mm
Turntable Speed	Variable speed with soft start & stop function
Wrapping Height	1800 mm
Loading Weight	MP 303B: 2000 kg; MP 303A: 1000 kg
Pre-stretch Ratio	150%
Turntable Height	550 mm
Carriage Speed	3 m/minute
Cut Method	Heater-based cutting
Packing Speed	15–30 pallets/hour
Power	2.1 kW
Machine Voltage	3PH 380V, 50/60 Hz, 20A
Machine Weight	1800 kg
Control System	PLC programmable control
Working Method	Fully automatic, unmanned operation
Air Pressure	0.4–0.7 MPa
