Automatic Delta Robot Case Packing System With Palletizing Solutions

Introduction:

The Automatic Delta Robot Case Packing System with Palletizing Solutions is an advanced case packing system designed for high-speed and automated packing lines.

Application:

This system is widely used in food, beverage, and consumer goods industries, helping manufacturers improve production efficiency, reduce labor costs, and achieve stable, continuous operation in modern automated packing lines.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The Automatic Delta Robot Case Packing System with Palletizing Solutions is an advanced case packing system designed for high-speed and automated packing lines. This system is widely used in food, beverage, and consumer goods industries, helping manufacturers improve production efficiency, reduce labor costs, and achieve stable, continuous operation in modern automated packing lines.

Package Type:

This automatic packing system is suitable for packing different premade pouches in case such as stand up pouches, flat pouches, M shape pouches, spout pouches, etc.

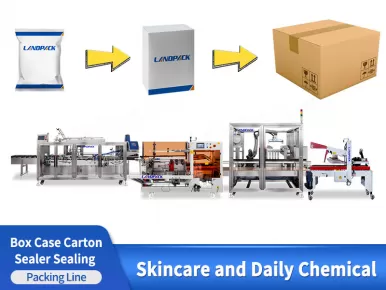

case packing system

Suitable Products:

This automatic packing system is used in the food, daily chemicals, and medical industries.

- Food: juice, soy sauce, ketchup, peanut butter, etc.

- Daily Chemicals: shampoo, hand soap, laundry detergent, lotion, etc.

- Medical: antiseptic liquid, syrup, nutrient solution, oral liquid, etc

palletizing solutions

FEATURES

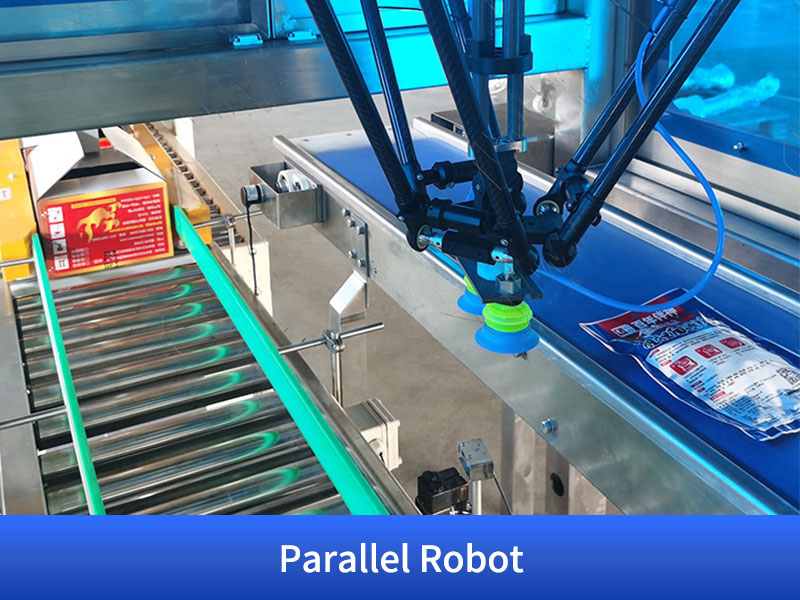

Parallel Robot High-speed parallel (delta) robot precisely picks and places products into cases, ensuring accurate positioning, flexible packing patterns, and smooth operation for modern automated packing lines.

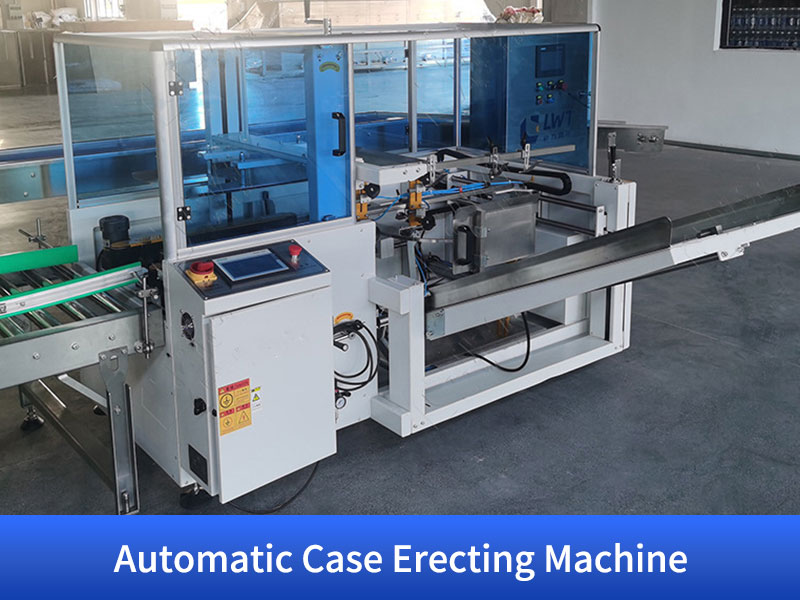

	Automatic Case Erecting Machine Automatically forms and squares cartons from flat blanks, reducing manual labor while providing stable, ready-to-fill cases for high-speed production.

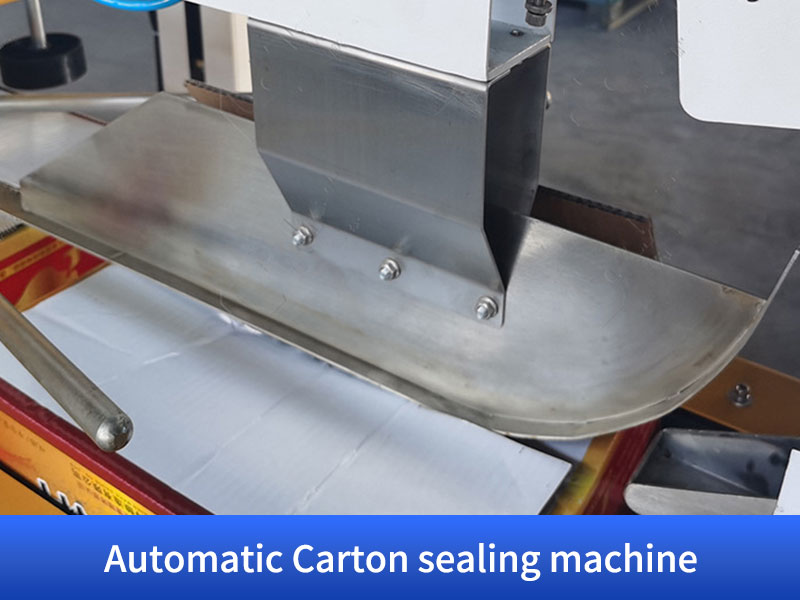

Automatic Carton Sealing Machine Seals filled cartons consistently with tape or glue, guaranteeing strong carton integrity, protecting products during transport, and minimizing downtime.

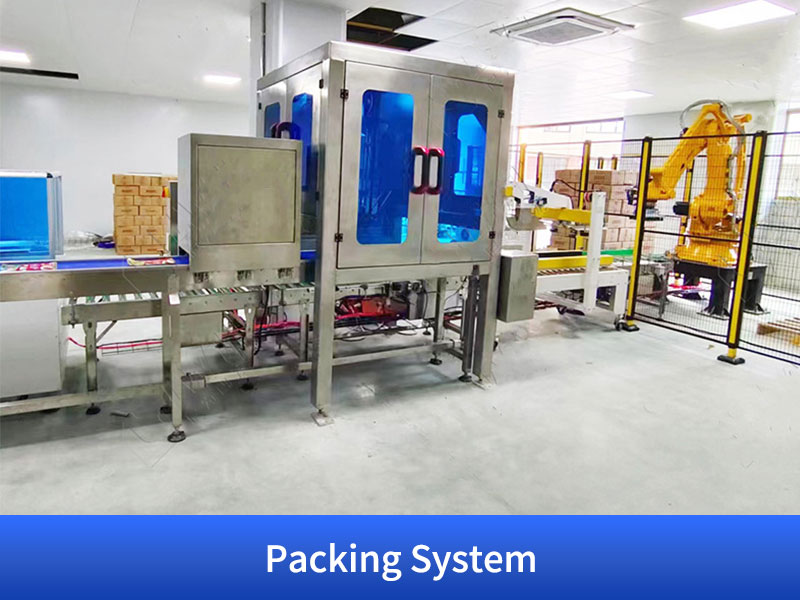

	Packing System Fully integrated packing system combining robot, case erecting, and carton sealing units, optimized for high-efficiency end-of-line operations with stable palletizing and reduced labor costs.

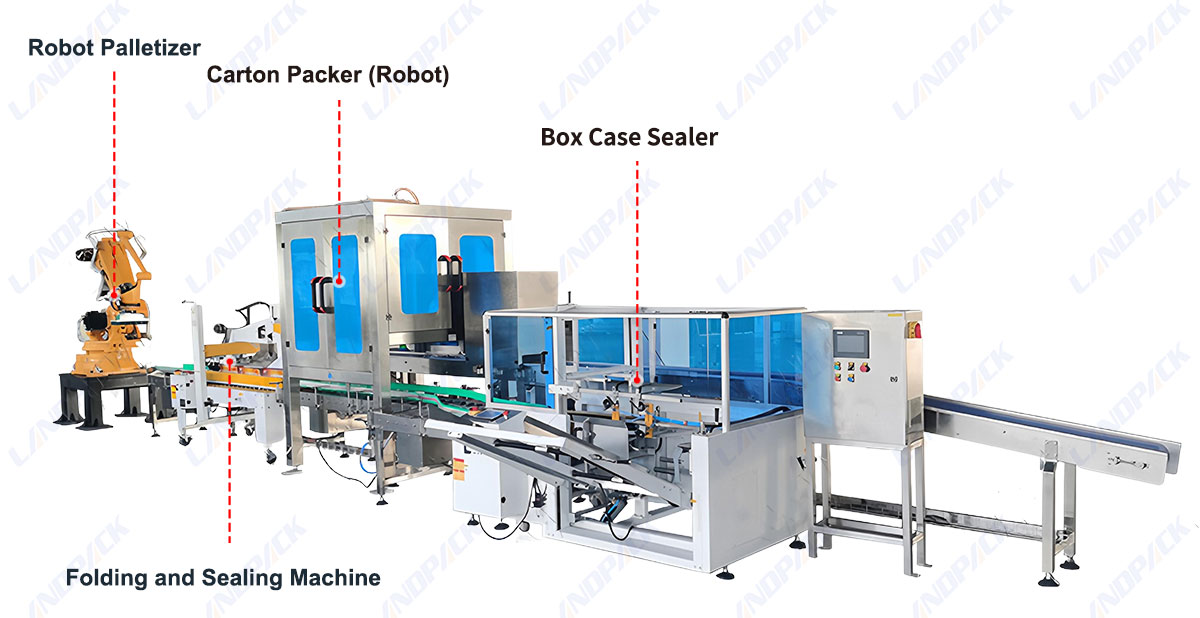

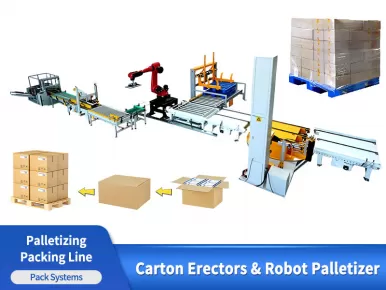

Machine Structure Overview:

1. Box Case Sealer

2. Case Packing Robot

3. Automatic Box Sealing Machine

4. Robot Palletizer

automatic packing system

food packaging systems

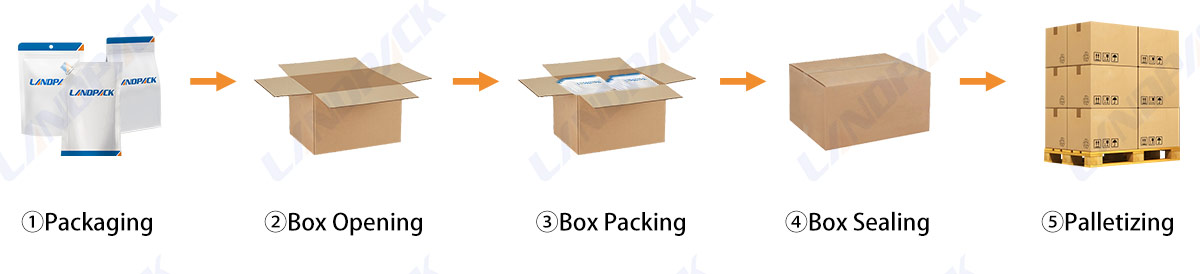

WORKFLOW

Automatic Premade Pouch Feeding

Case Erecting With High Precision

Robotic Pick & Place Pouches Into Cartons

Case Sealing Top Side

Palletizing For Storage Or Transport.

PARAMETER

Carton erecting machine
	Carton opening speed	10-12 cartons/min
	Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
	Power supply	220V, 50/60Hz, 1 Phase
	Power	2400W
	Adhesive tape width	48/60/75mm
	Carton storage quantity	80-100pcs(800-1000mm)
	Air consumption	450NL/min
	Air compressing	6kg/cm³
	Discharge table height	600+30 mm
	Machine size	L2100W2100H1450mm
	Machine weight	450Kg
Automatic Carton Packing Machine
	Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
	Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
	Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
	Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
	Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
	Packing way	Paper carton packer, plastic boxes(customized)
	Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
Carton Box Case Sealer
	Voltage	220V, 60HZ
	Table height	620-900mm
	Tape	W: 48-79mm
	Carton size	L: 200-600W: 150-500H: 150-500mm
	Machine weight	165KG
