Automatic Cartoning Packing System With Heat Shrink Machine

Introduction:

This automated system combines case packing with heat-shrink technology for a total end-of-line solution.

Application:

Optimized for food, beverages, and industrial goods, it streamlines cartoning and film-wrapping into one workflow.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Optimized for food, beverages, and industrial goods, it streamlines cartoning and film-wrapping into one workflow.

Package Type:

This automatic case packing system with heat shrink machine is suitable for loading heat shrink products from different industries into cases.

Automatic Cartoning Packing System With Heat Shrink Machine

Suitable Products:

This Robot Case Packer With Palletizing System is extensively used in the food, daily products that are already packed in boxes.
Food: Sauce, candy, cakes, drinks, sauce, instant noodles, chocolate, coffee, etc.
Daily Products: Accessories, mobile phone, shampoo, accessory, tissue, facial mask, toothpaste, crayons, etc.
Medical Supplies: Mask, syrup, medicine, condoms, adhesive bandage, e-cigarette, etc.

Automatic Cartoning Packing System With Heat Shrink Machine

FEATURES

1. L-Type Sealer: High-precision film cutting and sealing for a clean, professional finish.

2. Heat Shrink Tunnel: Uniform heat application for tight, secure, and aesthetic packaging.

3. Carton Erector: Automated box forming to increase labor efficiency and structural consistency.

4. Universal Conveyor: Flexible, seamless product transfer across the entire production line.

5. Top & Bottom Sealer: Synchronized dual-surface sealing for reliable carton protection.

6. Corner Sealer: Targeted edge reinforcement to prevent damage during transit.

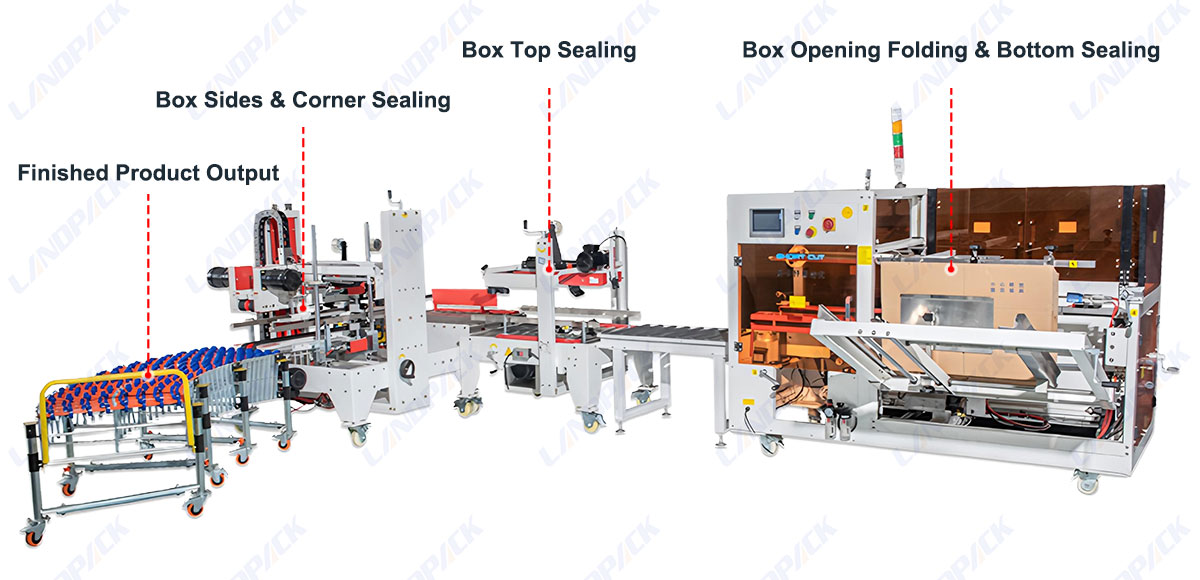

Machine Structure Overview:

1. Case Erector

2. Automatic L-Type Sealing Machine

3. Shrink Wrapping Machine

4. H-Type Sealer

Automatic Cartoning Packing System With Heat Shrink Machine

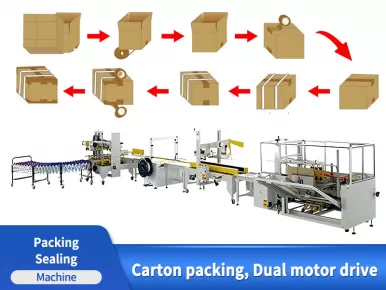

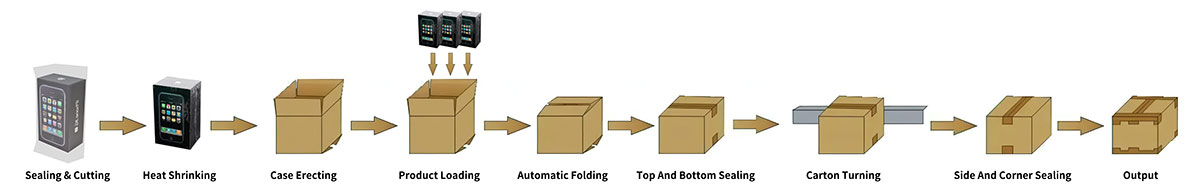

WORKFLOW

Sealing & Cutting

Heat Shrinking

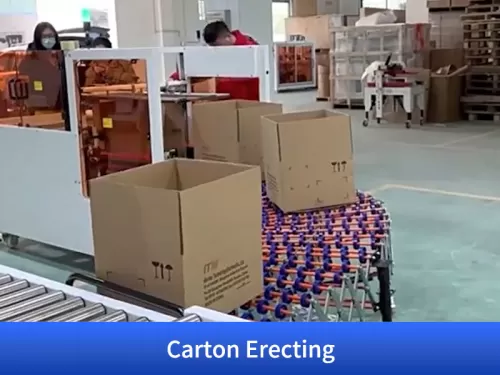

Case Erecting

Product Loading

Automatic Folding

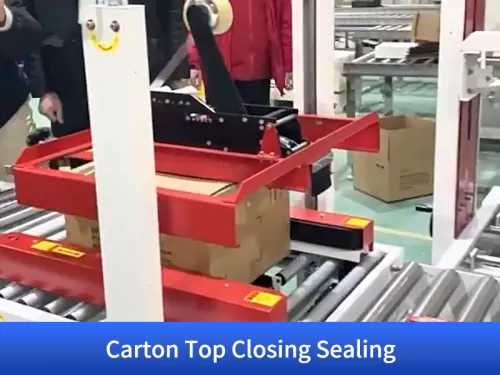

Top and Bottom Sealing

Carton Turning

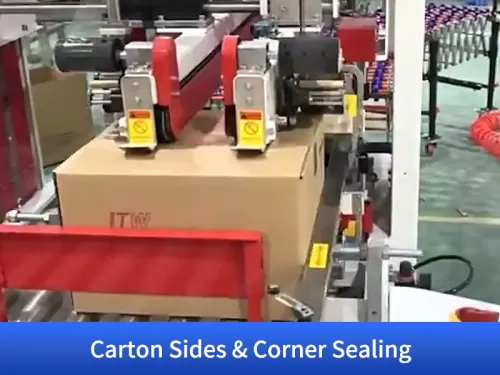

Side and Corner Sealing

PARAMETER

L type sealing cutting machine
Power Supply	AC 220V 1PH 60Hz
Power	1.8KW
Max. Packing Size	L＜500mm; W＜430mm; H＜130mm
Sealing Size	L550*W450mm
Table Height	800mm
Packing Speed	15-30pcs/min
Air Source	6kgf/c㎡
Shrink Film	POF
Film Size	(W)≤550mm;(D)≤250mm;(G)≤35KG
Sealing Type	L type full closed
Machine Size	(L)1800×(W)800×(H)1600mm
Package Size	(L)1850×(W)920×(H)1620mm
G./N. Weight	390/320kg
Heat shrink machine
Power Supply	AC 220/380V 3PH 50/60 Hz
Power	12KW
Table Height	800mm
Conveying Load	30KG
Conveyor Speed	1-15m/min
Tunnel Size	L1500×W450×H220mm
Overall Dimensions	L1910×W700×H1320mm
Package Size	L1960×W850×H1470mm
G./N. Weight	G./N. Weight
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg

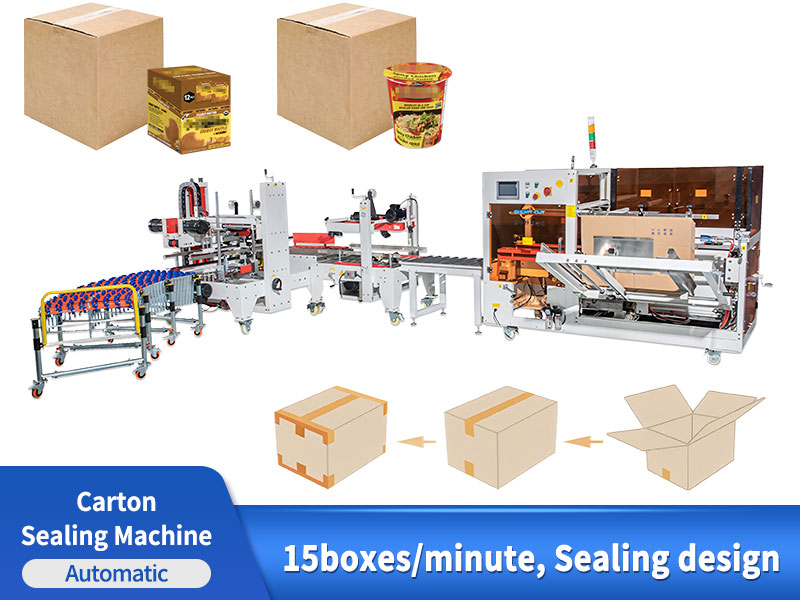

Carton Box Case Sealer
Voltage	220V/380V, 50HZ/60HZ
Table height	600-750mm
Tape	W: 48-75mm
Speed	480*600 cartons/h
Carton size	L: 320-500W: 180-500H: 180-500mm
Machine weight	110kg+350kg
Machine size	191011501400
