Automatic Box Case Carton Sealing Packing Machine Line

Introduction:

The automatic box case carton sealing packing machine line is designed for automatically loading prepacked bags into boxes and sealing them into cartons. It ensures neat arrangement, stable packing, and efficient output for automated packing lines.

Application:

Ideal for industries such as food and beverage, pharmaceuticals, cosmetics, and consumer goods, our system ensures precise, consistent packaging, reducing manual labor and improving production speed.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

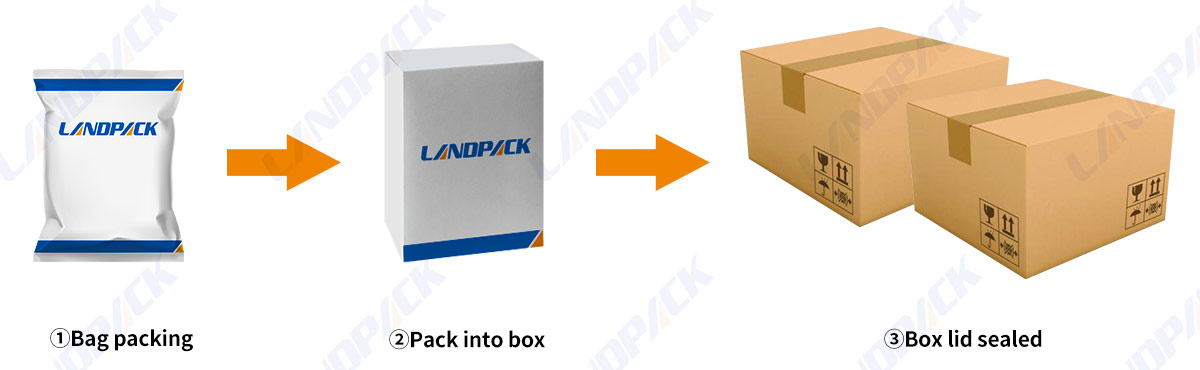

This automatic packing system completes box forming, product case packing, carton sealing, and output. It is suitable for various products such as chips, biscuits, nuts, candies, and baked foods, etc. As part of advanced food packaging systems, the line reduces labor costs, improves production efficiency, and ensures cartons are securely sealed for storage and transportation.

Package Type:

professional packaging system

Suitable Products:

This automatic box case carton sealing packing machine line is used for secondary packaging of snack products, packing finished bags or pouches into cartons efficiently and securely. It is suitable for high-speed packing lines and modern food packaging systems.

- Food Industry: Sauces, Nuts, Seasoning Powder, Grains

- Chemical & Household Products: Detergent Powder, Fertilizers, Desiccant, Cleaners

- Others: Pet Food, Nutritional Powders, Capsules, Insecticide

auto packaging systems

FEATURES

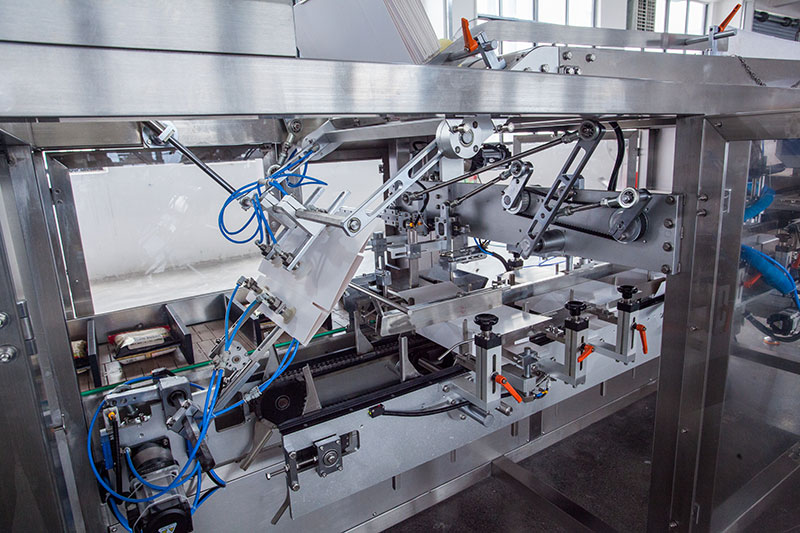

Box Case Sealer Automatically seals filled boxes designed for continuous operation, it improves packing stability and protects bagged snacks during transportation.

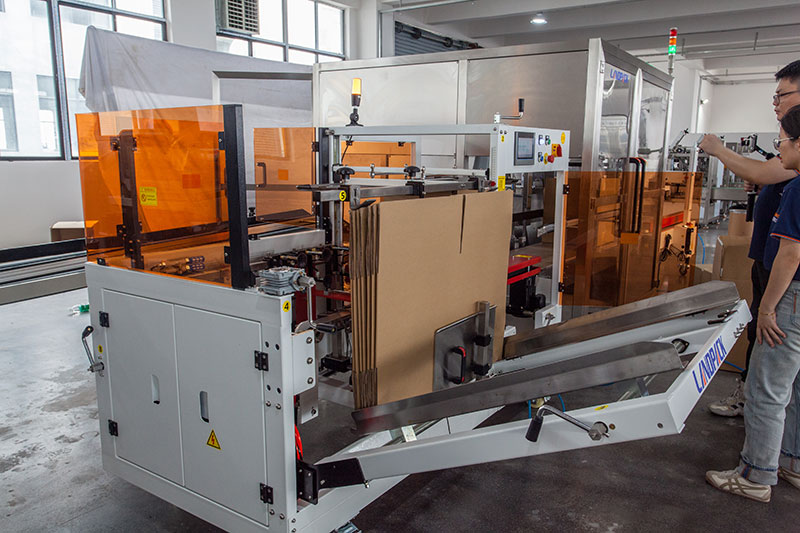

	Carton Erector Automatically forms and squares cartons from flat blanks, providing precise carton shaping and stable box opening. This unit reduces manual handling and supports high-speed packing line operation.

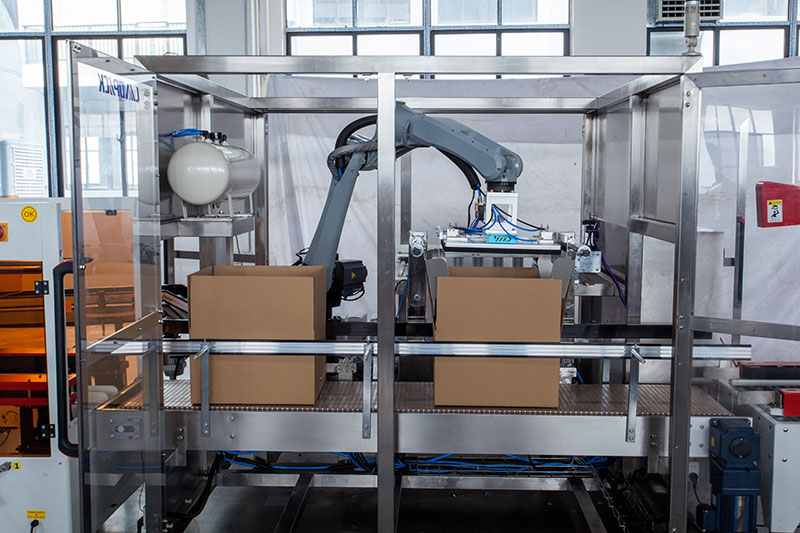

Case Packing Robot Intelligently picks and places pre-packed snack bags or boxes into cartons with high accuracy. Flexible program settings allow adaptation to different packing patterns and product sizes, improving efficiency and consistency.

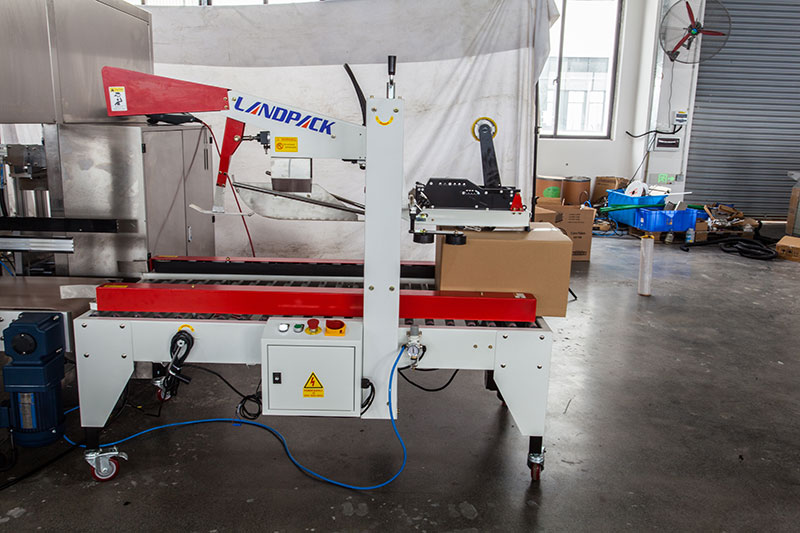

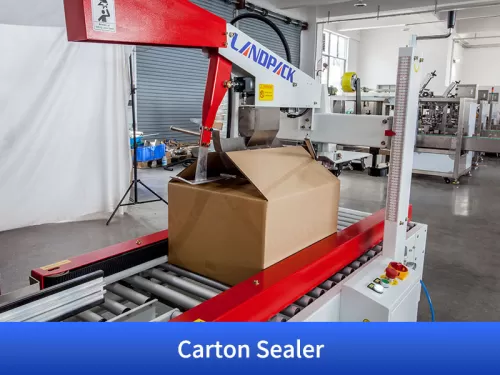

	Carton Sealer Completes top carton sealing with uniform tape application, ensuring clean sealing and strong carton integrity. Suitable for long-running automated packing lines in food packaging systems.

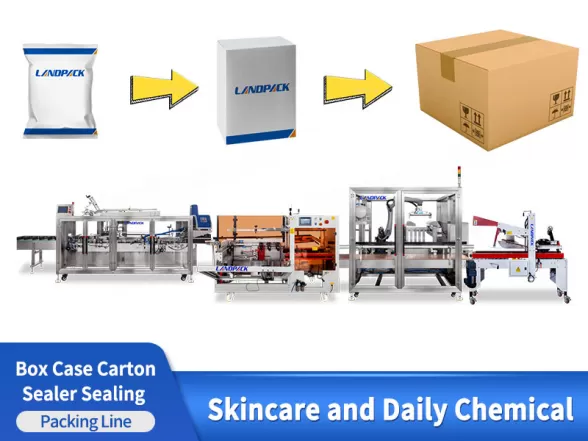

Machine Structure Overview:

1. Box case sealer

2. Carton Erector

3. Case packing robot

4. Carton sealer

case packing system

automatic packing system

WORKFLOW

Speed up the conveyor belt

Product sorting belt

Full servo drive case packer (shaping - input product- sealing)

Glue dispenser

Turn direction conveyor belt

Carton erector

Carton packer (Robot)

Carton sealer

PARAMETER

Box Case Sealer Sealing Machine
	Model	LD-ZHJ300
	Power supply	220V, 50Hz, 0.75kW
	Air pressure requirement	0.5-0.8MPa
	Machine material	Aluminum + stainless steel
	Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
	Size of carton	Customizable
	Box material	300-450g cardboard paper, corrugated paper
	Working speed	30-50 cartons/min
	Machine size	400813541633 mm
	Weight	About 1500kg
Carton erecting machine
	Carton opening speed	10-12 cartons/min
	Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
	Power supply	220V, 50/60Hz, 1 Phase
	Power	2400W
	Adhesive tape width	48/60/75mm
	Carton storage quantity	80-100pcs(800-1000mm)
	Air consumption	450NL/min
	Air compressing	6kg/cm³
	Discharge table height	600+30 mm
	Machine size	L2100W2100H1450mm
	Machine weight	450Kg
Automatic Carton Packing Machine
	Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
	Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
	Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
	Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
	Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
	Packing way	Paper carton packer, plastic boxes(customized)
	Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
Carton Box Case Sealer
	Voltage	220V, 60HZ
	Table height	620-900mm
	Tape	W: 48-79mm
	Carton size	L: 200-600W: 150-500H: 150-500mm
	Machine weight	165KG
