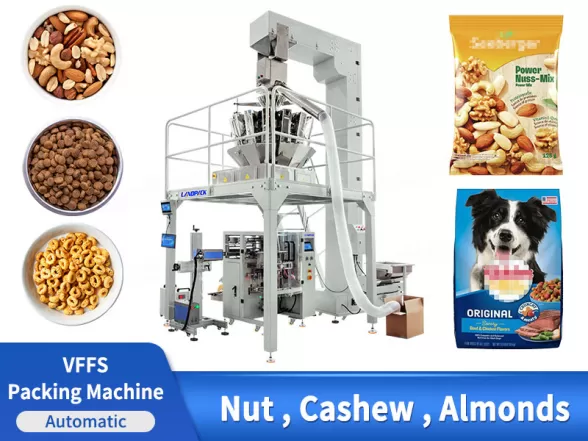

Nut Packing Machine Almond Cashew Packaging Machine With Metal Detector

Introduction:

It packs up to 60 bags/min with integrated metal detection and laser coding.

Application:

This nut packing machine is used for packing a wide range of granular products, including almonds, popcorn, pet food, jerky, candy, chocolate, seed, rice, cashews, peanuts, pistachios, walnuts, hazelnuts, and mixed nuts.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Nut Packing Machine Almond Cashew Packaging Machine With Metal Detector

Package Type:

This nuts packing machine supports common bag formats such as pillow bag, gusset bag, back sealing bag, three-side seal bag, etc., in PET/PE, OPP/CPP, and aluminum foil material.

FEATURES

1. PLC control panel simplifies setup and daily operation.

2. Full machine frame uses SS304 for durability and easy cleaning.

3. Multi-head weigher maintains weighing accuracy within 1%.

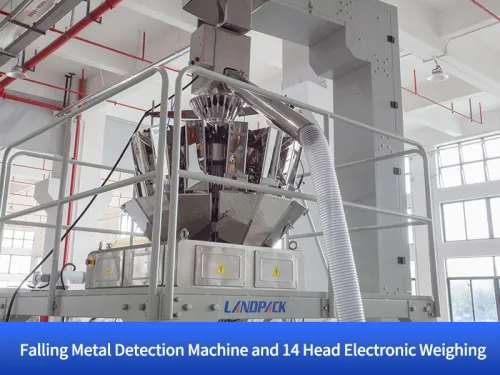

4. Falling metal detection system intercepts metallic contaminants before weighing.

5. Combined servo motor/photoelectric tracking to ensure precise bag positioning and rapid forming.

6. Packing capacity reaches up to 60 bags/min.

7. Laser coding, environmentally friendly, no consumables.

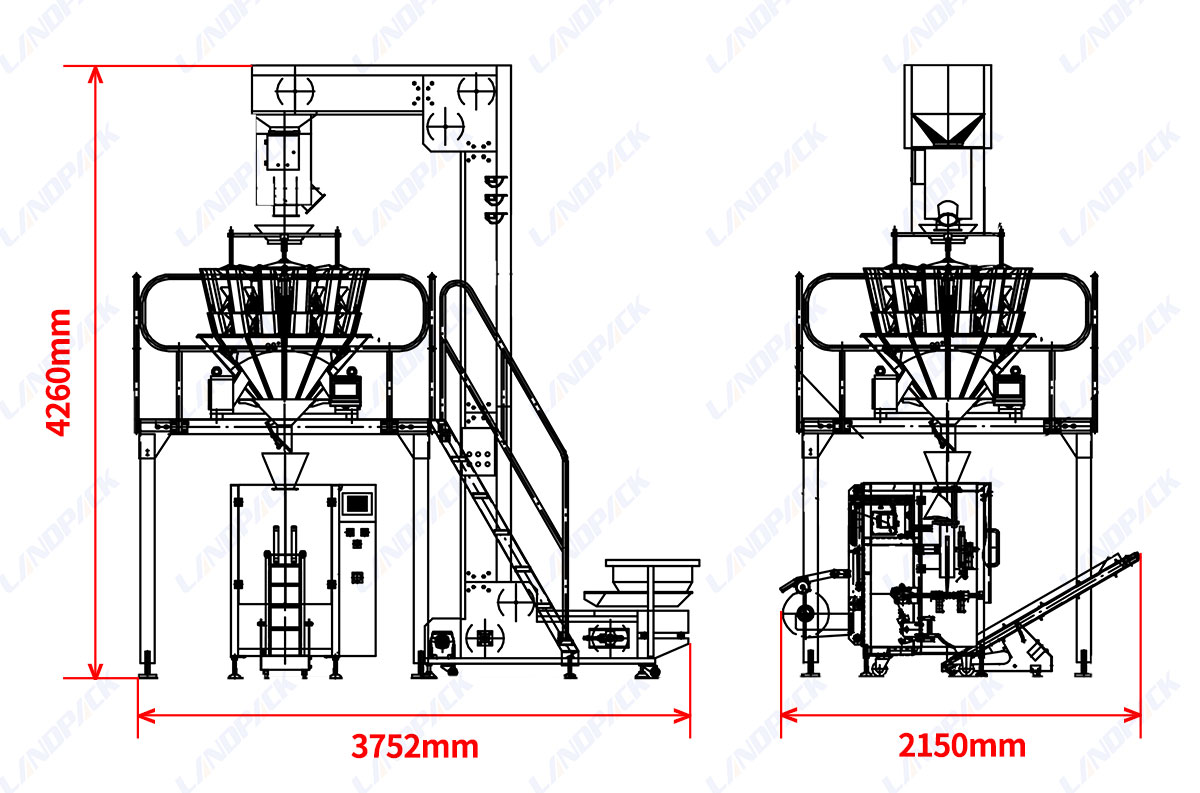

Machine Structure Overview:

Nut Packing Machine Almond Cashew Packaging Machine With Metal Detector

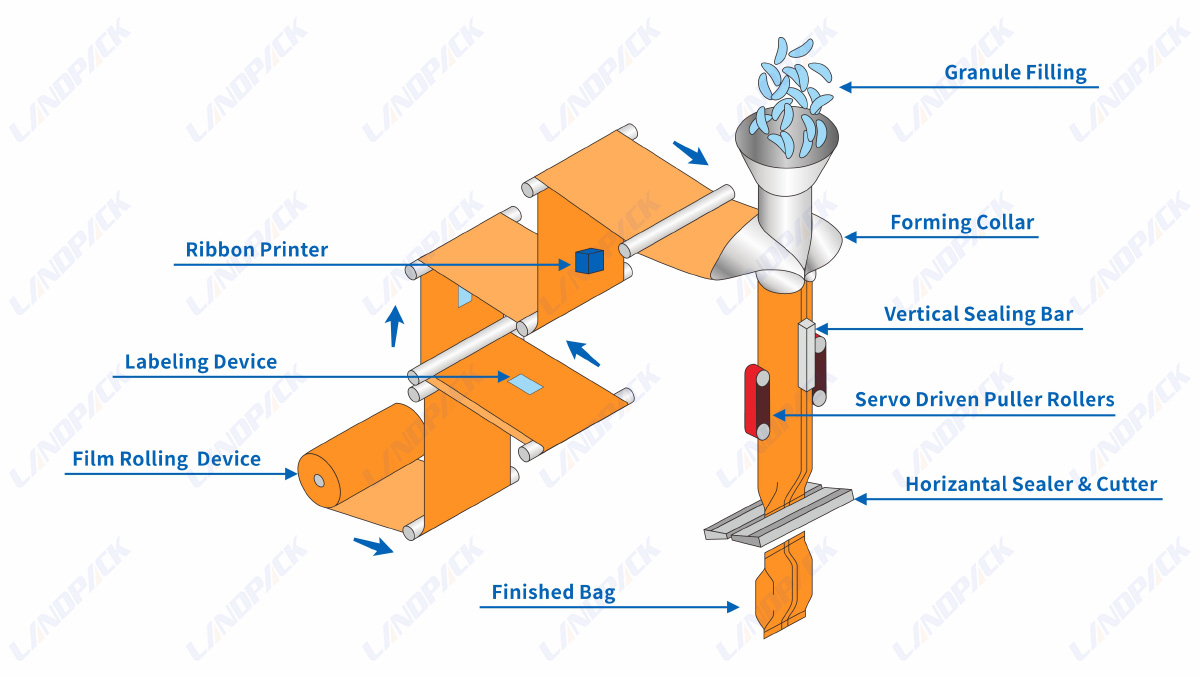

WORKFLOW

Groundnut Material Feeding

Metal Detection

Multi-head Weigher Weighing

Roll Film Feeding

Laser Coding

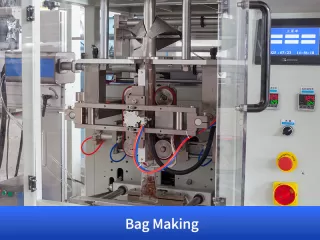

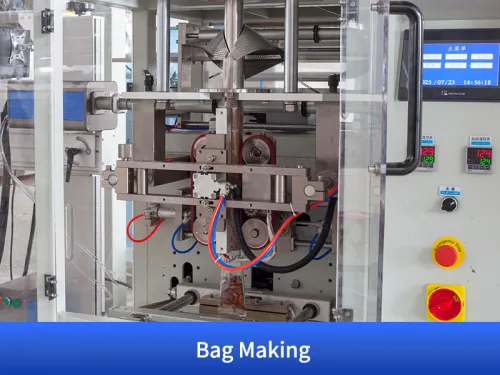

Film Forming

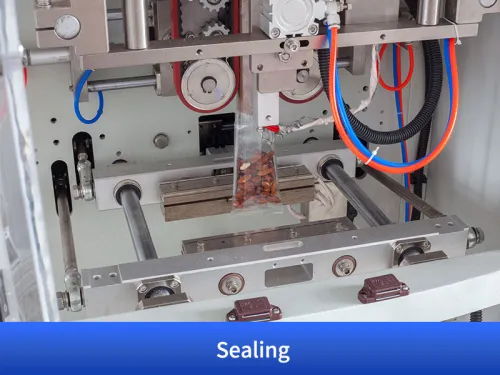

Heat Sealing And Cutting

Finished Product Output

PARAMETER

Model	LD-320A	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.07mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	50-200mm	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	20-150mm	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max. 300mm	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-50 bags/min	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30bag/min
Film Width	120-320mm	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	5-200ml	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 2.2KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	9706801950 mm(LWH)	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
