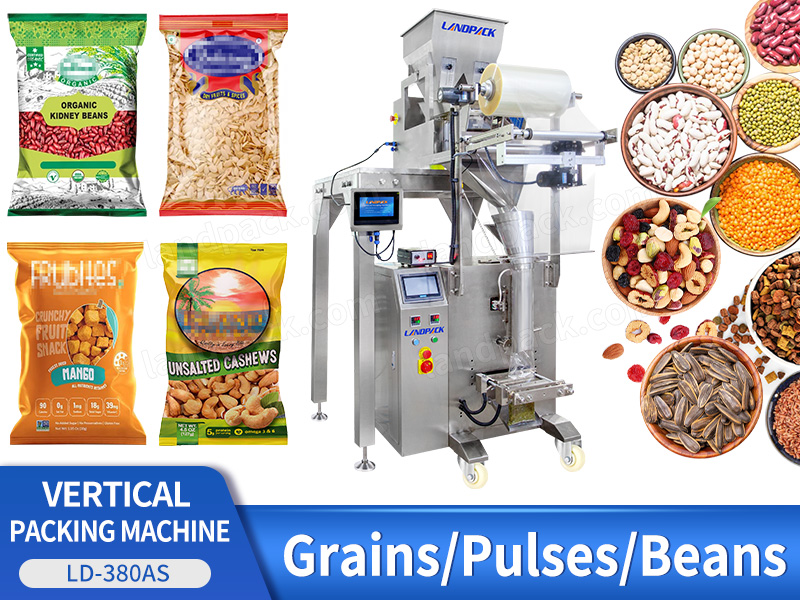

Automatic Nuts Packing Machine Vertical Form Fill Seal Machine

Introduction:

The vertical packing machine equipped with a dual-head linear scale offers a compact and efficient solution for measuring and bagging granular materials. Engineered for stable operation, it is an ideal choice for companies looking for a straightforward and economical premade pouch packaging setup.

Application:

This equipment is ideal for packing a wide range of free-flowing products, including nuts, beans, grains, seeds, snacks, and similar solid materials. It can also handle non-food items such as hardware pieces, small plastic components, and pet snack granules.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

The machine is compatible with standard pillow bags, gusset bags, and flat-style pouches commonly used for nuts, beans, grains, and other small granules. It can also be customized with features such as tear notches, hang holes, and different printed films, offering versatile packaging formats for both food and non-food products.

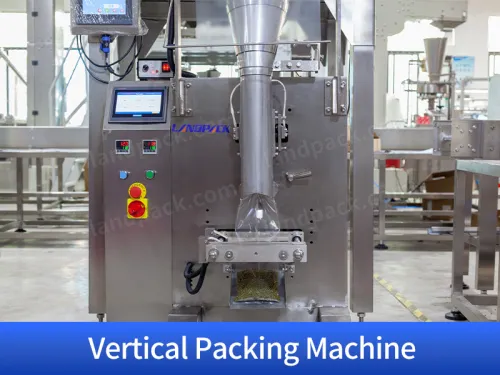

Automatic Nuts Packing Machine Vertical Form Fill Seal Machine

Suitable Products:

This vertical packing machine with a 2-head linear weigher is built for accurate, stable, and gentle handling of free-flowing granular products.

- Nuts & Seeds: almonds, cashews, peanuts, mixed nuts, sunflower seeds, pumpkin seeds

- Beans & Grains: red beans, soybeans, lentils, chickpeas, rice blends, small grains

- General Granular Products: pet treats, small hardware pieces, plastic pellets, dehydrated food bits

Automatic Nuts Packing Machine Vertical Form Fill Seal Machine

FEATURES

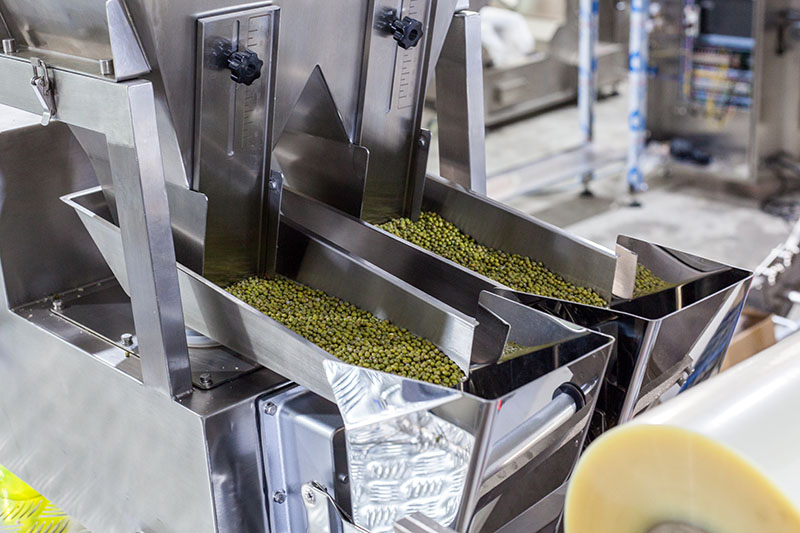

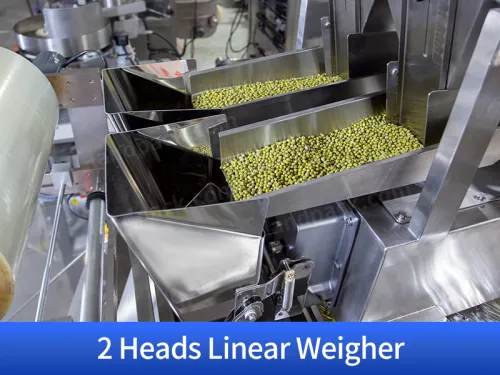

High-Accuracy Dual Linear Weighing System It is equipped with a two-head linear weigher, designed specifically for light and fragile products such as popcorn, which ensures a steady dosing, a minimal amount of giveaway and a gentle handling that prevents crushing.
	Optimized for Fragile Snack Products The entire filling process is designed using gentle angles and a controlled height to minimize impact and protect chip, snacks, and other fine granules.

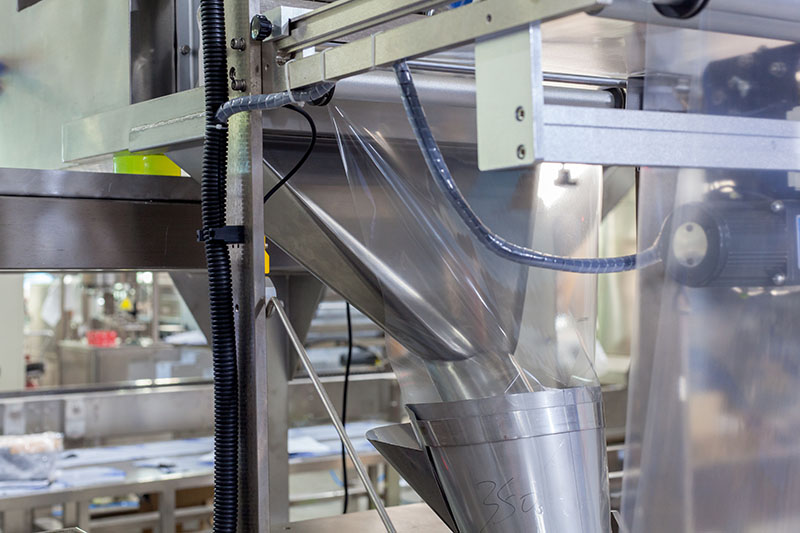

Stable Film Transport & Smooth Bag Forming The film pulling system driven by a servo assures accurate alignment and smooth motion of the film making pouches that are consistently formed with neat edges and a uniform appearance.

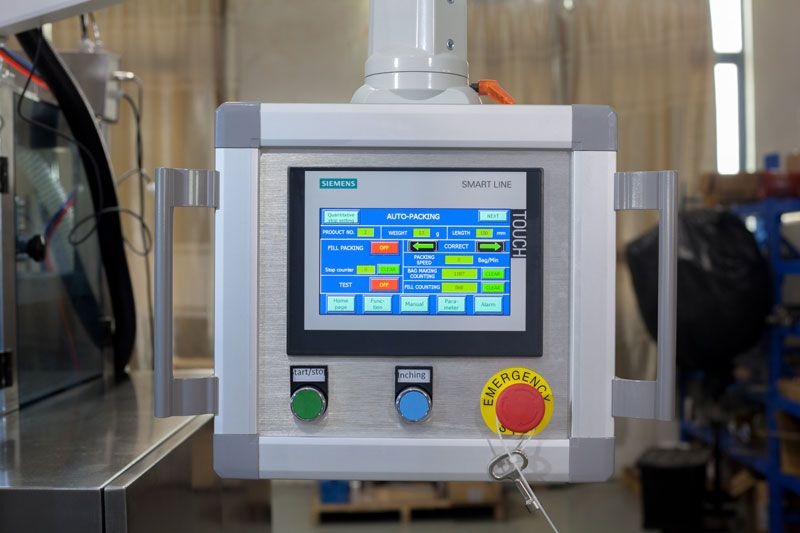

	Simple Operation using PLC and Touchscreen The intuitive interface lets you quickly make adjustment of parameters as well as recipe storage and monitoring in real-time.
Modular Design for Easy Cleaning & Maintenance Disassembly of hoppers without tools and contact components ensures quick cleaning between different flavors (butter cheese, caramel, and butter).

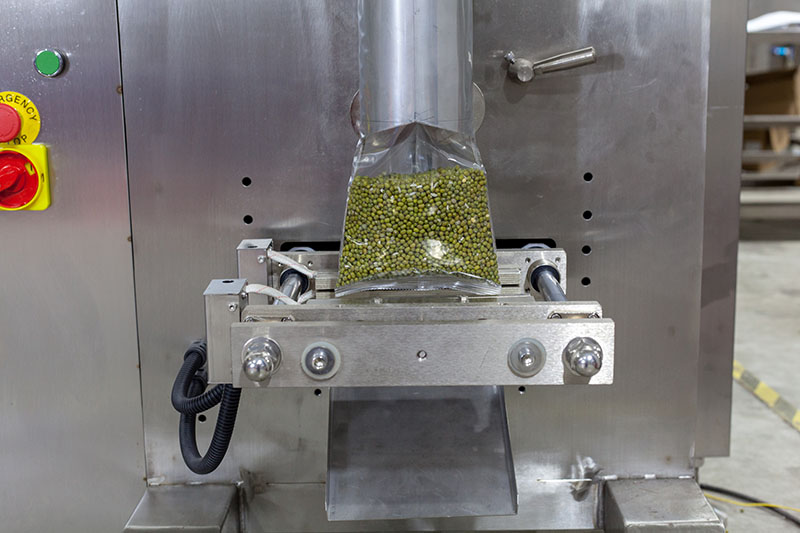

	Efficient Heat-Sealing Structure High-quality sealing jaws offer secure, airtight seals when operating at high speeds.

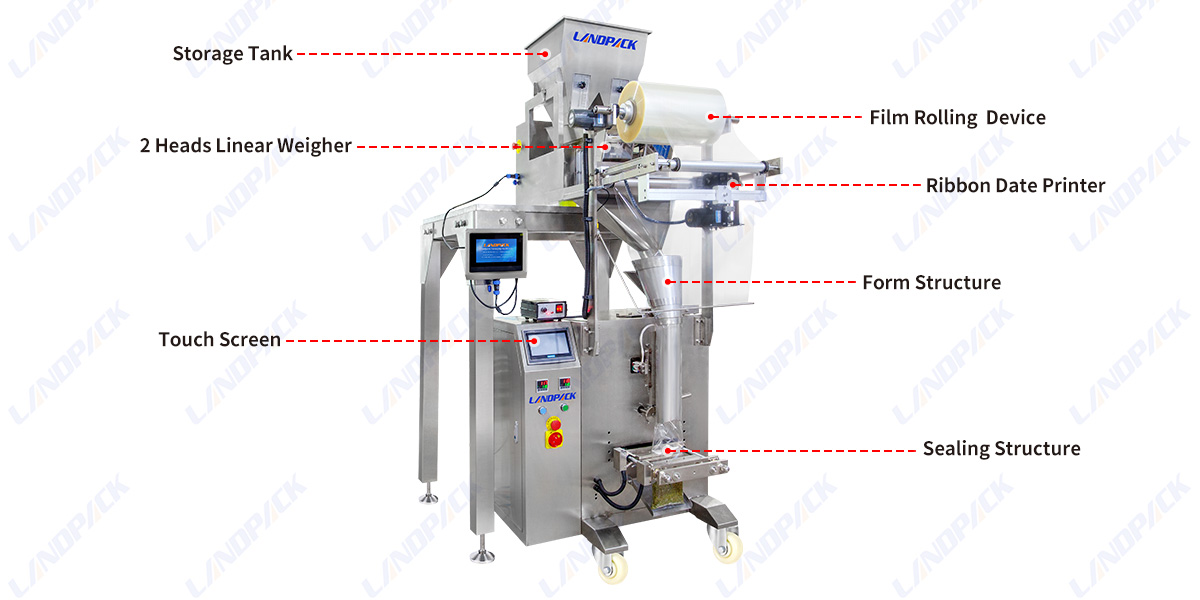

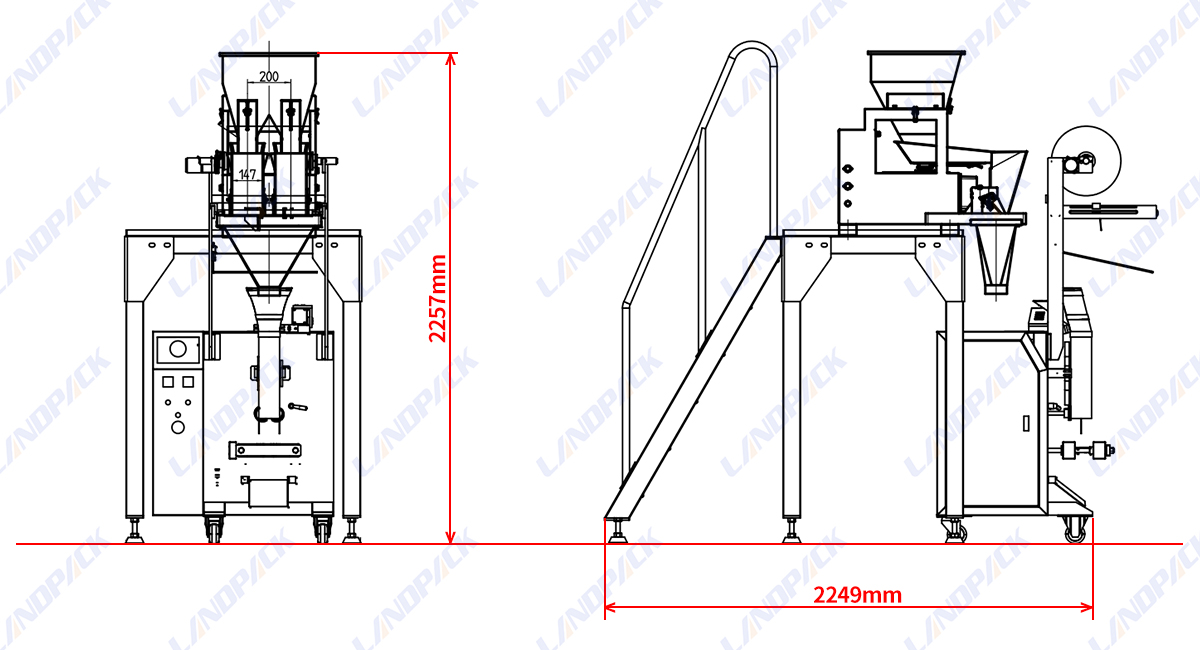

Machine Structure Overview:

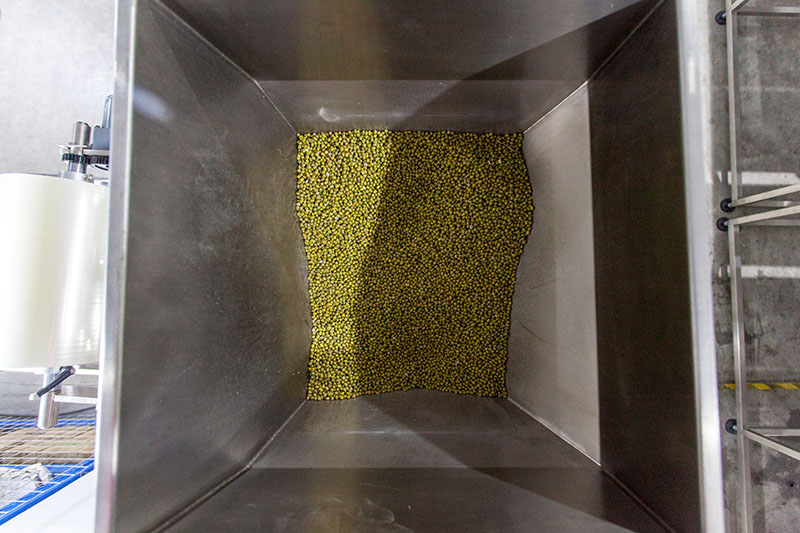

1. Storage Tank

2. Film Rolling Device

3. 2 Heads Linear Weigher

4. Film Rolling Device

5. Touch Screen

6. Form Structure

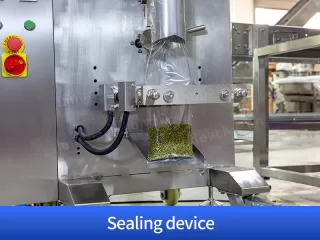

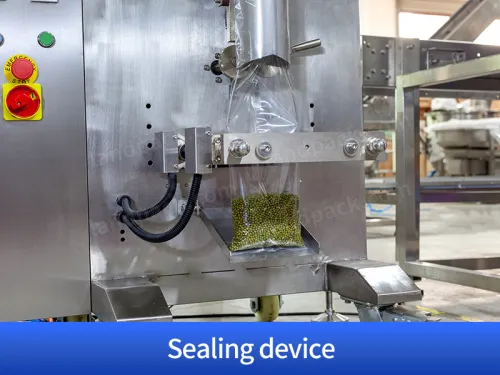

7. Sealing Structure

Automatic Nuts Packing Machine Vertical Form Fill Seal Machine

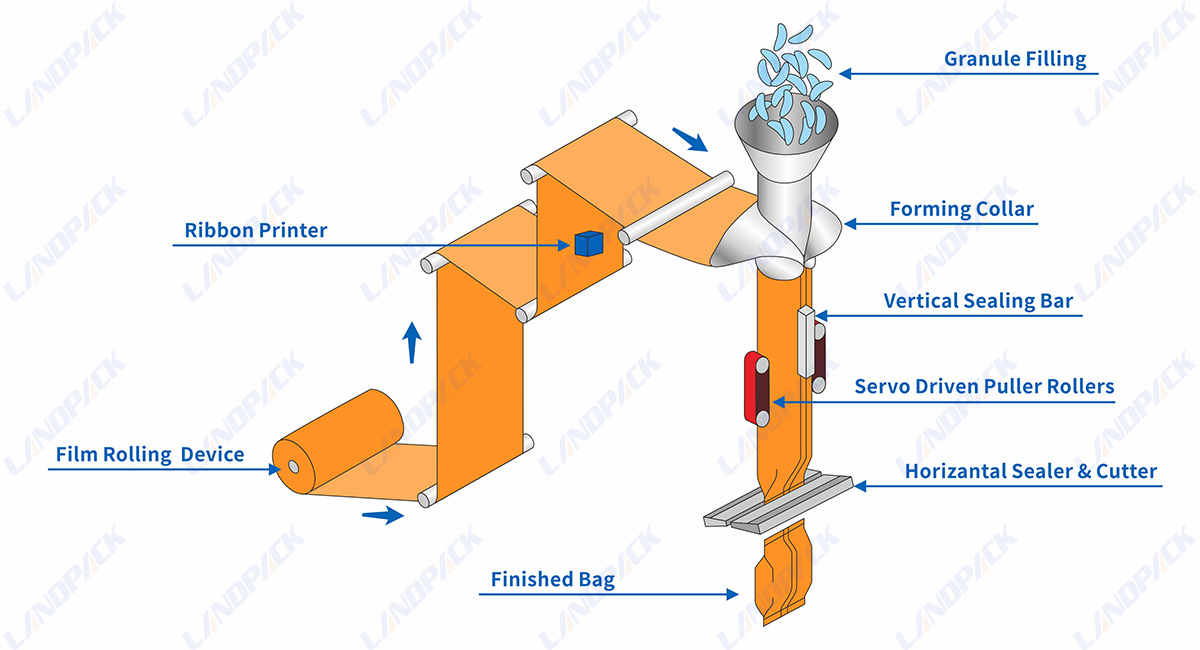

WORKFLOW

Product Feeding

Dual-Head Linear Weighing

Film Unwinding & Bag Forming

Vertical Sealing

Product Filling

Top Sealing & Cutting

Finished Bag Discharge

PARAMETER

Model	LD-320	LD-380
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
