Products List

Automatic Mixed Nuts Packing Machine Horizontal Premade Pouch Peanut and Cashew Packaging Machine Line

Introduction:

Dual-line nuts packing machine with two 10-head weighers and premade pouch fillers for peanuts, cashews and almonds.

Application:

Suitable for automatic weighing and premade pouch packing of peanuts, mixed nuts, coffee beans, dried fruits, beans, seeds and snack granules.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This nuts packing machine fills almonds, coffee beans, roasted peanuts, cashews, sunflower seeds, broad beans, mixed nuts, pistachios, raisins, peanuts and other free-flowing granular products into premade pouches. Two independent packaging lines operate simultaneously, with each line equipped with a Z-type elevator, 10-head combination weigher, horizontal premade pouch machine and finished-product conveyor.

Automatic Mixed Nuts Packing Machine Horizontal Premade Pouch Peanut and Cashew Packaging Machine Line

Package Type:

The machine handles premade pouches, block-bottom pouches, stand-up pouches, M shape pouches, flat pouches, and zipper pouches when fitted with the matching opening device. It works with printed laminated bags in different widths, lengths, and filling weights.

FEATURES

1. Two horizontal premade pouch machines operate as independent packaging lines.

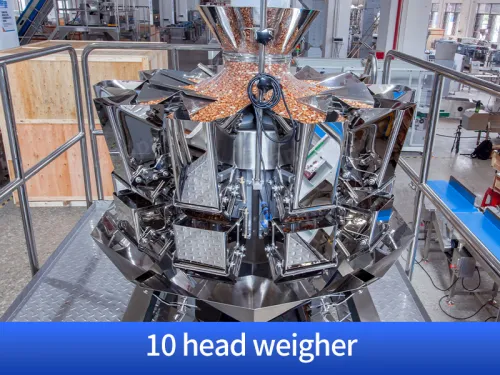

2. Two 10-head combination weighers control the filling weight of each line.

3. Z-type elevators continuously feed nuts and reduce manual loading.

4. Pouch magazines store premade bags for automatic pouch feeding.

5. Horizontal pouch transfer keeps block-bottom bags stable during filling.

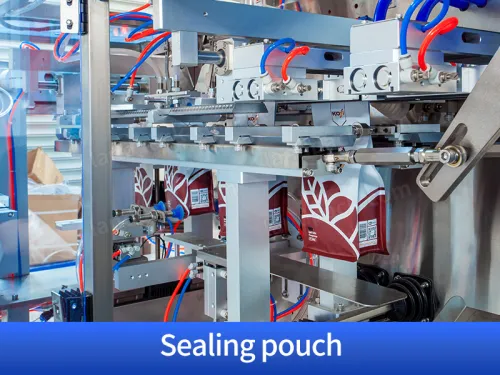

6. The sealing units handle thick laminated premade pouches.

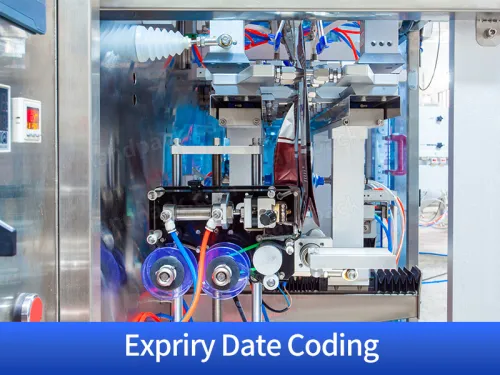

7. Date coders print batch numbers, production dates, or expiry information.

8. Independent control systems allow each line to pack different products or weights.

9. Finished-product conveyors transfer sealed pouches away from both machines.

10. The dual-line design maintains production when one line stops for adjustment or pouch replenishment.

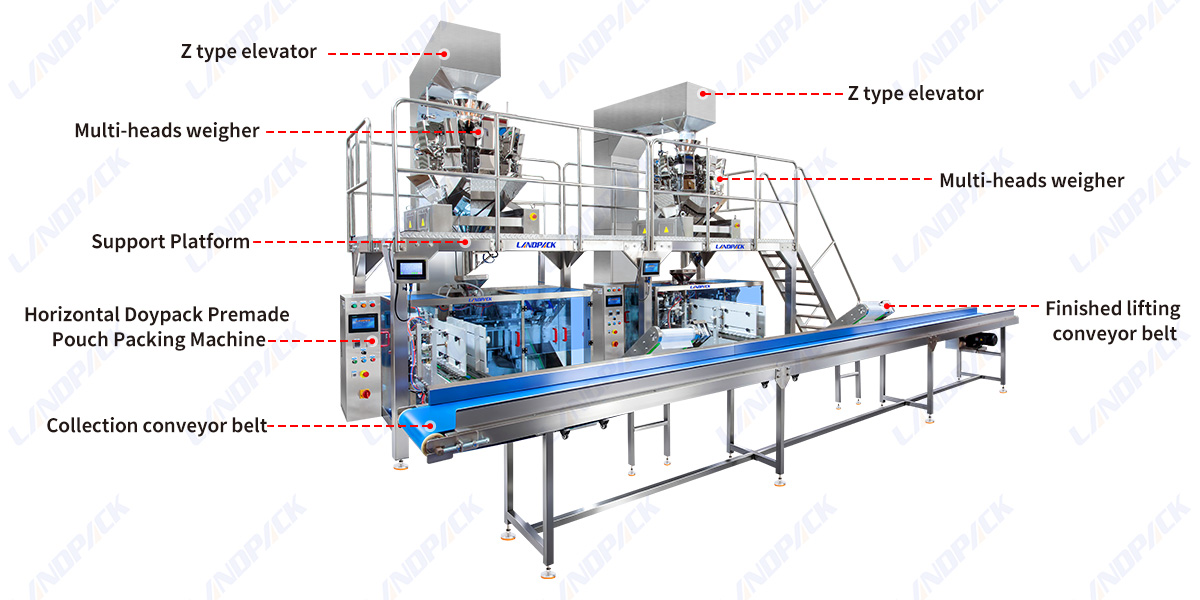

Machine Structure Overview:

Automatic Mixed Nuts Packing Machine Horizontal Premade Pouch Peanut and Cashew Packaging Machine Line

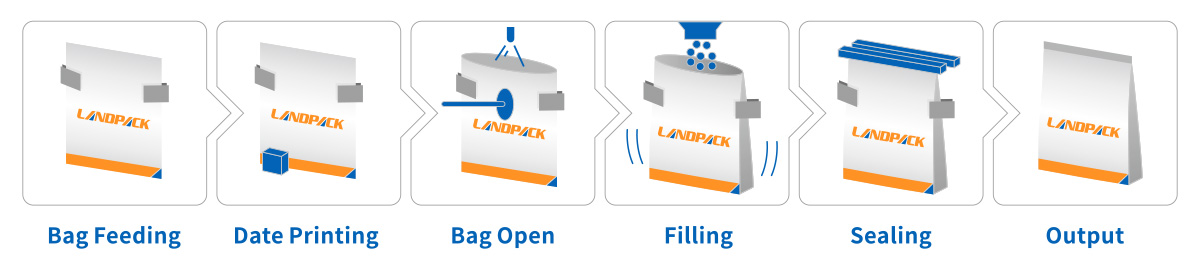

WORKFLOW

Z-Type Feeding

10-Head Weighing

Pouch Feeding

Date Coding

Pouch Opening

Nut Filling

Pouch Sealing

Collection Conveying

PARAMETER

Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	Stand-up Pouch, M-shape Pouch, Flat Pouch, Zipper Pouch, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min	20-50 bags/min	20-50 bags/min
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of the product
Dimensions	175012851360mm(LWH)	214013661360mm(LWH)	214013661360mm(LWH)
Collocation	Screw metering, screw elevator
