Automatic Cashew Nut Horizontal Pouch Packing Machine

Introduction:

With its outstanding efficiency and packaging bag quality, this machine can maximize the protection of your products and effectively extend their shelf life.

Application:

Our horizontal pouch packaging machine is adaptable for packaging a variety of nuts and snacks, such as cashew, nuts, seeds, dried fruit, coffee beans, frozen food, pet food, jerky, pretzel pieces, cheese balls, popcorn, sunflower seeds, puffed snacks, pistachios, almonds, raisins, and more.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is adaptable for packaging a variety of nuts and snacks, such as cashews, nuts, seeds, dried fruit, coffee beans, frozen food, pet food, jerky, pretzel pieces, cheese balls, popcorn, sunflower seeds, puffed snacks, pistachios, almonds, raisins, and more.

Automatic Cashew Nut Horizontal Pouch Packing Machine

What is a horizontal pouch packaging machine?

A horizontal premade pouch packing machine is a highly efficient, fully automatic packaging device. It is primarily used to automatically handle tasks such as picking up and opening premade pouches, filling them with materials, sealing, and discharging the finished product. Its core feature is the horizontal pouch handling method, which makes it suitable for various material forms (such as granules, powders, liquids, and solids) and different pouch specifications. It is widely used in industries like food, medicine, daily chemicals, and chemical products.

Package Type:

Stand-up Pouch
M-shape Pouch
Flat Pouch
Zipper Pouch

Automatic Cashew Nut Horizontal Pouch Packing Machine

FEATURES

Automatic Material Conveying The conveyor smoothly delivers products to the metal detection unit, ensuring continuous and efficient feeding without manual handling. This design improves production efficiency and reduces labor costs.
	High-Precision 14-Head Weigher Equipped with a 14-head electronic weigher, the system provides precise and rapid weighing, guaranteeing accurate portion control while maintaining high packing speed. Ideal for granular products of different sizes.

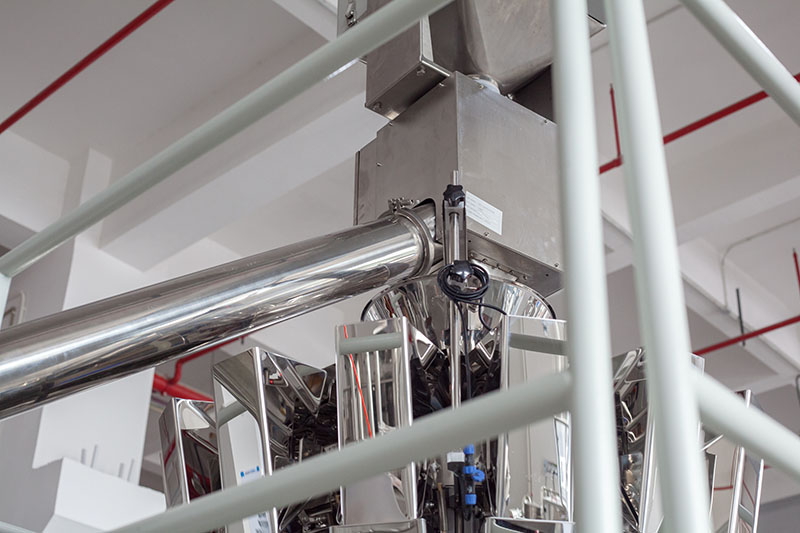

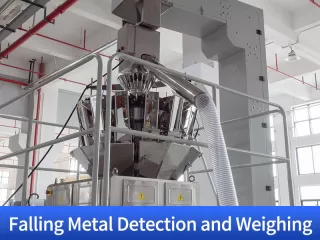

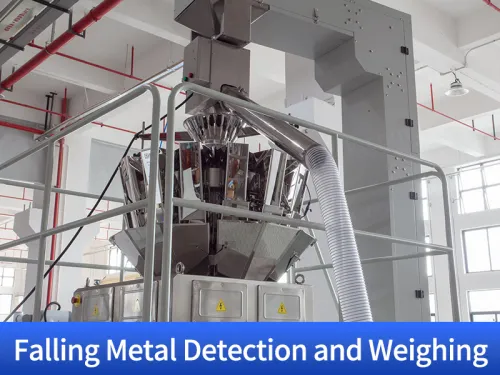

Falling Metal Detection System Metal detection is performed before weighing. This ensures maximum product safety while avoiding unnecessary bag waste when metal contaminants are detected.

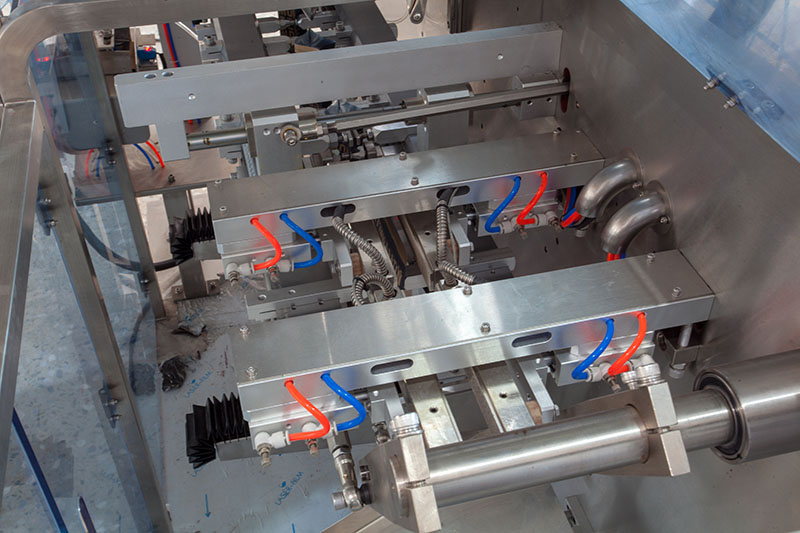

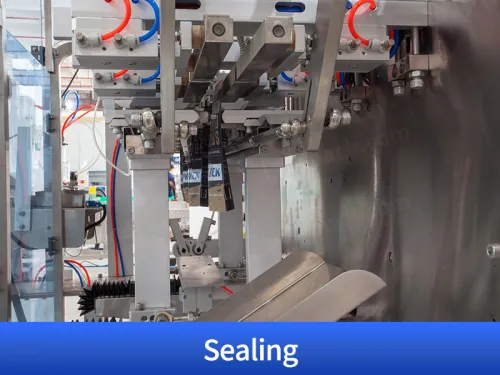

	Two heat sealing processes The filled bag mouth is sealed using a pair of heated sealing strips. Immediately after the heat is applied, a pair of cold press strips or cooling stations act on the newly created seal.
High-Speed Performance The machine achieves speeds of up to 50 bags per minute, ensuring fast and stable production output. Perfect for meeting the demands of large-scale packaging while maintaining consistent quality.

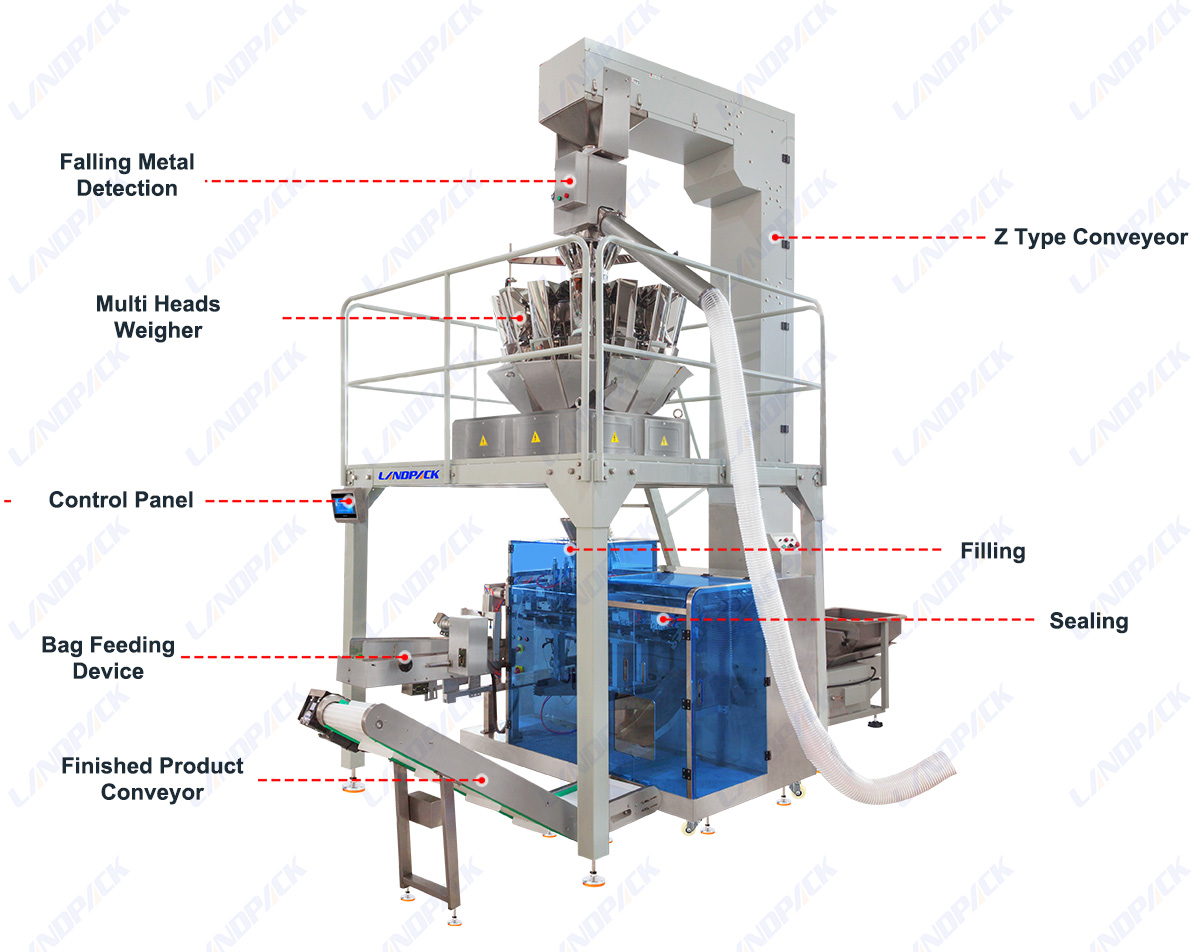

Machine Structure Overview:

This doypack pouch packing machine is designed with a clear and practical structure. Each part plays an important role in ensuring smooth, efficient, and hygienic packaging:

* Z Type Conveyor

* Falling Metal Detection

* Multi-Head Weigher

* Control Panel

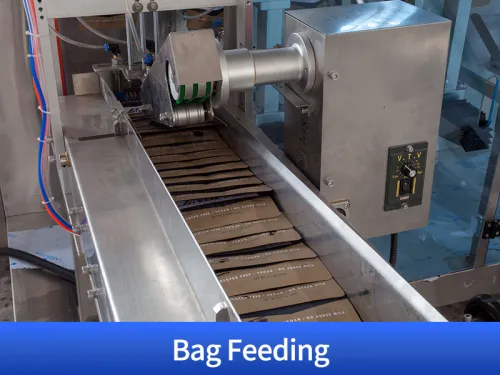

* Bag Feeding Device

* Filling System

* Sealing System

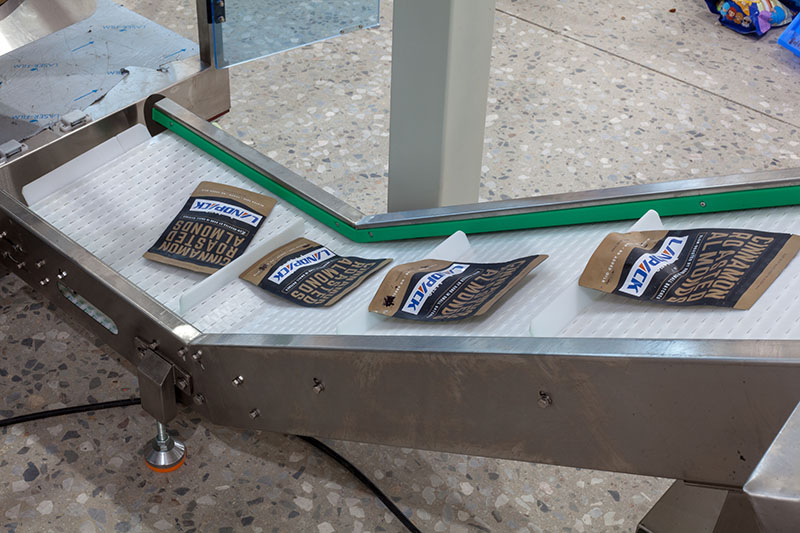

* Finished Product Conveyor

Automatic Cashew Nut Horizontal Pouch Packing Machine

WORKFLOW

Automatic Giving Bag

Date Printing

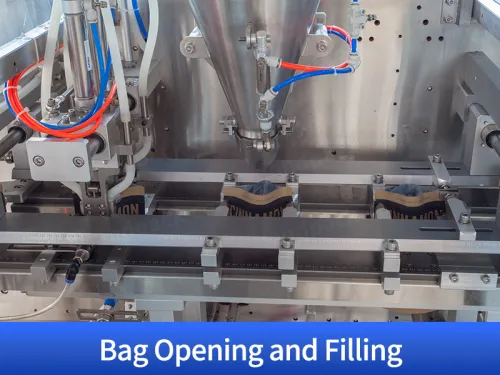

Opening Bag

Filling & Consolidate

Buffering (or Other)

Automatic Heat Sealing

PARAMETER

Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	Stand-up Pouch, M-shape Pouch, Flat Pouch, Zipper Pouch, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min	20-50bags/min	20-50bags/min
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of the product

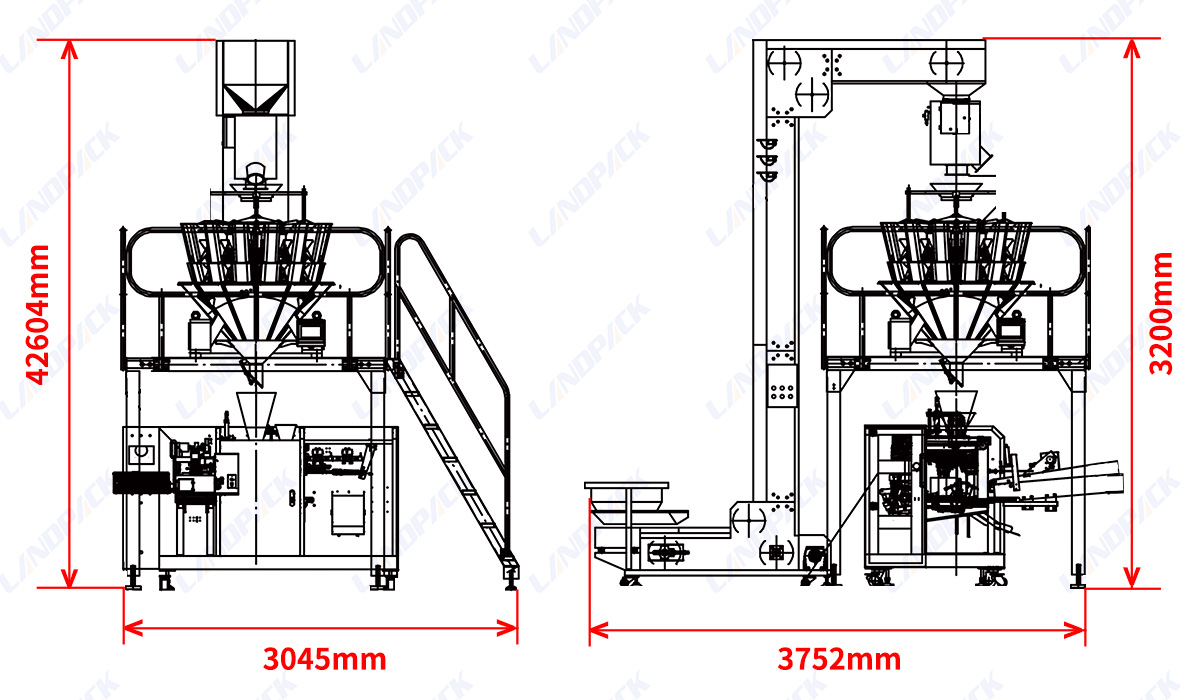

Dimensions	175012851360mm(LWH)	214013661360mm(LWH)	214013661360mm(LWH)
Collocation	Screw metering, screw elevator
