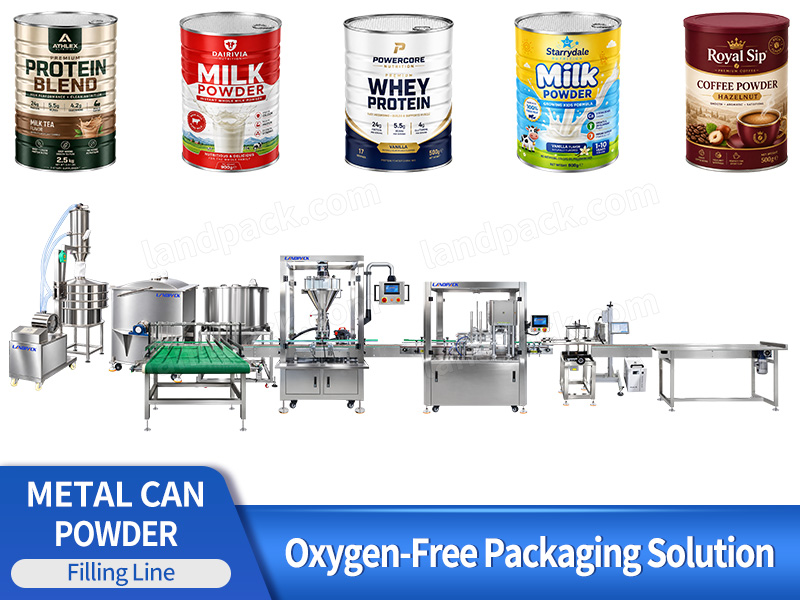

Automatic Milk Powder Tin Packing Machine Can Filling Vacuum Nitrogen Seaming Line

Introduction:

Automatic protein powder metal can filling line with auger dosing, vacuum nitrogen seaming and laser coding for milk powder, nutrition powder and food powders.

Application:

The application range can cover dairy, sports nutrition, beverage powder, grain processing and powdered food production.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in sports nutrition, dairy, beverage, grain processing and powdered food production lines where automatic powder feeding, auger dosing, nitrogen flushing, can seaming and coding are required. Such as whey protein powder, plant protein powder, protein blends, milk powder, collagen powder, meal replacement powder, coffee powder, cocoa powder, matcha powder, milk tea powder, coconut milk powder, soy milk powder, cereal powder, oat powder, almond powder, flour and instant beverage powder.

Automatic Milk Powder Tin Packing Machine Can Filling Vacuum Nitrogen Seaming Line

Package Type:

Suitable for metal cans with metal lids, using vacuum seaming and nitrogen filling for dry powder products.

FEATURES

1. The fully automatic line integrates powder preparation, can feeding, filling, sealing, coding and finished-can collection to reduce manual handling.

2. The mixing hopper, vibration sieve and storage hopper support continuous powder preparation and feeding before filling.

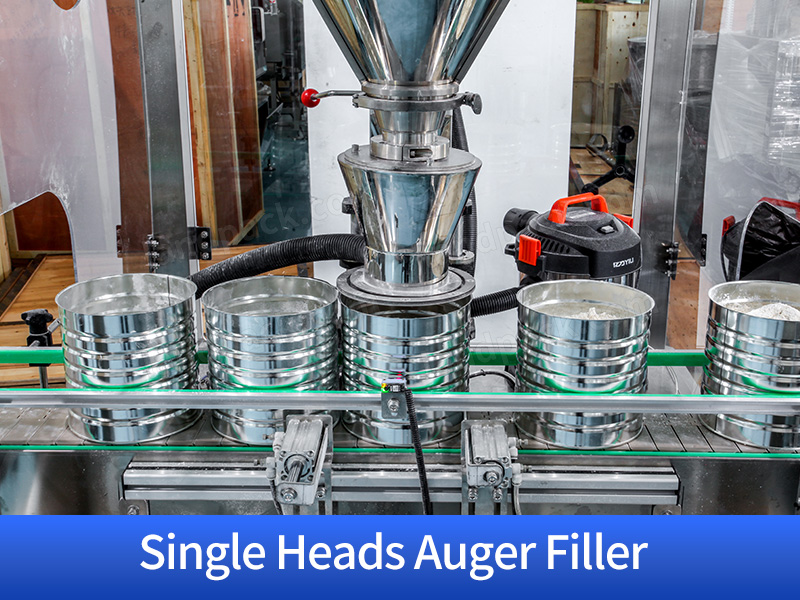

3. The single-head auger filling system provides filling accuracy up to ±1% and can be adjusted for different filling weights and can sizes.

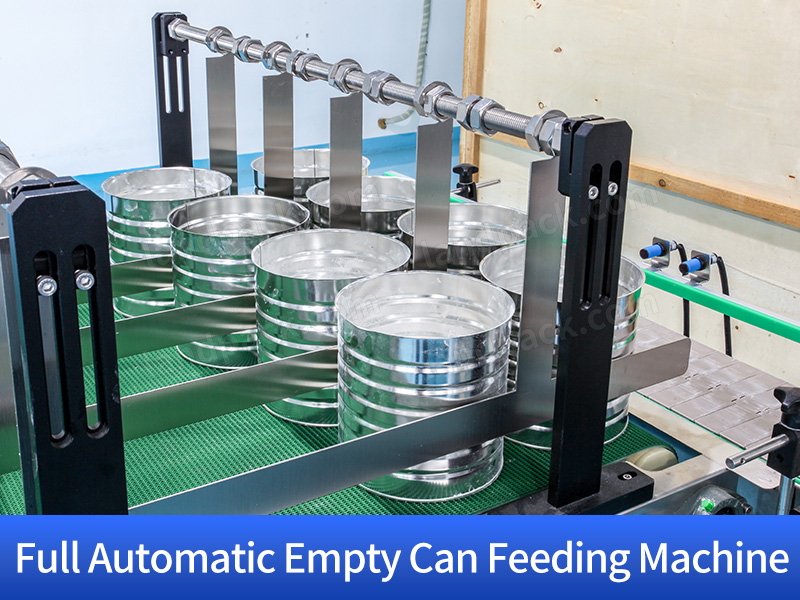

4. The automatic empty can feeding system arranges and transfers cans continuously to the filling station.

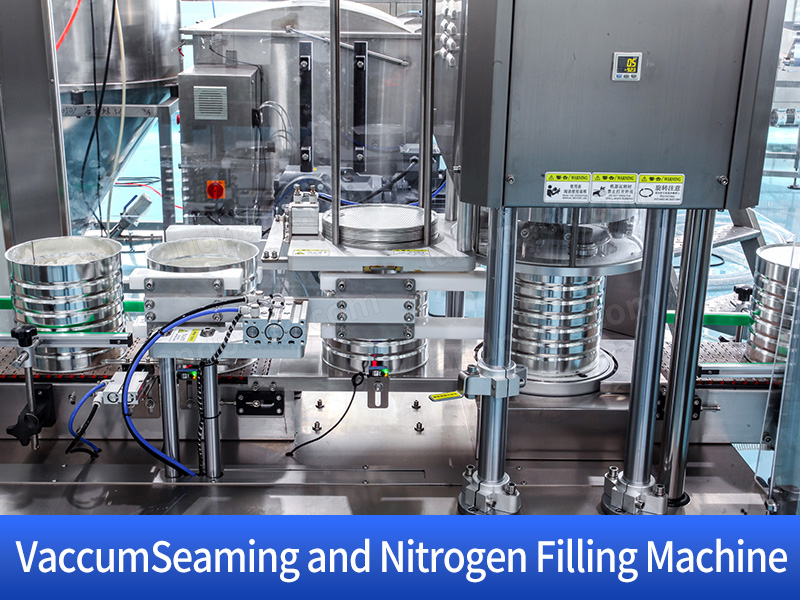

5. The vacuum seaming and nitrogen filling system can reduce residual oxygen to below 3% to help extend product shelf life.

6. Automatic metal lid feeding connects directly with the vacuum seaming station for continuous can closing.

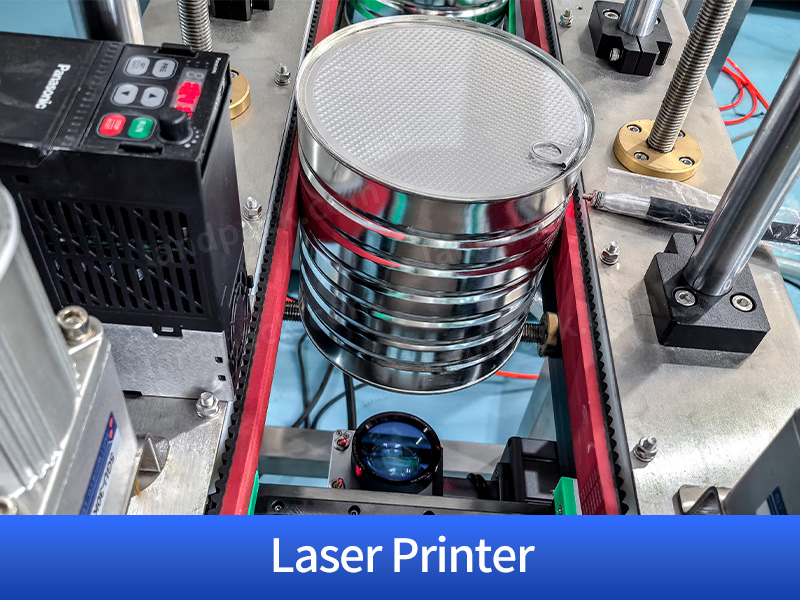

7. The can clamping conveyor keeps containers positioned during laser coding for production dates, batch information or traceability marks.

8. The modular line layout allows the filling, sealing, coding and conveying sections to operate as one continuous production system.

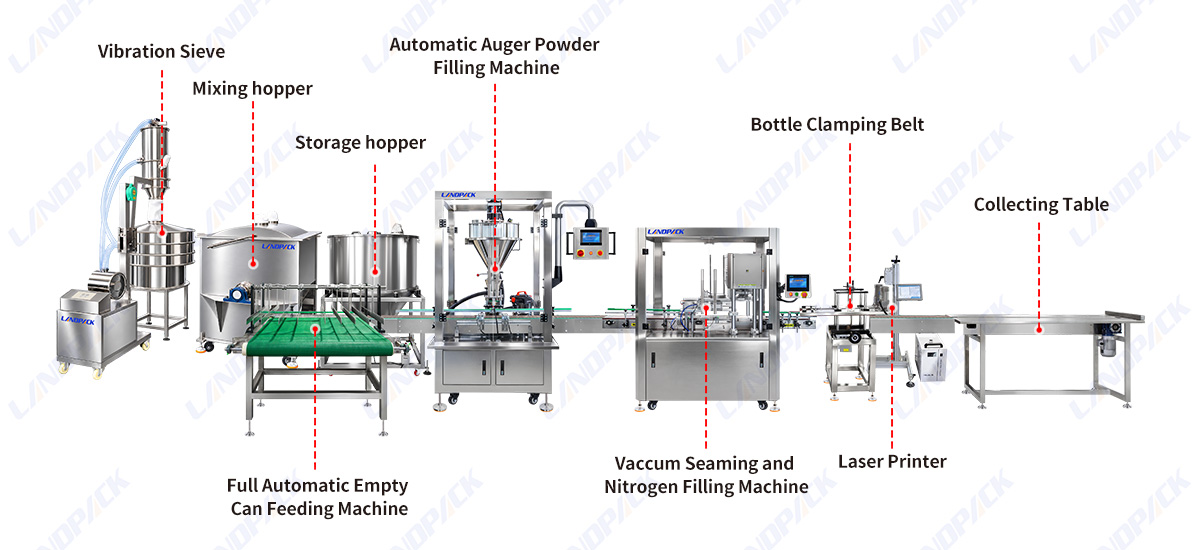

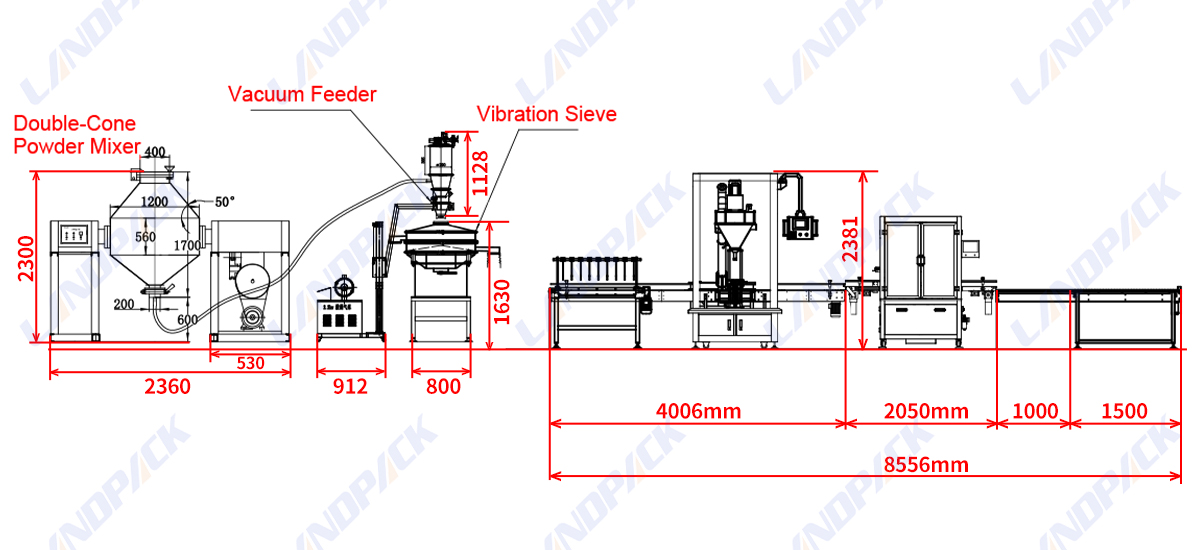

Machine Structure Overview:

Automatic Milk Powder Tin Packing Machine Can Filling Vacuum Nitrogen Seaming Line

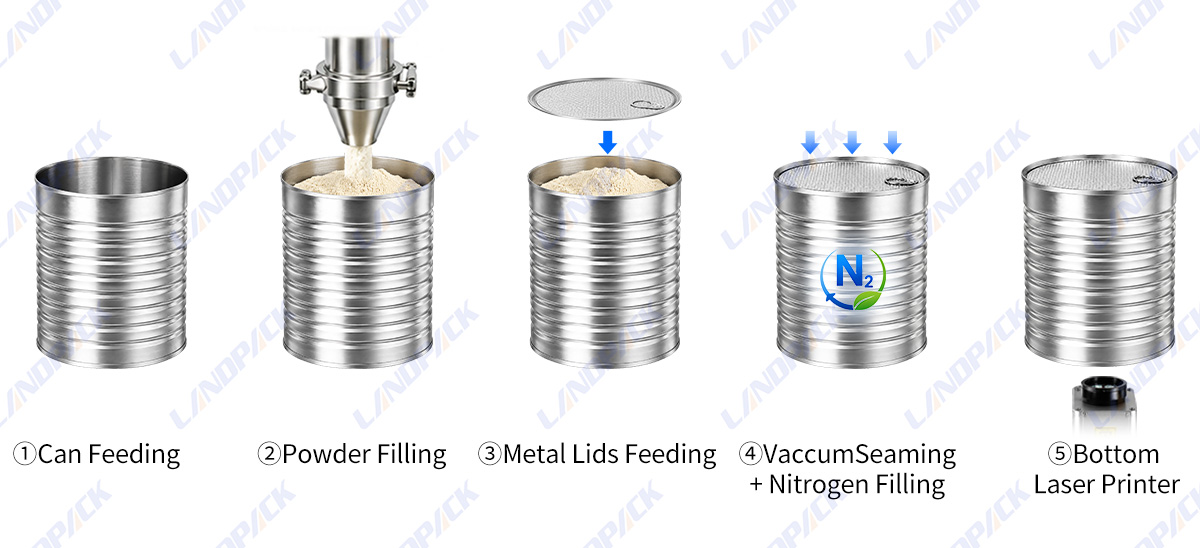

WORKFLOW

Powder Mixing

Automatic Empty Can Feeding

Auger Powder Filling

Metal Lid Feeding

Vacuum Seaming & Nitrogen Filling

Can Clamping

Laser Coding

Finished Can Collection

PARAMETER

	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	40-60bottles/min(depending on bottle size)
	Package Size	123010101260mm
	Gross Weight	141kg

Model	LFP-01(Single Head)	LFP-01(Dual Head)
Filling Weight	10-5000 g (by changing auger)	10-5000 g (by changing auger)
Bottle Diameter	Φ30-Φ140 mm (customizable)	Φ30-Φ140 mm (customizable)
Bottle Height	50-200 mm (customizable)	50-200 mm (customizable)
Capacity	10-20 bottles/min	20-40 bottles/min
Filling Accuracy	≤500 g: ±1%>500 g: ±0.5% (varies by material)	≤500 g: ±1%>500 g: ±0.5% (varies by material)
Power Consumption	2.5 kW	5 kW
Hopper Capacity	50 L	50 L
Power Supply	220 V, 50 Hz	220 V, 50 Hz
Air Pressure	0.6–0.8 MPa	0.6–0.8 MPa
Machine Weight	350 kg	550 kg

	Bottle type	Round, square bottles, etc need to be customized.
	Bottle diameter	50-120cm(can be customized)
	Bottle height	50-150mm(can be customized)
	Speed	5-8BPM(it depends on product)
	Caps feeding type	ausomtaic lids feeding
	Machine voltage	220V(can be customized)
	Machine size	200010001700mm
	Machine weight	550kg

	Print range	100*100mm
	Positioning way	Infrared focusing
	Focuslens	focal length 150mm
	Speed	Max10000mm/s(can be customized)
	Laser	fiber laser generator
	Machine voltage	220V(can be customized)
	Machine size	8255451425mm
	Machine weight	60kg
