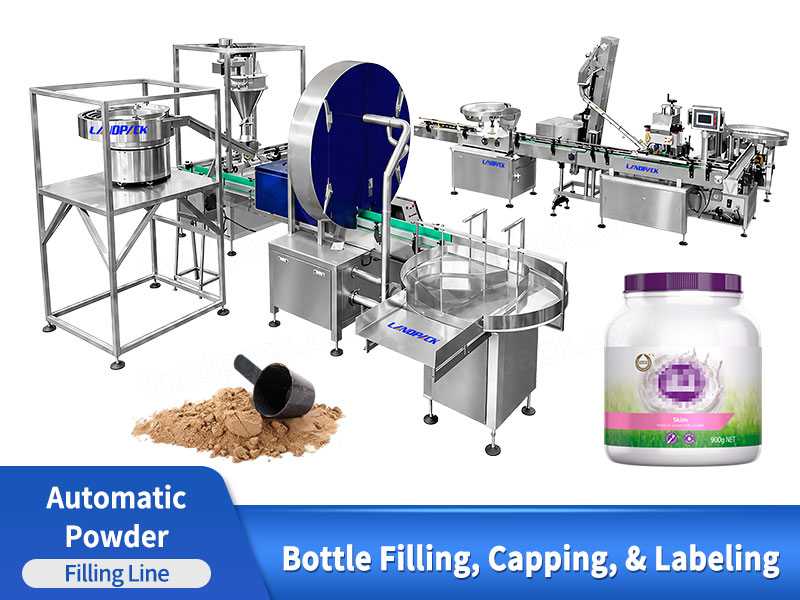

Milk Powder Bottle Filling Capping Labeling Line with UV Sterilization & Spoon Insertion

Introduction:

The auger filling system provides controlled powder dosing, while the automatic spoon feeder places a measuring scoop into each container when required.

Application:

Suitable for automatic filling and packaging of fine, free-flowing and slightly dusty powder products. Such as milk powder, protein powder, four, spice, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This powder filling line packs milk powder, protein powder, nutrition powder, coffee powder, meal-replacement powder, seasoning powder, and similar dry products into bottles or jars. It arranges empty bottles, cleans the interior with filtered air and UV light, inserts measuring scoops, fills the powder through two heads, closes the caps, and applies labels. The automatic powder filling and capping machine reaches up to 3,000 bottles/hour, depending on the bottle size, filling weight, and powder flow.

Milk Powder Bottle Filling Capping Labeling Line with UV Sterilization

Package Type:

The line handles round PET, HDPE, and rigid plastic bottles or jars. It supports measuring scoops, inner plugs, press-on caps, screw caps, and self-adhesive wraparound labels. Change parts match different container diameters, heights, neck sizes, scoop lengths, cap formats, and label dimensions.

FEATURES

1. Double filling heads support output up to 3,000 bottles per hour.

2. Bottle unscrambler adjusts its rotating speed for different container sizes.

3. Filtered-air cleaning unit removes loose particles from bottle interiors.

4. Shielded UV section allows independent lamp control.

5. Safety interlocks limit operator exposure to ultraviolet light.

6. Vibration bowl orients measuring scoops before automatic insertion.

7. Touchscreen controls filling weight, filling speed, and production settings.

8. Bottle-positioning guides align each container below the filling head.

9. Photoelectric sensors start filling and capping only when bottles reach the correct position.

10. Inline checkweigher can reject underweight and overweight bottles.

11. Cap feeding parts can match different inner plugs and outer cap formats.

12. Adjustable capper handles different bottle heights and cap diameters.

13. Round-bottle labeler adjusts for different container and label sizes.

14. The bottle filling capping and labeling machine can connect with induction sealing, coding, bottle collection, and case-packing equipment.

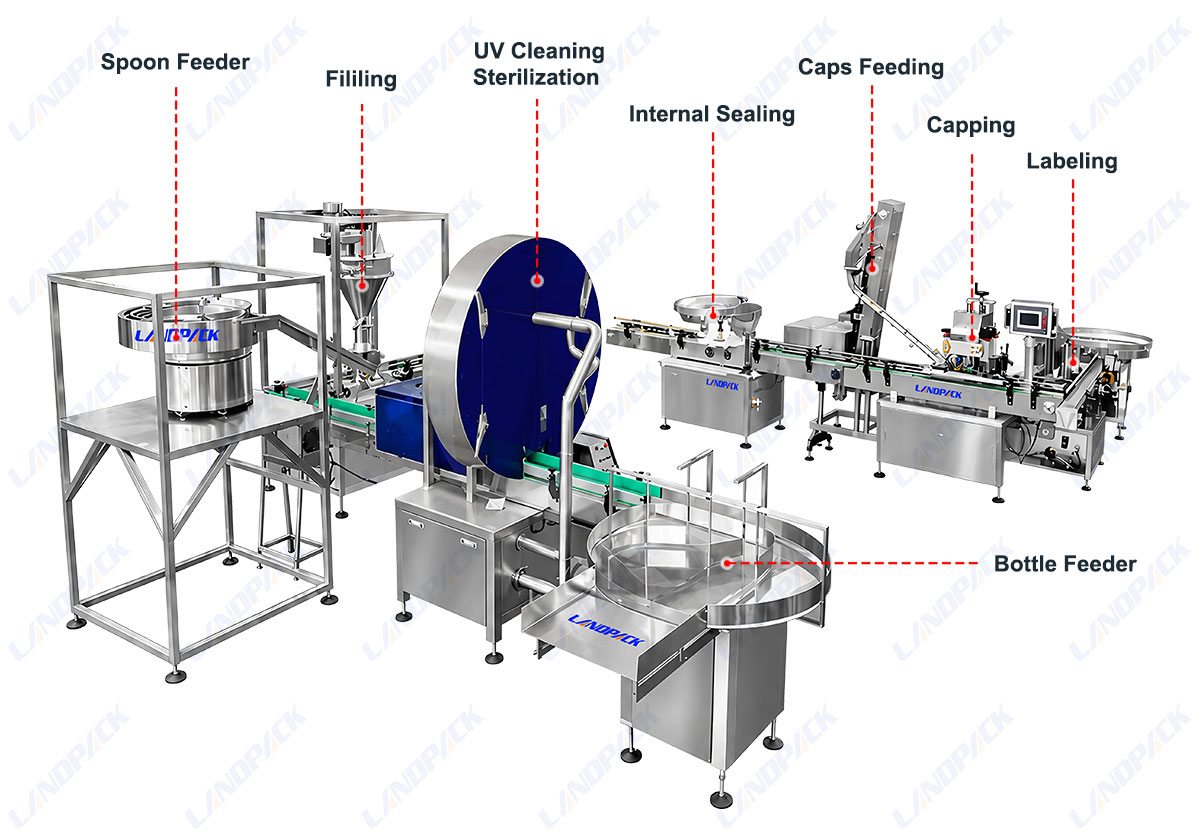

Machine Structure Overview:

Milk Powder Bottle Filling Capping Labeling Line with UV Sterilization

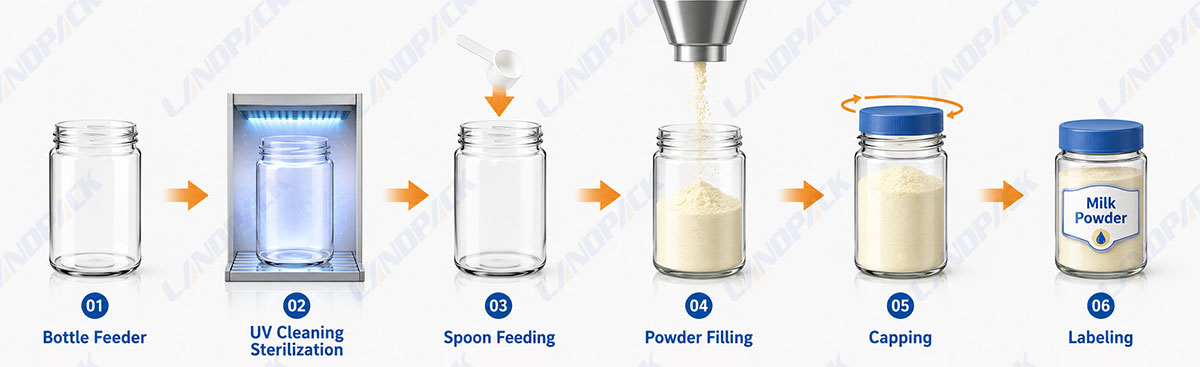

WORKFLOW

Bottle Unscrambling

Air Cleaning

UV Treatment

Scoop Feeding

Double-Head Powder Filling

Weight Checking

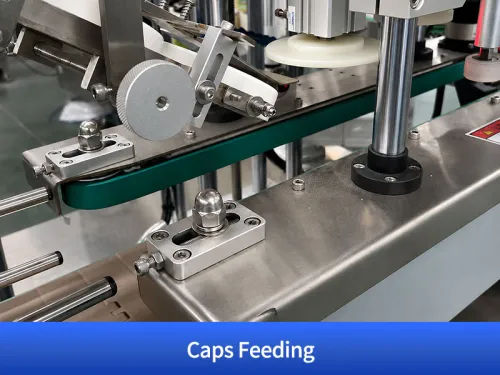

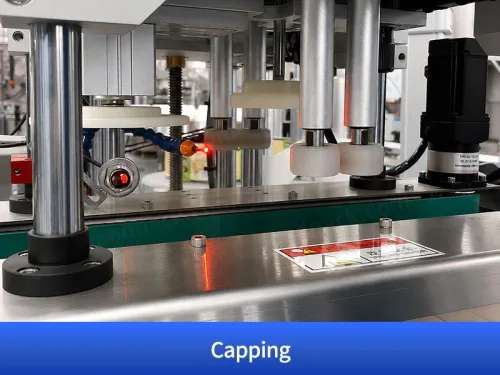

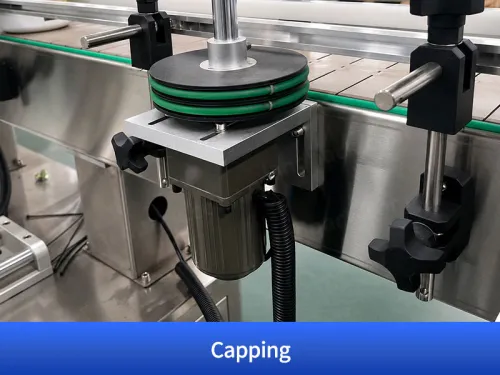

Cap Feeding and Capping

Round-Bottle Labeling

PARAMETER

Bottle unscrambler
Voltage	220V 50/60Hz customized
Power	0.5KW
Material	Stainless Steel
Dimensions	10009001000mm
Bottle turning and blowing cleaning machine
Voltage	380V 50/60Hz
Power	1.1KW
Cleaning speed	1-90 bottles/min
Applicable tank diameter	Diameter:75-150mm High:75-150mm（Change mold）
Automatic spooning machine
Voltage	380V 50/60Hz
Power	0.37KW
Spooning speed	40-60pcs/min
Dimensions	15007001500mm
Filling machine
Voltage	220/380V 50/60Hz
Power	2KW
Filling weight	10-5000g
Filling accuracy	1%
Dimensions	130011502300mm
Weighing machine
Voltage	220V 50/60Hz
Power	0.3KW
Inspection range	50-5000g
Belt width	300mm
Inner capping machine
Voltage	220V 50/60Hz
Power	1KW
Bottle diameter	Φ35-Φ130mm
Bottle height	50-320mm
Dimensions	15008001600mm
Capping machine
Voltage	220V 50/60Hz
Power	0.3KW
Applicable bottle diameter	50-280mm
Working air pressure	0.4-0.6MPa
Dimensions	20004701240mm
Labeling machine
Voltage	220V 50/60Hz
Power	0.2KW
Labeling speed	100-250pcs/min
Label height	20-140mm
Applicable paper roll inner and outer diameters	76mm-300mm
Dimensions	17006501300mm
Bottle collecting machine
Voltage	220V 50/60Hz
Power	0.5KW
Machine material	Stainless Steel
Dimensions	10009001000mm
