Automatic Milk Powder Filling Line Powder Can Tin Filling Vacuum Seaming Machine

Introduction:

Milk powder filling line for cans, with UV treatment, scoop insertion, auger filling, vacuum nitrogen seaming and lid pressing, up to 30 cans/min.

Application:

Suitable for automatic can filling and sealing of whey milk powder, protein powder, formula powder, collagen powder, coffee powder, cocoa powder, cereal powder, seasoning powder and other dry powder products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for automatic can filling and sealing of whey protein powder, milk powder, formula powder, collagen powder, coffee powder, cocoa powder, cereal powder, seasoning powder and other dry powder products. It runs at up to 30 cans/min, depending on the can size and filling weight.

Automatic Milk Powder Filling Line Powder Can Tin Filling Vacuum Seaming Machine

Package Type:

The line handles round metal cans and tins fitted with seamed metal ends and plastic overcaps. It also supports measuring scoops placed inside the can before filling. Change parts match different can diameters, heights, filling volumes, lid sizes, and scoop formats.

FEATURES

1. Rotary can unscrambler feeds containers continuously onto the conveyor.

2. Frequency control adjusts the can-feeding speed.

3. Filtered-air unit removes loose dust from empty cans.

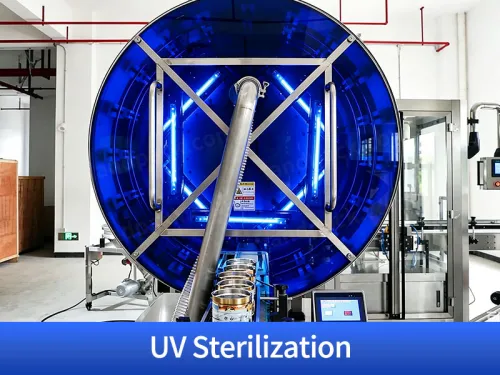

4. Shielded UV section allows independent lamp control.

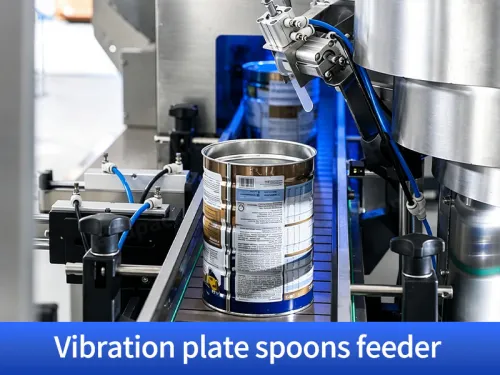

5. Automatic scoop feeder positions measuring spoons before powder filling.

6. Servo auger controls the filling dose for different powder weights.

7. Online weighing system targets a final filling deviation within 2 g under specified operating conditions.

8. Vacuum and nitrogen seaming section completes air removal, gas flushing, lid placement, and seaming.

9. The seaming process can target residual oxygen below 2% after setup and validation.

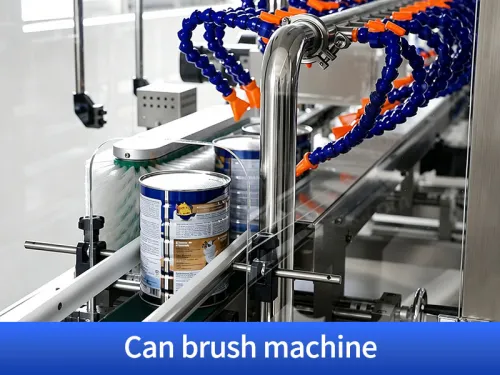

10. Brush unit clears powder from the outside of each can.

11. Turning device changes the can orientation before overcap pressing.

12. Plastic lid press handles different overcap diameters with matching change parts.

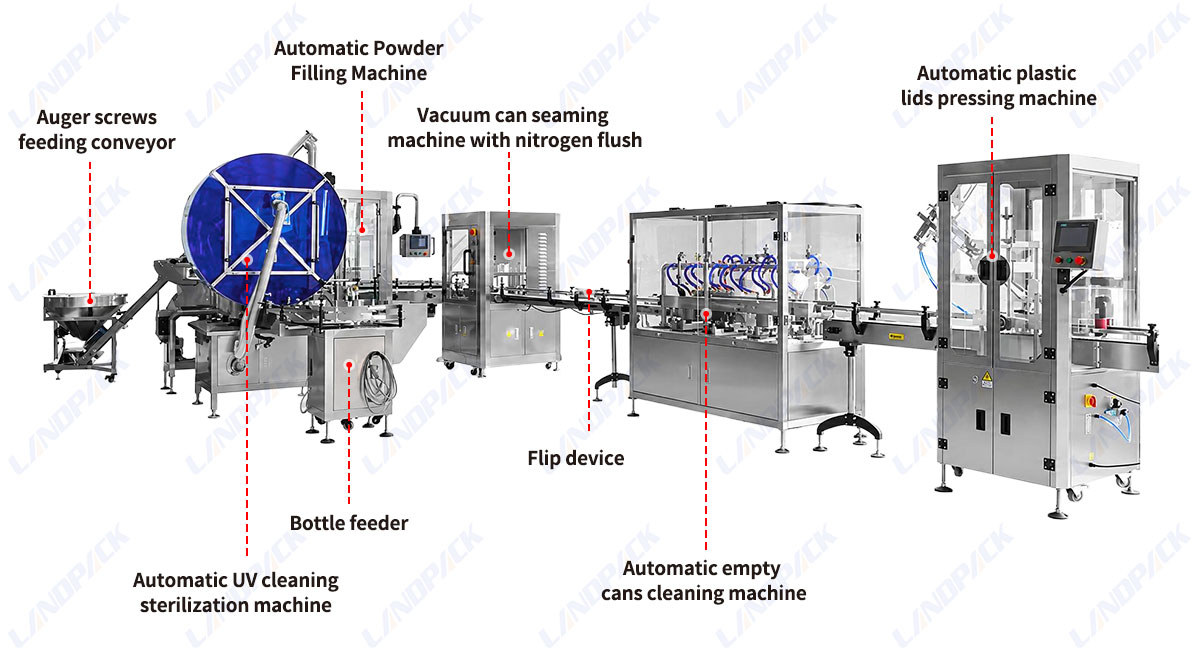

Machine Structure Overview:

Automatic Milk Powder Filling Line Powder Can Tin Filling Vacuum Seaming Machine

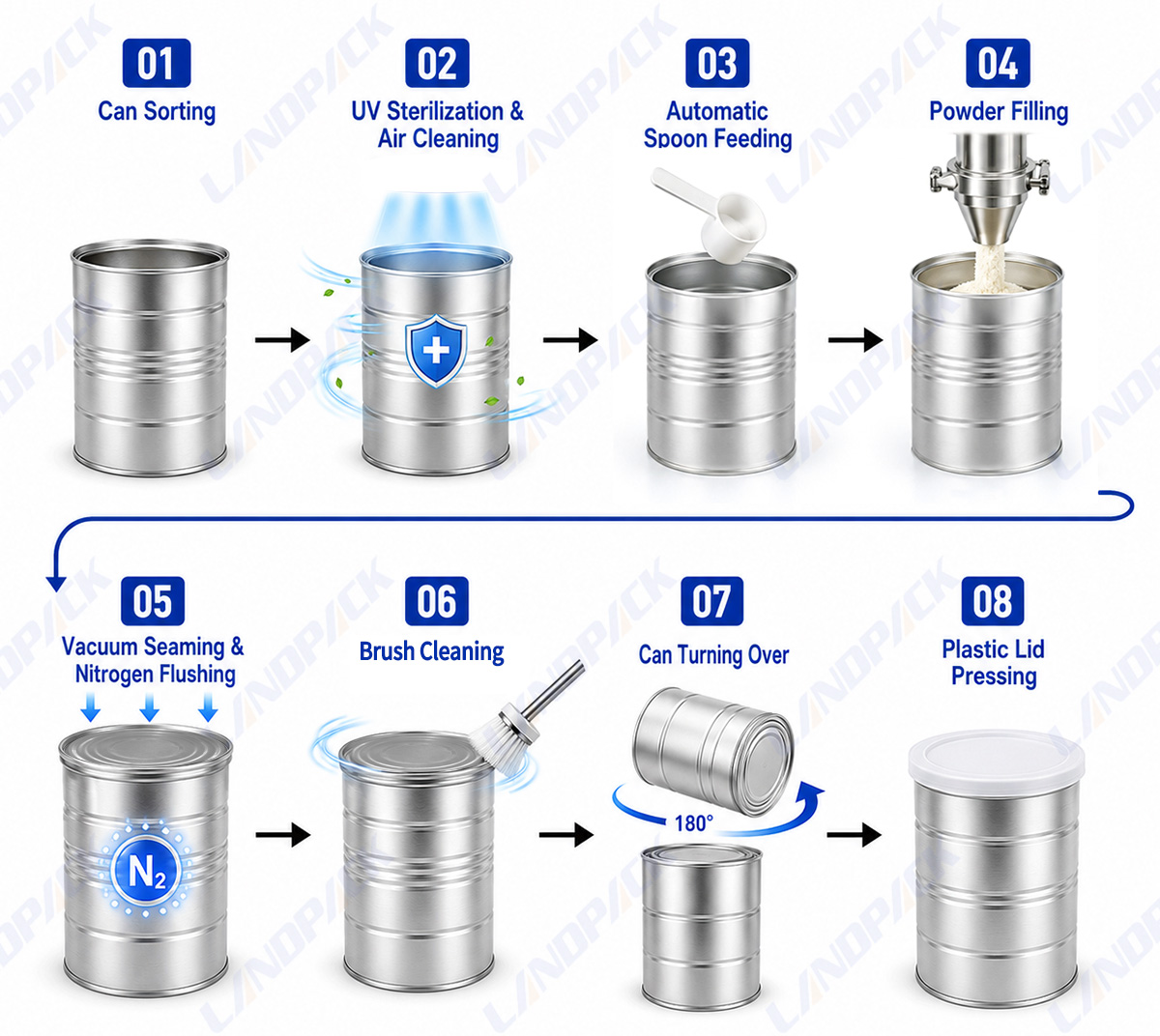

WORKFLOW

Cans Sorting

UV Treatment and Air Cleaning

Automatic Scoop Feeding

Powder Filling

Online Weight Checking

Vacuum and Nitrogen Flushing

Cans Seaming

Plastic Lid Pressing

PARAMETER

UV Cleaning Blowing Machine
Item	Specifications
Voltage	220V/50Hz (customized)
Power	2500W
Air pressure	0.3-0.5mpa
Speed	10-50 BPM
Bottle diameter	76-140mm
Bottle high	80-200mm
UV light	7
Outline dimension	240013002200MM
Net weight	350KG
Spoons vibration feeder
Voltage	220V/50Hz (customized)
Power	300W
Speed	10-40 BPM
Vibration top diameter	60-80cm
Spoon size	customized
Outline dimension	10008001200MM
Net weight	150KG
Auger Filler (powder dosing)
Max Weight	10~1000g/time
Container size	Φ 80-210mm H100-330mm(customized)
Filling weight	900g-2500g(customized)
Filling accuracy	500g,≤±1%
Filling speed	10~30bottles/min(depend on the material and weight)
Auger Filler hopper	50L
Power supply	Three phase380V or single phase
Total power	3.5 KW
Total weight	420kg
Dimension	20009001850mm
Automatic Can Seamer Machine
Bottle type	round, square bottles, etc need to be customized.
Can body max diameter	153mm(can be customized)
Bottle height	50-150mm(can be customized)
Speed	5-8BPM(it depends on product)
Seaming Type	Nitrogen consumption and vacuum seaming
Caps feeding type	Automatic lids feeding
Machine voltage	220V(can be customized)
Machine size	200010001700mm
Machine weight	550kg
Laser Printer
power	20~200W (can be option)
Laser	1064mm
repeat frequency	20~200KHZ
basement membrane Gaussian beam	＜1.2
Printing range	100*100mm
Engraving	＜0.4mm
Speed	Max 10000mm/s
Minimum Line Width	0.01mm
Minimum character	0.15mm
Accuracy	±0.02
Power supply	220V/50Hz, 500W
Positioning way	Infrared focusing
Machine size	8255451425mm
Machine Weight	60kg
Operating system	Embedded touch marking system or external 10.1 inch
Cooling method	Built-in air cooling
Control interface	Standard USB
File format	All fonts/glyphs of WINDOWS operating system fonts
Laser type	Air-cooled fiber laser; Service life of up to 100,000 hours
Automatic Cans cleaning machine
Speed	20-40bpm
Bottle diameter	80-210mm (or custom-made)
Power	2KW 380V
Weight	350KG
Machine size	17008001800mm
Automatic lids pressing machine
Material	304 stainless steel
Cover size	Cover diameter: 40-130mm (can be custom-made)
cover height	5-15mm
Bottle diameter	50-220mm
Speed	10-50 bottles/minute
Conveyor belt size	(L)1900mm(H)900(W)114mm
Machine size	(L)1900mm(H)1700(W)800mm
Weight	250KG
Power	220V, 50HZ, 0.68KW
Air pressure	0.5-0.7MPa, require 750W air compressor
