Automatic Milk Powder Cans Tins Filling Machine With Seaming Machine

Introduction:

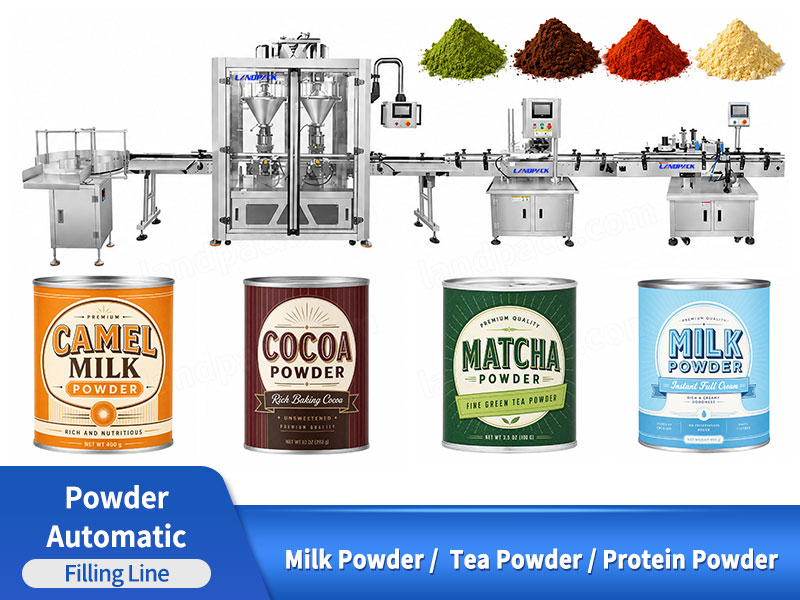

This automatic powder can filling line integrates container feeding, double-head auger filling, sealing and labeling.

Application:

Automatic Milk Powder Filling Machine is specially designed for milk powder, infant formula powder, goat milk powder, skim milk powder, protein powder, whey protein, collagen powder, meal replacement powder, and nutritional powder.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic milk powder filling machine is specially designed for milk powder, infant formula powder, goat milk powder, skim milk powder, protein powder, whey protein, collagen powder, meal replacement powder, and nutritional powder.

Automatic Milk Powder Cans Tins Filling Machine With Seaming Machine

Package Type:

Automatic Milk Powder Protein Powder Filling Machine is suitable for metal cans, composite paper cans, aluminum tins, PET powder containers and nutritional supplement jars. Supports packaging sizes from 100g to 5000g with customized container dimensions.

FEATURES

1. Servo auger filling system provides filling accuracy up to ±1-2g for consistent packaging results.

2. The filling line operates at speeds of up to 15-60 cans per minute, depending on product specifications.

3. A 50L hopper with an agitator ensures stable and continuous powder feeding.

4. PLC and touchscreen control system enable simple operation and quick parameter adjustment.

5. The can seaming machine delivers secure and consistent sealing performance.

6. The machine is manufactured from SUS304 stainless steel for durability and hygiene.

7. An integrated dust collection system helps maintain a cleaner production environment

8. The filling line can be configured with optional systems such as nitrogen flushing, check weighing, and metal detection.

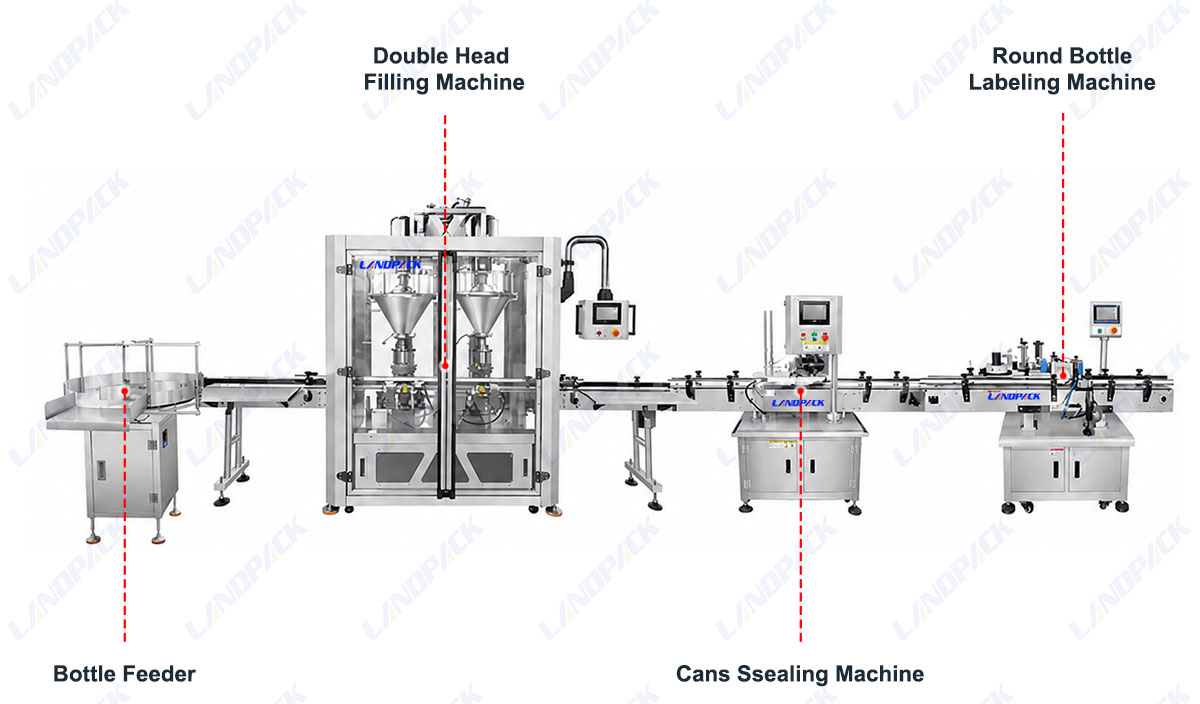

Machine Structure Overview:

Automatic Milk Powder Cans Tins Filling Machine With Seaming Machine

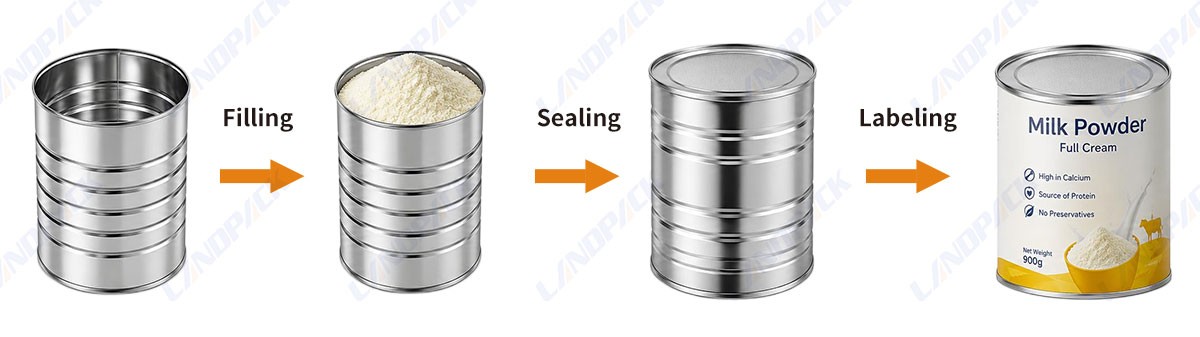

WORKFLOW

Can Feeding

Automatic Filling

Weight Checking

Can Seaming

Finished Product Output

PARAMETER

Automatic Can Feeder
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Can Diameter	40-130mm
Suitable Can Height	30-200mm
Working Speed	40-60 bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg

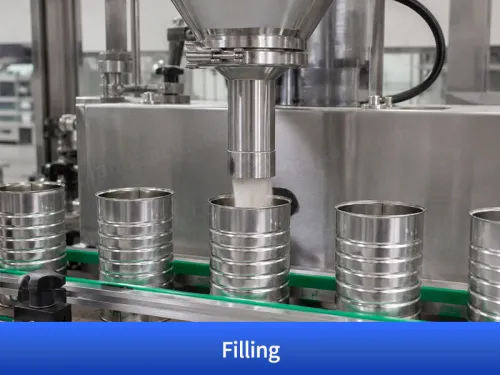

Auger Filler (powder dosing)
Max Weight	10~1000g/time
Container size	Φ 80-210mm H100-330mm(customized)
Filling weight	900g-2500g(customized)
Filling accuracy	500g,≤±1%
Filling speed	10~30bottles/min(depend on the material and weight)
Auger Filler hopper	50L
Power supply	Three phase380V or single phase
Total power	3.5 KW
Total weight	420kg
Dimension	20009001850mm

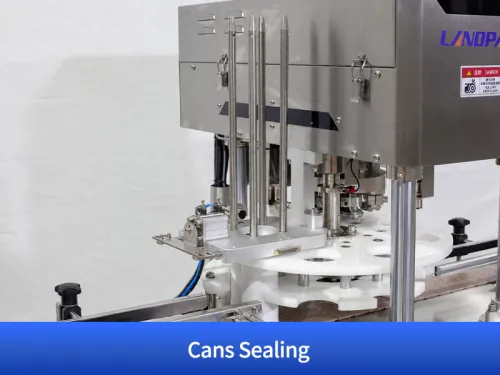

Automatic Can Seamer Machine
Bottle type	round, square bottles, etc need to be customized.
Can body max diameter	153mm(can be customized)
Bottle height	50-150mm(can be customized)
Speed	5-8BPM(it depends on product)
Seaming Type	Nitrogen consumption and vacuum seaming
Caps feeding type	Automatic lids feeding
Machine voltage	220V(can be customized)
Machine size	200010001700mm
Machine weight	550kg

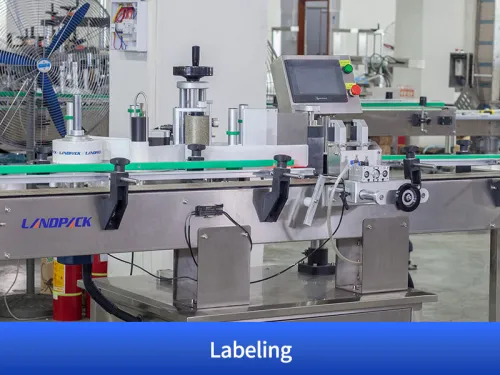

Automatic labeling machine
Model	LFT-SM-00
Labeling speed	10-40 bottles/min
Labeling Accuracy	±1mm (Does not contain product and label errors)
Max Label width	200mm
Applicable Product Size	H≤400mm, T≤100mm (Can be customized)
Applicable inner diameter of paper	Φ76.2 mm
Applicable outer diameter of paper	Max.Φ350mm
Air Source	4-6KG, 30L/min
Dimension	305014501800mm
Voltage	220V, 50Hz, 3500W
Weight	500KG
