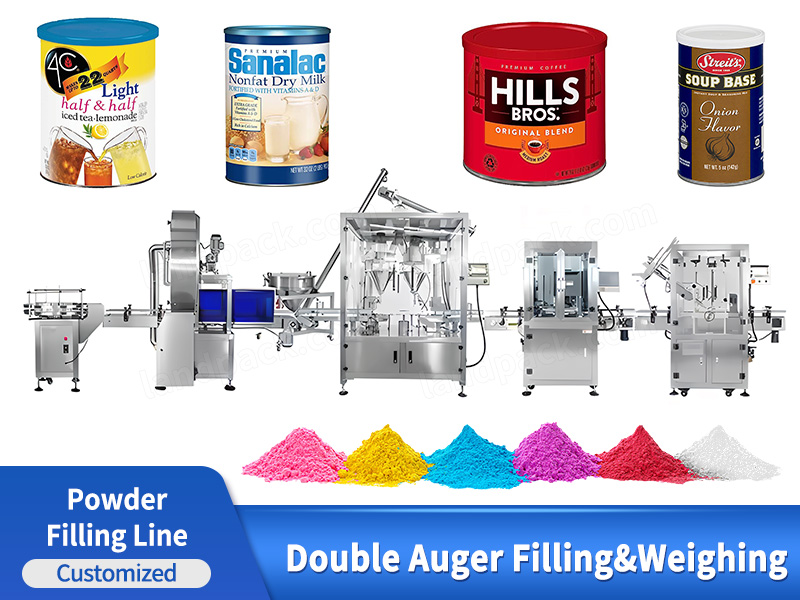

Automatic Milk Powder Can Filling Seaming Line With UV Sterilizer

Application:

It is ideal for accurately filling and packaging a wide range of powdered products, such as milk powder, protein powder, coffee powder, medicine powder, chemical powder, meal replacement powder, and more. This machine ensures high precision, consistent output, and efficient operation across food, pharmaceutical, and chemical industries.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Milk Powder Can Filling Seaming Line With UV Sterilizer

FEATURES

1. Integrates powder dosing, UV sterilization, nitrogen flushing, and can seaming into one efficient system for high productivity and quality.

2. Uses a servo-driven auger for precise ±1% dosing accuracy, minimizing material waste and overfilling.

3. Features dual-stage UV sterilization to fully sanitize cans and lids before filling, enhancing hygiene and shelf life.

4. High-quality seaming heads create perfect seals without edge damage, preventing leaks and maintaining product integrity.

5. Includes PLC control with touchscreen for easy operation, real-time monitoring, and quick adjustments.

6. All contact surfaces use SUS304/SUS316 stainless steel, meeting CE and dairy-grade hygiene standards.

7. Works with multiple can sizes and powder types like milk powder, protein, baby formula, and supplements.

Automatic Milk Powder Can Filling Seaming Line With UV Sterilizer

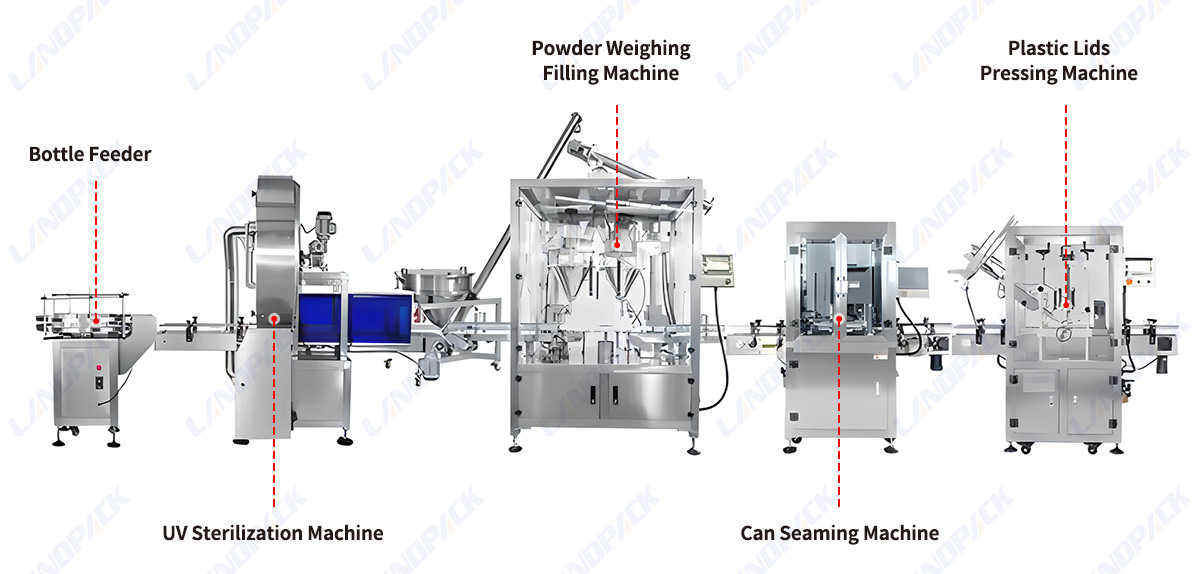

WORKFLOW

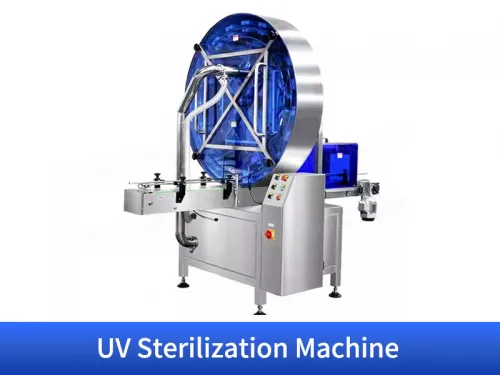

1. Automatic UV cleaning sterilization machine

2. Vibration plate spoons feeder

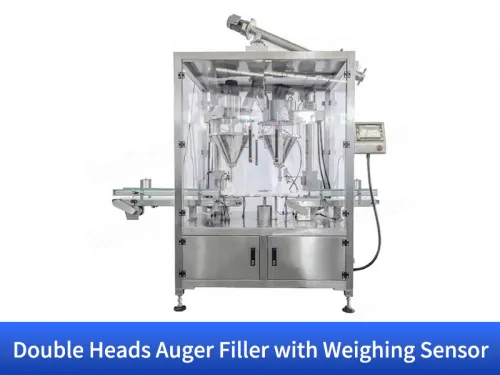

3. Automatic powder weighing filling machine

Vacuum can seaming machine with nitrogen air filling device

5. Laser printer

6. Weight detection and elimination machine

7. Automatic empty cans cleaning machine

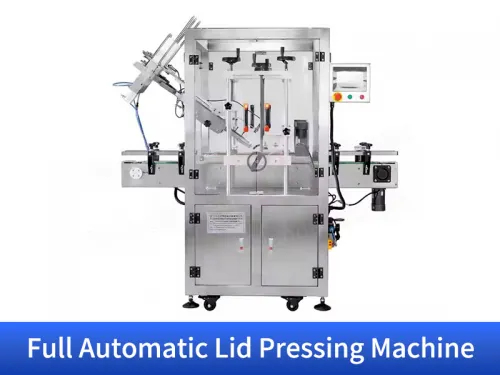

8. Automatic plastic lids pressing machine

PARAMETER

Model	LF-PJ-02	LFP-02
Filling Weight	10-5000g(customizable)	10-5000g(customizable)
Bottle diameter	Φ30-Φ140mm(customizable)	Φ30-Φ140mm(customizable)
Bottle height	50mm-200mm(customizable)	50mm-200mm(customizable)
Yield	10-20 bottles/min	20-40 bottles/min
Measurement accuracy	≤500g, ≤±1%, ＞500g, ≤±0.5% (Varies due to the characteristics of the material)	≤500g, ≤±1%, ＞500g, ≤±0.5% (Varies due to the characteristics of the material)
Power	2.5KW	5KW
Silo capacity	50L	50L
Power Supply	220V, 50Hz	220V, 50Hz
Working Pressure	0.6-0.8MPa	0.6-0.8MPa
Weight	350kg	550kg
