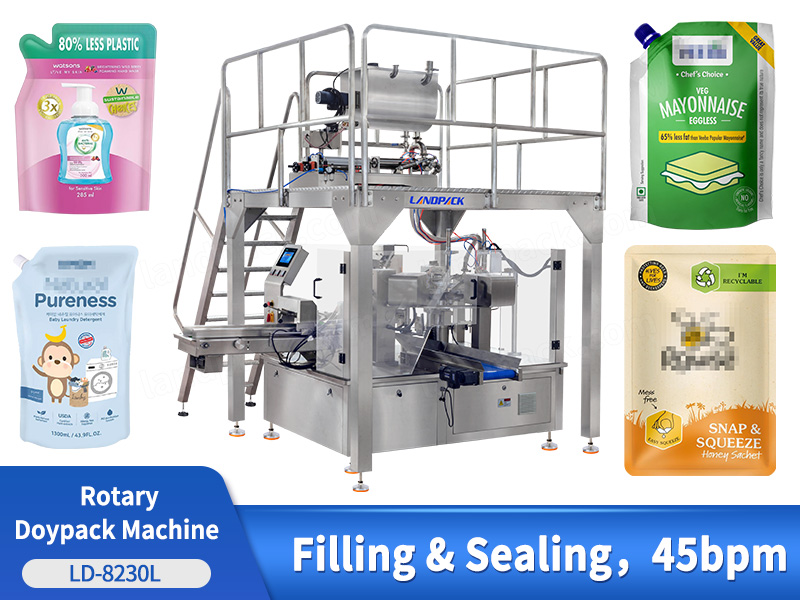

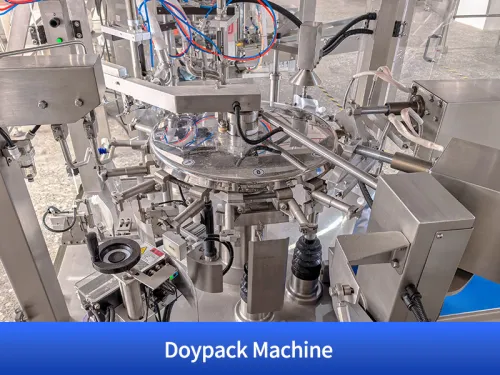

Mayonnaise Spout Pouch Filling Sealing Machine | Rotary Doypack Pouch Packing Machine

Introduction:

This 8-station vertical packaging machine features dual filling ports and a U-shaped storage hopper, enabling balanced liquid supply across all lanes.

Application:

Ideal for packaging a variety of viscous and free-flowing liquids, such as mayonnaise, tomato sauce, chili paste, and condiments — as well as personal-care liquids like shampoos, lotions, or liquid detergents.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This machine is compatible with multiple types of premade pouches, such as spouted bags, stand-up doypacks, flat three- or four-side seal bags, gusset bags, and zipper pouches. Its flexible handling and sealing mechanisms allow it to work smoothly with various pouch shapes and closure styles.

Mayonnaise Spout Pouch Filling Sealing Machine | Rotary Doypack Pouch Packing Machine

Suitable Products:

This 8-station premade pouch machine efficiently handles various liquid and semi-viscous products, such as:

Food Sauces & Condiments: Mayonnaise, chocolate sauce, oyster sauce, curry paste, garlic pasteketchup, chili sauce, tomato paste, salad dressings, cooking oils, soy sauce.

Dairy & Beverage-Type Liquids: Yogurt, milk, condensed milk, flavored syrups, fruit purees, smoothie bases, thick beverages, dessert sauces.

Household & Personal Care Liquids: Shampoo, hand sanitizer gels, lotion, conditioner, liquid soap, detergents, cosmetic creams, and daily-chemical liquid products.

Mayonnaise Spout Pouch Filling Sealing Machine | Rotary Doypack Pouch Packing Machine

FEATURES

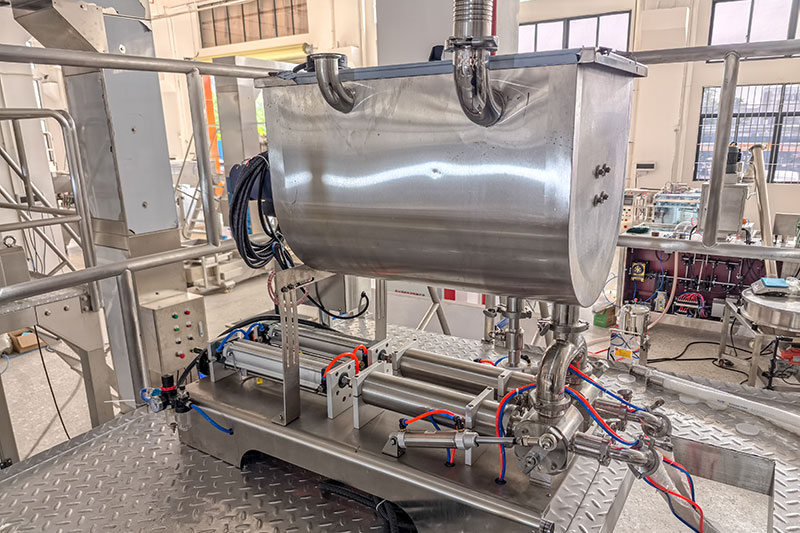

U-Shaped Storage Hopper This high capacity U-type tank provides steady liquid buffering and uniform product flow to ensure efficient production processes during fast-paced production runs.

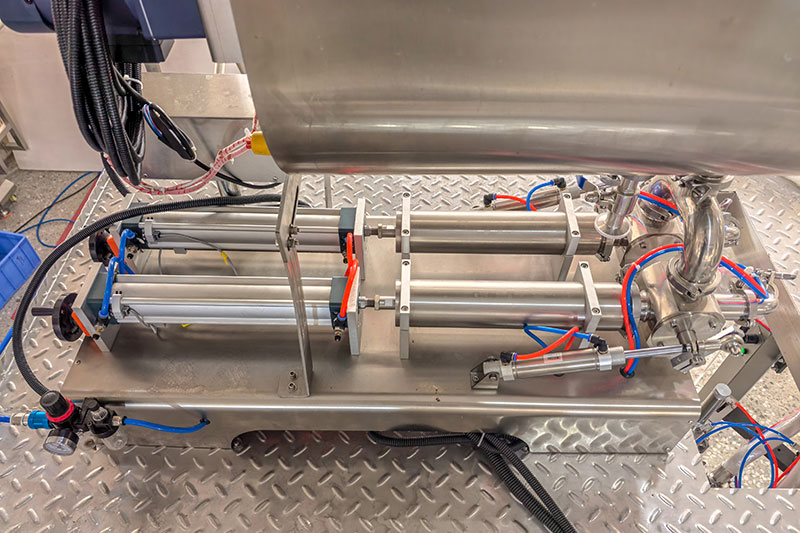

	Liquid Pump A precision metering pump enables precise and consistent liquid dosing, from low viscosity fluids to thicker sauces with ease.

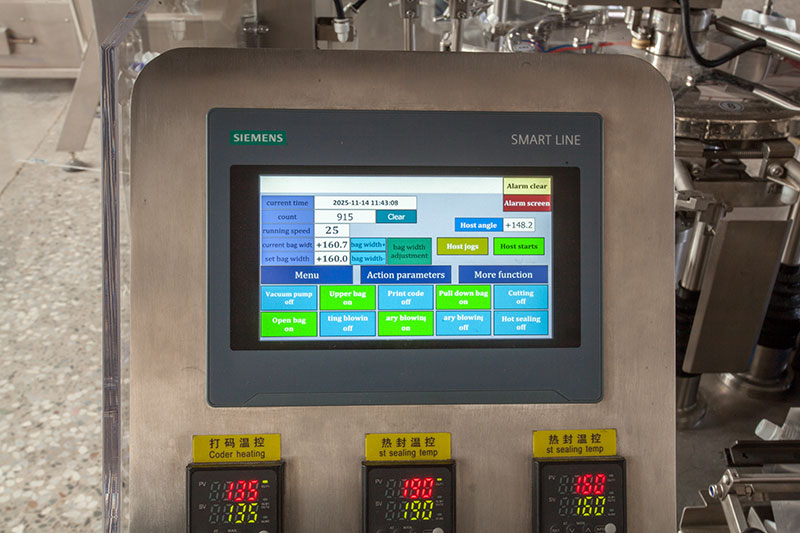

PLC Touchscreen Controller Our intuitive PLC interface offers user-friendly setup, live status display and rapid adjustments that help optimize performance while decreasing operator workload.

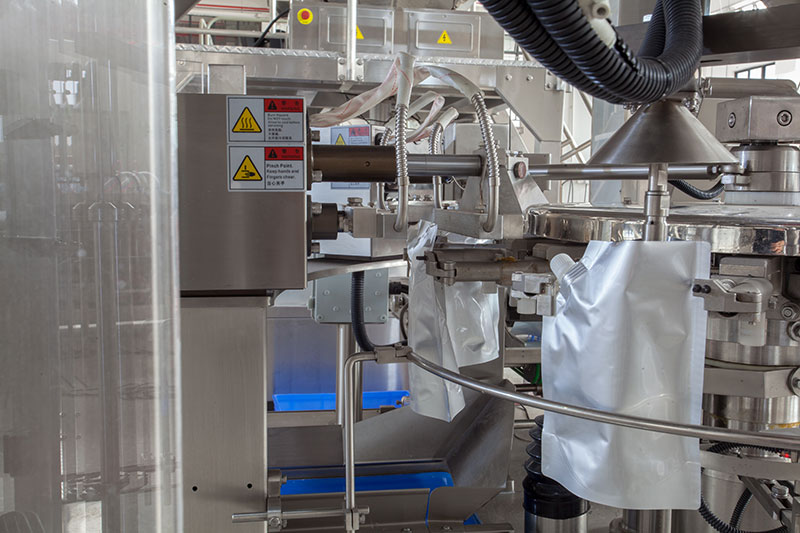

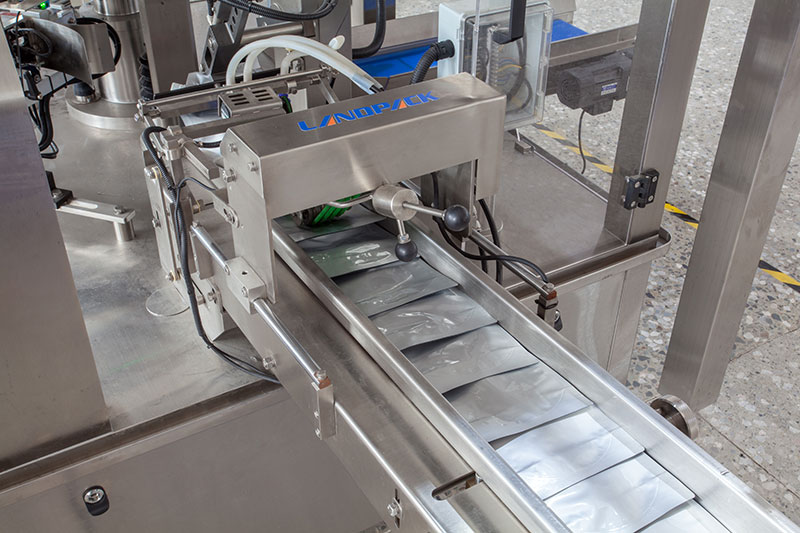

	Horizontal Pouch Feeding System Our horizontal feeding mechanism carefully and reliably picks and guides premade pouches into position, reducing distortion while increasing overall feeding reliability.

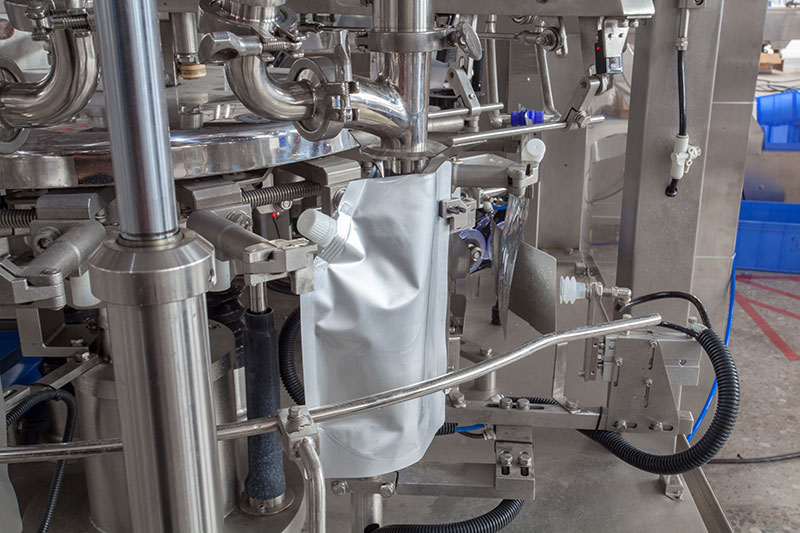

Filling Nozzles These filling nozzles have been constructed with a drip-free structure to ensure clean filling, precise volume control, and leakage-free operation.

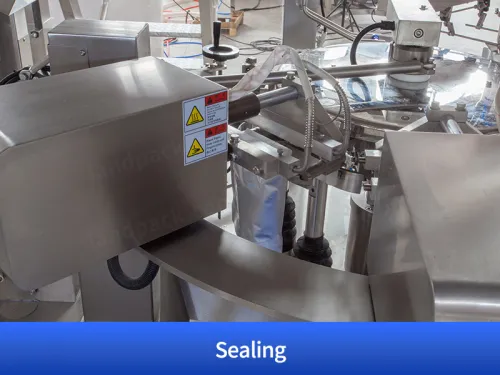

	Heat-Sealing Unit A reliable sealing station uses consistent heat and pressure to create strong seals on liquid pouches that protect them against spillage during handling.

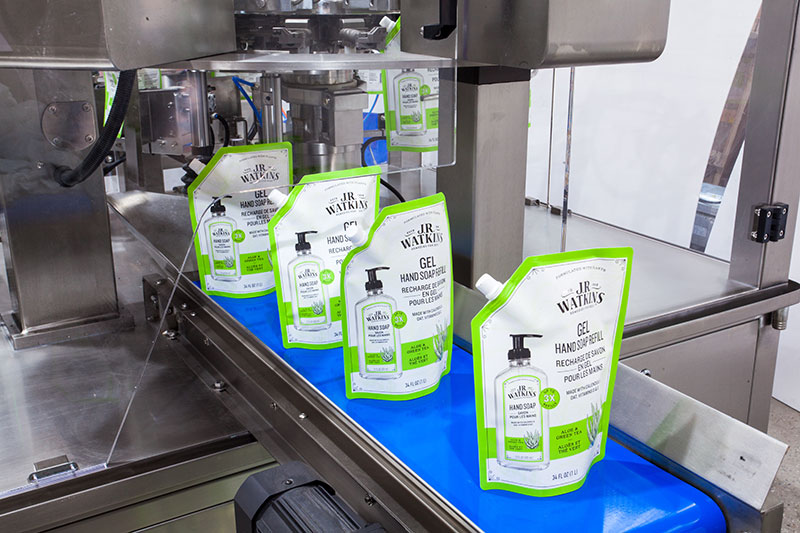

Output Conveyor Our finished pouch conveyor ensures products arrive smoothly at the next stage, keeping production flowing efficiently and on schedule.

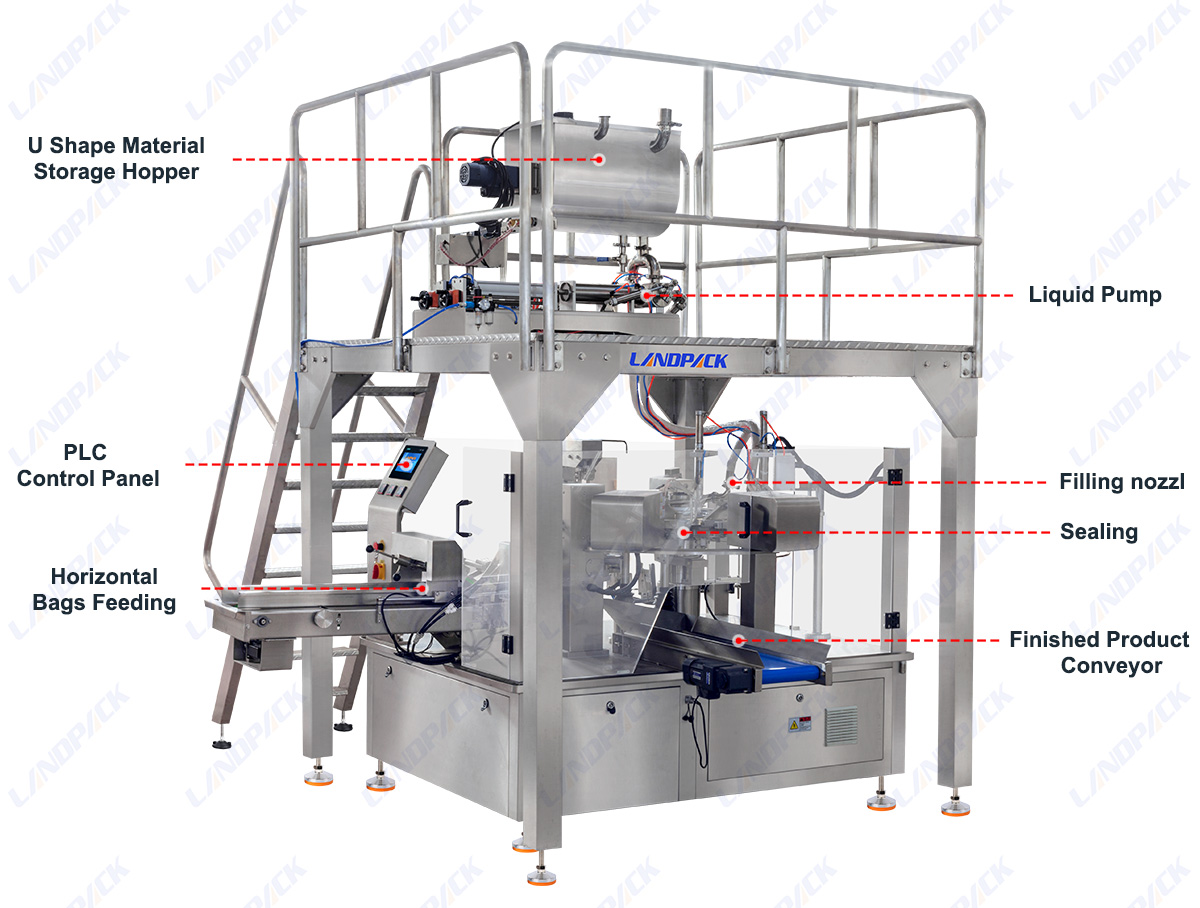

Machine Structure Overview:

1. Horizontal Bags Feeding

2. PLC Control Panel

3. U Shape Material Storage Hopper

4. Liquid Pump

5. Filling Nozzl

6. Sealing Station

7. Finished Product Convevor

Mayonnaise Spout Pouch Filling Sealing Machine | Rotary Doypack Pouch Packing Machine

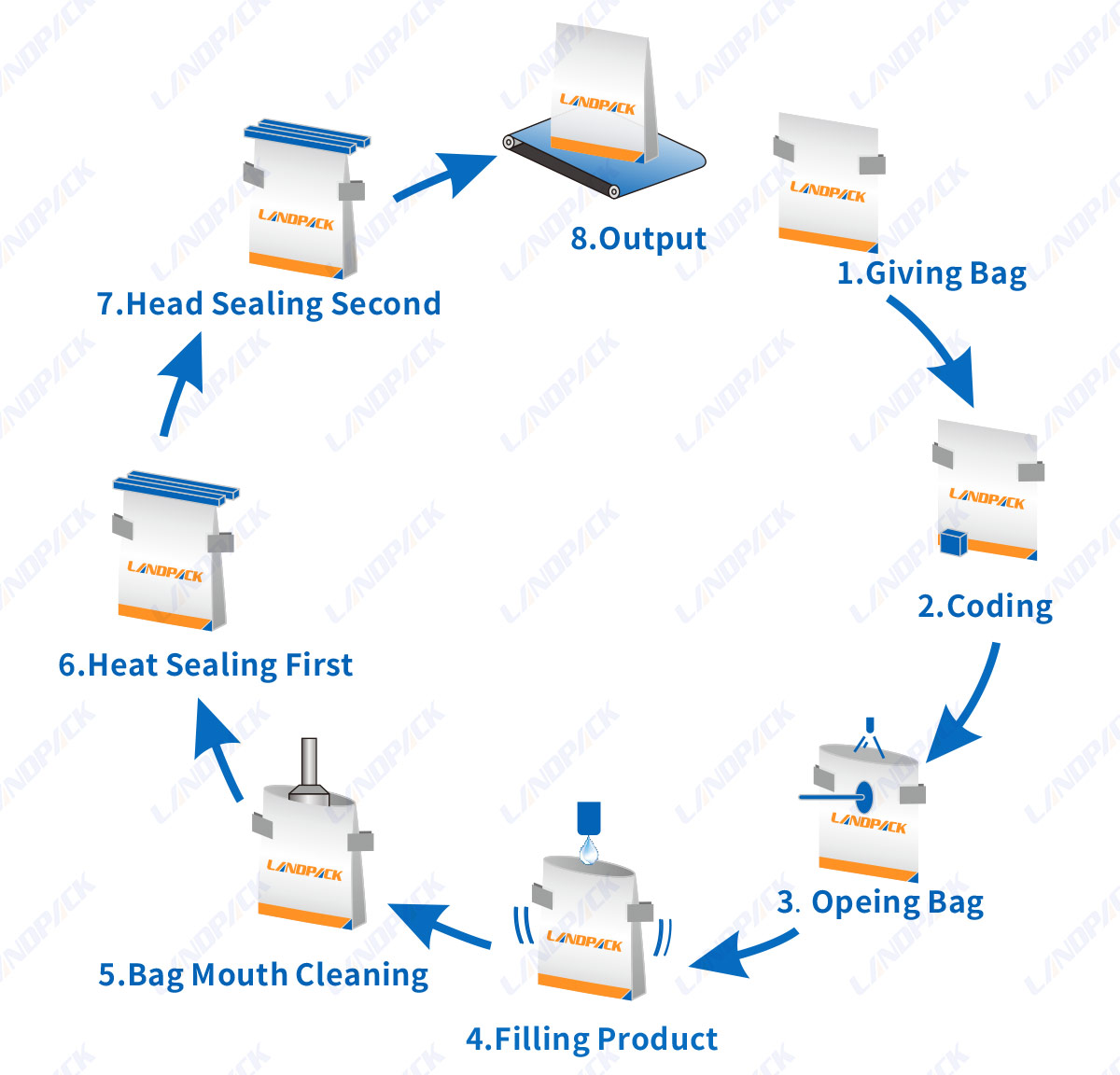

WORKFLOW

Pouch Loading

Date Coding

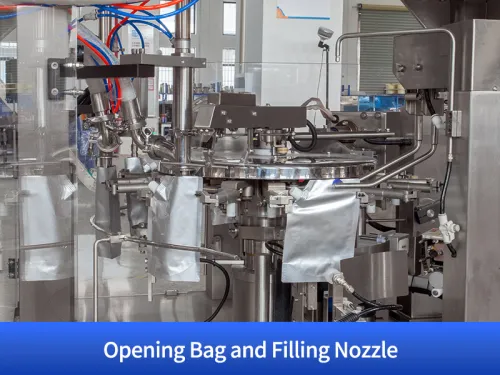

Bag Opening

Liquid Filling

Bag Mouth Cleaning

First Heat Sealing

Second Heat Sealing

Finished Product Discharge

PARAMETER

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4-side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size(L*W)	W: 80-230mm, L: 150-380mm	W: 140-260mm, L: 150-380mm	W: 180-300mm, L: 150-430mm	W: 270-400mm, L: 200-500mm
Filling Range	10-1000g	1500g	2000g	3000g
Packing speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min
Dimensions	174013801450mm(LWH)		246018301460mm	226022001520mm
Machine Weight	1300kg	1300kg	1700kg	2000kg
