High Speed Mayonnaise Packaging Machine | Tomato Sauce Packing Machine

Introduction:

Features air-shaft roll film, ribbon date printer, level sensor, anti-leak filling, and adjustable piston pump for precise, efficient filling and packaging.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

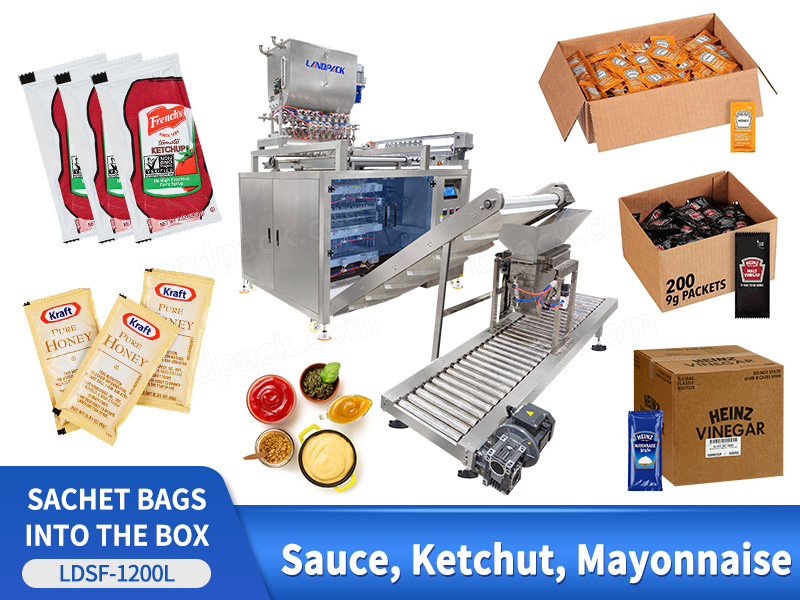

High-speed multi-lane ketchup packaging machine with automatic counting and cartoning system. Ideal for ketchup, chili sauce, salad dressing, peanut butter and more. Features air-shaft roll film, ribbon date printer, level sensor, anti-leak filling, and adjustable piston pump for precise, efficient filling and packaging.

High Speed Mayonnaise Packaging Machine | Tomato Sauce Packing Machine

FEATURES

1. Air-shaft roll film device maintains smooth, stable film feeding for continuous high-speed operation.

2. Multi-head ribbon printer applies batch codes and expiry dates on all lanes simultaneously for better product tracking.

3. Liquid level sensor in the material tank prevents interruptions by alerting when refills are needed.

4. Built-in stirring and heating system maintains consistent texture and temperature for thick sauces like ketchup.

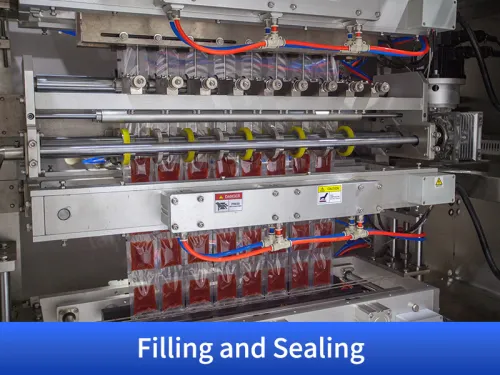

5. Leak-proof filling nozzles eliminate drips to ensure clean seals and professional packaging.

6. Adjustable piston pump allows precise volume control and quick adjustments for different fill quantities.

7. Automated counting and cartoning system uses sensors to accurately pack sachets into boxes.

High Speed Mayonnaise Packaging Machine | Tomato Sauce Packing Machine

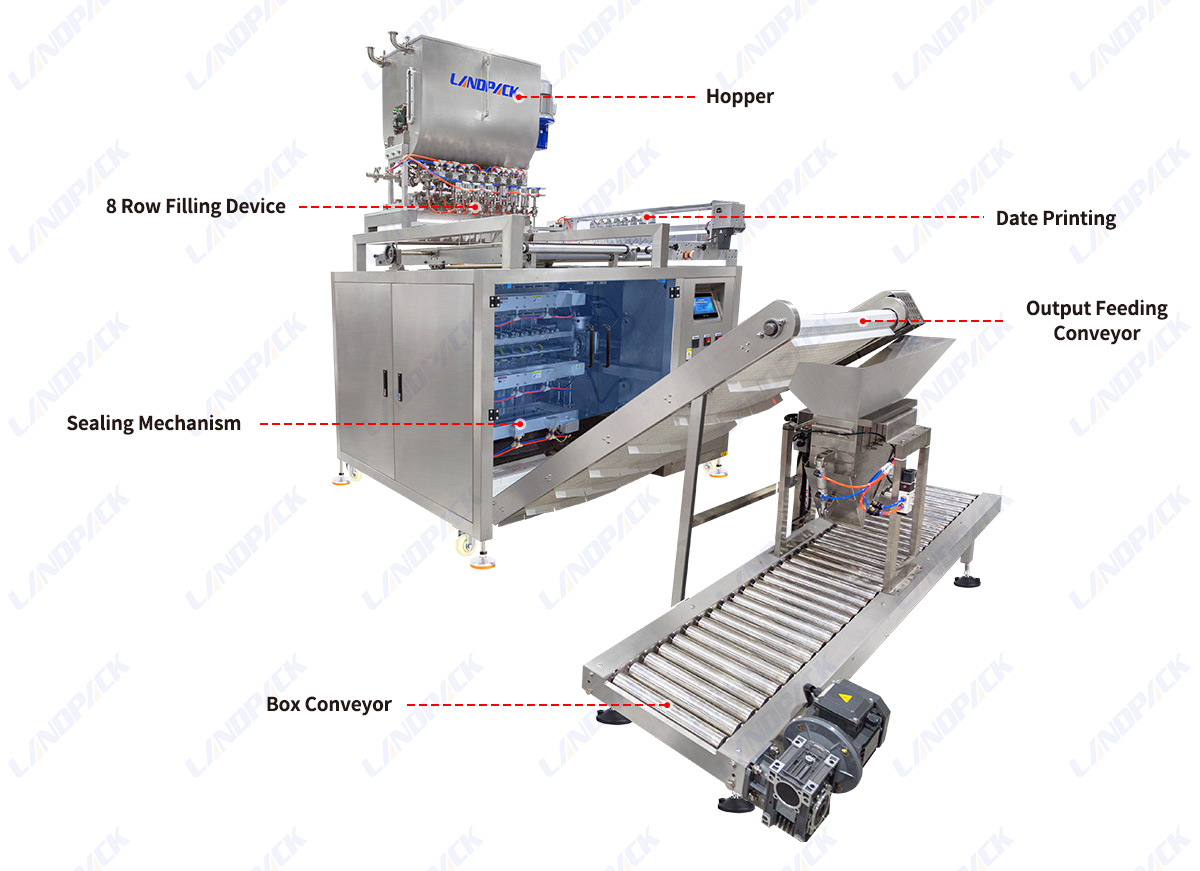

WORKFLOW

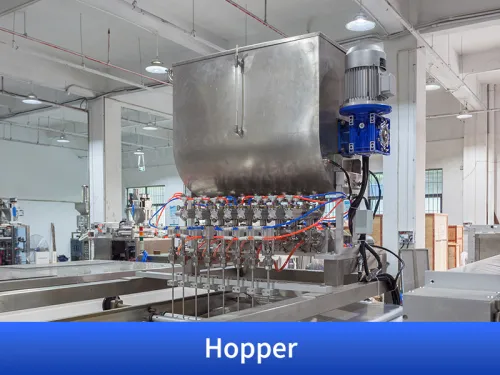

1.Tank with stirring device, filling evenly

2.Magnetic pump filling precisely

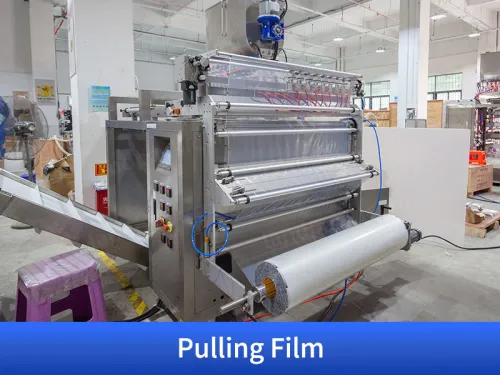

3.7 lanes servo pull film

4.Fall into the conveyor hopper correctly

5.Slop conveyor

6.Electric eye counting device

7.Finished bag all into tray precisely

8.Beautiful bag, firm sealing

PARAMETER

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
