High Quality M Shape Pouch Packing Machine | Mini Doypack Machine

Introduction:

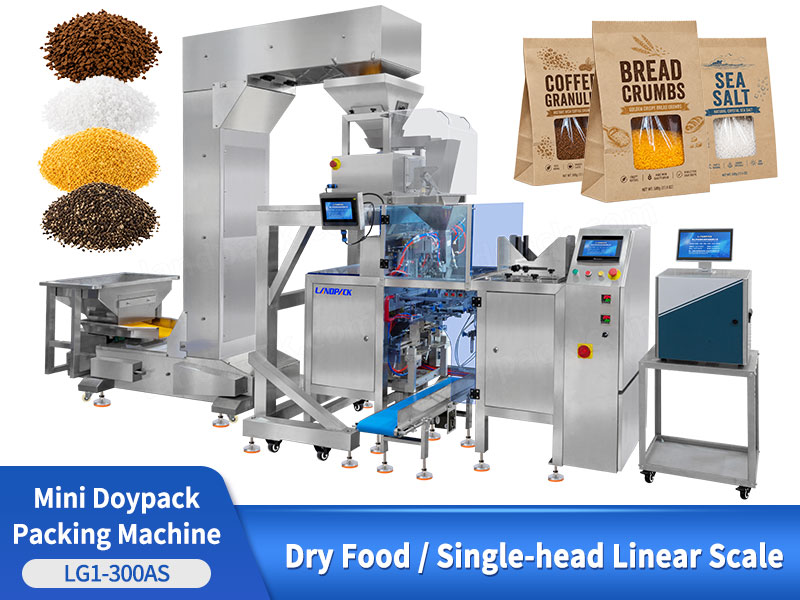

Automatic mini doypack premade pouch packing machine for granola and nuts, with Z-type elevator, linear weighing, pouch filling, coding and sealing system.

Application:

It is suitable for snack, cereal, nut, dried food and agricultural product packaging lines requiring automatic weighing and premade pouch packing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

This m shape pouch packing machine is suitable for granola, mixed nuts and other free-flowing granular products packed in premade pouches. It can be used in snack food, cereal, nut processing, dried food, agricultural product and pet food production lines where automatic material feeding, weighing, pouch picking, filling and sealing are required. Such as granola, muesli, almonds, cashews, peanuts, pistachios, walnuts, sunflower seeds, pumpkin seeds, raisins, dried cranberries, banana chips, coffee beans, cereal, rice, beans, candy, puffed snacks and pet treats.

High Quality M Shape Pouch Packing Machine | Mini Doypack Machine

Package Type:

FEATURES

1. Z-type bucket elevator automatically transfers granular materials to the weighing system for continuous product feeding.

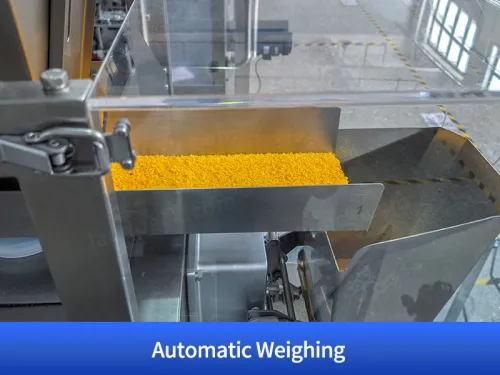

2. Single-head linear weigher measures granola, nuts, dried fruits and other free-flowing granular products before filling.

3. Single-station design completes pouch picking, opening, filling and sealing within one compact packing structure.

4. The pouch handling system can be adjusted for zipper stand-up pouches and kraft paper gusset M-shaped bags.

5. Coding system can print production date, batch number and other coding information on the premade pouch.

6. Air exhaust function helps release excess air from the pouch before final sealing and reduces unnecessary package bulk.

7. PLC and touchscreen control allow operators to set weighing and packing parameters from the control panel.

8. Finished pouches are automatically transferred by the discharge conveyor for collection or connection with downstream equipment.

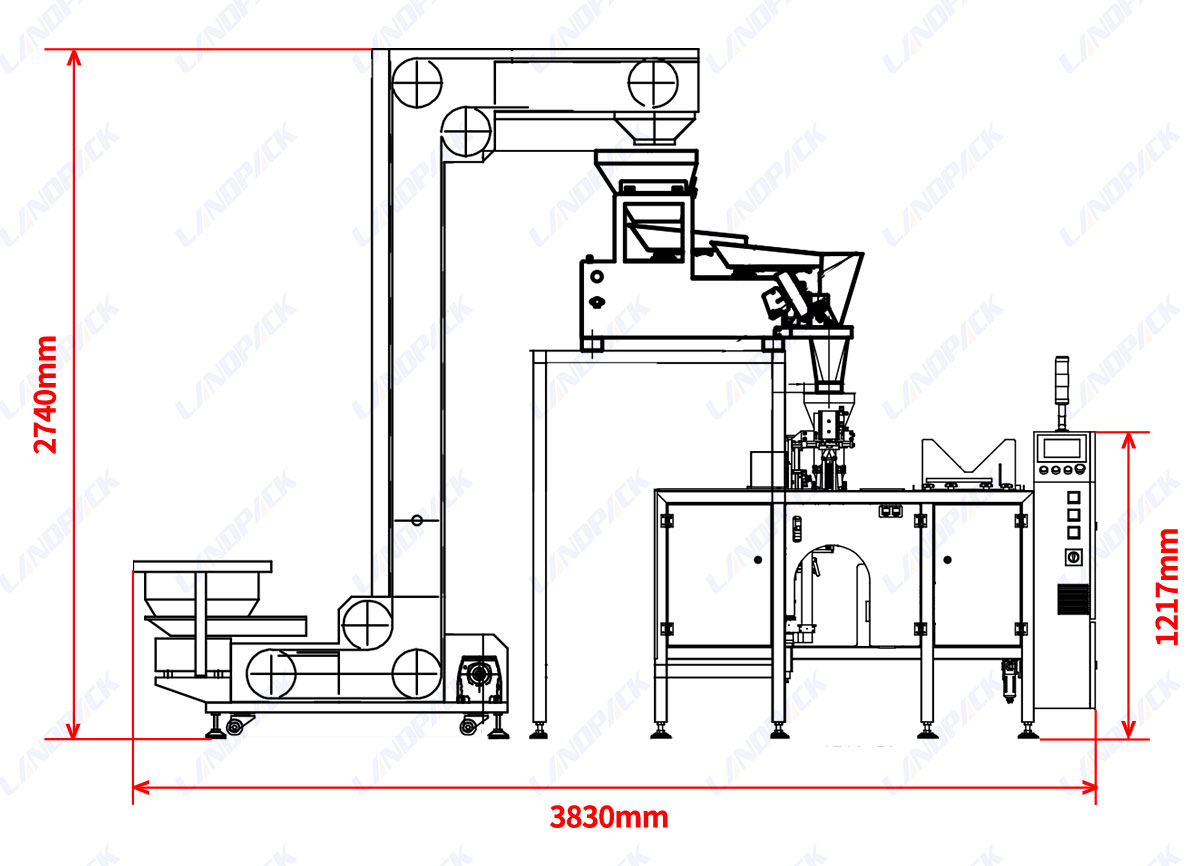

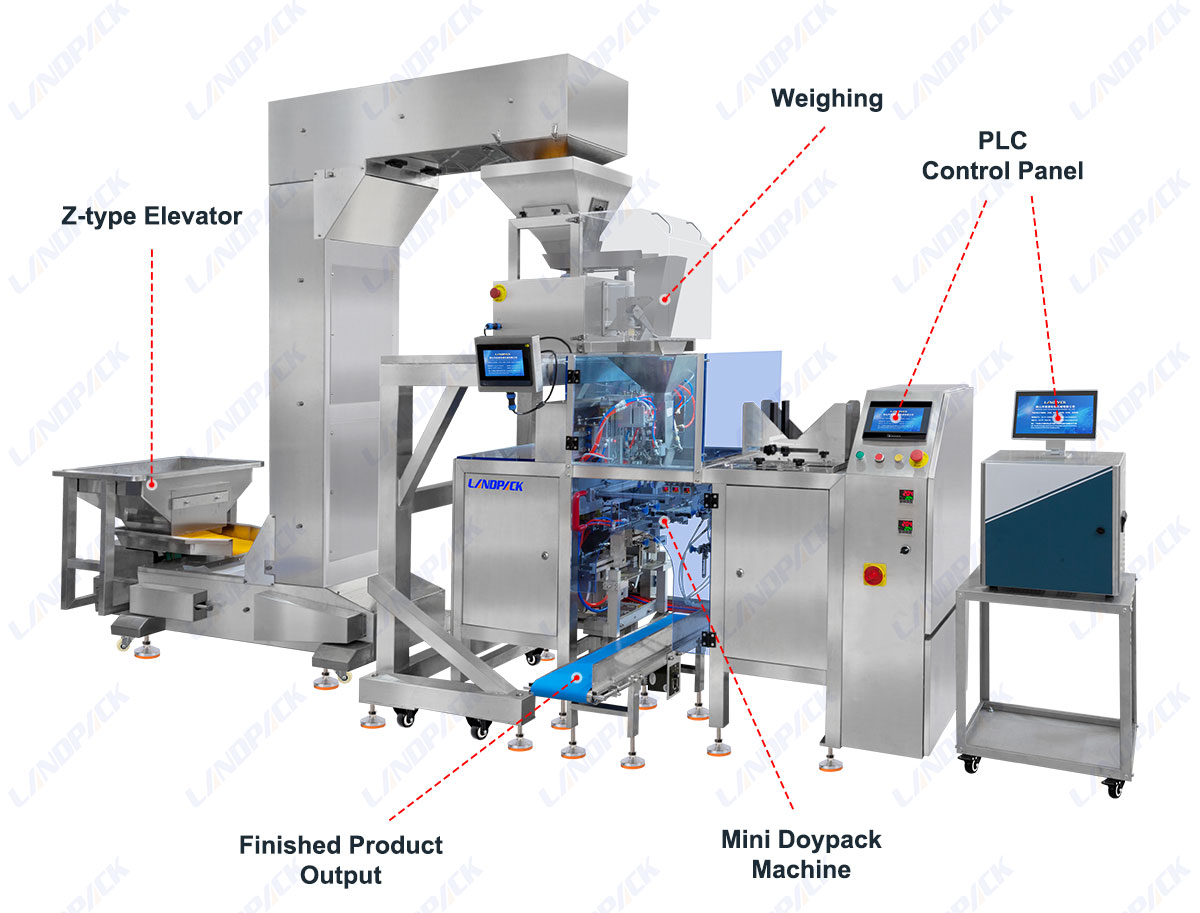

Machine Structure Overview:

High Quality M Shape Pouch Packing Machine | Mini Doypack Machine

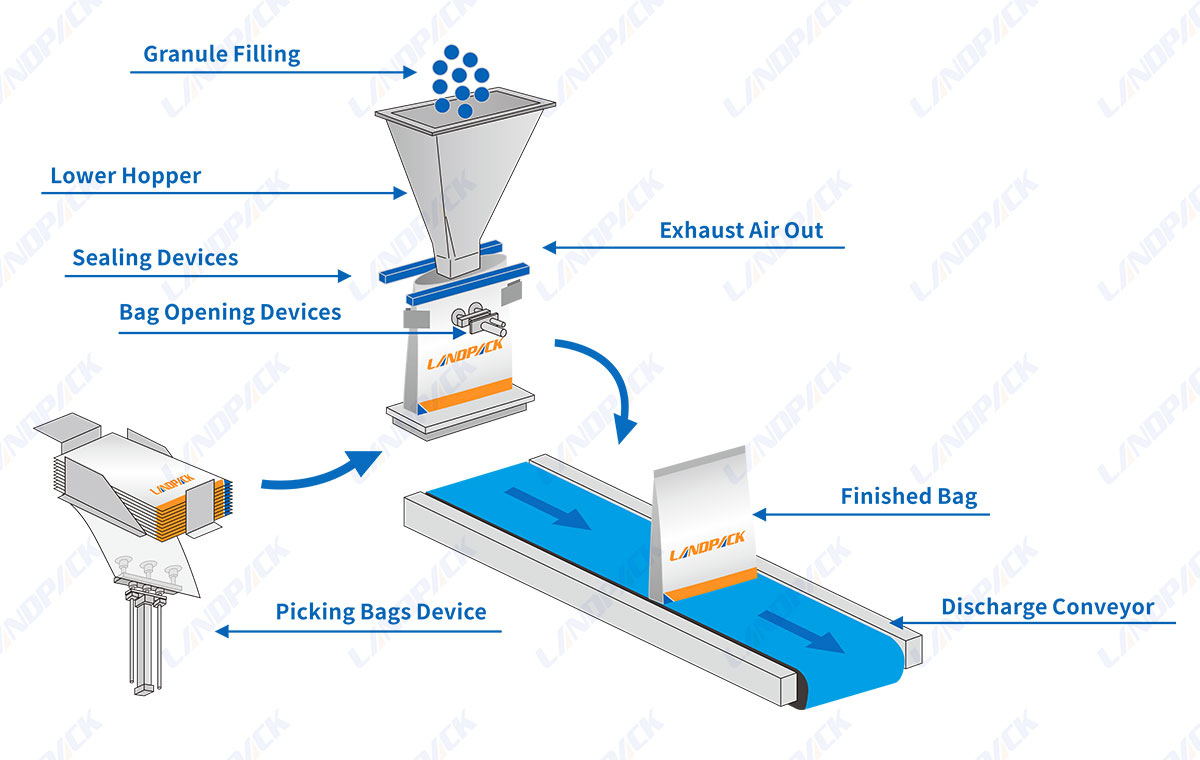

WORKFLOW

Material Feeding

Z-type Elevating

Linear Weighing

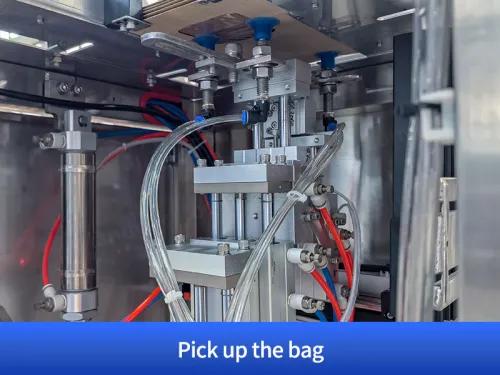

Pouch Feeding

Date Coding

Pouch Opening

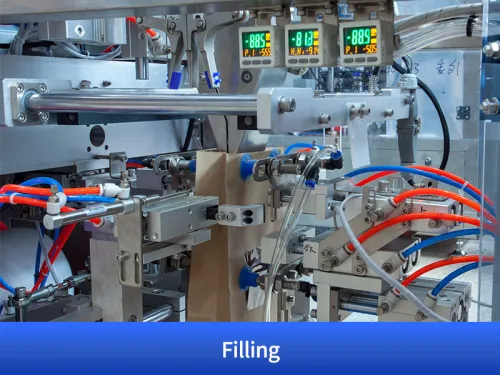

Granule Filling

Heat Sealing

PARAMETER

Model	LDB-300	LDB-430	LDB-600
Bag Material	Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag Type	3 Side Seal Bag, Stand-up Bag, M Shape Pouch
Upgradable Bag Type	Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Size Range	80mm≤W≤300mm, 100mm≤L≤300mm	80mm≤W≤300mm, 100mm≤L≤430mm	250mm≤W≤500mm, 380mm≤L≤600mm
Speed	0-15bags/min		0-10bags/min
Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm can be customized)
Voltage	220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min (Standard machine, no additional function)
Body Dimension	17706001230mm		167711401450mm
Machine Weight	300 kg	350 kg	450 kg

After receiving your inquiry,We will send you the quotation as soon as possible.
