High-Quality M-Shape Pouch Packing Machine Premade Pouch Packaging Machine

Introduction:

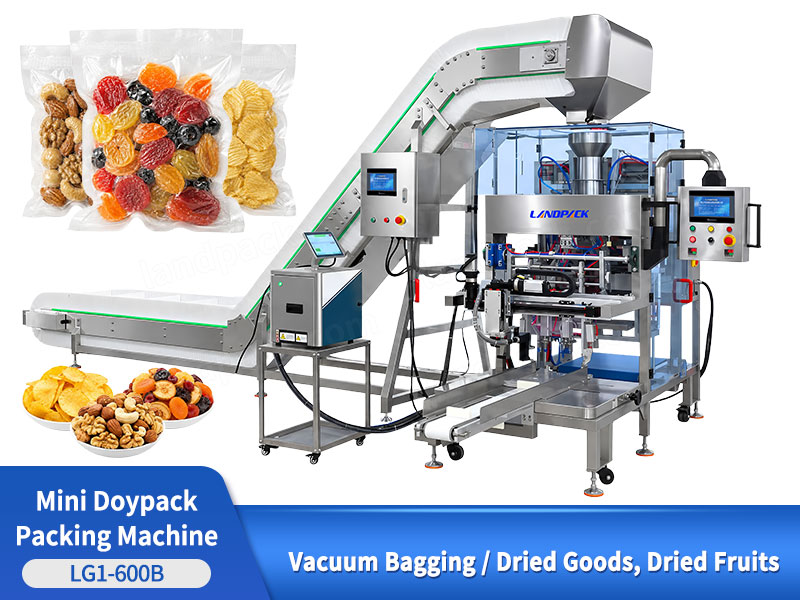

Mini doypack machine for dried fruits and dry food products, featuring automatic premade pouch feeding, inkjet date coding, vacuum extraction and heat sealing.

Application:

Suitable for dried chili, potato chips, assorted nuts, dried fruits, banana chips, roasted peanuts, vegetable crisps, trail mix and other dry snack products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This mini doypack machine is designed for packing nuts, dried vegetables, beans, herbs, dried fruits, grains, spices, dried chili, dried mushrooms, tea leaves, dehydrated garlic and other bulky dry products. The chain-plate conveyor steadily handles irregularly shaped materials and transfers them into large premade pouches. The system removes excess air before vacuum sealing and operates at speeds of up to 15 bags/min, depending on the filling volume, product characteristics and pouch size.

High-Quality M-Shape Pouch Packing Machine Premade Pouch Packaging Machine

Package Type:

The premade pouch packaging machine handles stand-up pouches, doypacks, flat pouches, vacuum bags, and large laminated premade bags. The pouch-feeding station supports bags up to 500 × 600 mm. Suitable materials include PA/PE, PET/PE, PET/AL/PE, and other vacuum-sealable laminated films.

FEATURES

1. Single-station structure handles large premade pouches up to 500 × 600 mm.

2. Chain-plate conveyor carries dried chili and irregularly shaped products.

3. Vacuum extraction reduces the air left inside each sealed pouch.

4. Adjustable vacuum time matches different products and bag sizes.

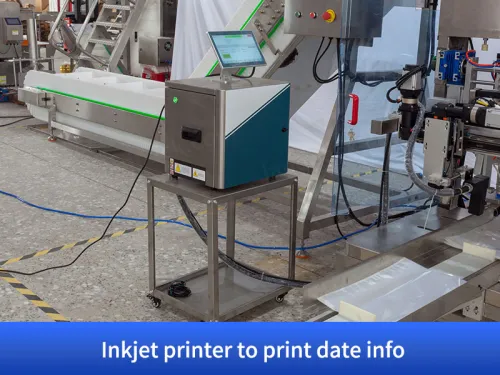

5. Inkjet coder prints dates, batch numbers, and custom text.

6. Touchscreen allows quick code editing and production setting changes.

7. Pouch-feeding parts adjust for different bag widths and lengths.

8. The machine handles stand-up, flat, doypack, and vacuum bag formats.

9. One machine can pack grains, dried foods, nuts, herbs, and dried fruit.

10. Output conveyor moves heavy finished pouches away from the sealing station.

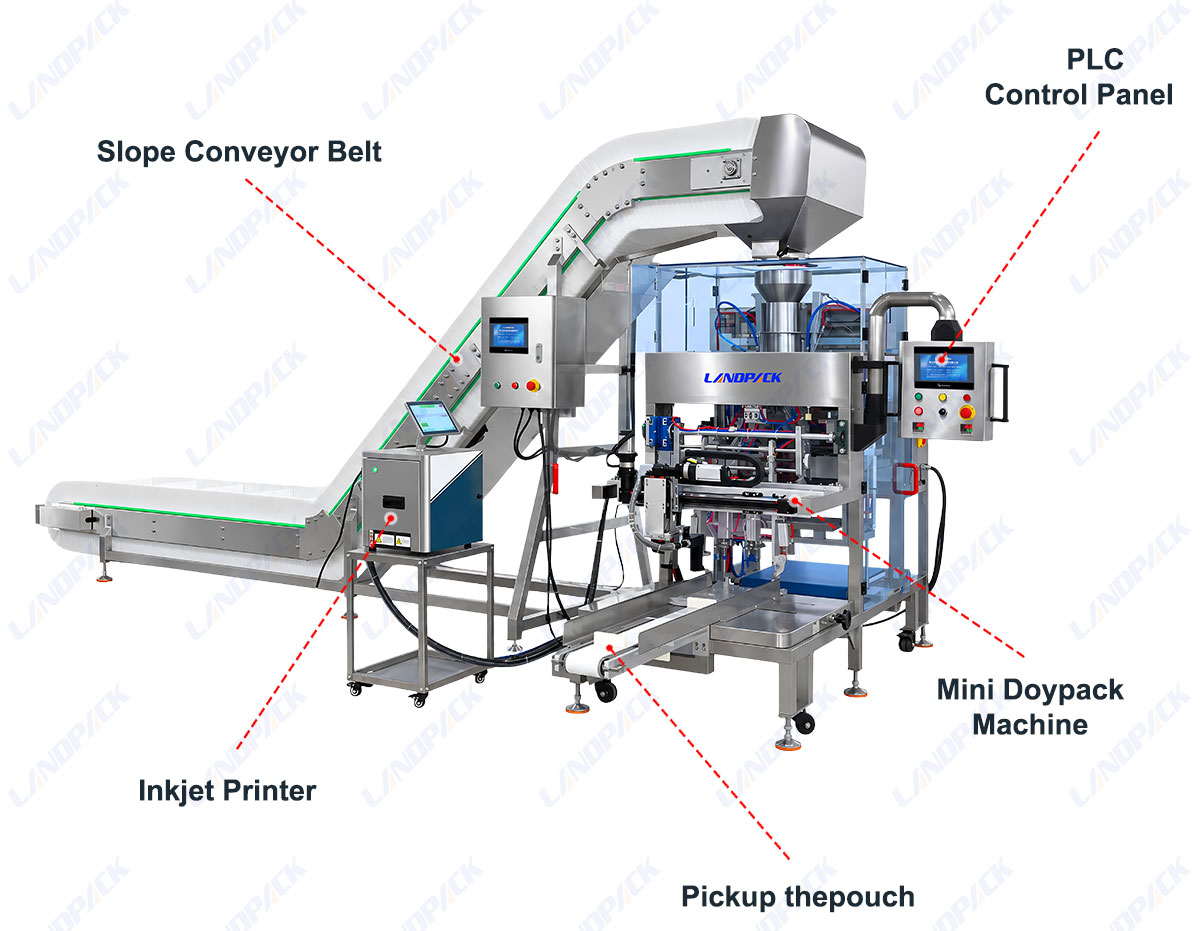

Machine Structure Overview:

High-Quality M-Shape Pouch Packing Machine Premade Pouch Packaging Machine

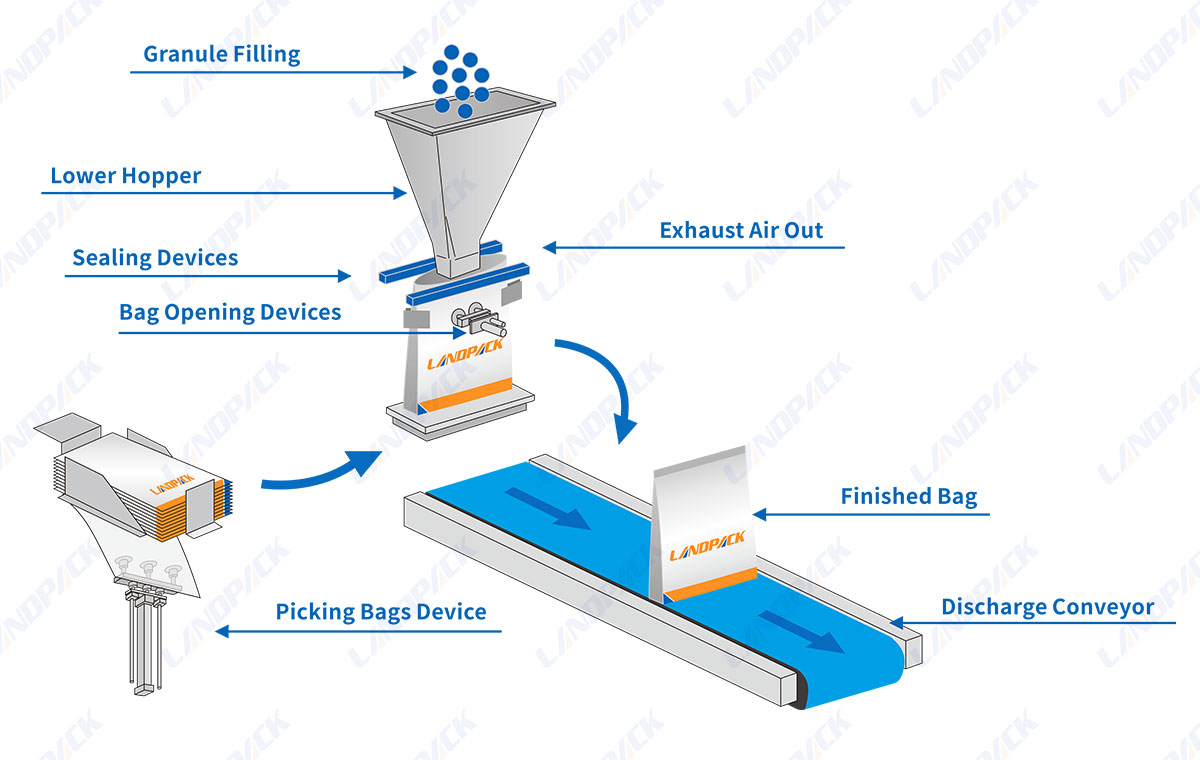

WORKFLOW

Product Conveying

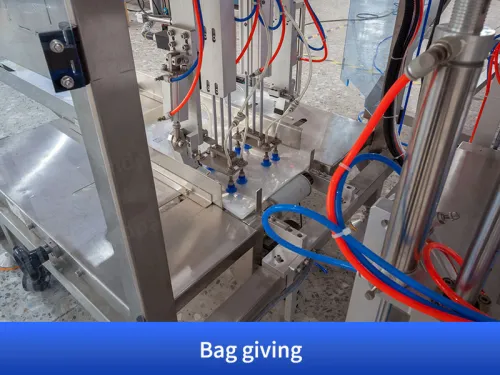

Premade Pouch Feeding

Inkjet Coding

Pouch Opening

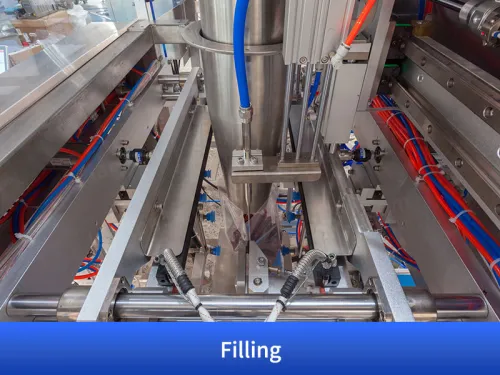

Product Filling

Air Extraction

Vacuum Sealing

Finished Pouch Output

PARAMETER

Model	LDB-300	LDB-430	LDB-600
Bag Material	Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag Type	3 Side Seal Bag, Stand-up Bag, M Shape Pouch
Upgradable Bag Type	Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Size Range	80mm≤W≤300mm, 100mm≤L≤300mm	80mm≤W≤300mm, 100mm≤L≤430mm	250mm≤W≤500mm, 380mm≤L≤600mm
Speed	0-15bags/min		0-10bags/min
Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm can be customized)
Voltage	220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min (Standard machine, no additional function)
Body Dimension	17706001230mm		167711401450mm
Machine Weight	300 kg	350 kg	450 kg
