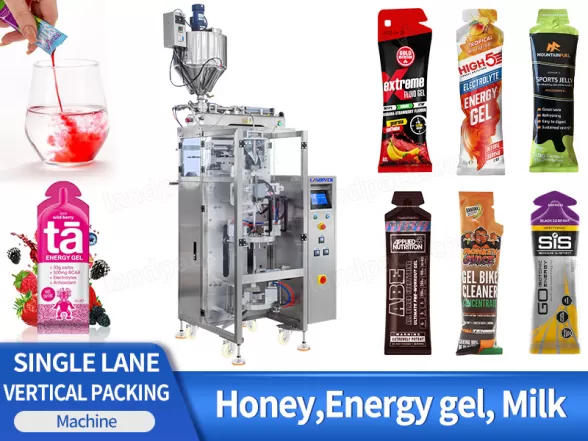

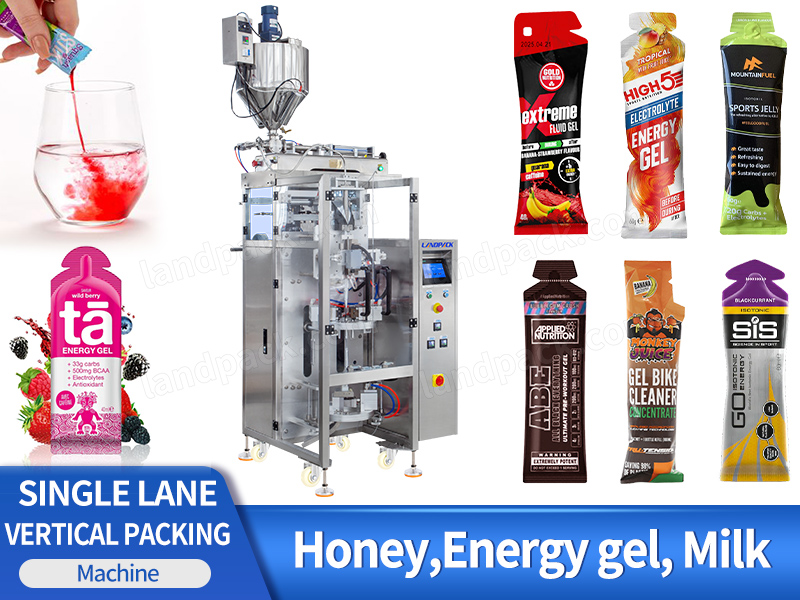

Single Lane Liquid Special Shaped Stick Bag Packing Machine

Introduction:
It features a fully automatic process—heating, mixing, piston pump filling, bag forming, coding, sealing, and custom die-cutting—making it perfect for industries like food, cosmetics, and household products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The Packaging Machine is ideal for packaging a variety of liquids, including juice, sports gel, coffee creamers, sauces, honey, and detergents, etc.

FEATURES

1. The fully automated process integrates heating, mixing, piston pump filling, bag forming, coding, sealing, and custom die-cutting for smooth operation.

2. It features irregular mold cutting to produce aesthetically pleasing pouches in unique, customizable shapes.

3. Using a piston pump system, it handles both viscous and non-viscous liquids for versatile filling and accurate dosing.

4. Operation is user-friendly via a Siemens touchscreen with PLC control, ensuring stable, intelligent, and simple use.

5. High packing efficiency is achieved with speeds of 20–30 bags per minute to boost productivity.

6. Built from stainless steel materials, the machine ensures long-lasting durability and meets hygiene standards.

7. Precise sealing temperature control is maintained within ±1°C using an intelligent PID temperature controller for consistent quality.

8. It works flexibly with various PE composite films, including pure aluminum, aluminum-plated, nylon, and similar structures.

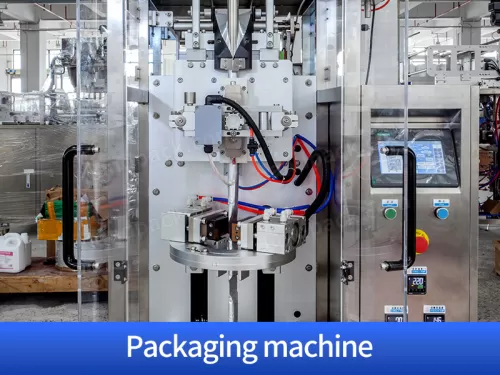

Single Lane Liquid Special Shaped Stick Bag Packing Machine

WORKFLOW

1. Heating&Stirring Hopper

2. Piston pump to measure the weight

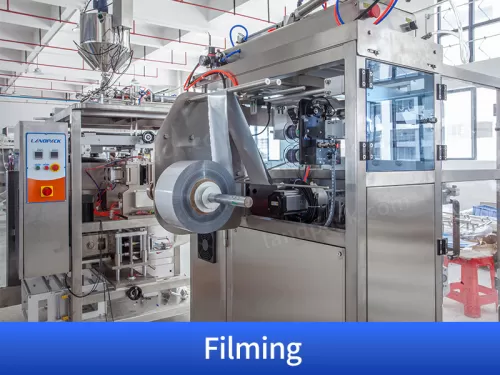

3. Filming

4. Coding

5. Bag forming

6. Filling

7. Sealing

8. Customize mold Punching

PARAMETER

Name	Landpack Single Lane Stick Pack Machine
Model	LDBK-140L
Dosing Method	A: Piston pump 1-30ml; B: Piston pump 2-42ml; C: Magnetic pump 3Liter/min (for pure liquid or oil product)
Hopper type	A: Single layer SS304 hopper; B: Double jacket SS304 hopper; C: Magnetic pump hose connection to raw liquid tank
Packing speed	20-45 bag/min (1200-2700bag/min)
Bag size range	L 40-150mm ; W 15-100mm
Bag Seal type	Stick /pillow
Cut type	A: Teeth cut; B: Straight cut C: Round cut D: Irregular cut (Stick Width within 40mm)
Film thickness	0.05-0.1mm
Film material	Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper
Drive method	Electricity + Pneumatic
Control style	PLC control system+English/Chinese screen (Or customized panel)
Power	1.8KW
Power supply	AC220V 1phase 50Hz/ AC380V 3phases 50Hz
Air consumption	0.4cbm/min 0.8Mpa
Dimension	750x710x1780 mm
HS CODE for export	84223030
