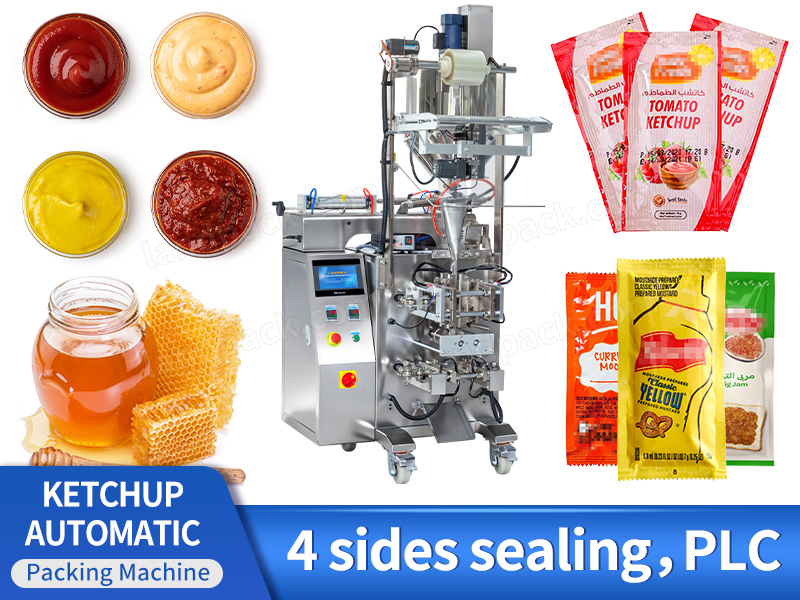

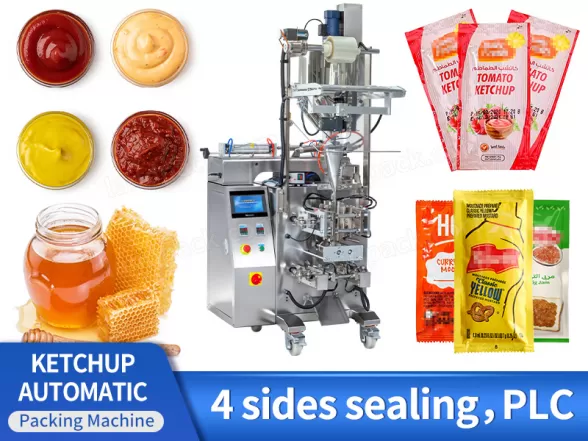

Automatic Ketchup VFFS Four Side Sealing Packing Machine

Introduction:

This horizontal pouch packing machine features PLC procedure control for maximum operational flexibility, allowing it to adapt seamlessly to different bag lengths.

Application:

Automatic VFFS four side sealing packing machine is designed for products such as soy sauce, ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This horizontal pouch packing machine features PLC procedure control for maximum operational flexibility, allowing it to adapt seamlessly to different bag lengths. Up to 60 bags/min, designed for products such as ketchup, soy sauce, mayonnaise, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce. it delivers reliable performance for food, chemical, and pharmaceutical industries.

Automatic Ketchup VFFS Four Side Sealing Packing Machine

Package Type:

This vffs packaging machine supports a wide range of packaging types, including 3-side sealing pouch, 4-side sealing pouch, sachet, stick pack, back sealing pouch, and pillow pouch. By adjusting the forming set and sealing structure, the machine can easily switch between different bag types to meet diverse packaging requirements.

FEATURES

1. Servo-driven film pulling ensures accurate bag length and airtight seals.

2. Compatible with screw, scale, or volumetric systems, achieving ±1% accuracy for liquids and pastes.

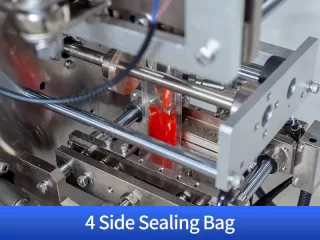

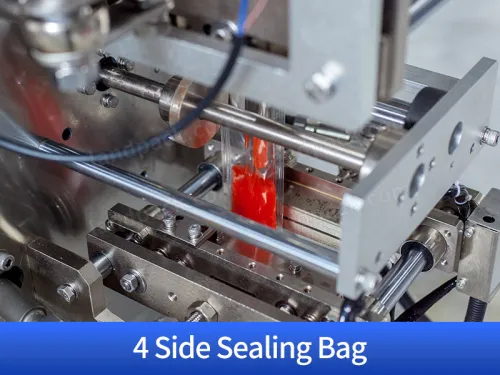

3. Independent temperature control for robust four-side sealing. Quick-change molds and blades support various sachet sizes and flat/serrated cuts.

4. Operates at 30–60 ppm with a food-grade design for easy maintenance and hygiene compliance.

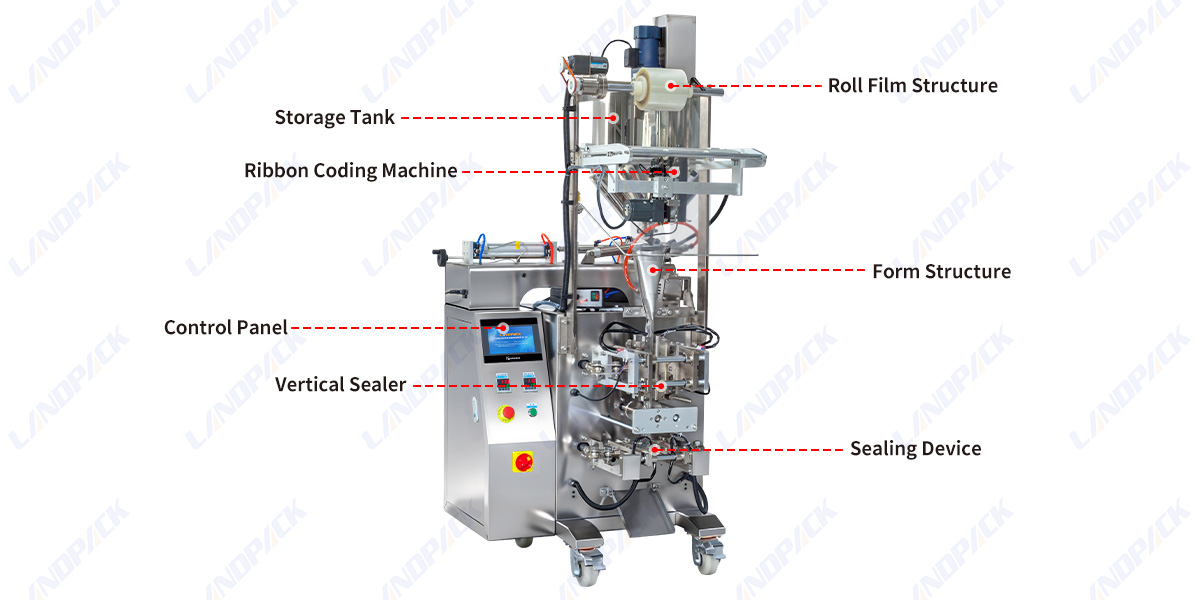

Machine Structure Overview:

Automatic Ketchup VFFS Four Side Sealing Packing Machine

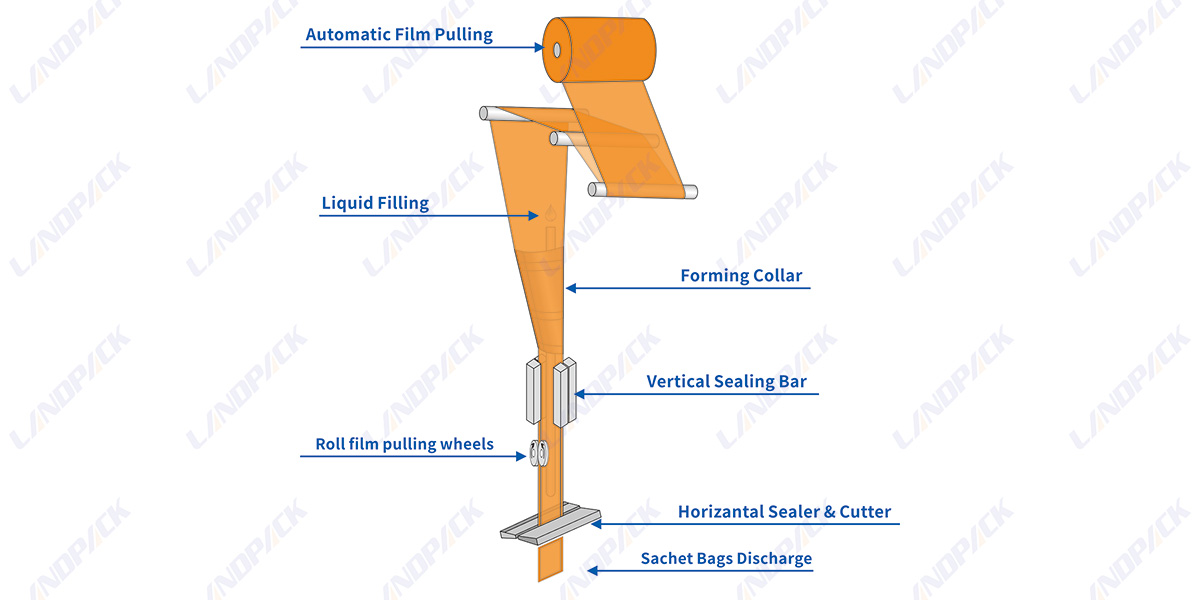

WORKFLOW

Film unwinding

Film tension control

Four-side sachet forming

Liquid filling

Heat sealing

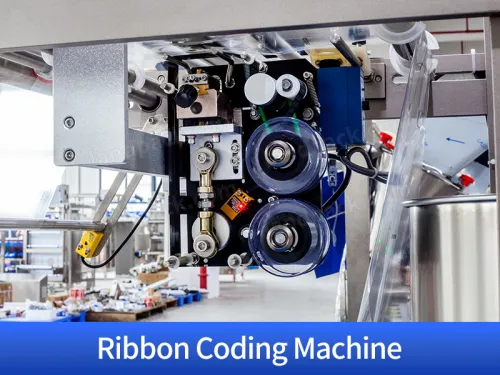

Date coding

Finished product output

PARAMETER

Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
Packing Type	Back seal bag, 3/4 side seal sachet, stick bag, continuous bag etc. Support customization
