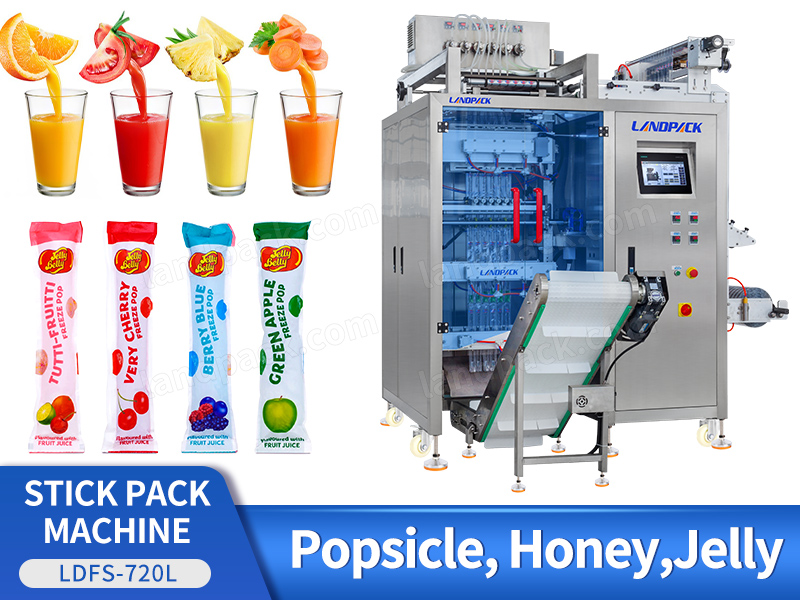

Multilane Liquid Juice Packing Machine | High Speed Sachet Packing Machine

Introduction:

Multi-lane various flavors popsicle ice pop beverages sachet stick packing machine suitable for many kinds of liquid products, such as popsicles, lotion, ice pop, jelly, mouthwash, ketchup, flavoring, sauce, pasty, shampoo, salad dressing, cream, body wash liquid, and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This high-speed 6-lane liquid packaging machine is ideal for manufacturers in:

Food & Beverage: Jelly, honey, sauces, syrups, condiments

Cosmetics: Shampoo, conditioner, lotions

Pharmaceuticals: Oral liquid, herbal extract

Daily Chemicals: Liquid detergent, liquid hand wash

Suitable for 3/4 side sealing sachet packing, depending on customization.

Multilane Liquid Juice Packing Machine | High Speed Sachet Packing Machine

FEATURES

1. Operates 6 lanes simultaneously for high-speed production at 120-150 sachets per minute.

2. Handles various low-viscosity liquids including jelly, honey, shampoo, sauces and oral liquids.

3. Uses precise magnetic pump filling system for clean operation and minimal product waste.

4. Features servo motor control for accurate sealing and consistent bag formation.

5. Simple operation with Siemens PLC and touch screen interface showing real-time data.

6. Works with multiple film materials like PET/PE, OPP/PE and NY/PE for flexible packaging options.

7. Compact all-in-one design combines film feeding, coding, filling and sealing in minimal space.

Multilane Liquid Juice Packing Machine | High Speed Sachet Packing Machine

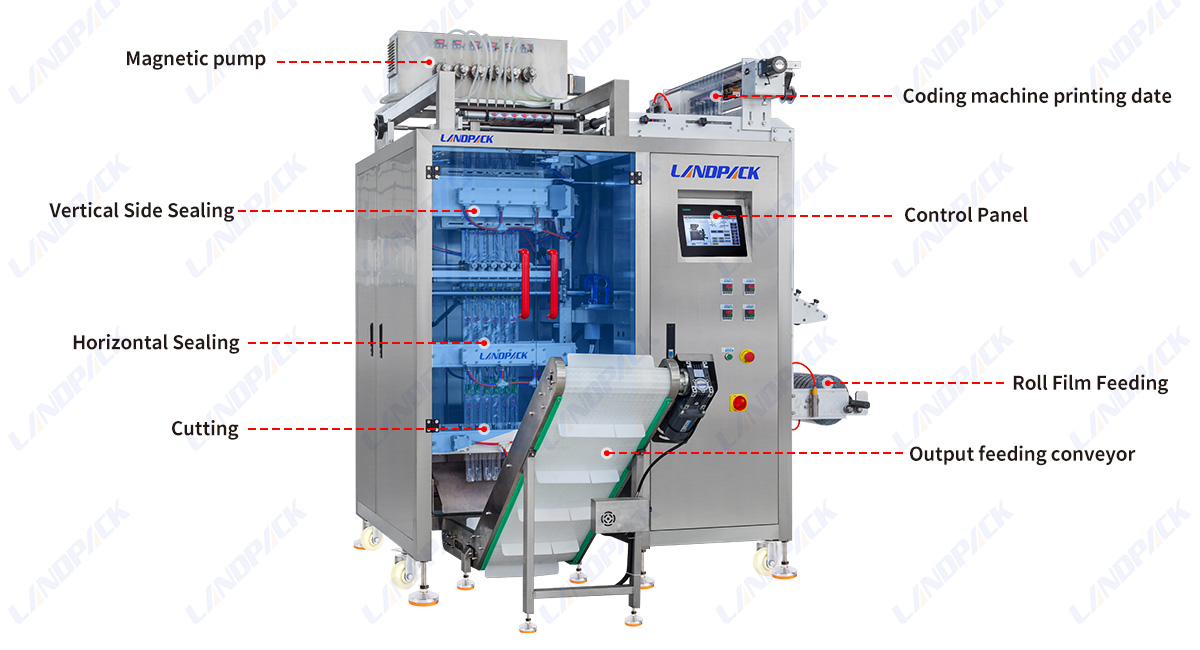

WORKFLOW

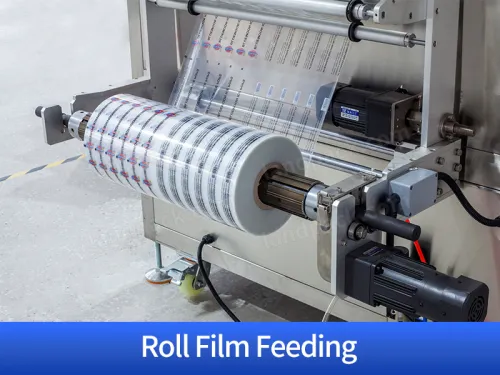

1.Roll Film Feeding

2.Code Printing

3.Magic Pump Filling

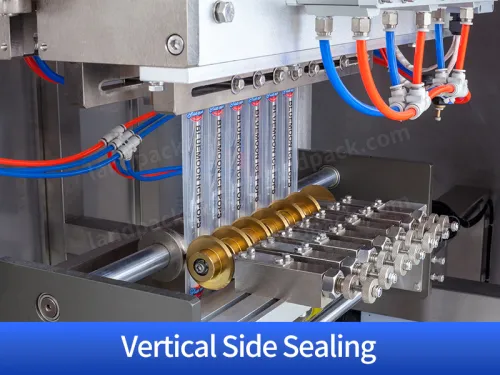

4.Vertical Side Sealing

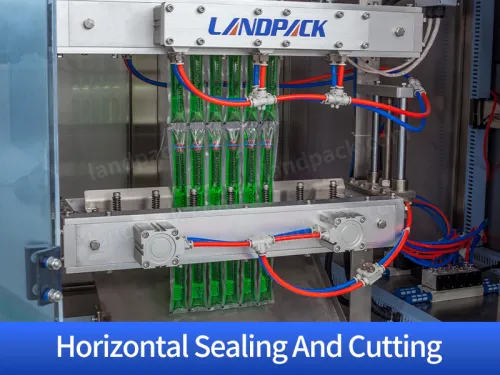

5.Horizontal Sealing And Cutting

6.Output Conveyor

PARAMETER

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4~6 Track	4~10 Track	4~12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm	L:45--120mm; W:35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw

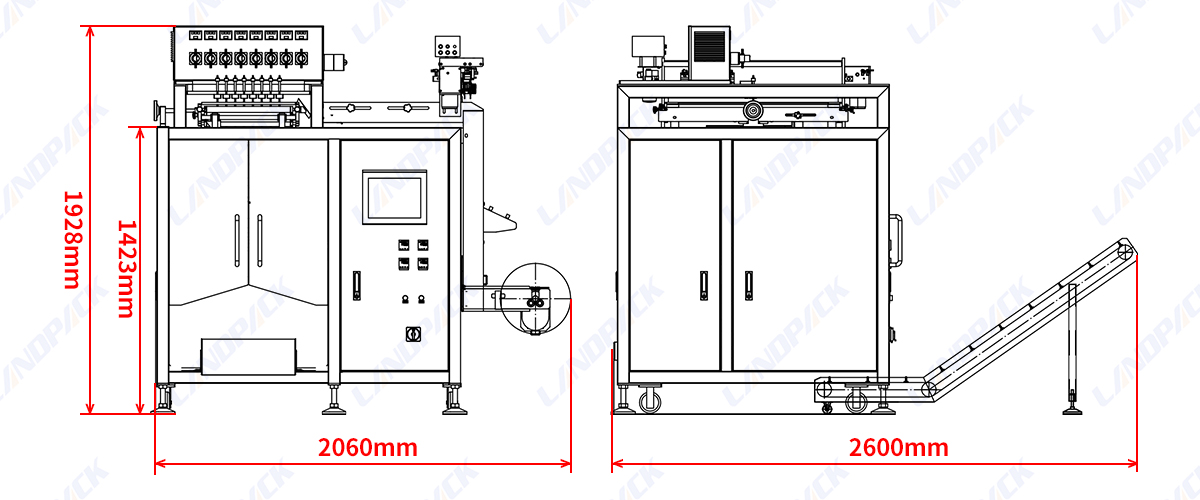

DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
