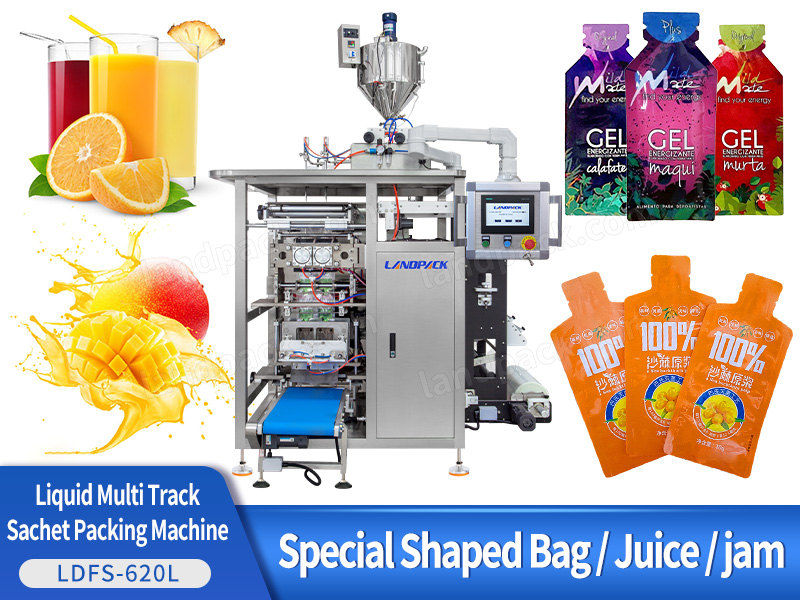

Automatic Juice Sachet Pouch Packing Machine | Special-Shaped Bags Packing Machine

Introduction:

The LDFS-620L special-shaped bag packaging machine consists of a main unit, hopper, SUS304 positive displacement pump, film feeder, laser coder, water cooling system, touch screen, and sealing and cutting system. The core control system is a PLC.

Application:

It is suitable for packaging liquids such as juice, conditioner, creams, oils, sauces, cosmetics, shampoo, feed oil, liquids, emulsifiable concentrates, perfumes, pesticides, traditional Chinese medicine, and cough syrups.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is suitable for packaging liquids such as juice, mouthwash, jelly, cosmetics, oils, sauces, feed oil, shampoo, conditioner, creams, perfumes, pesticides, emulsifiable concentrates, and cough syrups.

Automatic Juice Sachet Pouch Packing Machine | Special-Shaped Bags Packing Machine

Definition of special-shaped bag packaging machines:

Definition: A packaging machine capable of handling pouches with unique contours, die-cuts, fitments, or decorative features.

Examples of shapes: Heart-shaped snack packs, animal-shaped juice bags, spouted pouches with curved outlines, cosmetic sachets with ergonomic designs, or detergent pouches with handles.

Packaging Type:

We offer tailored packaging solutions with diverse bag shapes, such as custom-designed and multi-layered composite bags, based on client requirements.

Automatic Juice Sachet Pouch Packing Machine | Special-Shaped Bags Packing Machine

FEATURES

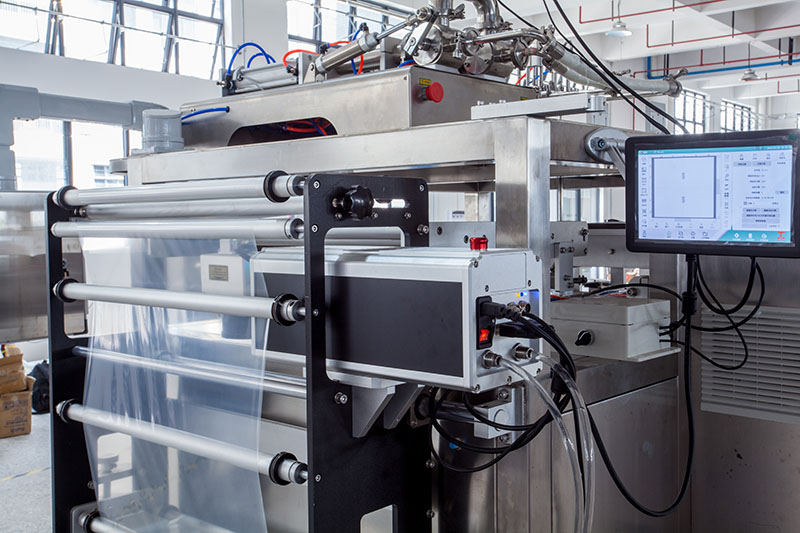

Laser marking machine A laser marking machine uses a high-energy laser beam to create permanent marks (text, patterns, barcodes) on material surfaces through

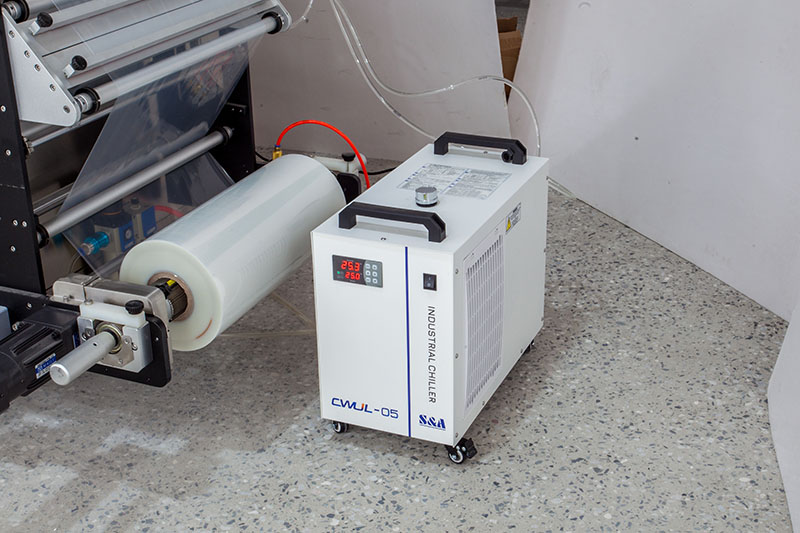

	Water cooling system for the laser printer The laser printer generates significant heat during operation. A water cooling system circulates cooling water to stabilize the laser temperature within a range of ±0.1°C to ±1°C, preventing wavelength shift or power fluctuations due to overheating.

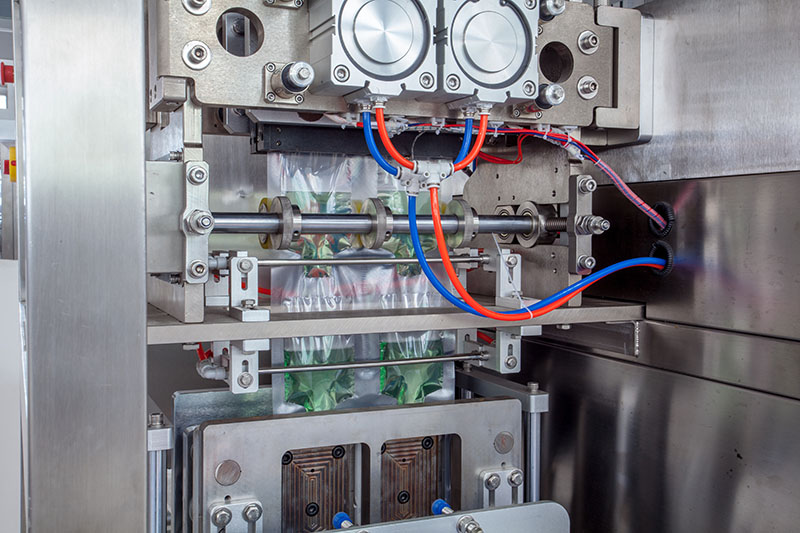

Film forming structure and heat sealing system This machine is primarily designed for packaging uniquely shaped bags. It features a pneumatic sealing system and a separate punching unit. The edges of the finished bags, crafted with premium imported materials, are smooth, burr-free, and fully leak-proof.
	Advanced electric box design * The cabinet integrates a variety of electrical modules with different functions. * A PLC control system and servo bag-pulling system ensure precise positioning with minimal deviation and high equipment stability. * A circuit breaker (for power on/off and overload/short-circuit protection) is also included.

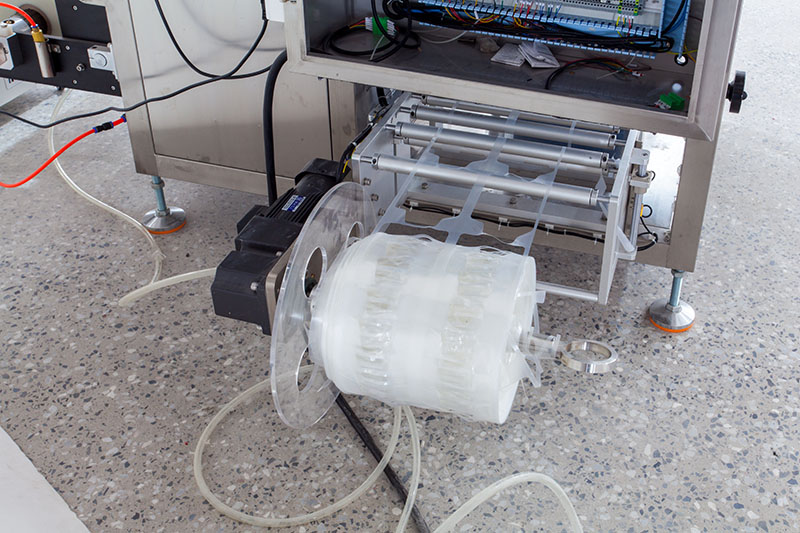

Automatic waste collection system Throughout the packaging process, creating special-shaped bags generates waste, which is managed by an integrated automatic waste collection system designed to efficiently gather debris.

Machine Key Components:

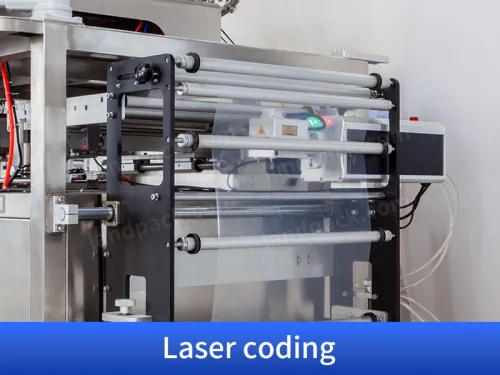

* Laser Coding: Print the date onto the film using a laser marking machine.

* Hopper: Liquid storage

* SUS304 Volumetric Pump: Volumetric liquid delivery to the machine

* Filling Nozzle: Precisely dispenses liquid/paste into pouches.

* Control Panel: Touchscreen interface for setup, adjustment, and monitoring.

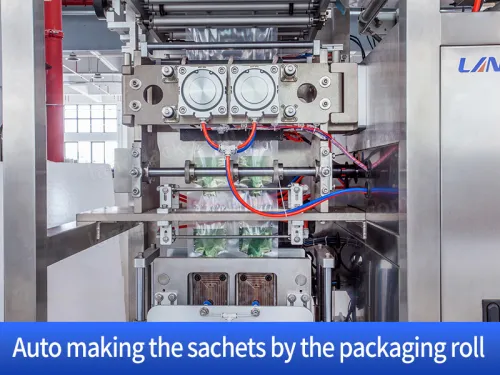

* Form Structure: making the sachets by the packaging roll

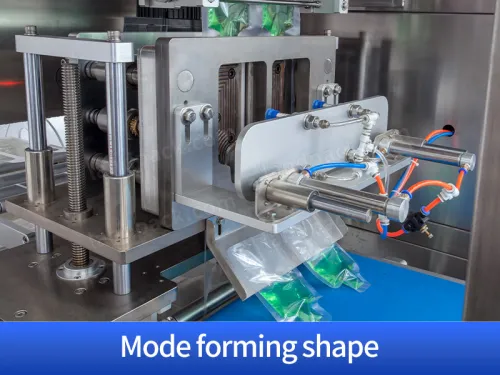

* Mode Forming Shape: Die-cutter heat seals and cuts

Automatic Juice Sachet Pouch Packing Machine | Special-Shaped Bags Packing Machine

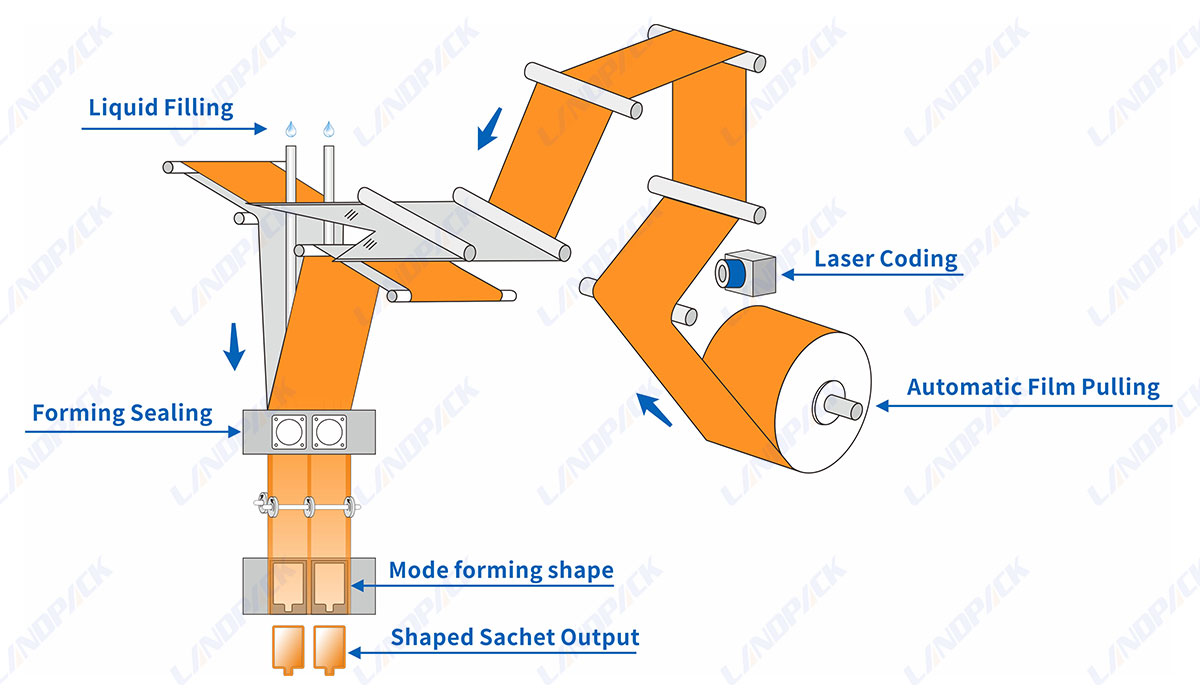

WORKFLOW

Automatic Film Feeding

Laser Coding

Accurate Filling

Sachet Forming

Sealing & Cutting

PARAMETER

Model	LDYX-480L	LDYX-620L
Track number	2-4 Tracks	2-4 Tracks
Filling Method	1. Piston pump, 2. Peristaltic pump
Production capacity	20-30 cycle/min
Bag Size	L: 50-170mm; W: 70-230mm	L: 50-170mm; W: 100-300mm
Film W&D	Max. 500mm; 0.07-0. 10mm	Max. 620 mm; 0.07–0.10 mm
Sealing Type	Irregularly shaped bag
Air & Power	220V/380V 50HZ, 5.0kw	220V/380V 50HZ, 5.5kw
Air Consumption	0.8mpa; 0.8m³/min	0.8mpa; 0.8m³/min
Weight	800 KG	900 KG
Machine size	260013502350 mm	260014502350 mm
