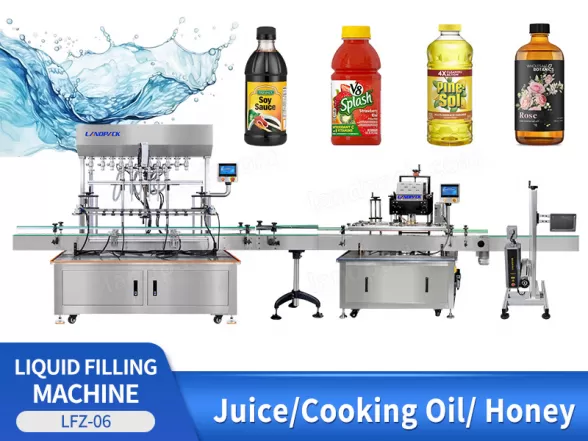

Automatic Fruit Juice Bottle Filling Capping Machine With Laser Printer

Introduction:

This bottle filling machine is perfect for efficiently and securely packaging various liquids and semi-liquids, including fruit juice, honey, tomato sauce, peanut butter, fruit jam, butter, olive oil, shampoo, body wash, chocolate paste, liquid detergent, and dishwashing liquid.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

FEATURES

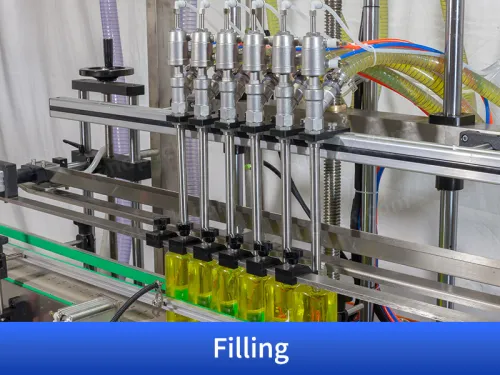

1. Servo-driven filling nozzle reduces air bubbles for precise, consistent liquid filling.

2. Built-in laser coder prints sharp, permanent batch codes and expiration dates.

3. Handles thick or foamy liquids like juices, oils, and cleaning products with ease.

4. High-accuracy filling minimizes waste while meeting strict quality requirements.

5. Easily connects to capping and labeling machines for complete automation.

Automatic Fruit Juice Bottle Filling Capping Machine With Laser Printer

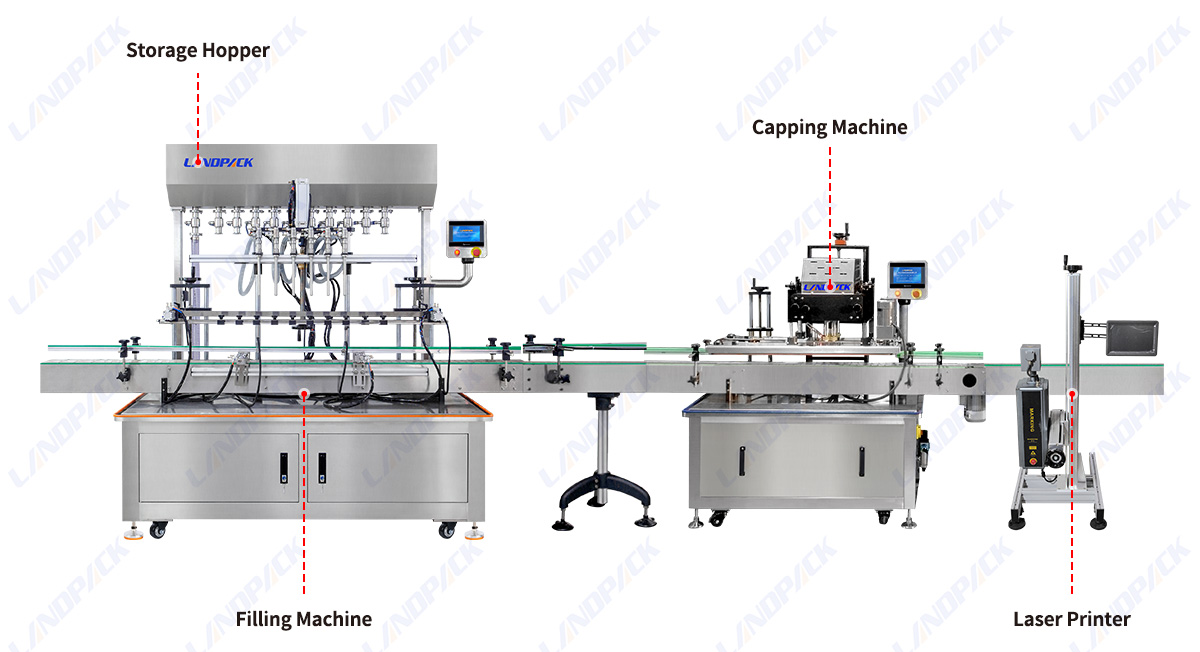

WORKFLOW

1. Liquiqd material pump

2. Automatic 6 heads liquid filling machine

3. Capping machine

4. Laser printer

PARAMETER

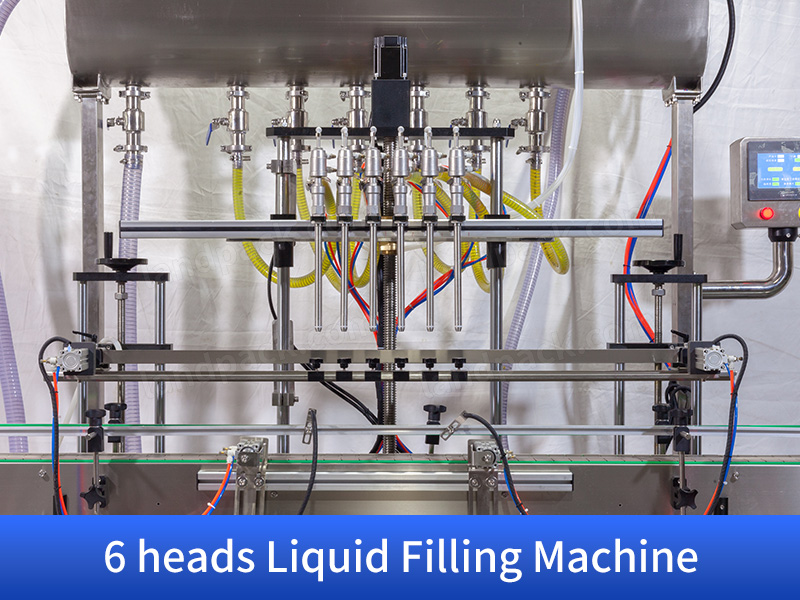

Automatic 6 Heads Liquid Filling Machine
Model	LFZ-02	LFZ-04	LFZ-06
Number of filling nozzles	2 Nozzle	4 Nozzle	6 Nozzle
Filling range	1000-5000ml
Filling speed	≤15-50 bottles/min	≤20-35 bottles/min	≤40-50 bottles/min
Measurement accuracy	≤±1%
Power	3.2KW	2.5KW	5KW
Voltage	AC380V 50-60HZ
Air pressure	0.5-0.7 Mpa
Dimension	180015002200mm	220016002200mm	460018002200mm
Weight	About 600kg	About 1000kg	About 2000kg

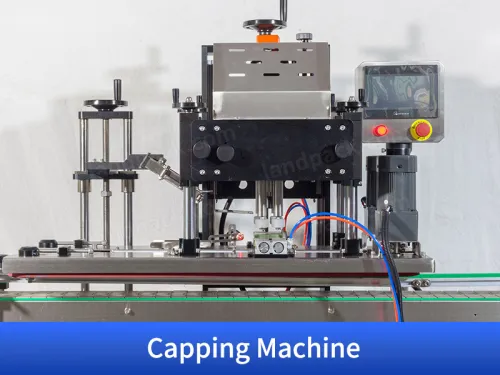

Autoamtic Capping Machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm	Φ18mm-Φ80mm	Φ18mm-Φ80mm
Bottle diameter	Φ35mm-Φ140mm (Could be customized)
Bottle sealing height	38mm-300mm
Power	1.5KW	2KW	1.5KW
Voltage	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
Weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

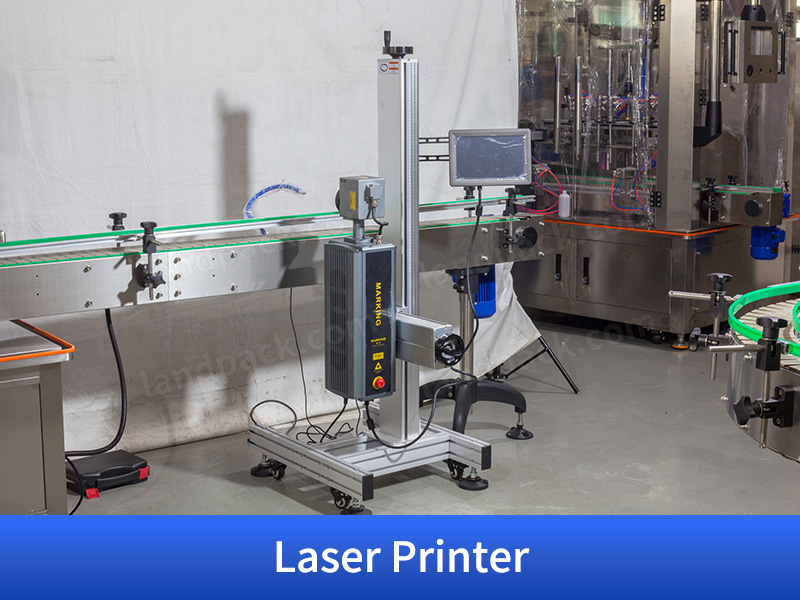

	UV Laser Coder Coding Machine
	Model	ZS-UVC1
	Output power	3W/5W/10W
	Machine power	800W
	Laser wavelength	355nm
	Control system	10.2-inch touch screen(Linux system)
	Production speed	0-130m/min(depending on the material)
	Minimum line width	0.0012mm
	Marking range	110x110mm(optional)
	Marking speed	>1200mm/s PVC tubes:40 m/minPET bottles:20000 bottles/hCoated cartons:35 m/min
	Cooling method	Water cooling
	Multi-language	Chinese, English, French, Spanish, German, Russian, Korean, Arabic, etc (can be added)
	Suitable material	Glass, metal, plastic, wood, leather, acrylic nano, cloth, ceramic, purple sand, and coated film (Actual testing is required)
	Package size	About 630x430x210mm(Lens), About 680x410x560mm(industrial Chiller), About 670x410x560mm(Power Supply Host)
	Package weight	About 13kg(Lens), About 24kg(industrial Chiller), About 13kg(Power Supply Host)
