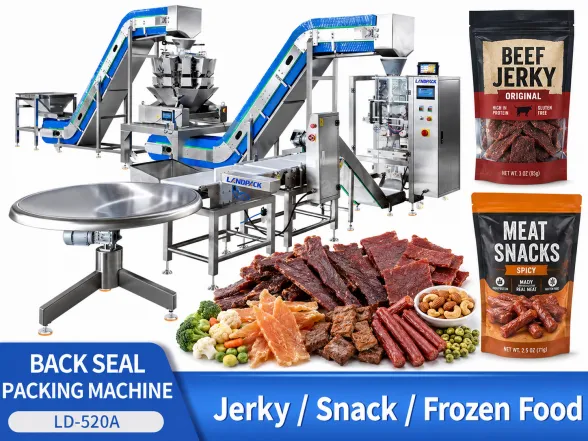

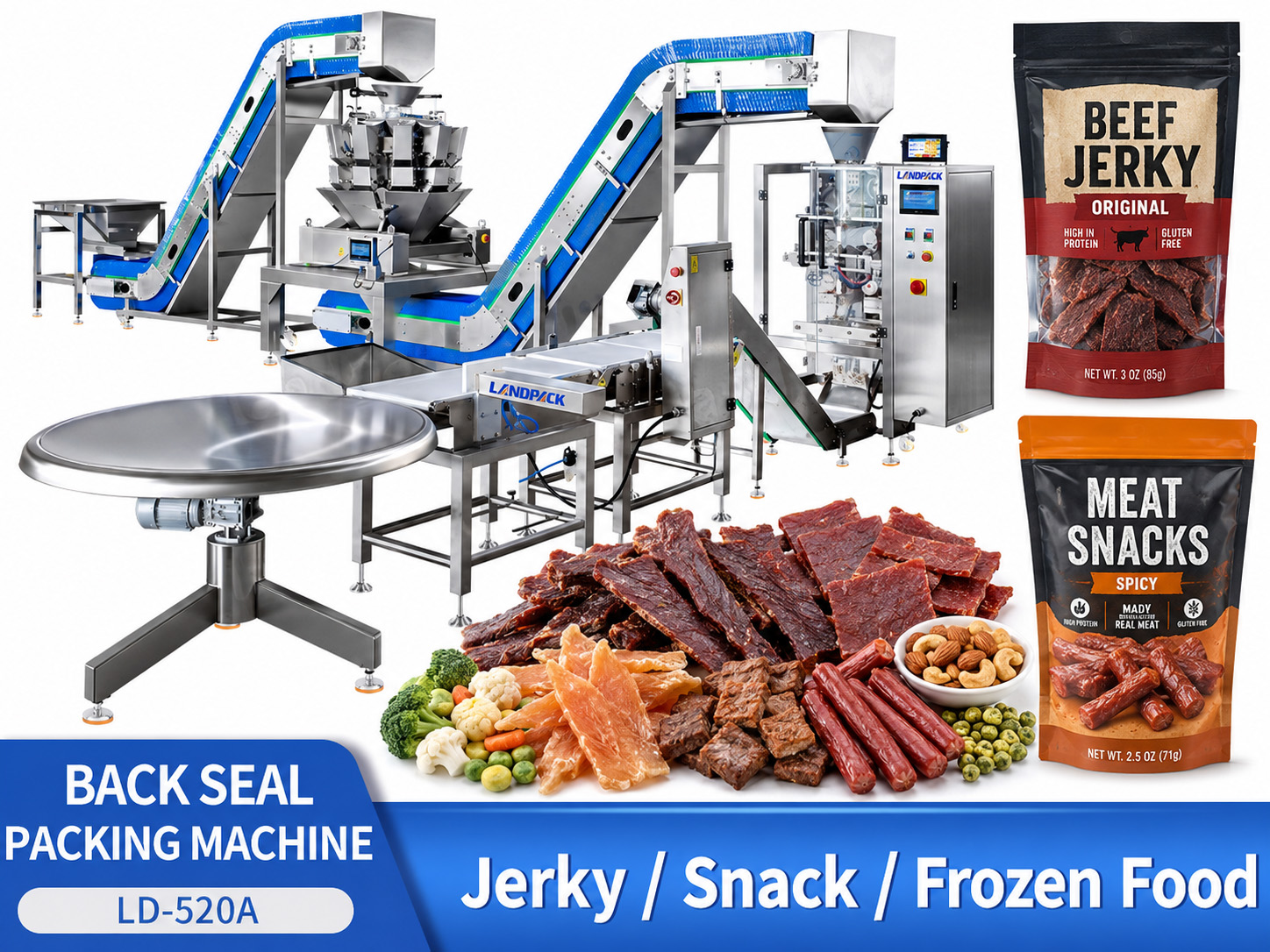

Automatic Jerky Packaging Machine Multihead Weigher Vertical Packing Machine with Checkweigher

Introduction:

Automatic vertical packing machine with 10-head weigher, inclined feeding, TTO coding and checkweigher for nuts, snacks, grains, dried foods and granular products.

Application:

The system can be used for snack foods, nuts, confectionery, dried foods, grains, pet food and selected frozen products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail Get Price

Benefits & Features

Technical Parameters

VIDEOS

Application

It can be used in snack food, confectionery, nut processing, grain, dried food, agricultural product, pet food and frozen food production lines where automatic feeding, combination weighing, bag forming, filling, coding, sealing and weight inspection are required. Such as peanuts, gummy candy, rice, potato chips, coffee beans, dried cranberries, pasta, cashews, pet food kibble, popcorn, raisins, cereal, pistachios, biscuits, beans, chocolate pieces, granola, sunflower seeds, frozen meatballs and frozen dumplings.

Automatic Jerky Packaging Machine Multihead Weigher Vertical Packing Machine with Checkweigher

Package Type:

The machine produces pillow bags and back-seal bags directly from roll film. It works with laminated films used for frozen foods, including PET/PE, BOPP/PE, PA/PE, and other low-temperature-resistant heat-sealable materials. Bag width, length, filling weight, and printed film design can change according to the product.

FEATURES

1. Two-stage inclined conveyor system automatically transfers products to the multihead weigher for continuous feeding.

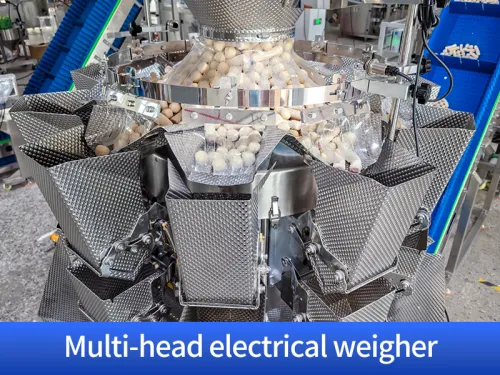

2. 10-head multihead combination weigher measures granular and piece products by combining multiple weighing hoppers according to the target weight.

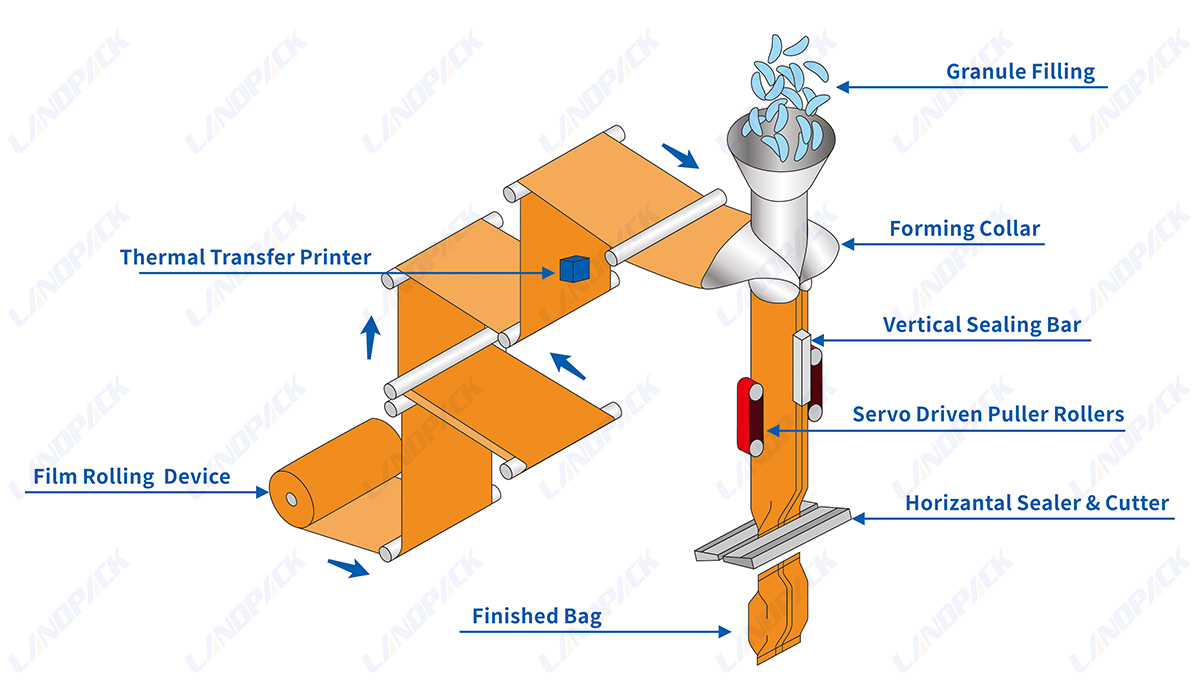

3. LD-520A vertical form fill seal machine completes film pulling, bag forming, filling, vertical sealing, horizontal sealing and cutting automatically.

4. Servo-driven film pulling rollers support controlled film feeding and consistent bag length during continuous packaging.

5. Thermal transfer printer can print production dates, batch numbers, barcodes and other variable information on the packaging film.

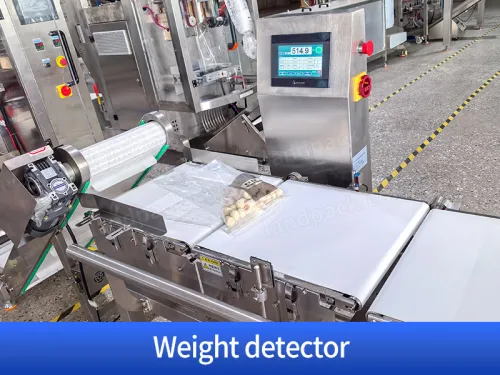

6. Checkweigher inspects finished bag weight after packaging and helps identify products outside the preset weight range.

7. Separate feeding, weighing and packing sections allow the line to handle a broad range of free-flowing granular and piece products.

8. Finished product conveyor transfers sealed bags to the collecting turntable for convenient downstream collection and handling.

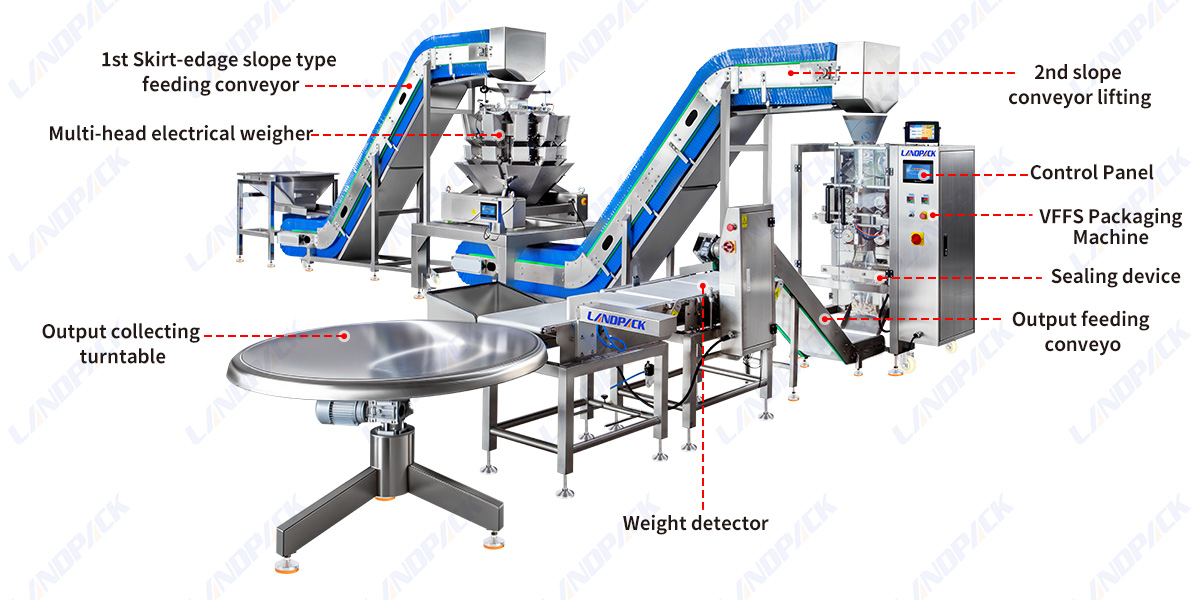

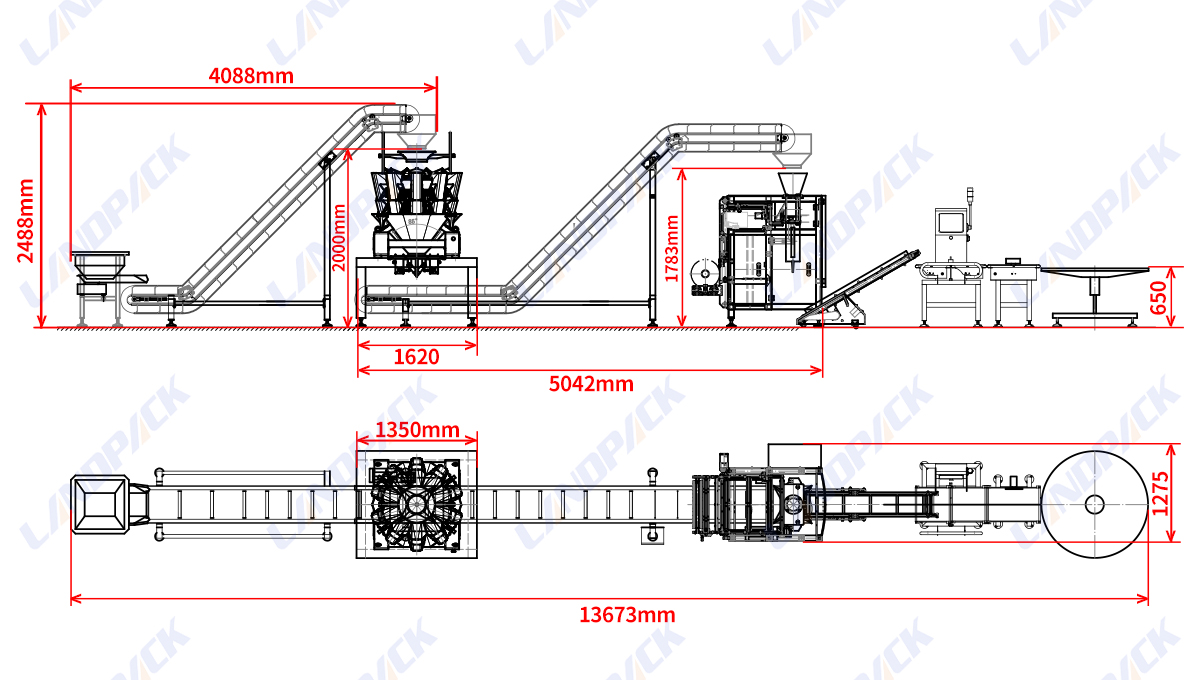

Machine Structure Overview:

Automatic Jerky Packaging Machine Multihead Weigher Vertical Packing Machine with Checkweigher

WORKFLOW

First Inclined Feeding Conveyor

10-Head Combination Weighing

Second Inclined Conveyor

Vibrating Transition Hopper

Thermal Transfer Coding

Product Filling

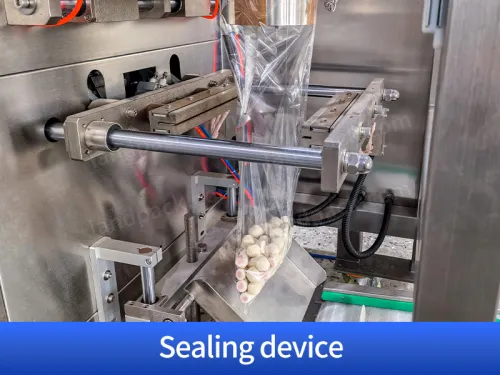

Sealing and Cutting

Checkweighing and Rejecting

PARAMETER

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60 bags/min	5-60 bags/min	5-55 bags/min	5-20 bags/min	5-20 bags/min	5-20 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
