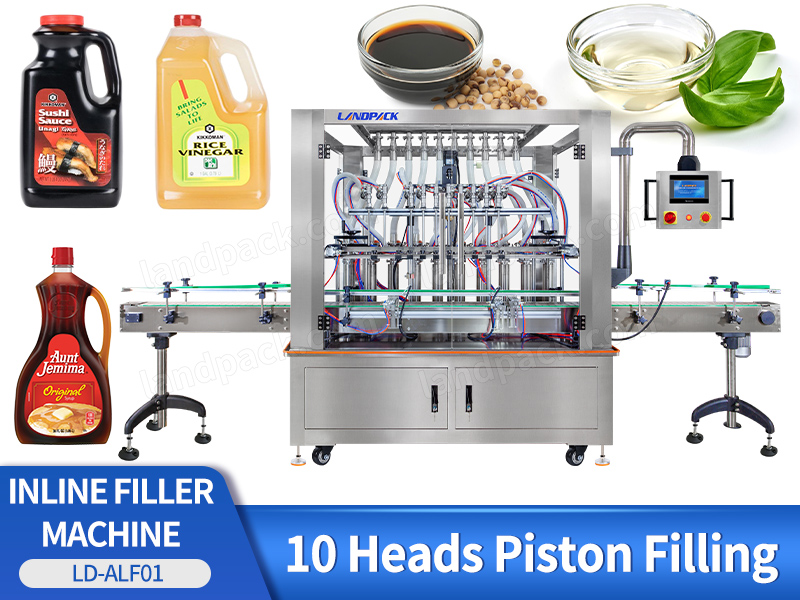

High Speed Inline Filler Liquid Bottle Filling Machine Piston Servo Motor Control

Introduction:

This series of automatic piston filling machine is suitable for filling liquid and cream products with different viscosity. It is widely uesed in daily chemical, food, grease and other industries. Filling head: 2,4, 6, 8,10, 12 (Optional) ; Filling head diameter: 6mm,8mm, 10mm, 12mm, 14mm, 20mmm (oter size can be customized); Anti-drip filling nozzle (optional).

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This liquid filling machine is suitable the following industries:

* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)

* Food Filling Machine Line (such as honey, sauce, oil, chocolate, vinegar etc. )

* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )

* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )

High Speed Inline Filler Liquid Bottle Filling Machine Piston Servo Motor Control

FEATURES

1.This fully automatic liquid/paste filling and capping machine is CE & ISO 9001 certified for quality assurance.

2.Designed to handle various bottle sizes and shapes, accommodating both liquid and viscous paste products.

3.Equipped with a precision piston pump filling system, allowing easy volume adjustment via touchscreen control.

4.Delivers fast, accurate filling performance with customizable speed and dosage settings.

5.Ideal for multiple industries including food & beverage, cosmetics, pharmaceuticals, and chemical production.

High Speed 100-1000ml Liquid Bottle Filling Machine Piston Servo Motor Control

WORKFLOW

Liquid Feeding Hopper

Automatic Piston Filling

PARAMETER

Piston Pump Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
