Inline Filler 50-500ml Automatic Glass Bottle Liquid Washing Filling Capping Machine

Introduction:

Suitable for filling of liquid in industries such as sauce, paint, ink, yogurt, honey, organic solvent, ketchup, detergent, pesticide, lubricant, edible oil, etc

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for filling of liquid in industries such as sauce, paint, ink, yogurt, honey, organic solvent, ketchup, detergent, pesticide, lubricant, edible oil, etc

Inline Filler 50-500ml Automatic Glass Bottle Liquid Washing Filling Capping Machine

FEATURES

Tailor-Made Design – Engineered and built based on each customer's specific products, bottles, caps, packaging methods, and production capacity requirements.

Flexible Configuration – Filling method, number of nozzles, capping style, labeling type, carton packing, and palletizing method are all determined according to the desired output capacity.

Versatile Compatibility – Easily adapts to various bottle sizes, cap types, stickers, and cartons by adjusting the line or replacing minimal parts.

Fully Customizable Details – Every component and process can be customized to perfectly match individual customer needs.

WORKFLOW

Bottle Feeder

Bottle Washing

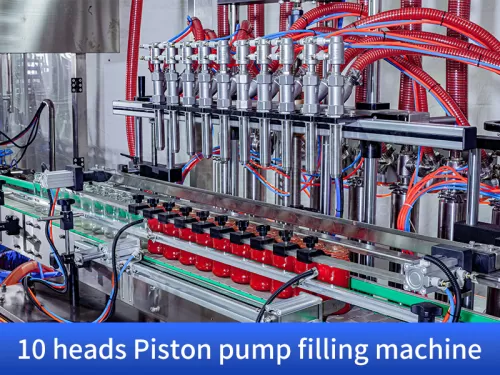

10 Nozzles Bottle Filling

Capping

Bottle Turning

Bottle Collecting

PARAMETER

	Automatic Bottle feeder
	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm
	Suitable Bottle Diameter	40-130mm
	Suitable Bottle Height	30-200mm
	Working Speed	40-60 bottles/min(depending on bottle size)
	Package Size	123010101260mm
	Gross Weight	141kg

	Automatic bottle washing machine
	Machine Model	LD-LP600W
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm（Could be customized）
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	20-50bottles/min(（Could be customized）)
	Package Size	123012101260mm
	Gross Weight	880kg

	Bottle Liquid filling machine
	Model	LFZ-10
	Filling Range	50-1000ml (customizable)
	Production Speed	<40-50 bottles/min
	Measurement Accuracy	±1%
	Power	5KW
	Voltage	220V, 50Hz
	Air consumption	0.6-8Mpa
	Weight	800kg
	Dimension	L4000W1320H2090(mm)

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

	Automatic Flip Device
	Material	SS304
	Label pasting precision	±1mm
	speed	25-80 bottles/minutes
	Suitable product size	diameter Ф25mm-Ф180mm, Height:30-450mm
	Power	220V/110V, 50-60Hz, 2.5kw
