Inline Filler System

Home > Products > Inline Filler System > Automatic Cup Filling Sealing Machine For Pickle Soy Garlic Chilli Sauce Yogurt

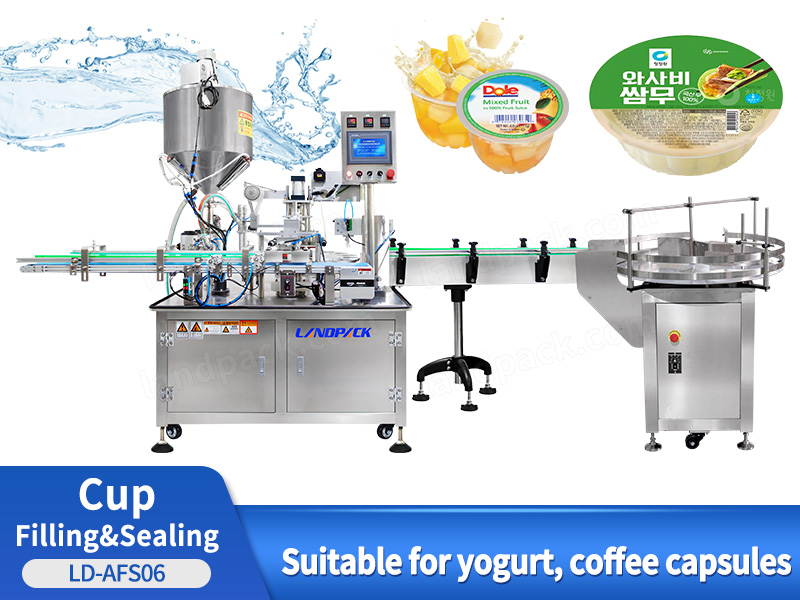

Automatic Cup Filling Sealing Machine For Pickle Soy Garlic Chilli Sauce Yogurt

Application:

This fully automatic cup filling and sealing machine is ideal for high-speed packaging of a wide range of viscous and semi-solid food products, including: pickle, soy sauce, garlic sauce and chilli paste, Yogurt, sour cream and dressings, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This fully automatic cup filling and sealing machine is ideal for high-speed packaging of a wide range of viscous and semi-solid food products, including: pickle, soy sauce, garlic sauce and chilli paste, Yogurt, sour cream and dressings. It serves production lines in food processing plants, condiment manufacturers, catering suppliers and ready-meal facilities.

Automatic Cup Filling Sealing Machine For Pickle Soy Garlic Chilli Sauce Yogurt

FEATURES

1. The piston pump with built-in mixer and heater maintains product consistency and temperature for smooth filling of thick sauces.

2. Dual filling and sealing stations work simultaneously to boost production speed while maintaining precision.

3. Roll-film sealing creates airtight packaging with convenient tear-handle lids for easy opening.

4. Compact machine design saves space and fits easily into existing production lines.

5. Produces finished cups with user-friendly tear handles for better consumer experience and less packaging waste.

Automatic Cup Filling Sealing Machine For Pickle Soy Garlic Chilli Sauce Yogurt

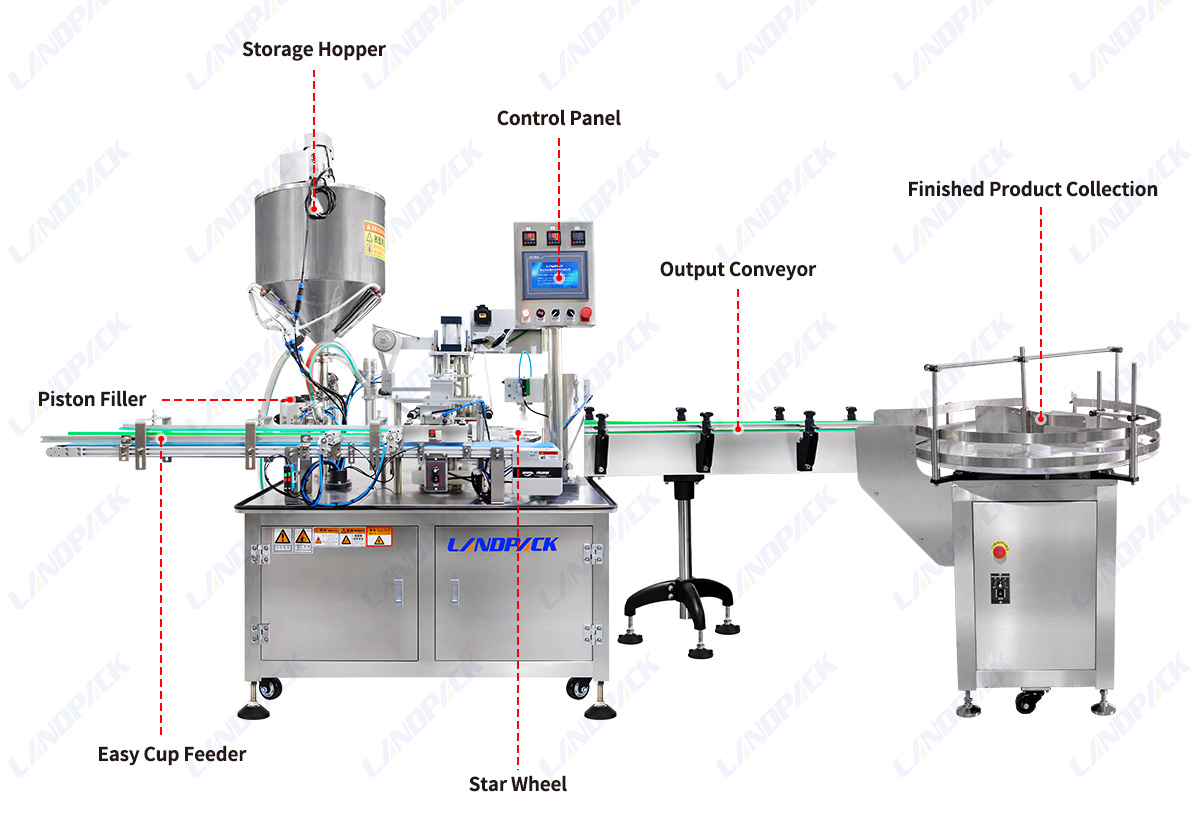

WORKFLOW

01

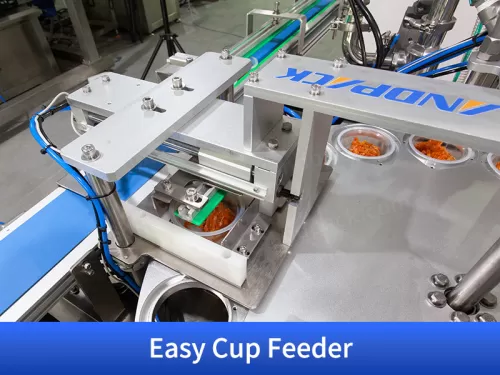

1. Easy cup feeder

02

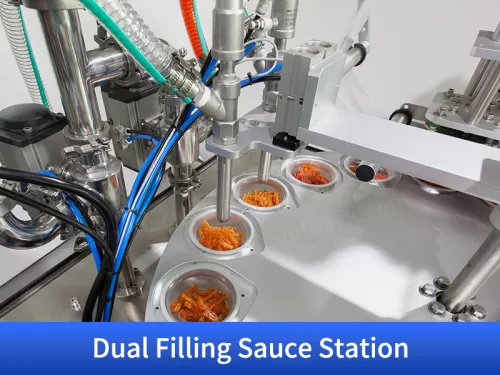

2. Dual filling sauce station

03

3. Cup sealing station

04

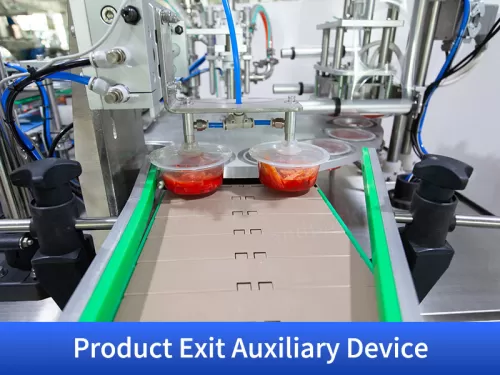

4. Product exit auxiliary device

PARAMETER

Automatic Cup Filling Sealing Machine For Pickle Soy Garlic Chilli Sauce YogurtModelLD-AF01
Bottle diameterΦ30mm-Φ150mm
Filling range20g-2000g
Bottle height40mm-200mm
Filling head10 scales*one head, can be customized
Production speed20-40 bottles/min
Control systemPLC
Powder220V, 50Hz, 3.5KW
Air consumption0.5-0.8m³/min
Equipment material304

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
