Honey Filling Machine | Automatic Bottles Cans Liquid Filling Machine

Introduction:

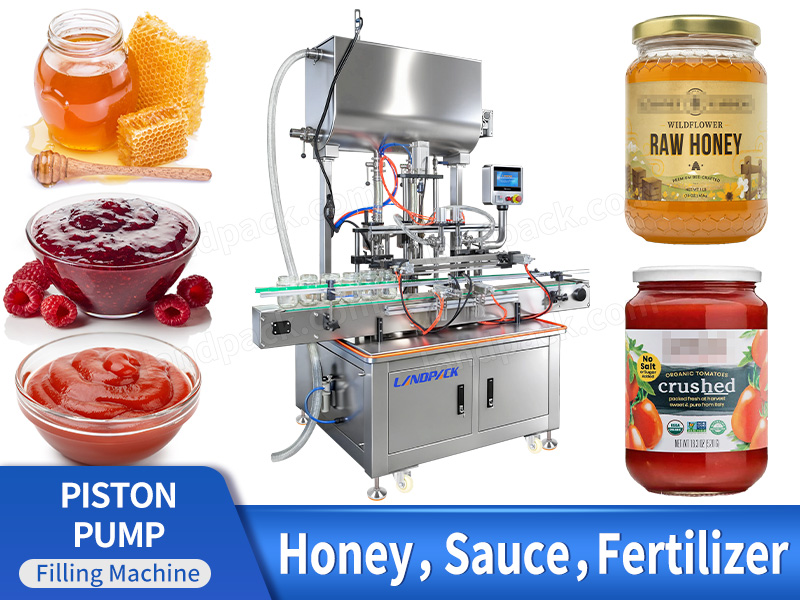

This honey filling machine uses a dual-head piston pump system for accurate volumetric filling of viscous and semi-liquid products. Designed for bottles of various sizes, it delivers stable flow control, clean filling, and repeatable dosing.

Application:

Typical applications include jam, fruit juice with pulp, ketchup, peanut butter, honey, shampoo, lotion, liquid soap, cosmetic liquids, sauces, and other similar bottled products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Typical applications include jam, fruit juice with pulp, ketchup, peanut butter, honey, shampoo, lotion, liquid soap, cosmetic liquids, sauces, and other similar bottled products.

Package Type:

This filling machine is compatible with various rigid containers, including plastic and glass bottles, cans, and jars. It supports different shapes and sizes, making it suitable for wide-mouth or standard-neck containers commonly used for food, beverage, cosmetic, and daily chemical products.

Honey Filling Machine | Automatic Bottles Cans Liquid Filling Machine

Suitable Products:

This machine can be used for a range of viscous to liquid products that are commonly employed in beverage and food packaging. It can handle all kinds of smooth sauces to sweet and sticky spreads to flowing beverages along with edible oils. It's ideal for the continuous, clean filling of different viscosities. This makes it a versatile choice for multiple-product lines.

Sauce Category: Sauce, Coffee Sauce, Honey, Jam

Beverage Category: Juice, Tea Drink, Energy Drink, Plant-based Milk

Condiment & Oil Category: Vinegar, Olive Oil, Sesame Oil, Syrup

Honey Filling Machine | Automatic Bottles Cans Liquid Filling Machine

FEATURES

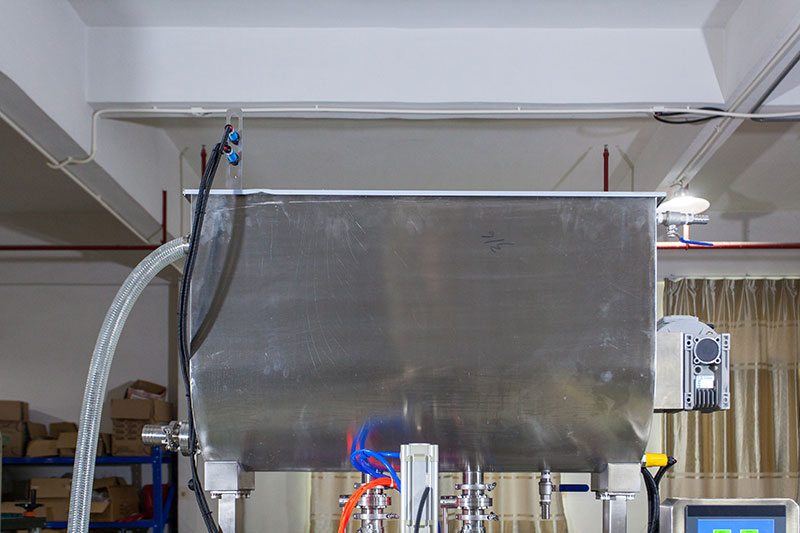

Storage Tank Features a high-volume holding tank that ensures steady honey supply and minimizes the need for frequent refilling, making it ideal for processing high-viscosity materials.

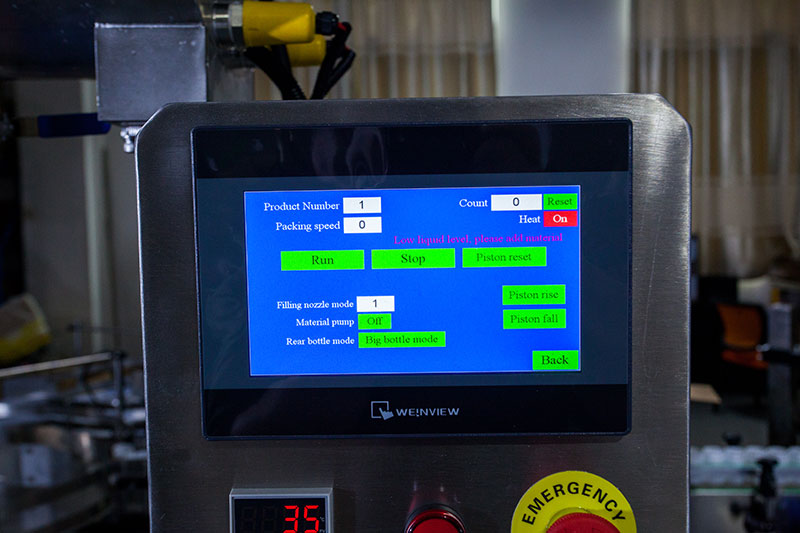

	Control Panel A unified operating panel allows fast adjustment of filling volume and speed, with simple parameter changes to accommodate different bottle, can, or jar sizes.

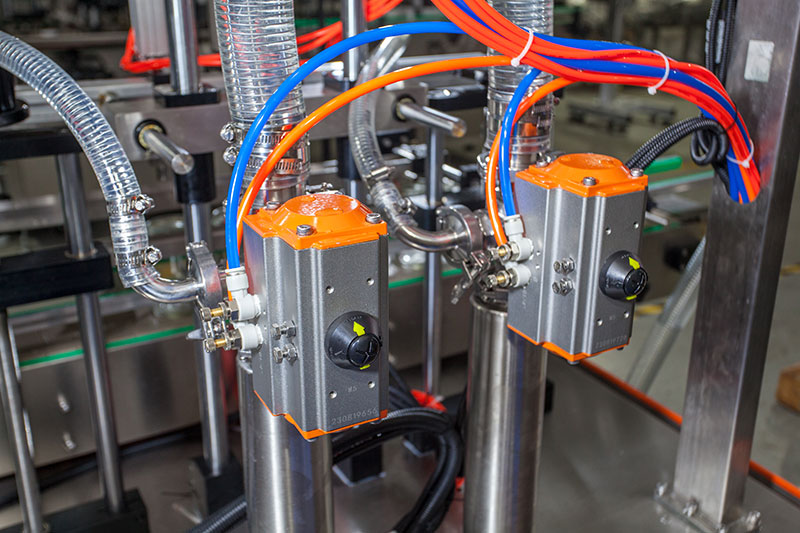

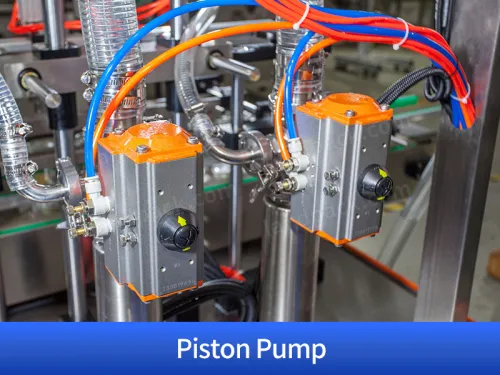

Piston Pump Utilizes a high-accuracy piston dosing mechanism designed for thick honey, delivering consistent fill levels with strong suction and pressure control for viscous liquids.

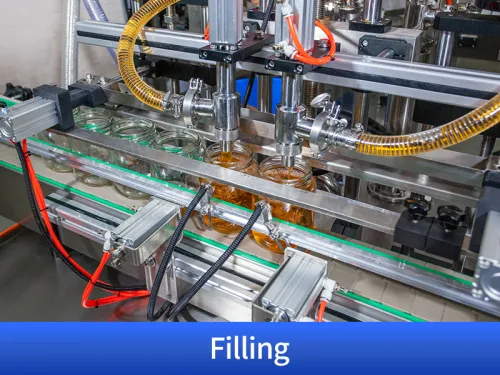

	Filling Nozzle The specially engineered filling outlet minimizes dripping and stringing, ensuring clean, accurate filling into bottles, cans, and jars.
Conveyor A stable conveying mechanism moves containers smoothly through each processing station, enhancing overall efficiency and reducing the risk of tipping.

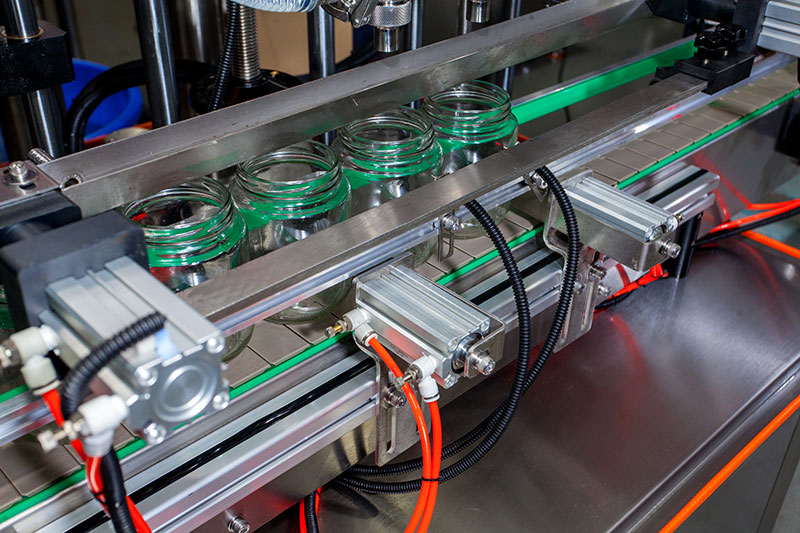

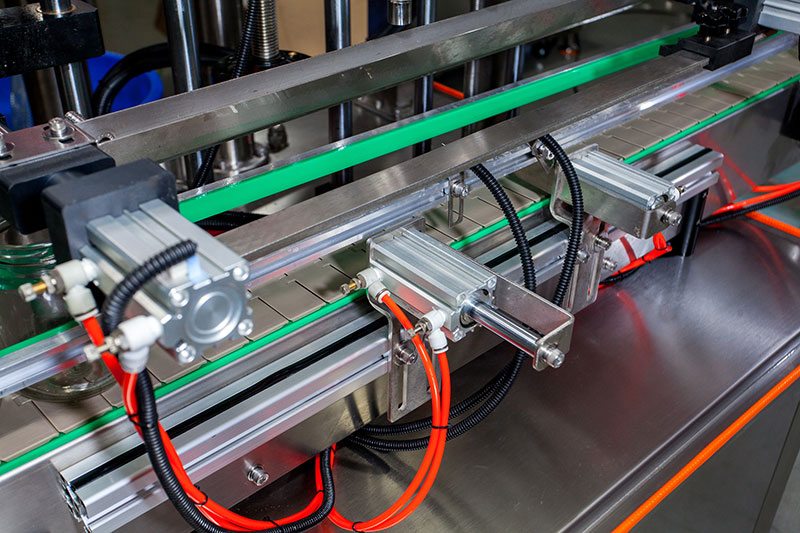

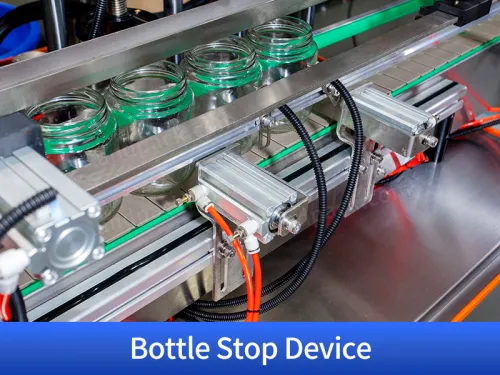

	Bottle Stop Device Precisely aligns containers beneath the filling nozzle for sequential, one-by-one filling, preventing misfills and product overflow.
Electric Box The built-in electrical control enclosure ensures safe and reliable operation, keeps wiring neatly organized, and supports long-term production stability.

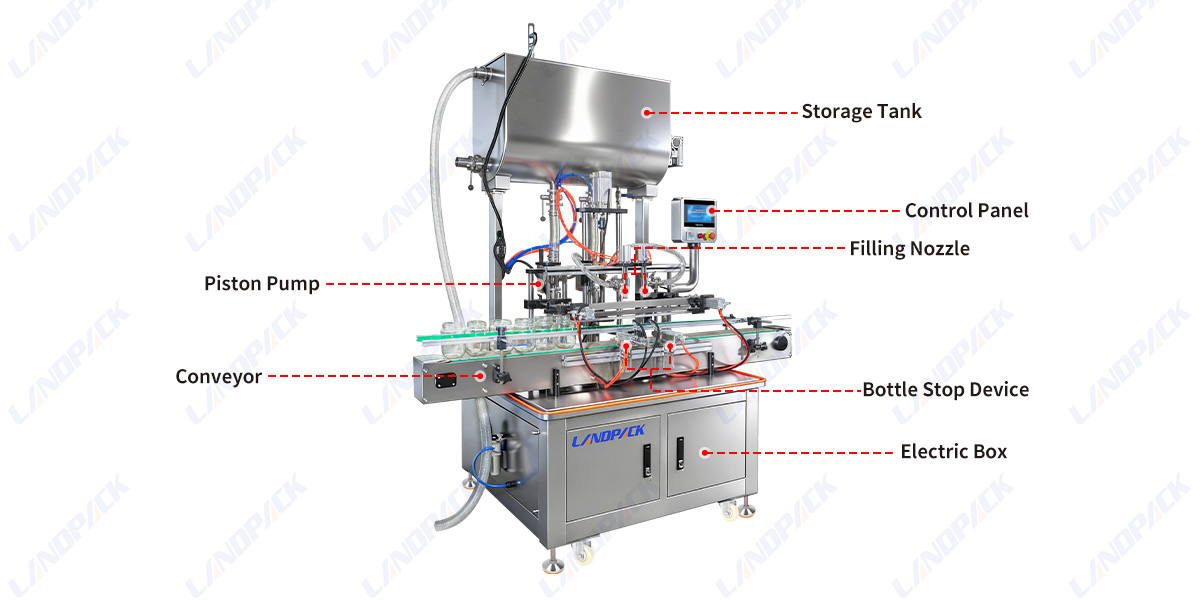

Machine Structure Overview:

1. Storage Tank

2. Control Panel

3. Piston Pump

4. Filling Nozzle

5. Conveyor

6. Bottle Stop Device

7. Electric box

Honey Filling Machine | Automatic Bottles Cans Liquid Filling Machine

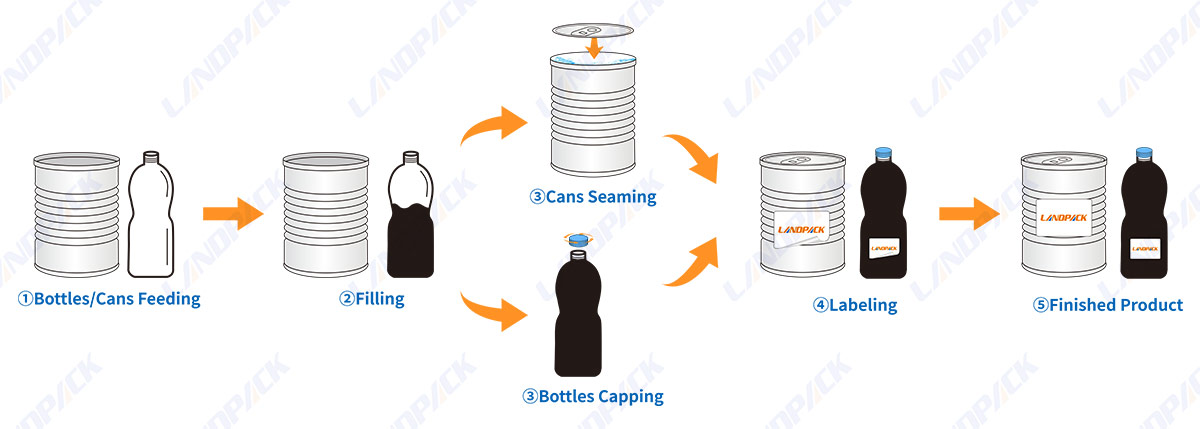

WORKFLOW

Bottles/Cans/Jars Feeding

Liquid Material Filling

Cans Seaming / Bottles Capping

Labeling (Optional)

Finished Product Output

PARAMETER

Model	LFZ-01/02/03/04	LFZ-06	LFZ-08	LFZ-10	LFZ-12
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min	<60 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
