Automatic Vitamin Gummy Counting Packaging Machine Filling Line

Introduction:

Vitamin Gummy Counting Packaging Machine Filling Line is an entirely automated machine designed to ensure accurate counting as well as the filling and packaging of a range of gum products, including vitamin Gummies, gummies, jelly Gummies, and small granules.

Application:

It operates at a steady speed of 30 bags/min. This line is perfect for the pharmaceutical, nutraceutical or food and supplement industry.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Utilizing the latest technological advancements in electronic count technology as well as precise control of filling, ensures the same dosage, a clear operation, and consistent packaging quality.

Package Type:

It is the Vitamin Gummy Packaging Machine Line is designed to handle a wide variety of container types, such as plastic (PET/PP) bottles, glass bottles, and aluminum bottles. No matter if you're making use of square, round, or custom-designed bottles, this system will ensure seamless bottle feeding, accurate weighing, and fast sealing. With a capacity of 30 bottles/min, it provides steady performance, high accuracy and reliable results for today's gummy packaging processes.

Automatic Vitamin Gummy Counting Packaging Machine Filling Line

Suitable Products:

This Vitamin Gummy Counting Packaging Machine Filling Line is specifically designed to work with a range of semi-soft and solid products in the nutraceutical food and pharmaceutical industries.

It is perfect for:

- Hard Gelatin Capsules & Soft Gel Capsules

- Tablets, Pills, and Effervescent Tablets

- Gummy, Gummies, and Candy

- Spirulina, Dietary Supplements, and Herbal Capsules

- Caffeine Capsules and Mineral Products

Automatic Vitamin Gummy Counting Packaging Machine Filling Line

FEATURES

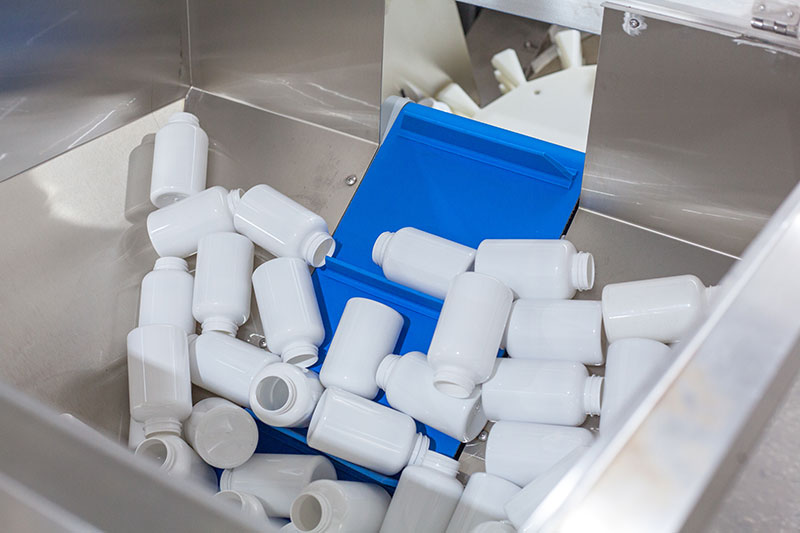

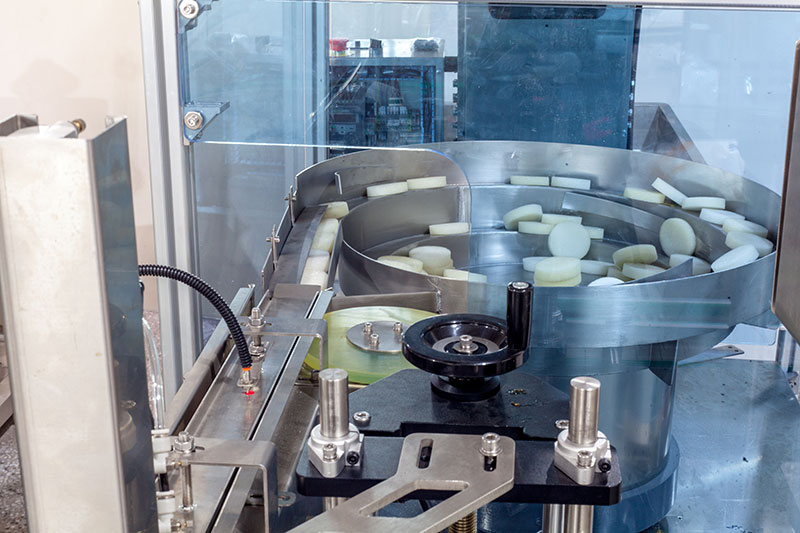

Full Automatic Bottle Unscrambler

Automatically fills empty bottles on the conveyor in an organized way, ensuring constant production while reducing labor costs. It is compatible with a variety of sizes and shapes of bottles to allow for a variety of uses.

Automatic Vitamin Gummy Counting Packaging Machine Filling Line

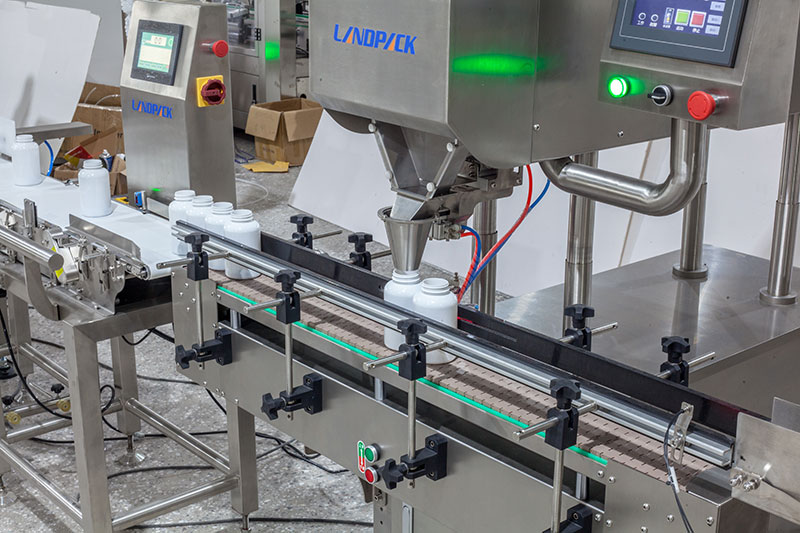

8 Channel Gummy Counter

Equipped with high-precision photoelectric sensor, this counter precisely counts capsules or gummies, and then packs the bottles with no damage making sure that the quantity is consistent and speed.

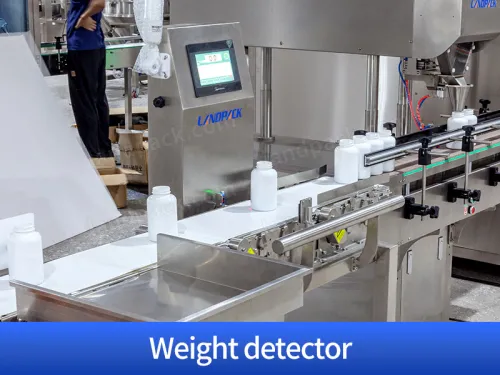

Weight Detector

Measures each bottle's weight in real-time. Bottles that don't meet the pre-set standard are rejected, which ensures the accuracy of refilling as well as quality assurance.

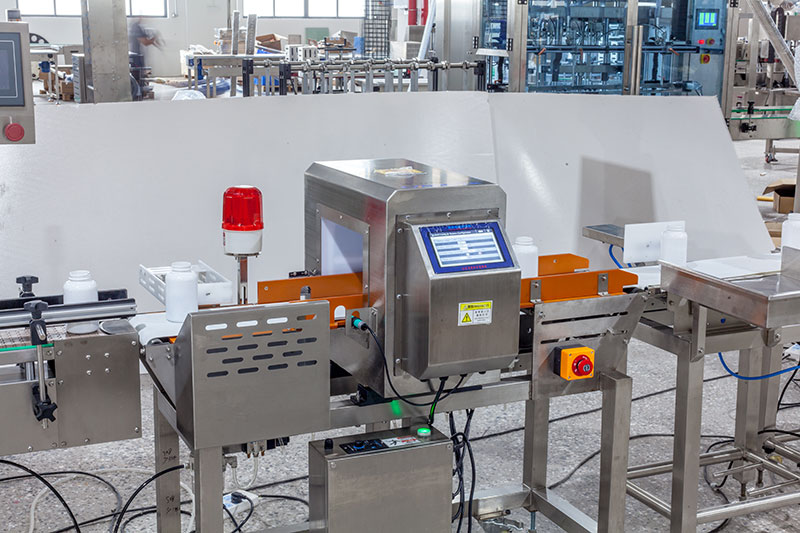

Metal Detector

Detects and eliminates any metal contaminants that could be present to ensure that the product is safe and conforms to GMP and hygiene standards for food products.

Desiccant Inserter

Automatically adds desiccant bags to every bottle to preserve product freshness and prolong shelf life, particularly for gummies that are sensitive to humidity.

Automatic Vitamin Gummy Counting Packaging Machine Filling Line

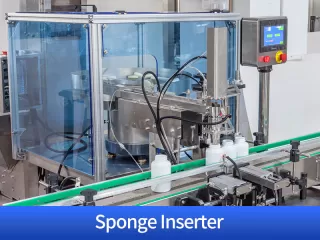

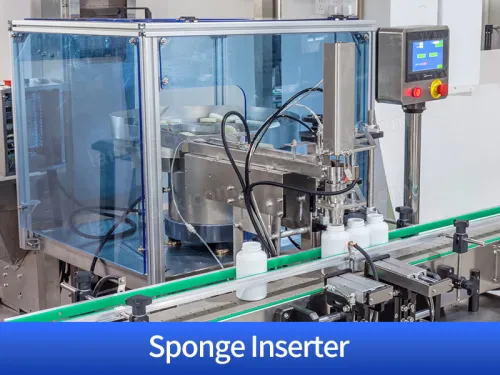

Sponge Inserter

Incorporates a sponge in each container to stop the gummies from breaking or sticking in transit, preserving the perfect appearance of the product.

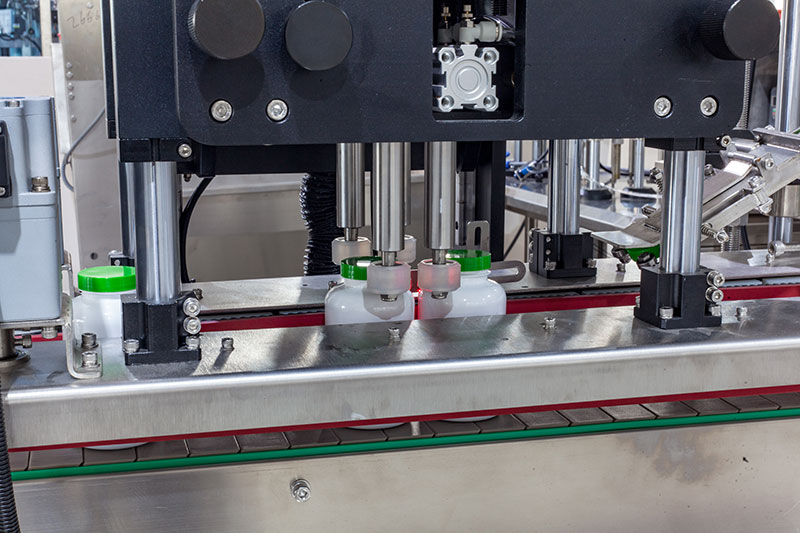

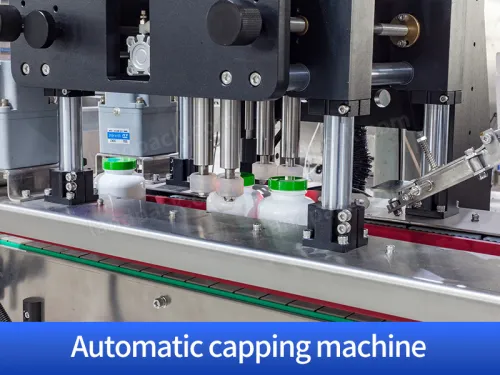

Four Wheel Capping Machine

Adopts the high-speed capping of four wheels to ensure stable torque and airtight seal. Ideal for aluminum or plastic caps that have adjustable pressure.

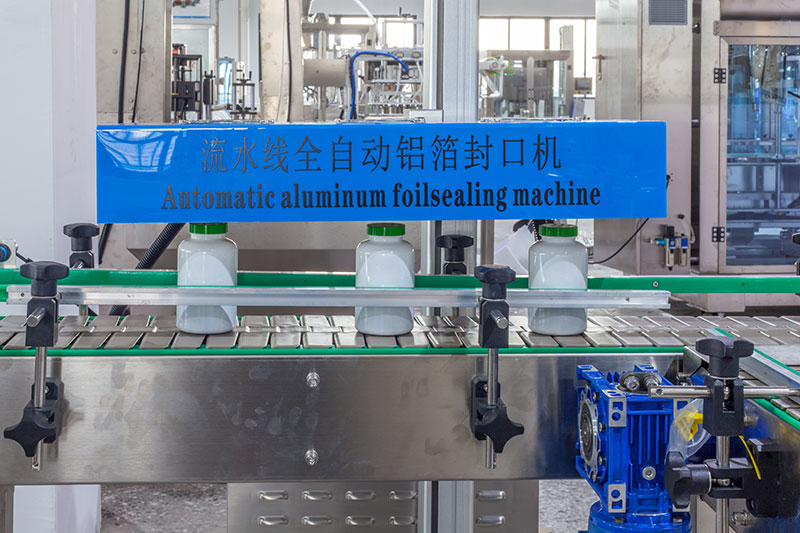

Aluminum Foil Sealing Machine

Utilizes the electromagnetic force to place a strong aluminum foil over the mouth of the bottle, guaranteeing leak-proof protection as well as the ability to detect tampering.

Inkjet Coding Machine

Prints batch numbers, expiry date and traceability codes in a clear manner on every bottle or cap making it easier to trace production management.

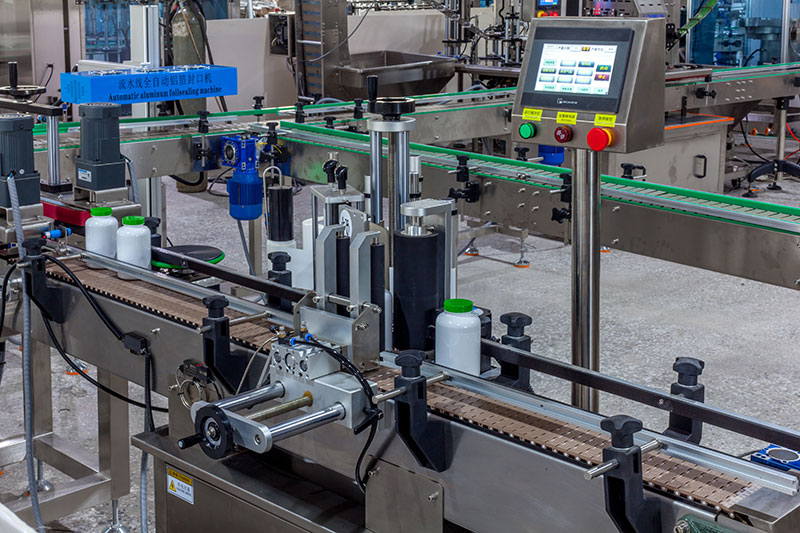

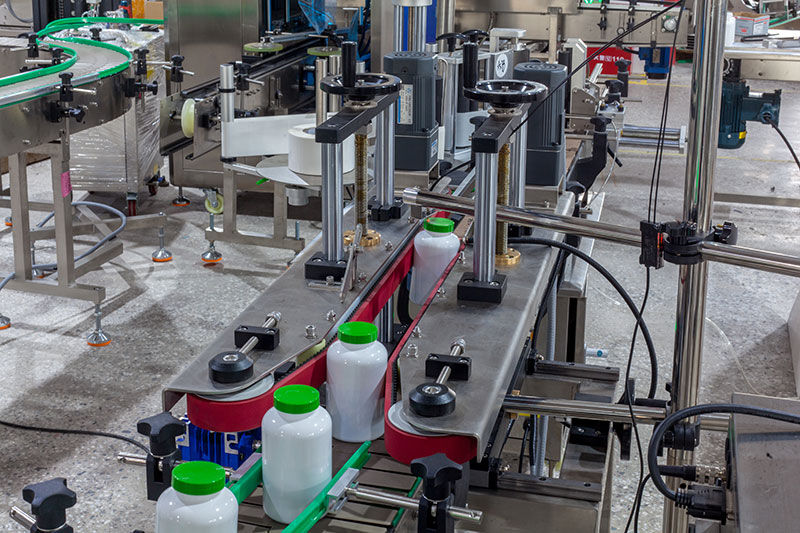

Round Bottles Labeling Machine

Applies self-adhesive labels quickly and accurately on round bottles. It gives a professional appearance with a high level of precision for positioning and speedy labeling.

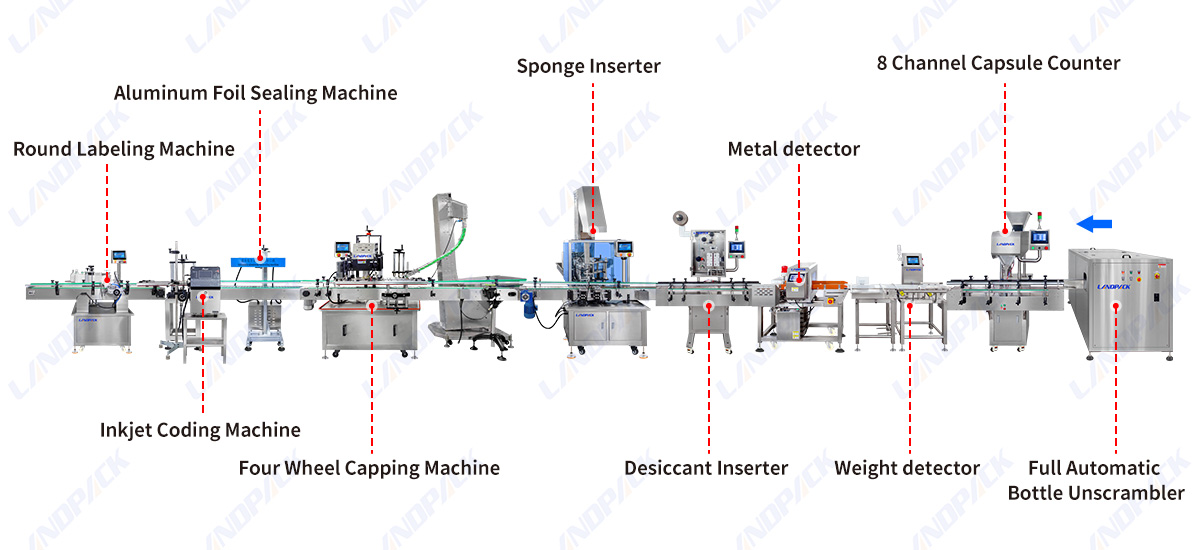

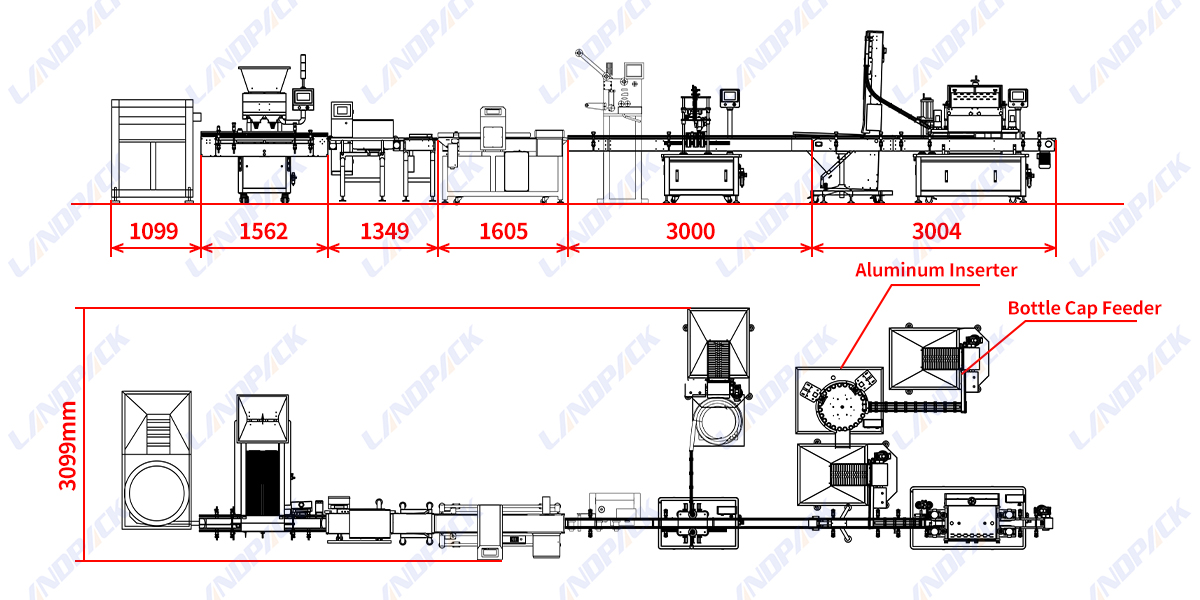

Machine Structure Overview:

1. Automatic Bottle Unscrambler

2. 8 Channel Counter

3. Weight Detector

4. Metal Detector

5. Desiccant Inserter

6. Sponge Inserter

7. Four Wheel Capping Machine

8. Aluminum Foil Sealing Machine

9. Inkjet Coding Machine

10. Round Bottles Labeling Machine

Automatic Vitamin Gummy Counting Packaging Machine Filling Line

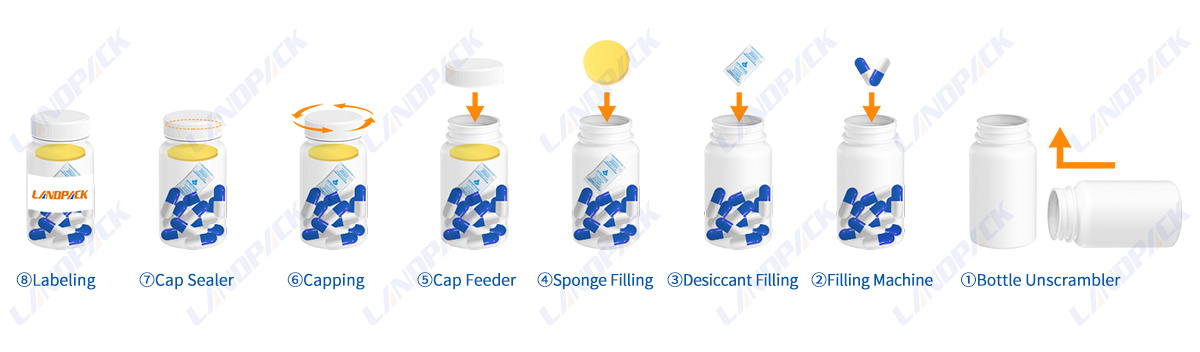

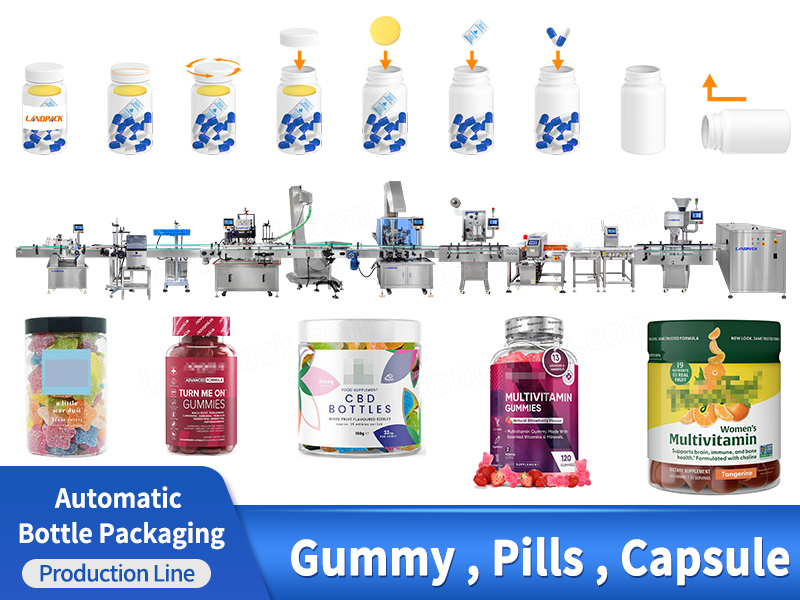

WORKFLOW

Bottle Unscrambling

8-Channel Counting

Weight-checking & Metal Detection

Desiccant Insertion

Sponge Insertion

Four-Wheel Capping System

Aluminum Foil Sealing

Inkjet Coder and Labeling

PARAMETER

Automatic Bottle Unscrambler
Bottle size range	15-300 ml
Power	0.50 KW
Air pressure/supply	0.5 MPa / 0.2 m³/h
Dimensions (L×W×H)	1006×1506×1200 mm
Weight	260 kg
Bottle diameter range	30-85 mm
Output	up to 260 bottles/min
Power consumption	3.4 KW
Compressed air	3.5 cfm (≈ 100 L/min)
8-Channel Capsule Counting Machine
Output / Bottles per min	up to 50 bottles/min
Counting Accuracy / Precision	> 99.80 %
Power / Voltage	0.6 kW, 380 / 220 V, 50 Hz Richpacking
Net Weight	360 kg
Capacity	10–30 bottles/min
Counting range	1–999 grains
Tablet / Capsule size	Tablet: 3–22 mm, Capsule: 00–5
Air pressure & consumption	0.4–0.6 MPa, ~120 L/min
Overall size	180013001600 mm
Desiccant Bag Dispenser
Insertion Speed	60-150 bottles/min (depending on model & sachet size)
Sachet Type	Single strip or continuous roll, paper/film sachets
Sachet Size Range	Length 20-60 mm; Width 15-30 mm (customizable)
Bottle Size Range	Diameter 30-120 mm; Height up to 250 mm
Cutting & Feeding	Automatic sachet cutting, positioning, and inserting
Insertion Accuracy	≥ 99.8%
Control System	PLC with touch screen operation
Power Supply	AC 220 V, 50/60 Hz, 1.0 kW
Air Requirement	0.4-0.6 MPa, ~100 L/min
Machine Weight	300-400 kg
Metal Detector
Metal detection tunnel size	200 mm (W) × 150 mm (H)
Continuous weighing range	6-600 g
Weighing accuracy	±0.3 g
Max throughput	120 containers/min
Detection sensitivity (no product)	Fe ≥ 0.8 mm, Non-Fe ≥ 1.0 mm, SS ≥ 1.2 mm
Checkweigher range	20-5,000 g
Accuracy	±0.02 g
Max product width/height	up to 290 mm width, 5-280 mm height
Weight detector
Weighing Range	1 g - 6,000 g
Accuracy	±0.2 - ±0.5 g (depending on product & speed)
Max Throughput	100 - 400 pcs/min
Conveyor Speed	2 - 60 m/min, adjustable
Conveyor Width	50 - 600 mm (customizable)
Resolution	0.01 g / 0.1 g / 0.5 g (optional)
Reject Mechanism	Air blast, pusher, drop gate, or swing arm
Power Supply	AC 220 V, 50/60 Hz
Air Requirement	0.5 - 0.7 MPa (for reject device)
Machine Dimensions	Approx 1200 × 710 × 750 mm
Sponge dispenser
Insertion speed	e.g. 100-200 bottles/min
Insertion accuracy	e.g. ±1 mm or better
Bottle neck/mouth diameter range	customizable, e.g. 15–50 mm
Power & pneumatic	e.g. 220 V / 50 Hz, air 0.4–0.6 MPa
Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm (Could be customized)	Φ10-200mm (Could be customized)
Applicable bottle height	H:40-300mm (Could be customized)	H:40-300mm (Could be customized)
Speed	0-30 bottles/min	0-10 bottles/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm
Bottom Inkjet Coding Machine
Printing speed	1024 seconds(5*7)
Power	220V/50HZ,150VA
Printing direction	Positive sequence/reverse order/reverse/reverse
Printing distance	The nozzle and the object to be sprayed are kept within 3cm
Store information	The system can store 1000 print information
Ink consumption	70 million words per print
Machine weight	48kg
Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
