Gummy Packaging Machine Rotary Pouch Filling Machine

Introduction:

The LD-8300 Rotary Premade Pouch Packaging Machine is designed for efficient and precise packaging of gummy candies and similar confectionery products. It features a compact rotary structure that automatically completes pouch feeding, opening, filling, sealing, and output in one smooth cycle.

Application:

The LD-8300 is widely used in the food and confectionery industries for packaging gummy candies, jellies, chocolate pieces, and snack foods. It is also suitable for products such as nuts, dried fruits, and small bakery items.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

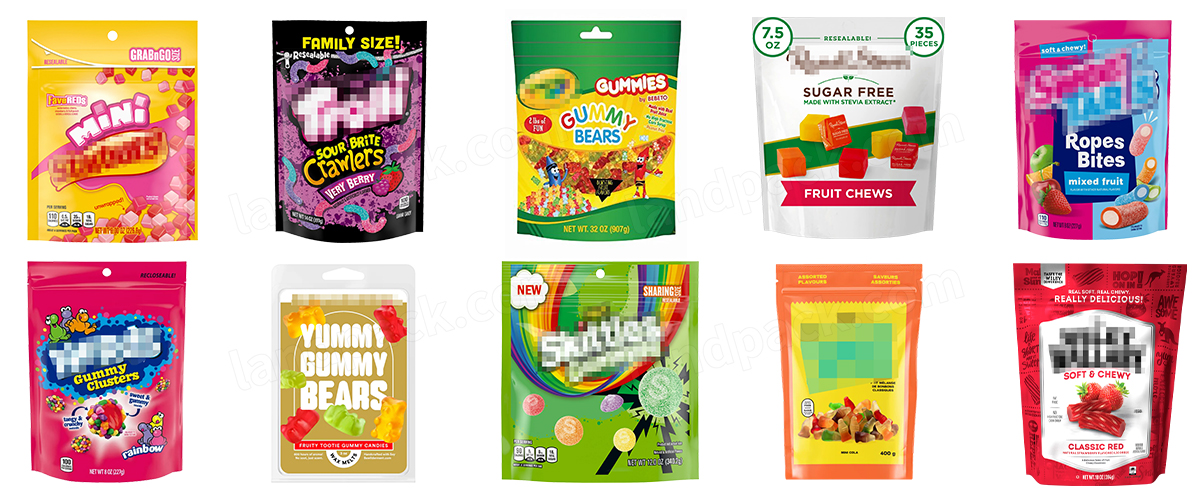

The LD-8300 supports a wide range of premade pouch formats, including stand-up pouches, flat pouches, zipper pouches, and spout pouches.Each pouch type ensures excellent sealing integrity and product protection.

Gummy Packaging Machine Rotary Pouch Filling Machine

Suitable Products:

The LD-8300 can be used for jelly candies, gummy candies chocolate pieces, gummy candies and soft confectionery items.It is also able to handle dried fruit, nuts small biscuits, snack Granules with ease.Its exact weighing and filling system assures accurate portioning of every product type.Ideal for food-grade as well as mixed-shape products that require appealing and well-sealed pouch packaging. Gummy Packaging Machine Rotary Pouch Filling Machine

FEATURES

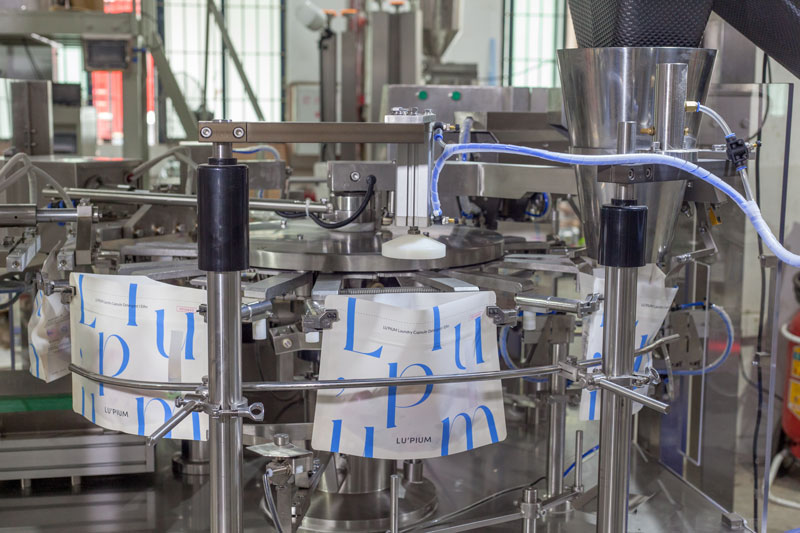

Rotary Packaging Structure Equipped with eight operational stations that include pouch feeding, coding, opening, filling, sealing, and discharge the LD-8300 is able to operate continuously high-speed operation and excellent coordination between the various processes.
	Integrated Weighing and Filling System This system is compatible with multiplehead weighers, which ensure exact product dosage and easy transfer of tiny snacks inside the pouch with no any damage.
Dependable Pouch handling unit Make use of mechanical grippers and vacuum suction to ensure that each pouch is securely open, filled and sealed making sure there are no misfeeds or sealing failures.

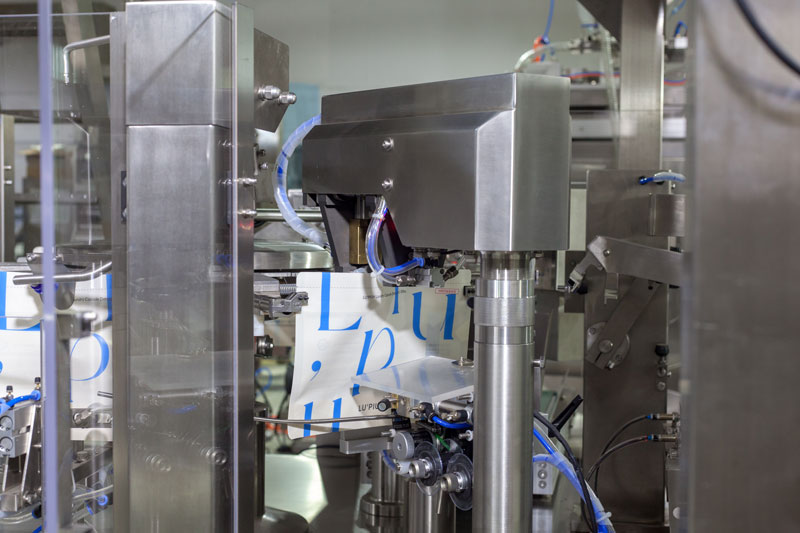

	Modern Sealing Mechanism Dual heating sealing jaws as well as constant temperature control provide secure and attractive seals for different zippered and laminated pouches.
Integrate optional devices The device can be fitted with date printers and nitrogen flushing systems, as well as metal detectors or check weighers to increase functionality and enhance the safety of products.
	Compact footprint and high output The rotary layout optimizes the use of space, resulting in an impressive production capacity, while maintaining consistency and stability in packaging.

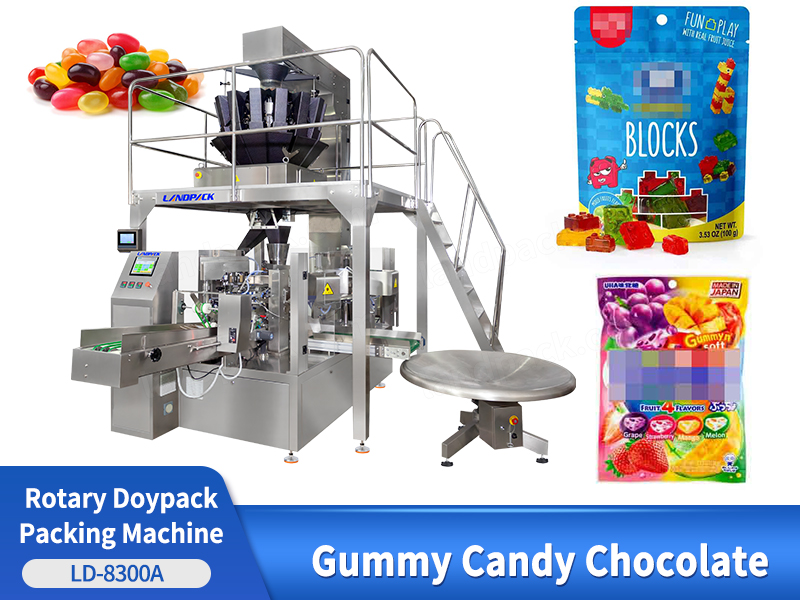

Machine Structure Overview:

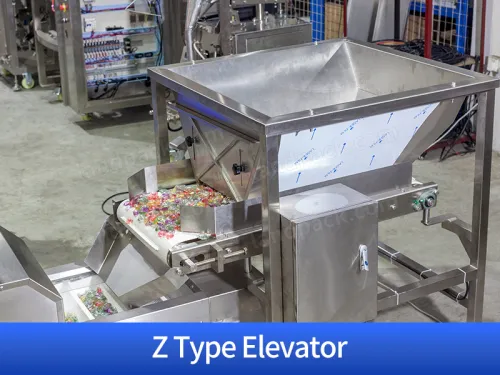

1. Z Type Material Conveyor

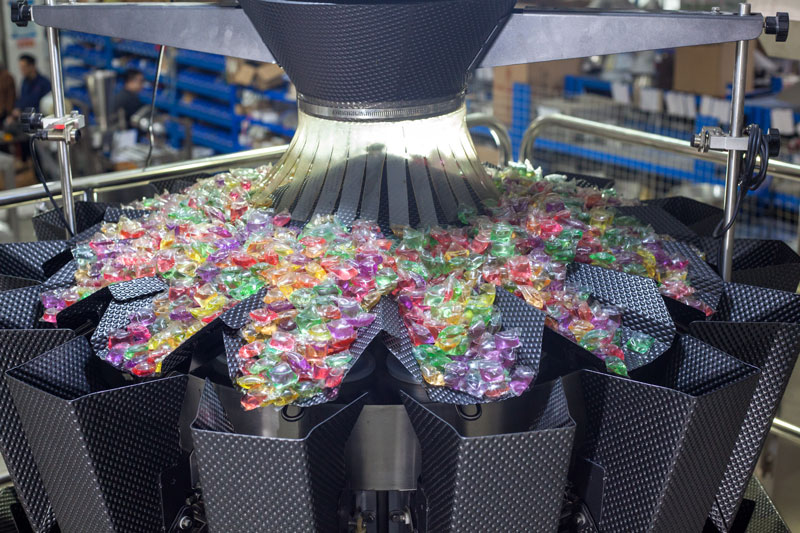

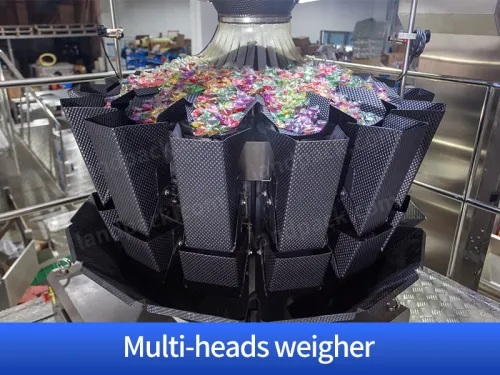

2. Multi-heads Weigher

3. Support Platform

4. Control Panel

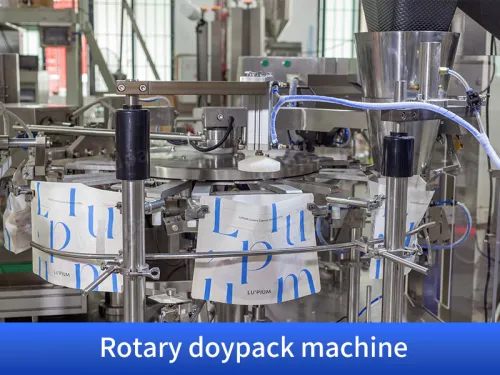

5. Rotary Doypack Machine

5. Output Feeding Conveyor

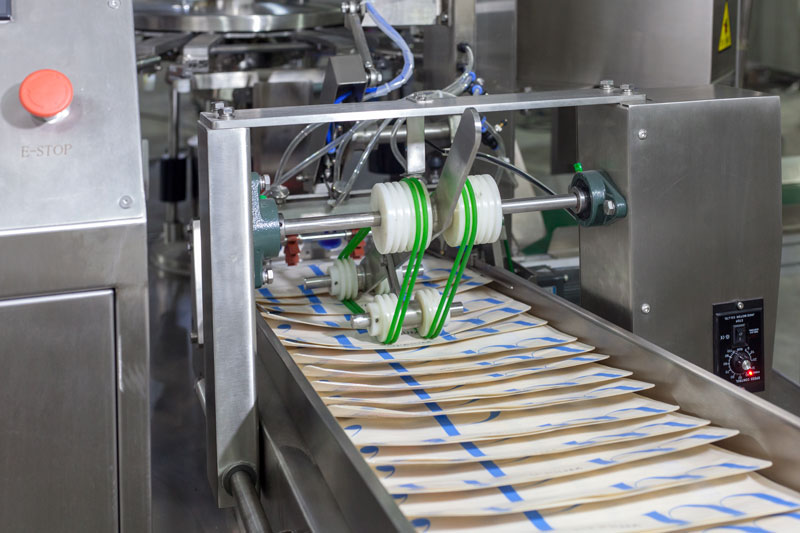

6. Horizontal bag giving station

Gummy Packaging Machine Rotary Pouch Filling Machine

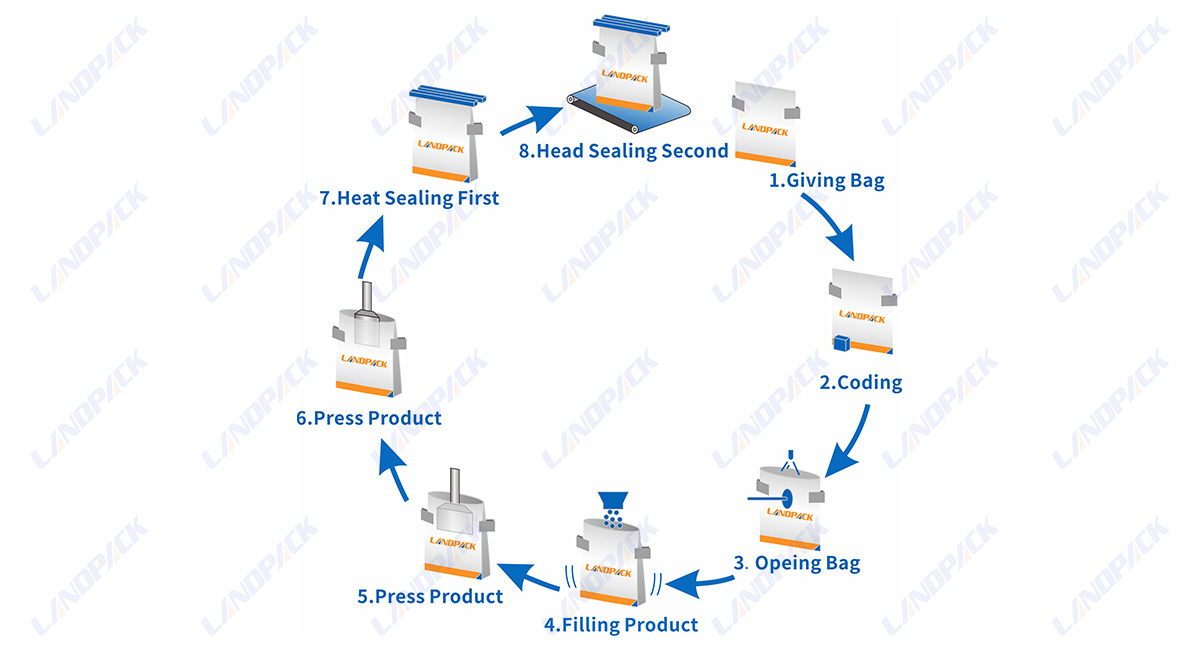

WORKFLOW

Automatic Pouch Feeding

Bag Opening

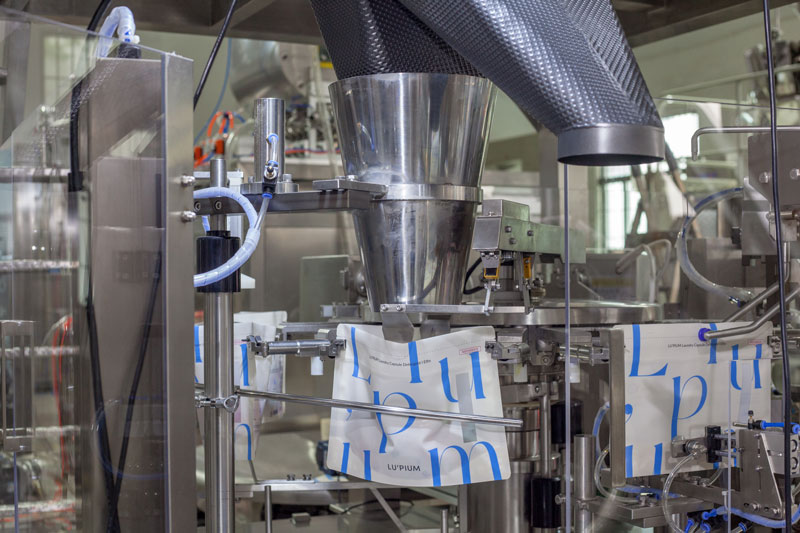

Bag Filling

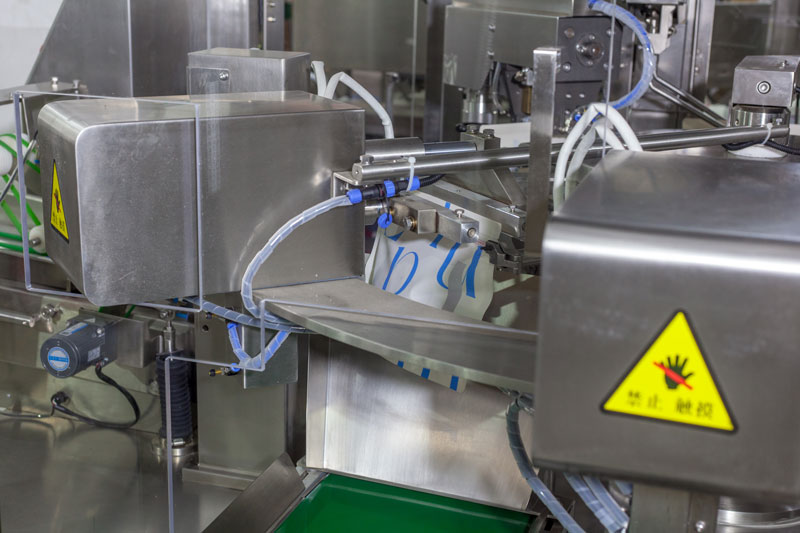

Sealing

Finalized bags output

PARAMETER

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc.
Bag Size	150-380mm80-230mm (LW)	150-380mm/140-260mm (L*W)	150-430mm/180-300mm (L*W)	200-500mm/270-400mm (L*W)
Filling Range	10g-1000g	1500g	2000g	3000g
Packing Speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ;
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min
Dimensions	174013801450mm(LWH)		246018301460mm(LWH)	226022001520mm(LWH)
Machine Weight	1300KG	1300KG	1700KG	2000KG
