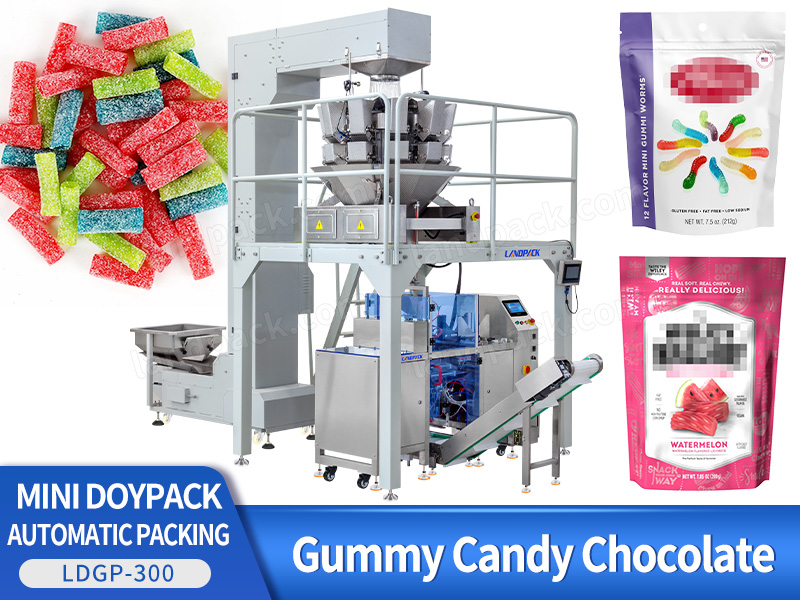

Automatic Premade Bag Gummy Candy Packing Machine With Multihead Weigher

Introduction:

It supports different pouch types such as stand-up pouches and flat pouches, and integrates automatic bag feeding, accurate weighing, filling, sealing, and output into one compact system - perfect for products requirin

Application:

The Landpack Mini Doypack Packaging Machine is extremely versatile and was designed to handle a wide range of goods from many industries. Such as gummy, beef jerky, popocrn, nuts, snack, candy, chocolate, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The mini doypack packaging machine is suitable for various industries that require single-station premade bag packaging. It supports different pouch types such as stand-up pouches and flat pouches, and integrates automatic bag feeding, accurate weighing, filling, sealing, and output into one compact system - perfect for products requiring flexible, hygienic, and attractive packaging.

Package Type:

The Mini Doypack Packing Machine is designed to work with a wide range of premade pouches, offering great flexibility for different packaging styles. It is compatible with stand up pouches, flat pouches, and M shape/gusset pouches to increase volume capacity. It also perfectly handles standard doypacks and other premade pouches with or without zipper.

Automatic Premade Bag Gummy Candy Packing Machine With Multihead Weigher

Suitable Products:

The mini doypack packing machine is extremely versatile and was designed to handle a wide range of goods from many industries, focusing on pre-made pouches.

- Confectionery & Sweets: Food items like gummy bears, fruit chews, small candies, and chocolates.

- Snack & Convenience Food: It's ideal to pack nuts, dried fruits, savory snacks, and jerky using high-end hygiene and accuracy.

- Granular & Pet Products: Able to pack coffee beans, rice, seasonings, pet treats, and other granular products.

Automatic Premade Bag Gummy Candy Packing Machine With Multihead Weigher

FEATURES

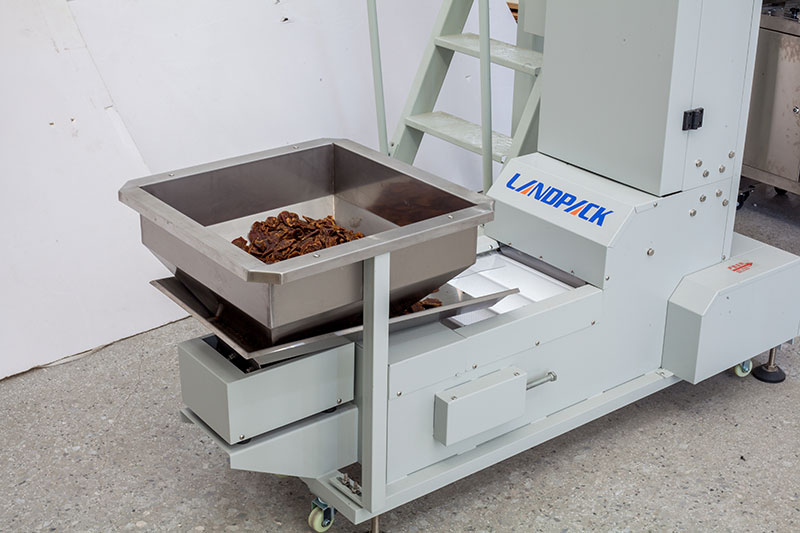

Z Type Material Conveyor Lifts gummy bears smoothly from the feeding station to the weighing hopper without causing damage or sticking. The Z-type design saves floor space and ensures a continuous, efficient material supply.
	Support Platform A sturdy and robust platform that is designed to support the multihead weigher safely. It provides safe access to maintenance and ensures accuracy of weighing through the non-vibration design.

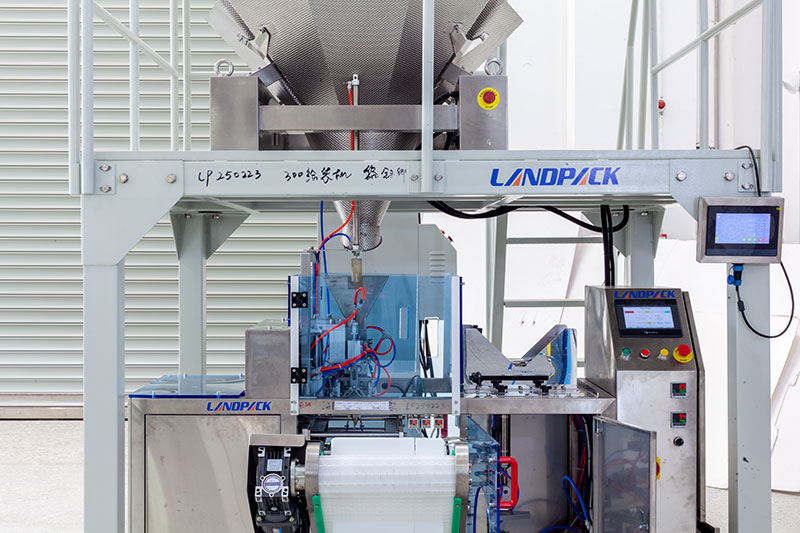

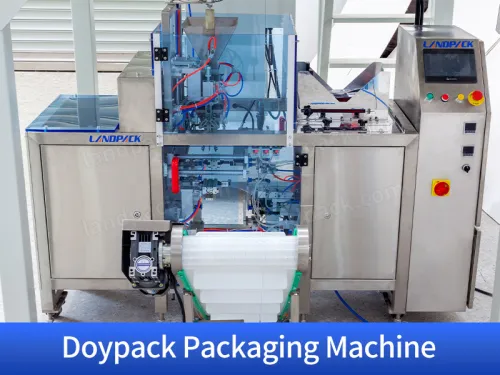

Doypack Packing Machine Core packaging unit for premade bags. Automatically completes bag picking, opening, filling, sealing, and output. Compact structure, hygienic design, ideal for doypack and flat pouches.

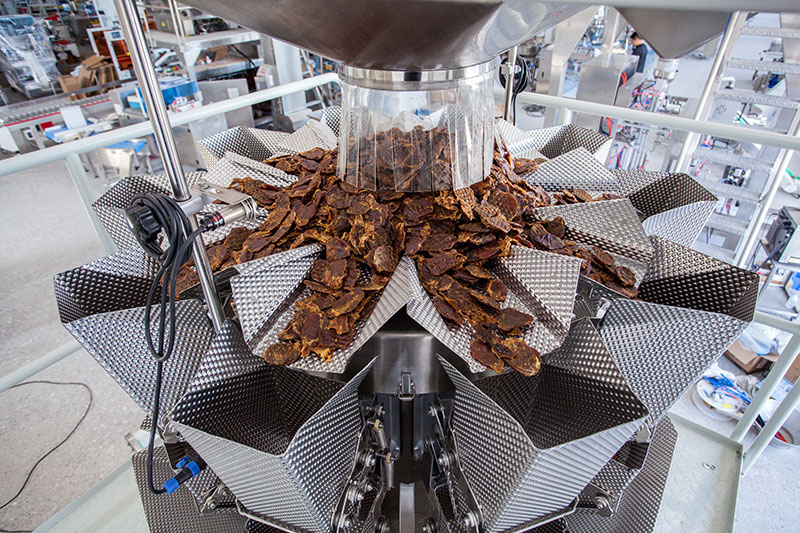

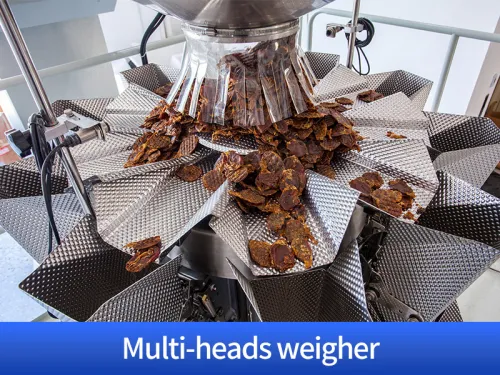

	Multi-head Weigher High-speed, high-precision weighing device. Automatically calculates the optimal combination of components to ensure exact weight control, decreasing product loss and increasing the consistency of your product.

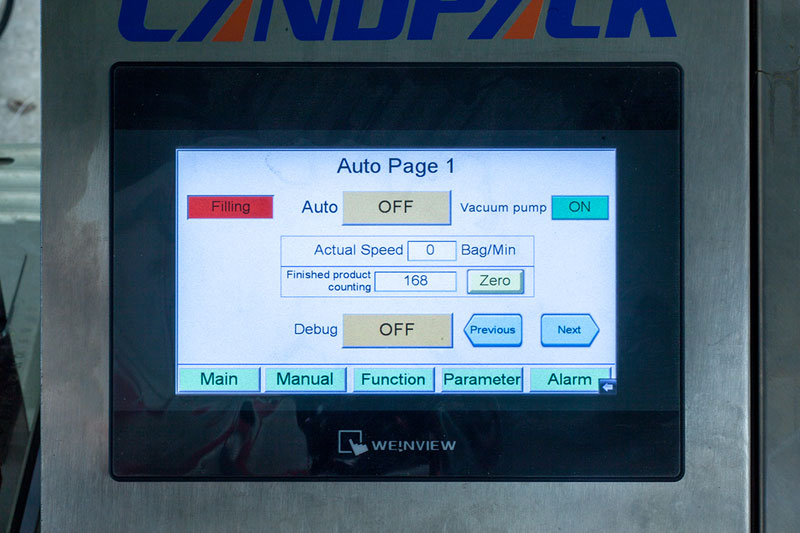

Control Panel Smart touch-screen interface allowing easy parameter setting, production monitoring, and real-time adjustment. User-friendly design reduces operator training time.

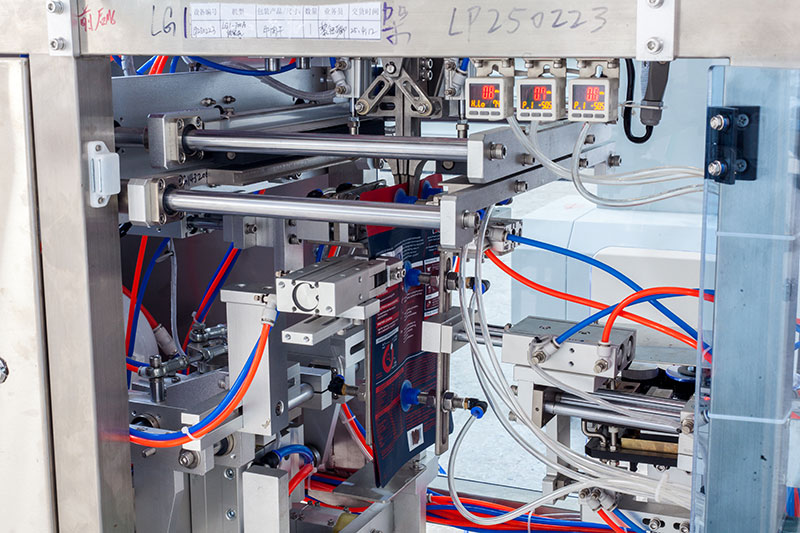

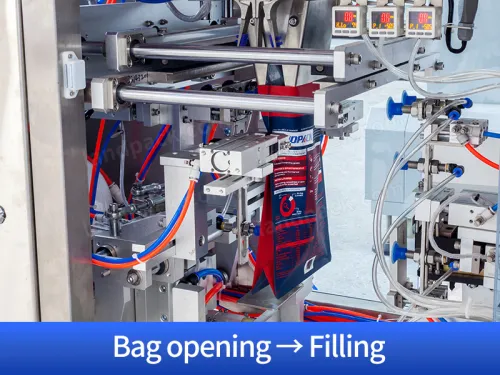

	Bag Opener Uses vacuum suction and mechanical arms to open premade bags reliably. Ensures wide opening for smooth filling and reduces the risk of bag jams or sealing defects.

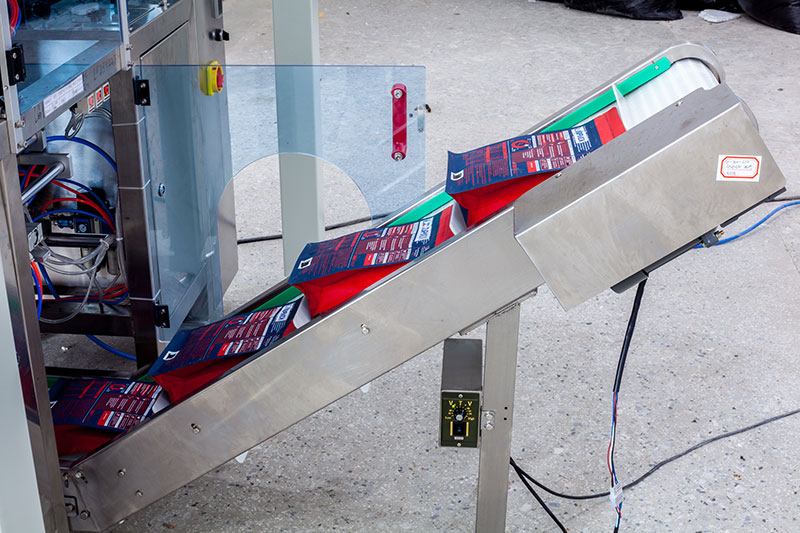

Finished Product Conveyor Transports sealed bags smoothly from the packing station to the next process. Keeps products organized, supports inspection or manual collection, and improves overall efficiency.

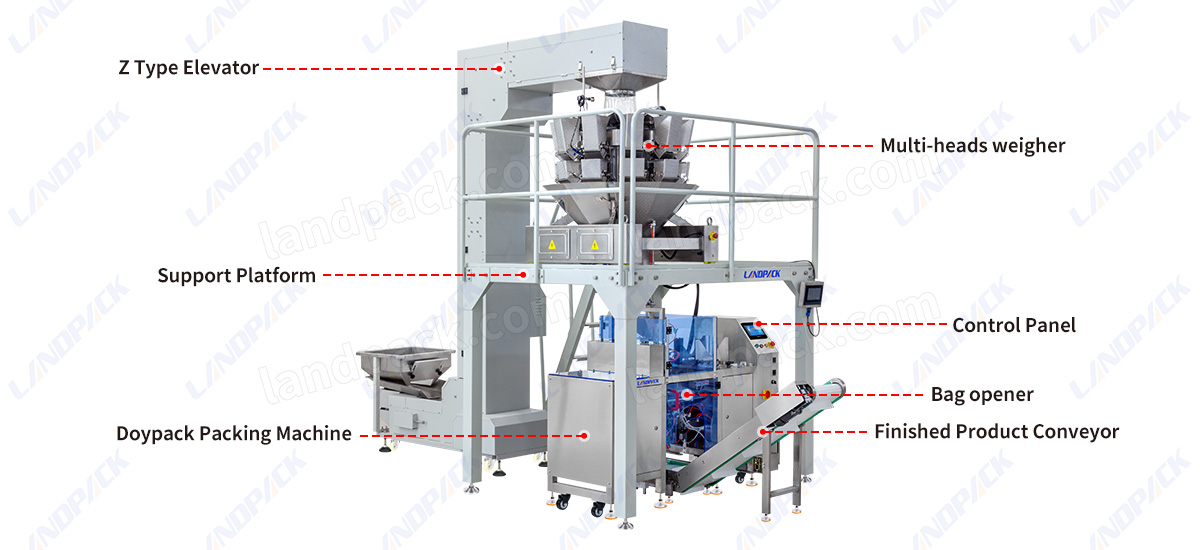

Machine Structure Overview:

1. Z Type Elevator

2. Support Platform

3. Doypack Packing Machine

4. Multi-heads weigher

5. Control Panel

6. Bag opener

7. Finished Product Conveyor

Automatic Premade Bag Beef Jerky Packing Machine With Multihead Weigher

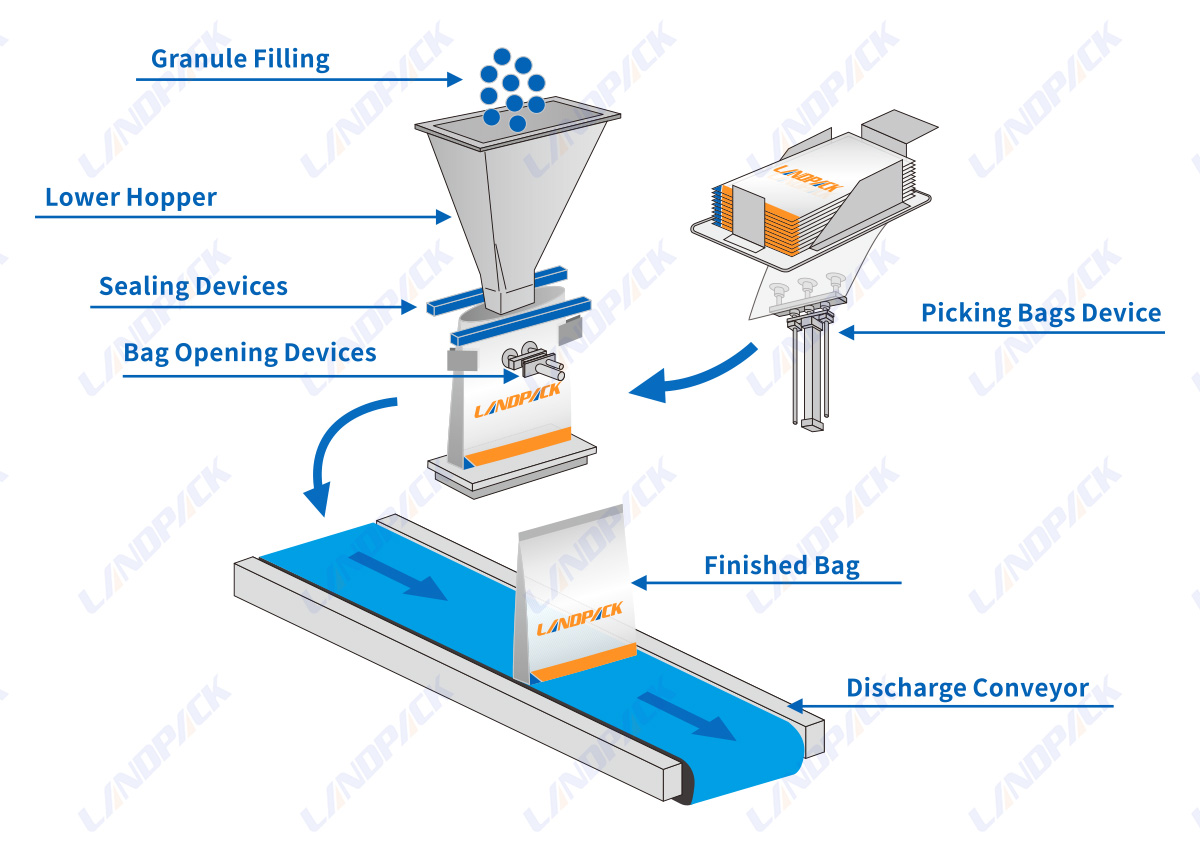

WORKFLOW

Selecting Bags

Opening Bags

Granule Filling

Lower Hopper

Sealing

Output Bag Outcome

PARAMETER

Model	LDB-300	LDB-430	LDB-600
Bag Material	Multilayer Composite Premade Bag (e.g.: PET/PE)
Bag Type	3 Side Seal Bag, Stand-up Bag, M Shape Pouch
Upgradable Bag Type	Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Size Range	80mm≤W≤300mm, 100mm≤L≤300mm	80mm≤W≤300mm, 100mm≤L≤430mm	250mm≤W≤500mm, 380mm≤L≤600mm
Speed	0-15bags/min		0-10bags/min
Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm can be customized)
Voltage	220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3m³/min (Standard machine, no additional function)

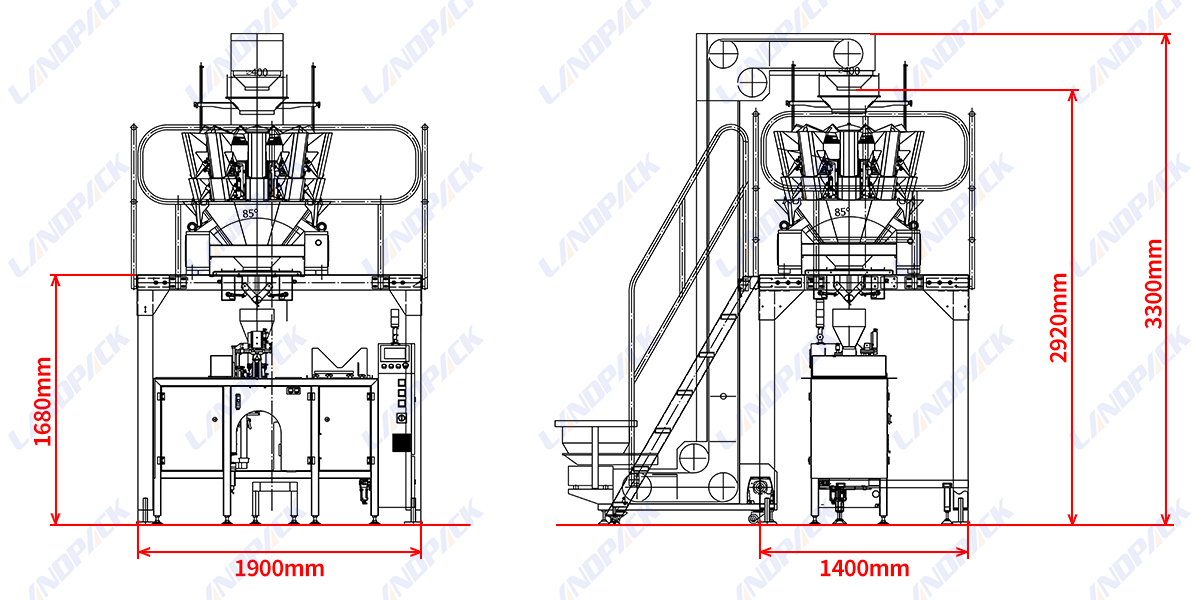

Body Dimension	17706001230mm		167711401450mm
Machine Weight	300 kg	350 kg	450 kg
