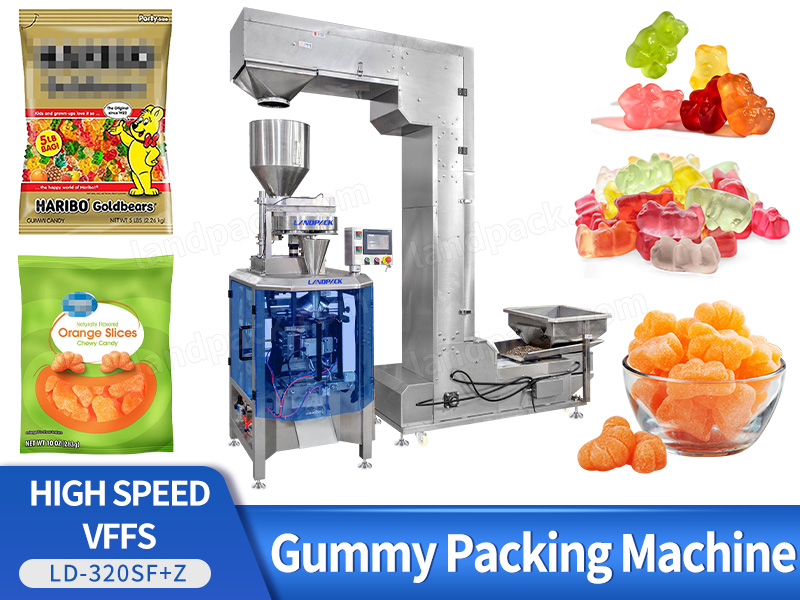

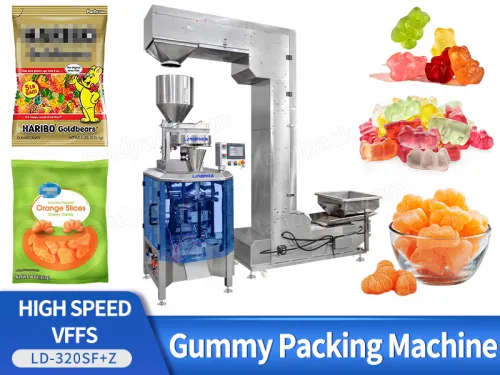

Automatic Packaging Machine For Gummy Bear Candy

Introduction:

High-speed automatic packaging machine for gummy bears, up to 100 bags/min. Landpack professional gummy packaging machine manufacturers provide reliable and efficient gummy bear packaging solutions.

Application:

The Gummy Packaging Machine is designed to handle a wide range of granular and irregular-shaped products in the food, snack, and confectionery industries.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Utilizing a high-end servo-driven technology and a sophisticated weighing control system, this machine can reach the speed of packing 100 bags/min which guarantees accuracy and efficiency. The Gummy Bear packaging machine incorporates automated feeding, packing, weighing, cutting, and sealing into a single unit drastically reducing the cost of labor and waste material. Touch screen technology permits simple parameter adjustments, and high-precision sensors ensure constant bag quality and smooth production.

Package Type:

The integrated Vertical Form Fill Seal (VFFS) system efficiently converts film rolls into various bag styles, including back-sealing bags, pillow bags, gusseted bags, and quad-seal bags.

Automatic Packaging Machine For Gummy Bear Candy

Suitable Products:

The Gummy Packaging Machine is designed to handle a wide range of granular and irregular-shaped products in the food, snack, and confectionery industries. It ensures high precision, stable sealing, and perfect bag appearance for different product types.
It is suitable for:
- Nuts & Dried Fruits: Almonds, Cashews, Cranberries, Apricots, and other dried fruits.
- Confectionery & Snacks: Gummies, Candies, Popcorn, and Biscuits - ideal for both soft and crunchy products.
- Other Granular Products: Breakfast Cereals, Beans, Pet Food, and Desiccant Beads.
Whether for small candies, vitamin gummies, or mixed nuts, this machine provides efficient and hygienic packaging solutions, keeping every product fresh, attractive, and ready for retail.

Automatic Packaging Machine For Gummy Bear Candy

FEATURES

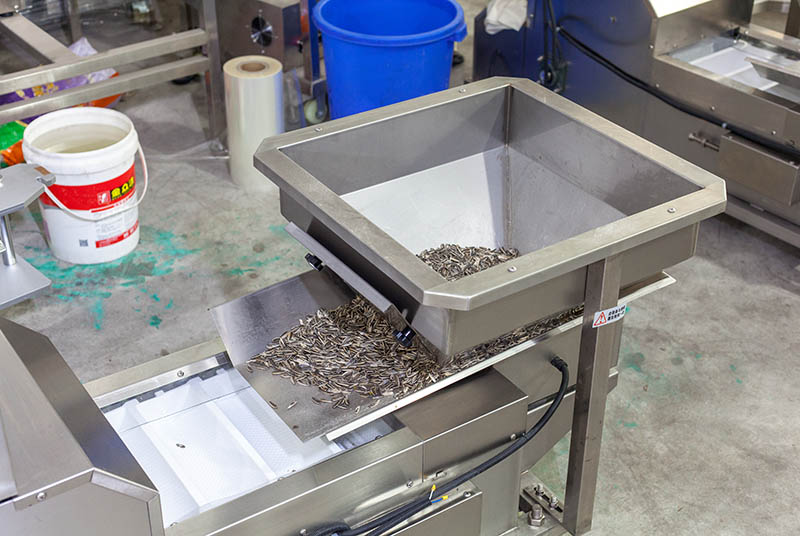

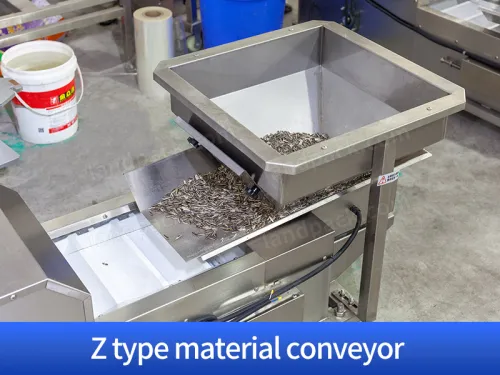

Z Type Material Conveyor Lifts gummy bears smoothly from the feeding station to the weighing hopper without causing damage or sticking. The Z-type design saves floor space and ensures a continuous, efficient material supply.

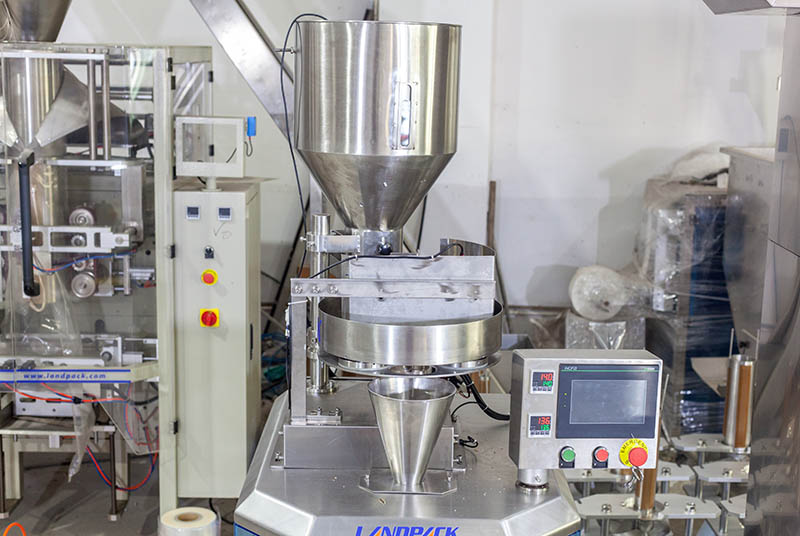

	Storage Hopper Used as a buffer for Gummy bears before measuring. Made from food-grade stainless steel, it guarantees hygiene, simple cleaning and stable feeding throughout the operation.

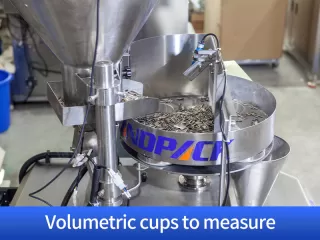

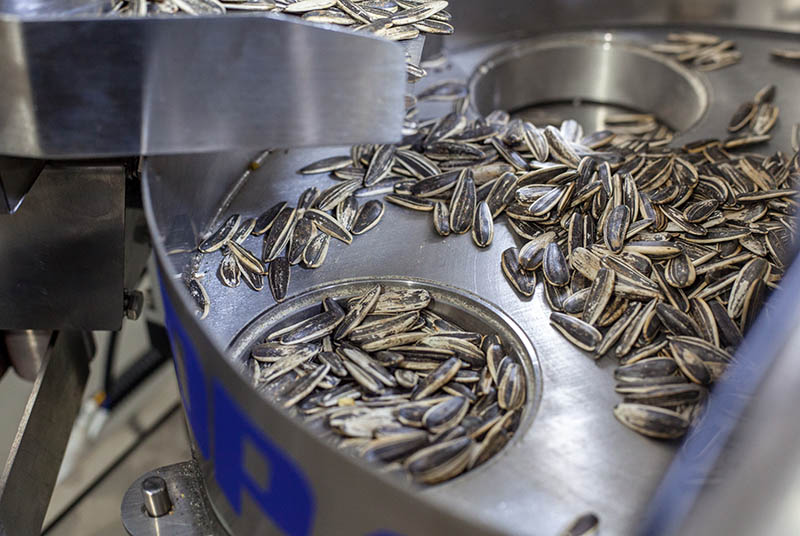

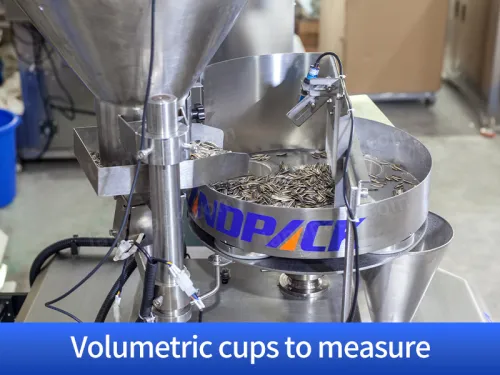

Volumetric Cups to Measure Equipped with adjustable measuring cups for precise and consistent filling by volume. Ideal for gummy bears and other uniform granules, ensuring each bag has the correct quantity.

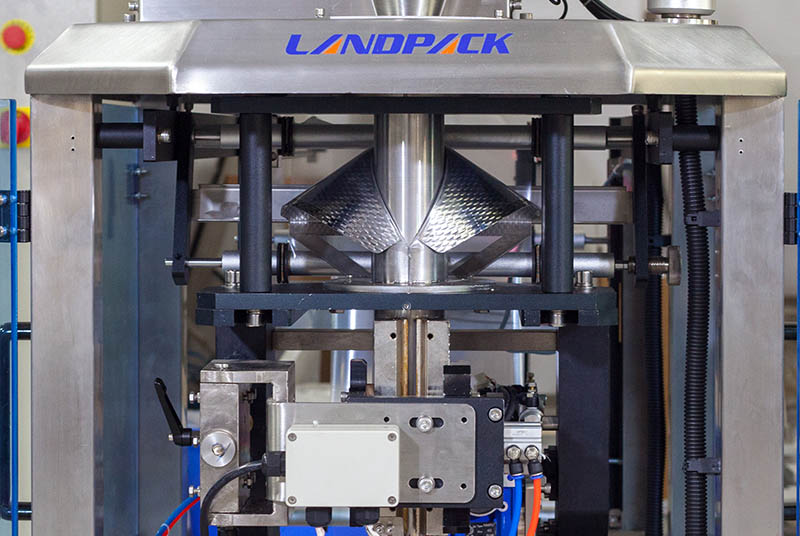

	Form Structure Forms film into back sealing or pillow-type bags with accurate shape and smooth edges. Supports various bag materials such as laminated film, PET/PE, or OPP/CPP.

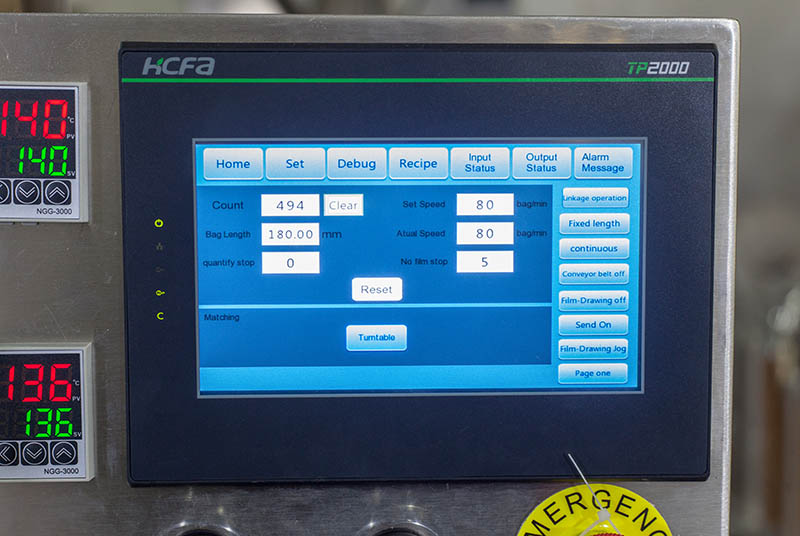

Control Panel Smart touch-screen interface allowing easy parameter setting, production monitoring, and real-time adjustment. User-friendly design reduces operator training time.

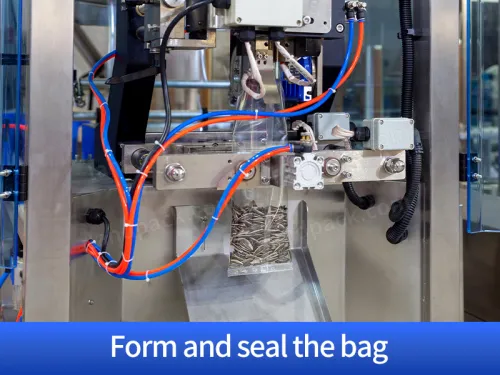

	Sealing Structure Adopts temperature-controlled horizontal and vertical sealing units to create strong, airtight seals. Keeps gummy bears fresh, prevents leakage, and enhances the bag's retail appearance.

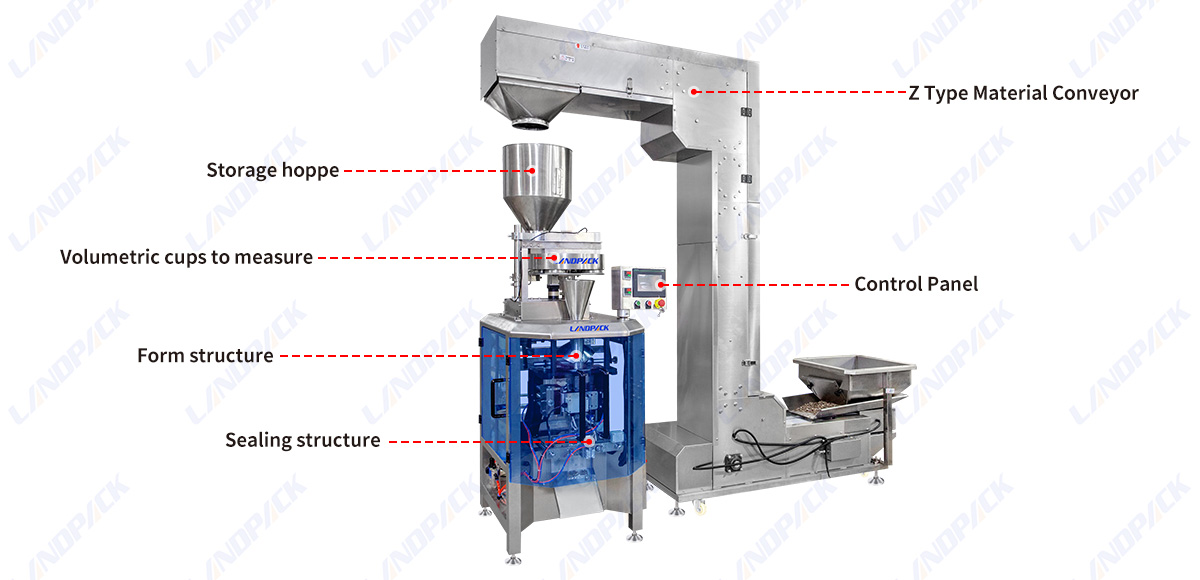

Machine Structure Overview:

1. Z Type Material Conveyor

2. Storage Hoppe

3. Volumetric Cups to Measure

4. Form Structure

5. Control Panel

6. Sealing Structure

Automatic Packaging Machine For Gummy Bear Candy

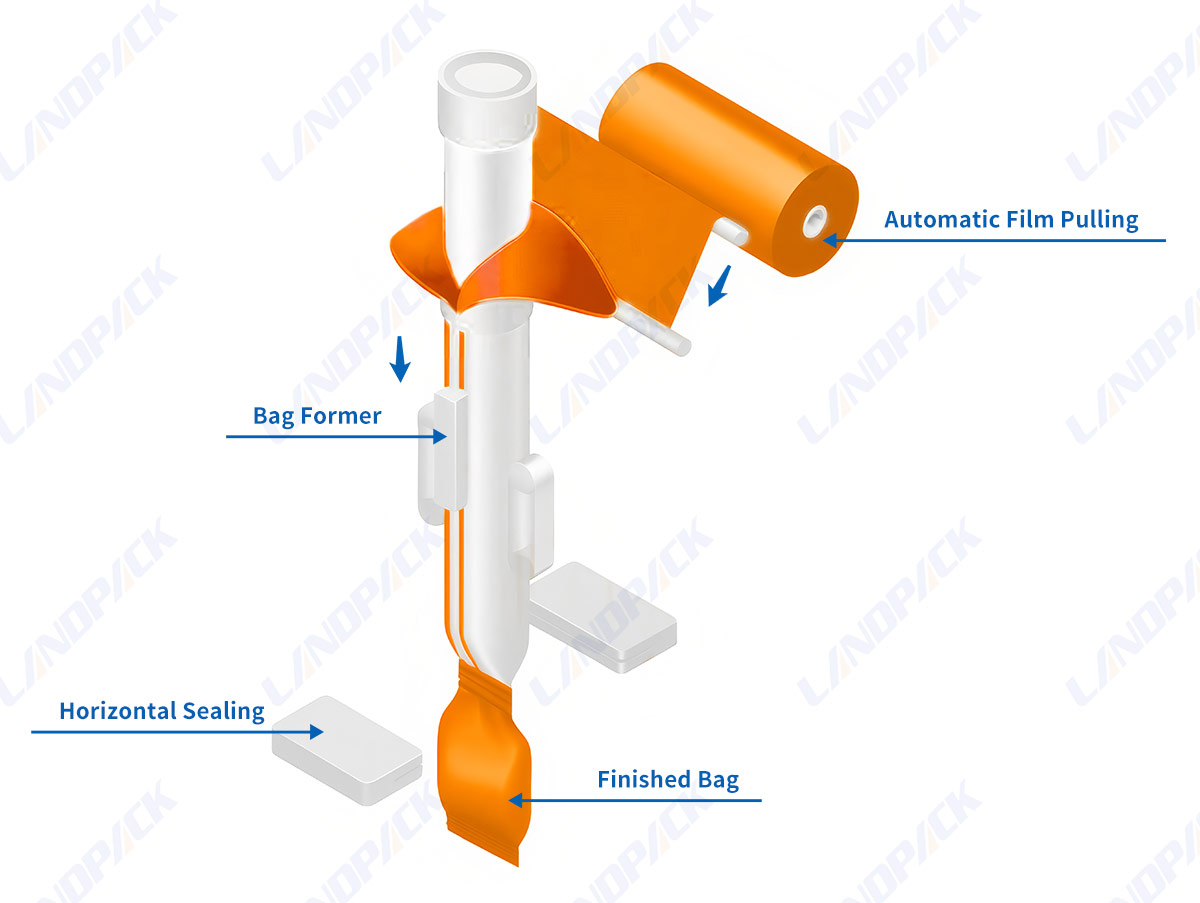

WORKFLOW

Automatic Film Feeding

Bag Forming

Horizontal sealing

Finalized bags output

PARAMETER

	Model	LD-320SF
	Capacity	20-100 bags/min
	Bag size	L: 50-170mm, W: 50-150mm
	Film width	120mm-320mm
	Film thickness	0.05-0.12mm
	Control system	PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen
	Power supply	1N+PE/50HZ/AC220V 4KW
	Airconsumption	0.6-0.8Mpa, 0.3-0.5㎥/h
	Dimension	L1350W900H1400mm
	Equipment Material	Main body 3mm thickness 304 stainless steel frame
	Weight	350kg
	Description of Main Packaging Process	Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.
