Automatic Gummy Packaging Machine Vffs For Gusset Pouch

Introduction:

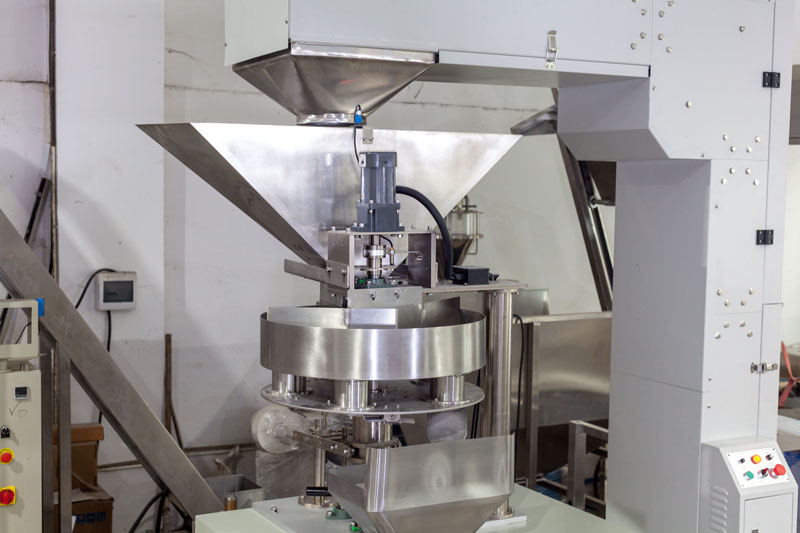

The Economical Volumetric Cups Packaging Machine is a cost-effective vertical packing solution specially designed for free-flowing granular products. It uses precise volumetric cup dosing to ensure accurate measurement and stable output. With a compact structure and high automation, it integrates film forming, filling, sealing, and cutting in one continuous process. Ideal for factories seeking reliable performance with minimal investment and space.

Application:

This machine is widely used in the food, grain, and chemical industries for efficiently packing granular materials. It is ideal for gummy, beans, sugar, salt, and seeds, ensuring clean and consistent packaging. Perfect for small and medium production lines.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Suitable for back-sealed bags, pillow bags, gusset pouches, and small sachets. The machine can use various film materials including OPP/CPP, PET/PE, and laminated films, ensuring clean sealing and attractive appearance for retail packaging.

Automatic Gummy Packaging Machine Vffs For Gusset Pouch

Suitable Products:

Perfect for free-flowing granule materials such as rice, beans, sugar, salt, corn, seeds, coffee beans, and similar granular products. It can also handle chemical granules or plastic pellets requiring precise volumetric measurement.

Automatic Gummy Packaging Machine Vffs For Gusset Pouch

FEATURES

Volumetric Cup System Adopts an economical and reliable volumetric dosing design, ensuring accurate measurement for each bag with consistent filling weight. Ideal for free-flowing materials like grains and sugar, offering excellent speed-to-cost performance.
	Compact Structure Built with a vertical design that saves factory floor space while maintaining stable operation. The modular layout allows easy installation, maintenance, and cleaning, making it suitable for limited workshop areas.

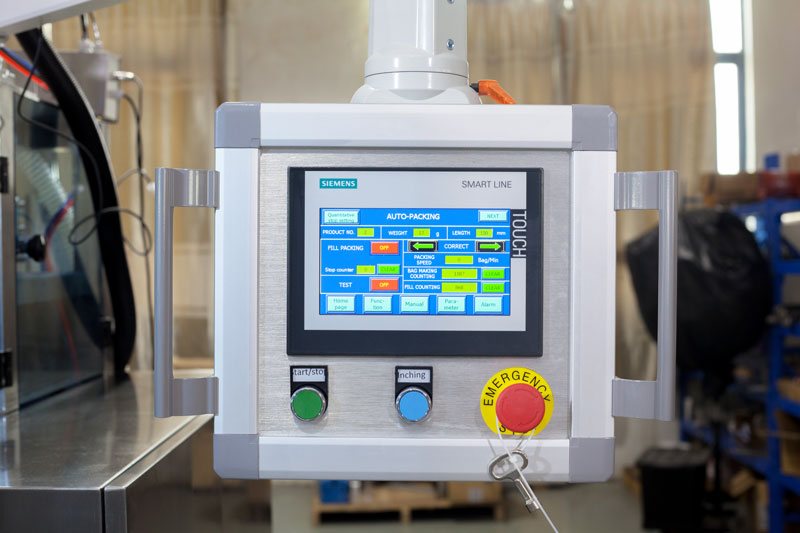

Smart Control Panel Equipped with a PLC touch screen for intuitive operation, real-time monitoring, and quick recipe change. Operators can adjust filling volume, bag length, and sealing temperature with ease.
	Durable Construction Made of high-quality stainless steel with a smooth finish that meets food safety standards. The durable body guarantees long-term stability even under continuous operation.
Cost-Effective Automation Integrates feeding, measuring, filling, sealing, and discharging in one line, greatly reducing labor intensity and improving productivity, while maintaining low energy consumption and operating cost.

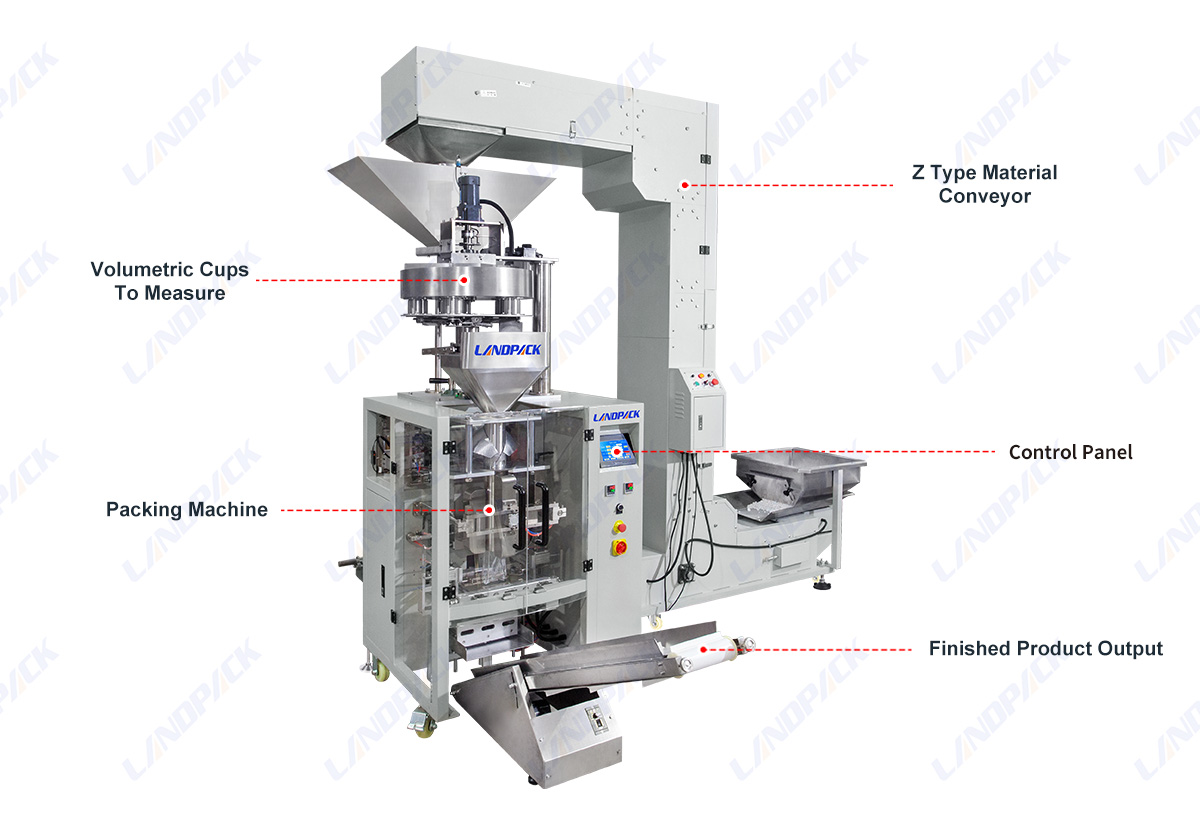

Machine Structure Overview:

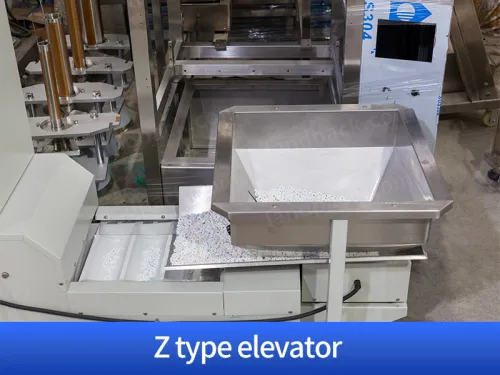

1. Z Type Material Conveyor

2. Storage Hoppe

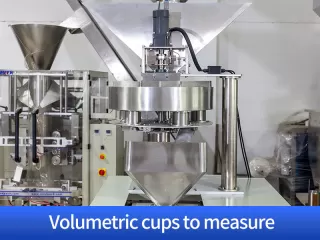

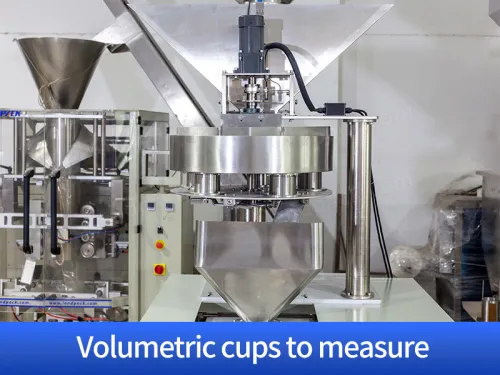

3. Volumetric Cups to Measure

4. Form Structure

5. Control Panel

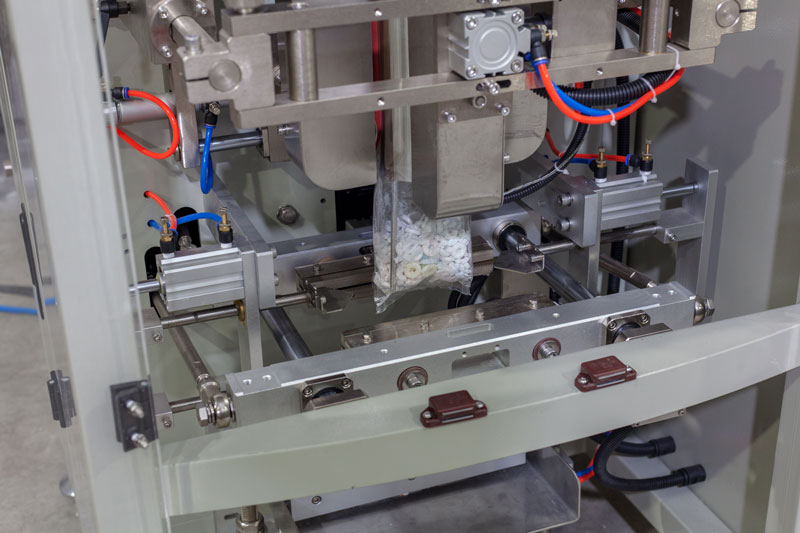

6. Sealing Structure

Automatic Gummy Packaging Machine Vffs For Gusset Pouch

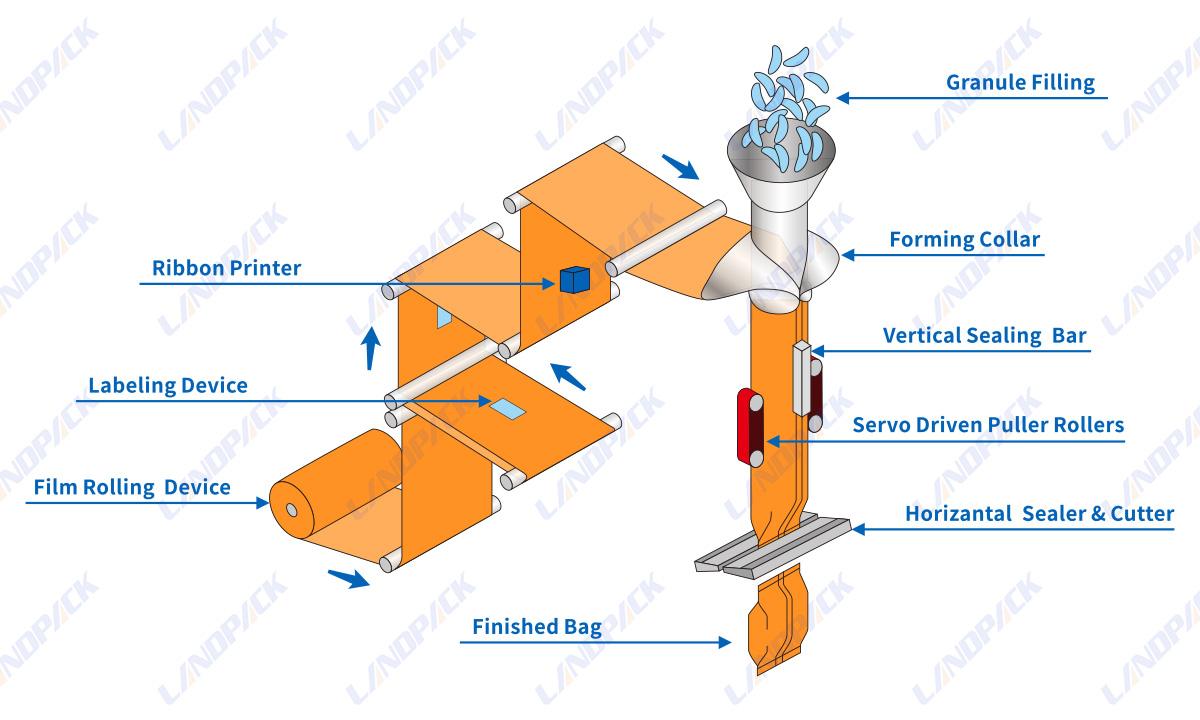

WORKFLOW

Automatic Film Feeding

Bag Forming

Horizontal sealing

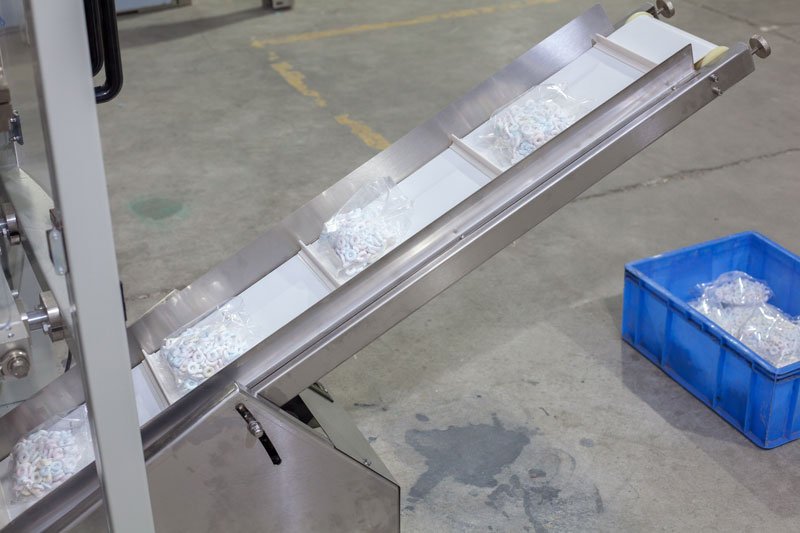

Finalized bags output

PARAMETER

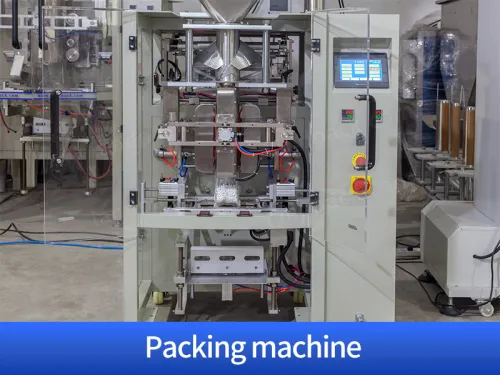

Vertical Packing Machine
Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
