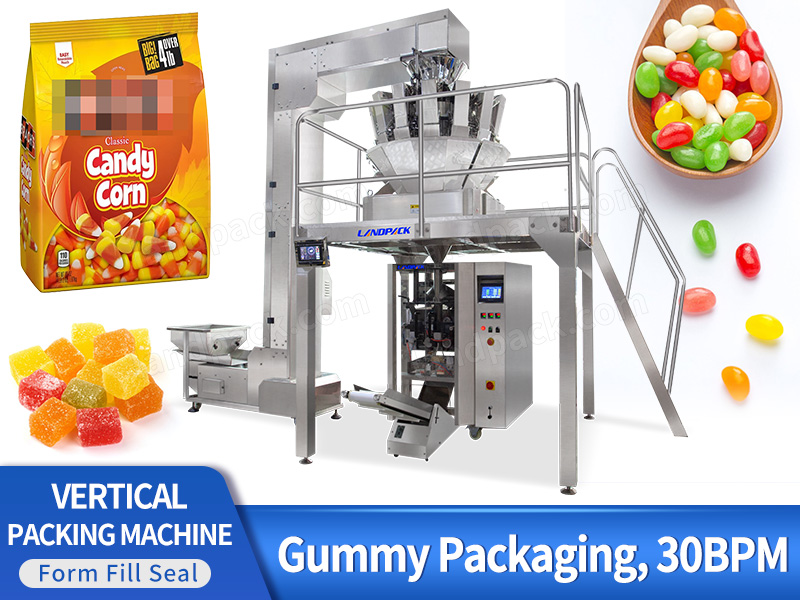

Automatic Multi-head Weigher Gummy Jelly Candy Vertical Pouch Packaging Machine

Introduction:

The LD-420A Vertical Packaging Machine is designed to ensure accurate and efficient packing of gummy sweets. It is a combination of bag forming and sealing, filling and cutting into one seamless procedure. With a stable performance and slim design, this provides the same quality and attractive packaging.

Application:

This machine is used extensively in the food and confectionery industries to pack gummy candy soft chews and vitamin gummies and coated tablets. It guarantees an accurate filling process, hygiene-friendly operation and dependable sealing to preserve freshness of product.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Ideal packing materials include back-sealed bags, pillows bags Gusset pouches, gusset bags, and sachet bags. The machine can be used with a variety of films, such as PET/PE, OPP/CPP and laminated films. It ensures durable sealing and a tidy professional appearance of the packaging.

Automatic Multi-head Weigher Gummy Jelly Candy Vertical Pouch Packaging Machine

Suitable Products:

This machine is ideal for sticky but soft products like gummy candy soft chews, soft snacks and vitamin Gummies. With its sturdy movie pulling mechanism and accurate control of filling, it allows for a smooth flow of the product without causing any damage or sticking. Vertical sealing provides tightly sealed, clean packaging which preserve freshness of the product and provide a pleasing appearance that perfectly matches the requirements of modern candy production.

Automatic Gummy Packaging Machine Vffs For Gusset Pouch

FEATURES

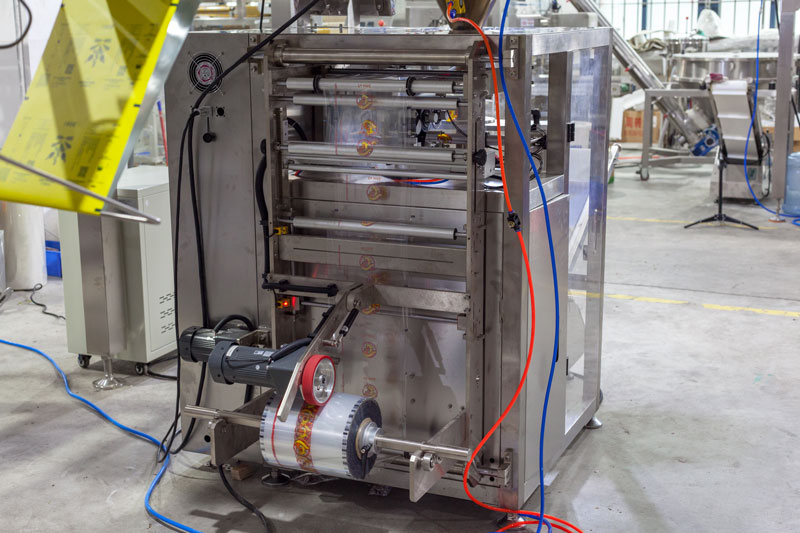

Film Pulling System It is equipped with a servo-driven pulling mechanism to ensure steady and precise transport of film. It ensures precise bag length as well as smooth film movement, thereby reduces wrinkles and waste in high-speed operations.

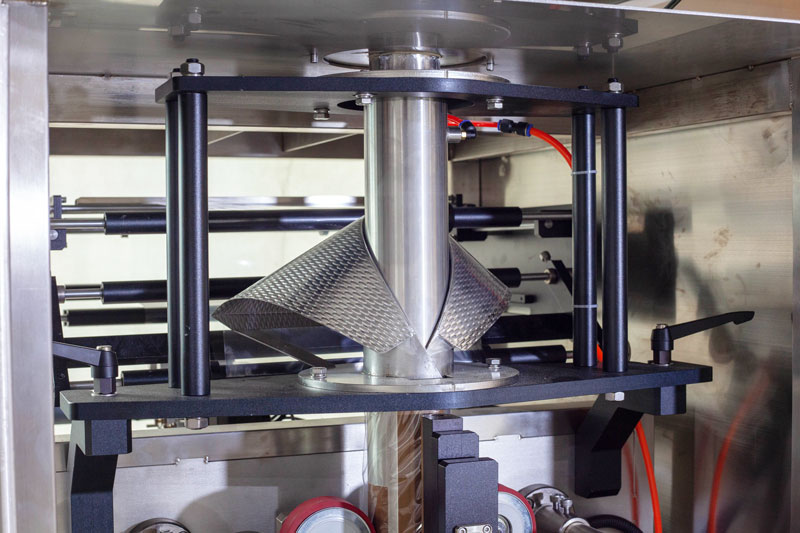

	Bag Forming Unit The vertical forming tube forms flat films into the bag style you prefer. Its movable structure permits rapid switching between back-sealed Gusset or pillow pouches, which allows for more flexibility when it comes to different packaging types of gummies.
Filling System designed for soft and gummy application in candy, the dosing device integrates seamlessly with weighing and volumetric dosing equipment. The smooth channel for feeding minimizes stickiness, crushing or the build-up of residue, which ensures the gentle handling of products.

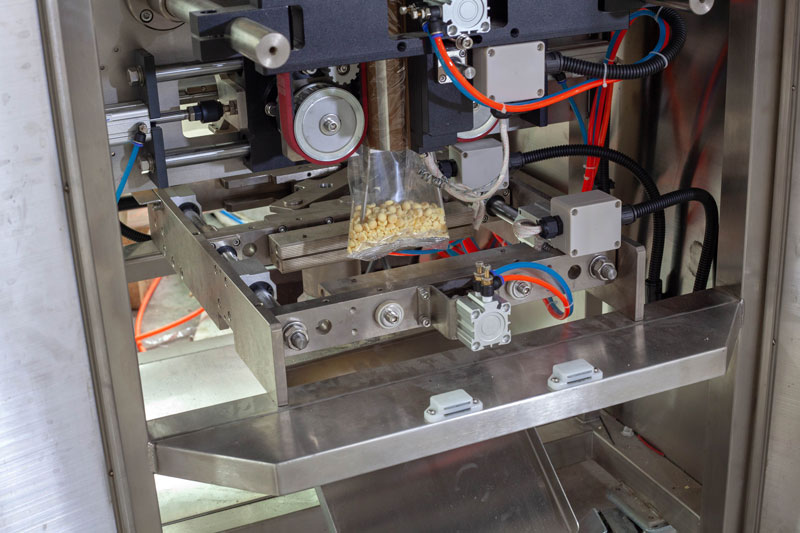

	Sealing & Cutting Device High-precision vertical and horizontal sealing jaws that have constant temperature control for secure and clean seals. The cutting mechanism ensures smooth edges while maintaining the attractive design and airtight seal.

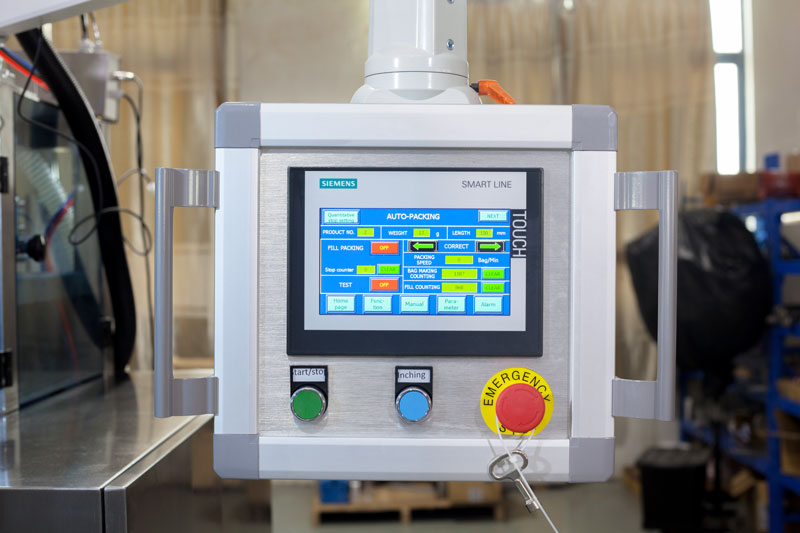

Control Panel (PLC System) Integrated with an advanced PLC touchscreen interface that allows for simple operation and rapid adjustment of parameters. Operators can track bag length, temperature, and filling rate in real-time to ensure the same performance and reducing downtime.

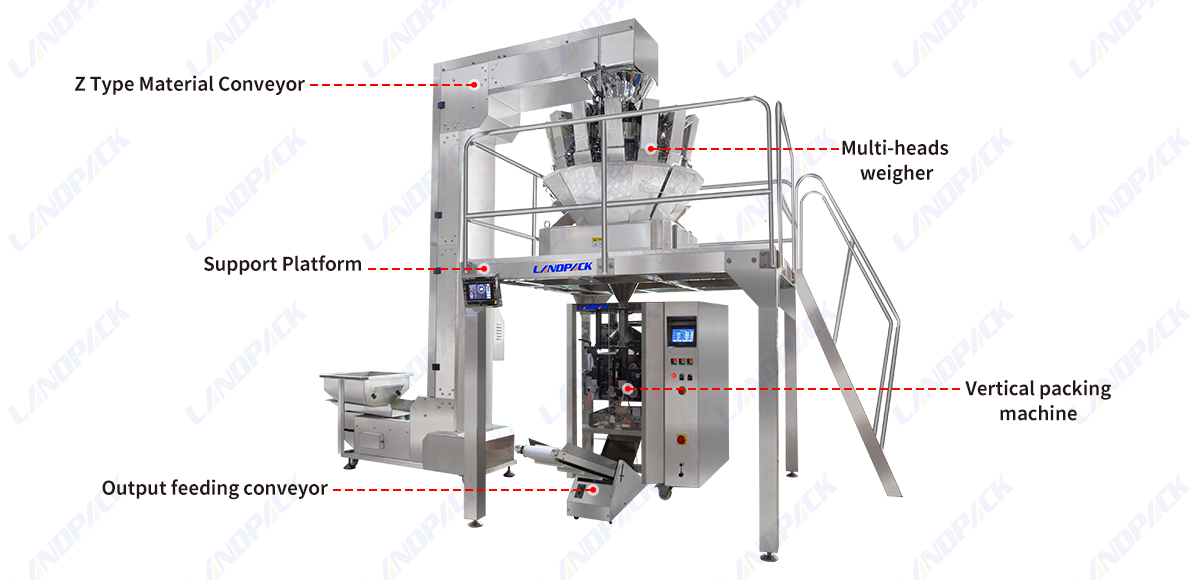

Machine Structure Overview:

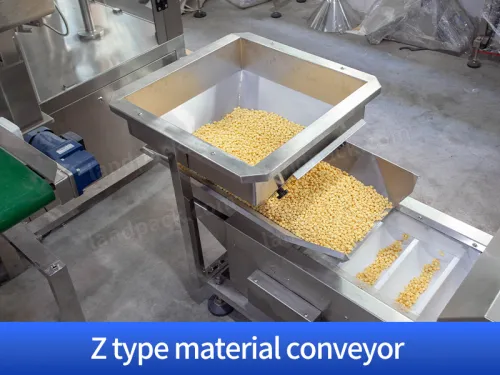

1. Z Type Material Conveyor

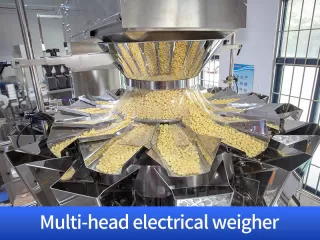

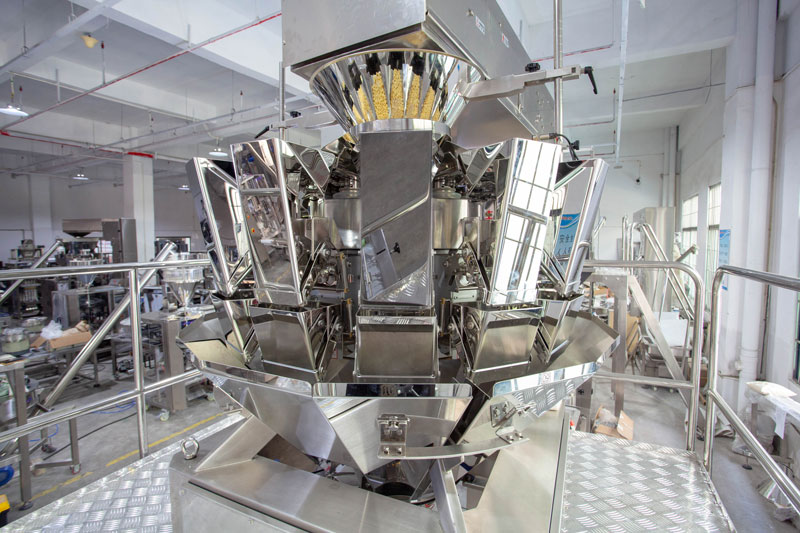

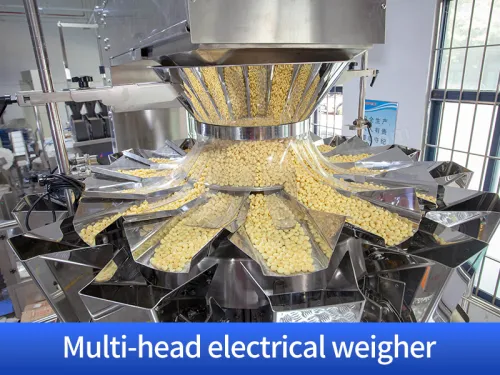

2. Multi-heads Weigher

3. Support Platform

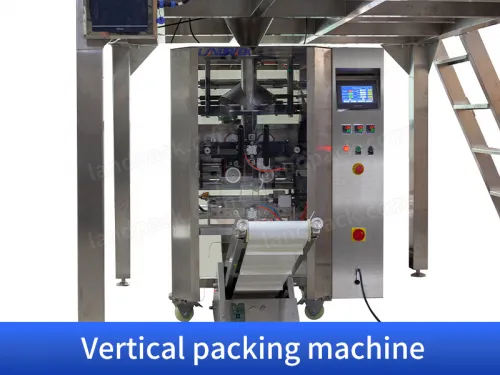

4. Vertical Packing Machine

5. Output feeding conveyor

Automatic Multi-head Weigher Gummy Jelly Candy Vertical Pouch Packaging Machine

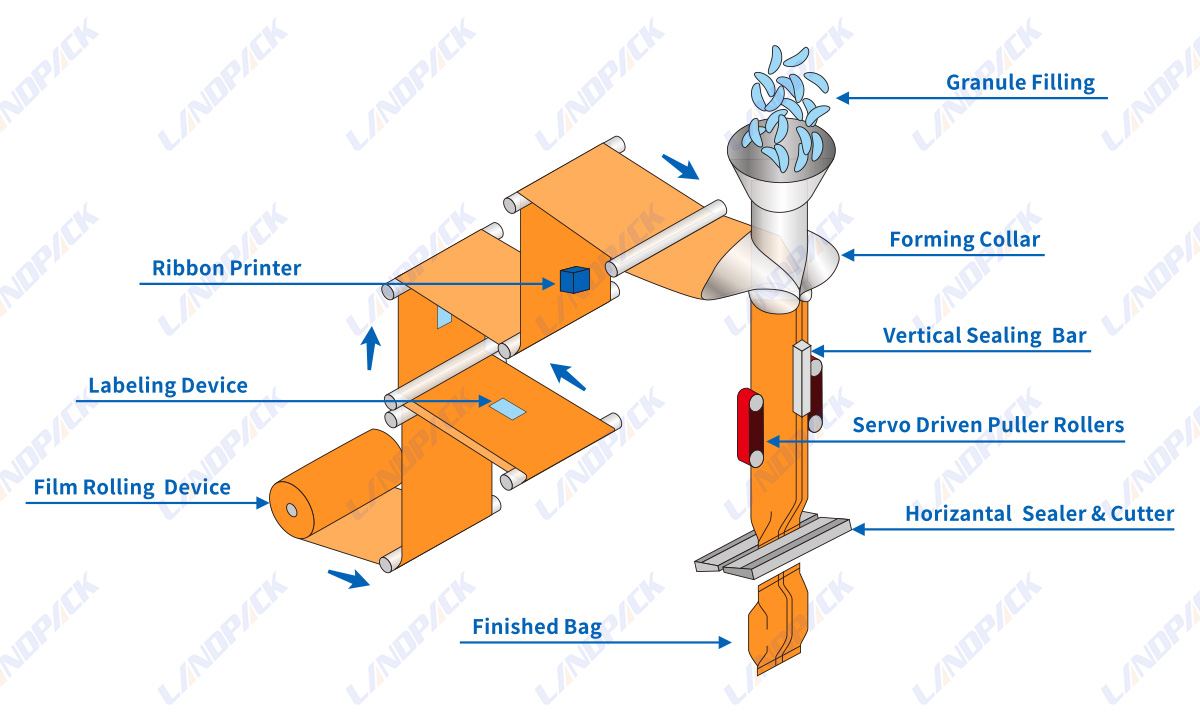

WORKFLOW

Automatic Film Feeding

Bag Forming

Horizontal sealing

Finalized bags output

PARAMETER

Vertical Packing Machine
Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
