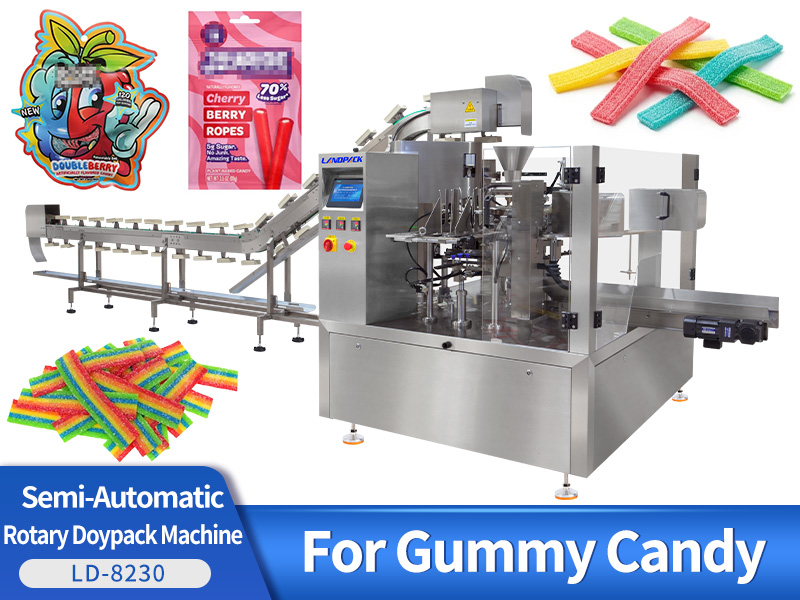

Gummy Candy Packaging Machine Rotary Pouch Filling Machine

Introduction:

It is perfect for confectionery manufacturers, nutritional gum manufacturers, as well as food supplement producers who require a reliable bag packaging system.

Application:

This 8-station machine efficiently packages granular products such as gummy, coffee beans, nuts, seeds, sugar, rice, salt, and various snacks and pet foods. It is ideal for a wide range of industries.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The Gummy Candy Packaging Machine Rotary Pouch Filling Machine is designed for high-speed and accurate packaging of various gummy and jelly products. This gummy packaging machine can pack up to 60 bags/min, ensuring high productivity while maintaining excellent sealing quality.

Package Type:

The Gummy Candy Packaging Machine Rotary Pouch Filling Machine is compatible with a wide range of pre-made pouch styles, offering flexibility for different market needs and product presentations. It supports stand-up pouches, M-shape pouches, flat pouches, and zipper bags, ensuring each gummy product is perfectly sealed and visually appealing on the shelf.

Gummy Candy Packaging Machine Rotary Pouch Filling Machine

Suitable Products:

This Automatic Gummy Candy Packaging Machine has been specifically designed to handle a broad range of granular and gummy items. It provides exact measurement, precise sealing and appealing packaging for a variety of foods and confectionery.
This machine is ideal for:
- Gummy bears, fruit gummies, and vitamin gummies
- Jelly candies, soft chews, and coated candies
- Small granules, nuts, cereals, and dry fruits
- Pet treats and similar small-sized snacks
With a high-speed rotary pouch system, it can easily handle sticky or irregularly shaped candies, maintaining accuracy and freshness in every pouch. The machine's adaptability makes it a trusted solution among gummy packaging machine manufacturers and snack producers worldwide.

Gummy Candy Packaging Machine Rotary Pouch Filling Machine

FEATURES

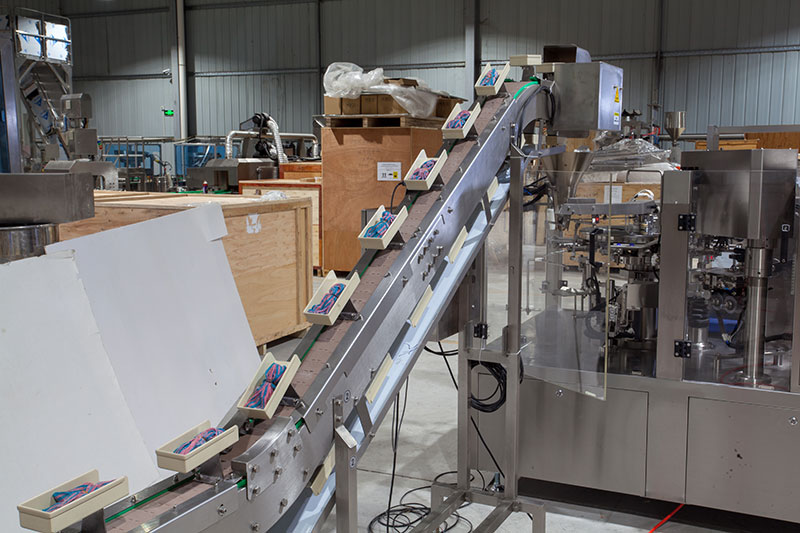

Chain Bucket Elevator Efficiently lifts gummy candies to the feeding hopper without damage or sticking. The food-grade buckets ensure hygiene and smooth product transfer to the rotary packing system.

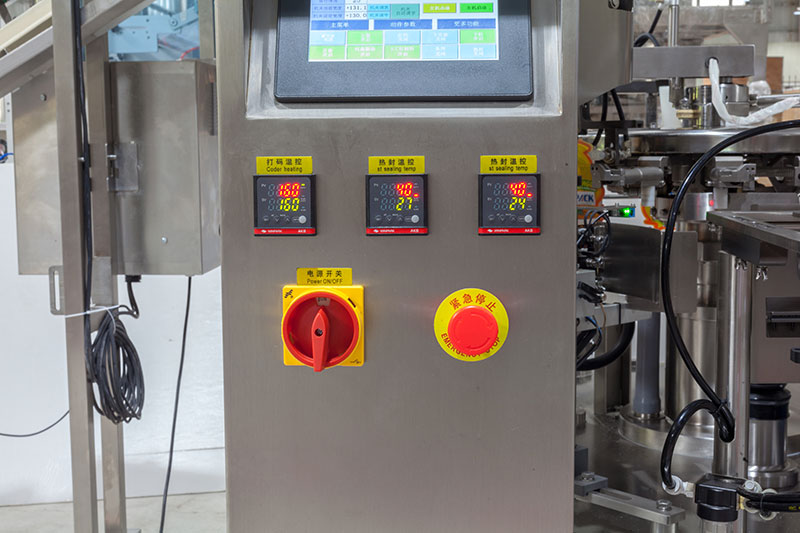

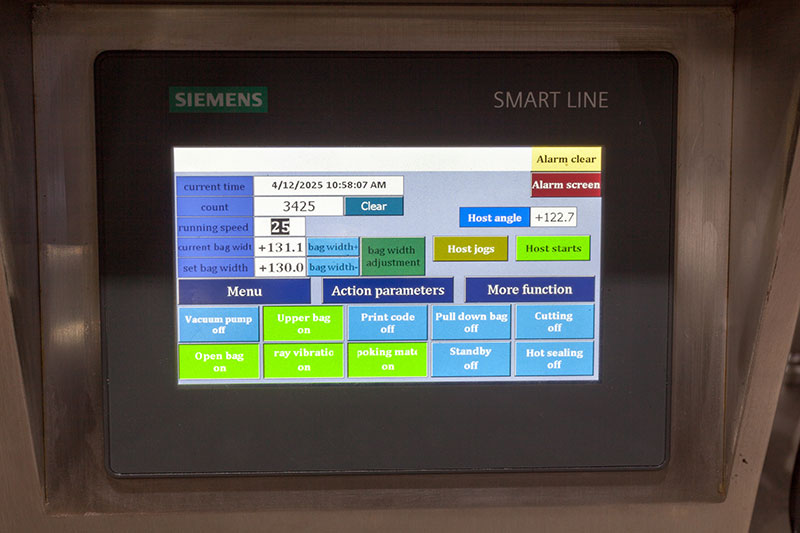

	PLC Control Panel Equipped with an advanced PLC touchscreen interface, which allows for simple operation, continuous monitoring and a range of adjustable parameters. Operators can easily set the size of bag as well as filling weight and sealing temperature.
Emergency Button Safety first - the emergency stop button permits immediate shut down for the device in the case of an unusual operation, which provides safety for both the operators as well as the machine.

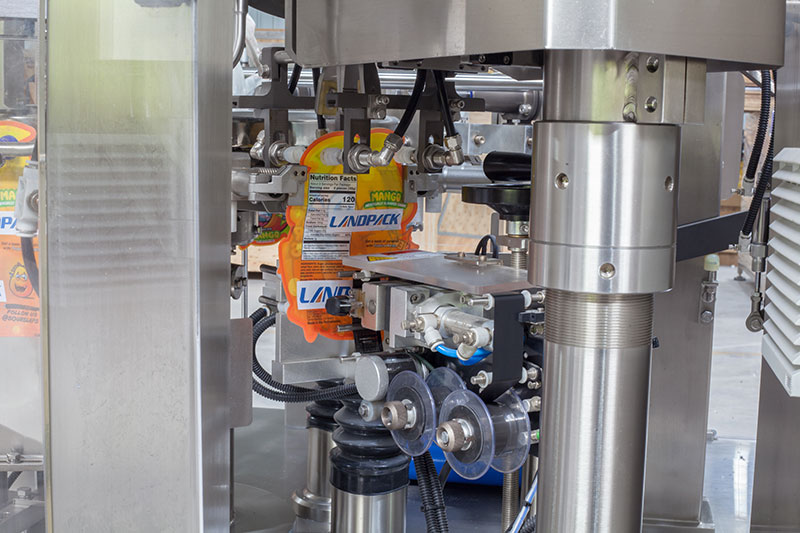

	Bags Feeder Automatically picks and positions pre-made pouches accurately onto the rotary turntable. Compatible with various pouch styles such as stand-up, flat, or zipper bags.

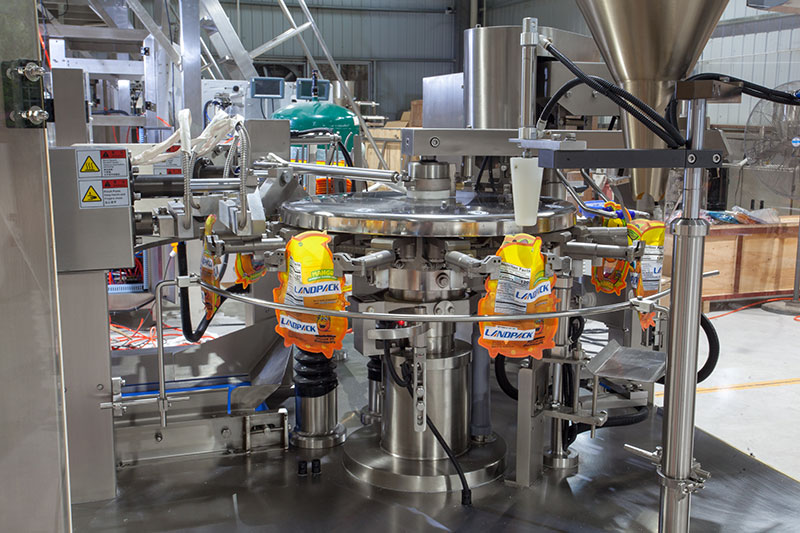

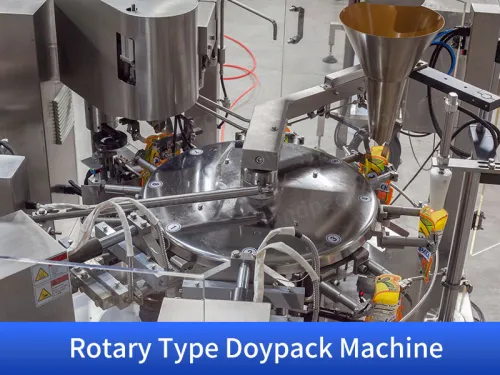

Rotary Packer At the heart of the system is an eight-station rotary packing system that handles bag opening and closing, filling, and discharge all in one seamless motion. It provides high efficiency in packaging and a consistent seal quality.

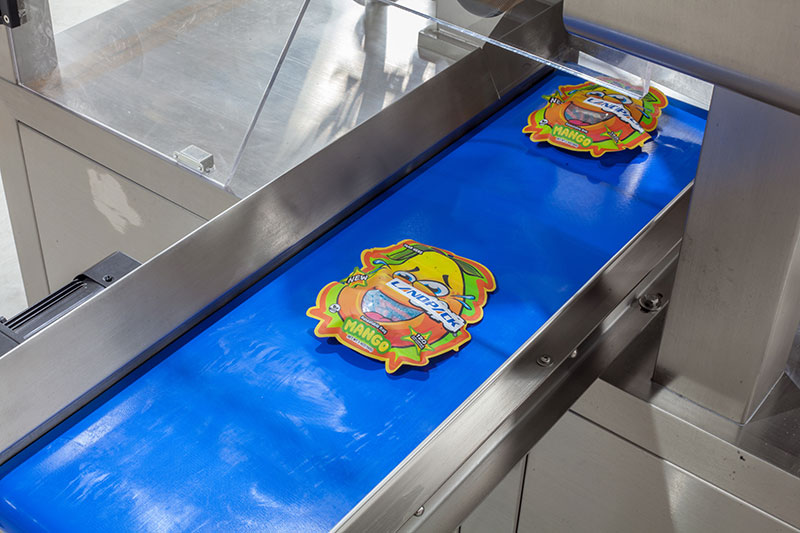

	Finished Product Conveyor Smoothly transfers the sealed gummy pouches to the collection area, ready for boxing or secondary packaging. Ensures a clean and efficient product output process.

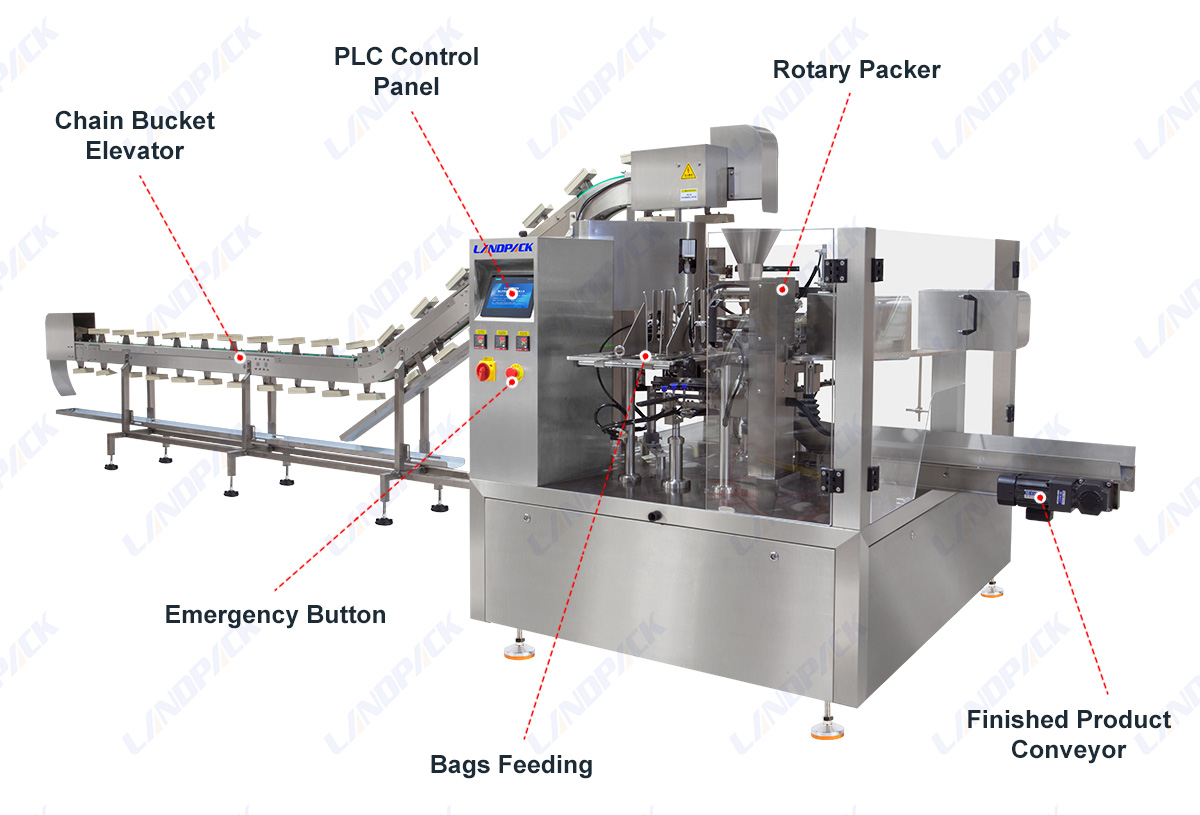

Machine Structure Overview:

1. Chain Bucket Elevator

2. PLC Control Panel

3. Emergency Button

4. Bags Feeding

5. Rotary Packer

6. Finished Product Conveyor

Gummy Candy Packaging Machine Rotary Pouch Filling Machine

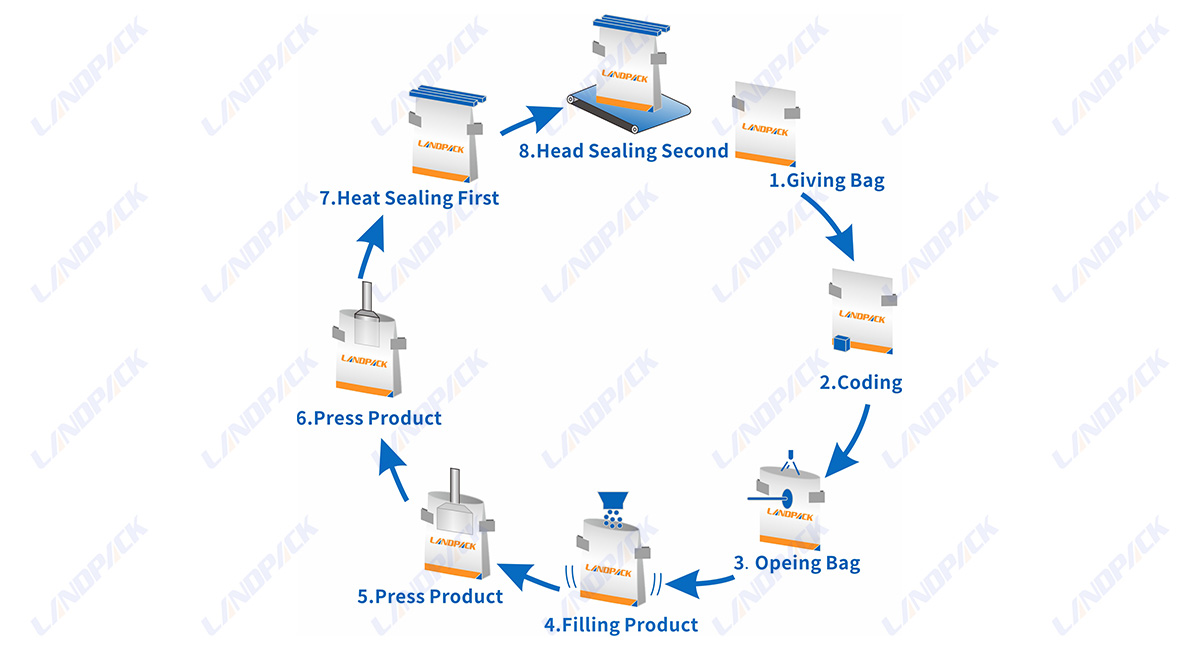

WORKFLOW

Giving Bag

Coding

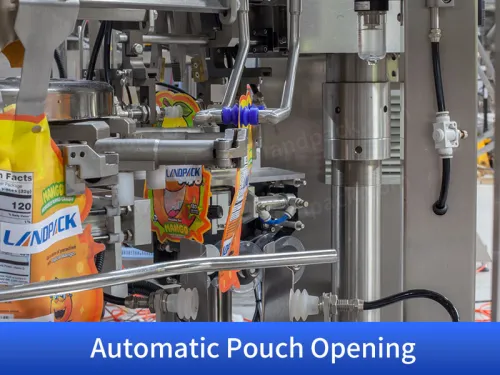

Opening Bag

Filling Product

Press Product (First)

Press Product (Second)

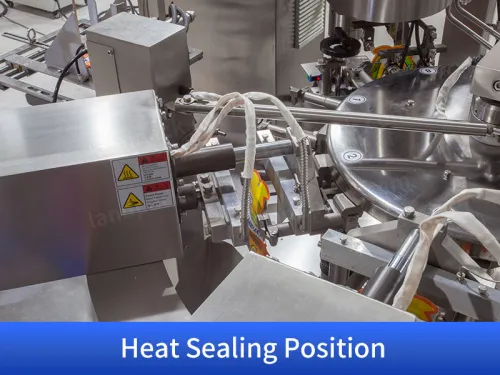

Heat Sealing First

Head Sealing Second

PARAMETER

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc.
Bag Size	150-380mm80-230mm (LW)	150-380mm/140-260mm (L*W)	150-430mm/180-300mm (L*W)	200-500mm/270-400mm (L*W)
Filling Range	10g-1000g	1500g	2000g	3000g
Packing Speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ;
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min
Dimensions	174013801450mm(LWH)		246018301460mm(LWH)	226022001520mm(LWH)
Machine Weight	1300KG	1300KG	1700KG	2000KG
