Automatic Candy Toffee Jelly Gummy Bear Candy Packing Machine

Introduction:

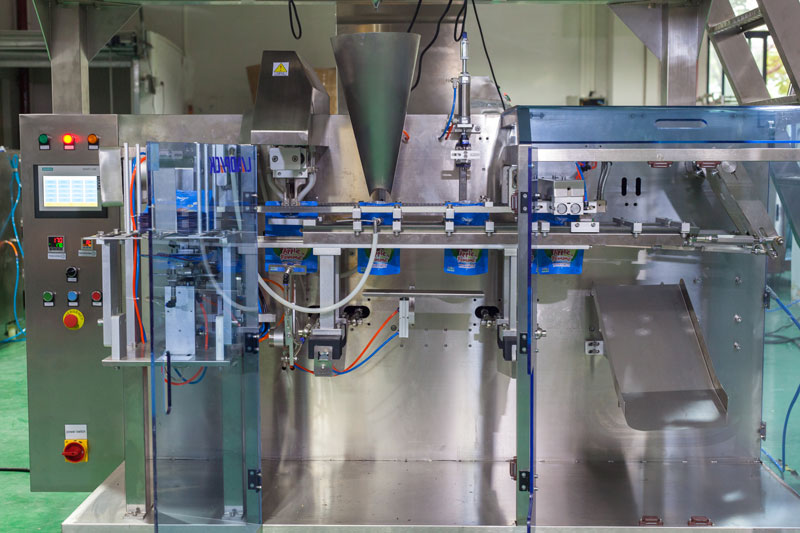

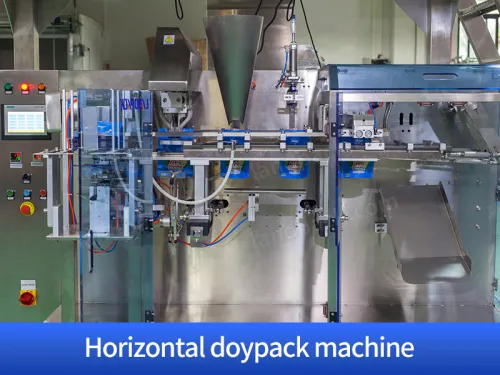

The GP210A Horizontal Pre-made Pouch Packaging Machine is designed to ensure efficient and precise packaging of gummy candy. It can be automated to complete pouch filling, feeding with seals, sealing and discharging in a single, smooth operation. With a gentle handling and sturdy sealing, it guarantees clean, top-quality packaging for different gummy items.

Application:

This machine is widely used in the confectionery and snack industries for packing gummy candies, soft chews, and jelly products. It provides accurate filling and reliable sealing for maintaining freshness and product shape. Ideal for producing retail stand-up or zipper pouch packages in modern food factories.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Suitable for stand-up pouches, flat pouches, zipper bags, and doy packs. The machine adapts to different pouch sizes and laminated film materials, ensuring airtight sealing and an attractive retail appearance.

Automatic Candy Toffee Jelly Gummy Bear Candy Packing Machine

Suitable Products:

Ideal for a range of semi-solid and soft items that require a gentle processing and accurate filling. Perfect for gummies, Soft chews, dry fruit preserved plums, tiny sweets, and snack-sized pieces. The horizontal design of the pouch feeding and its smooth filling mechanism, the GP-210A is able to prevent product sticking or deforming, making sure that every pouch is sealed and appealing to present at retail.

Automatic Candy Toffee Jelly Gummy Bear Candy Packing Machine

FEATURES

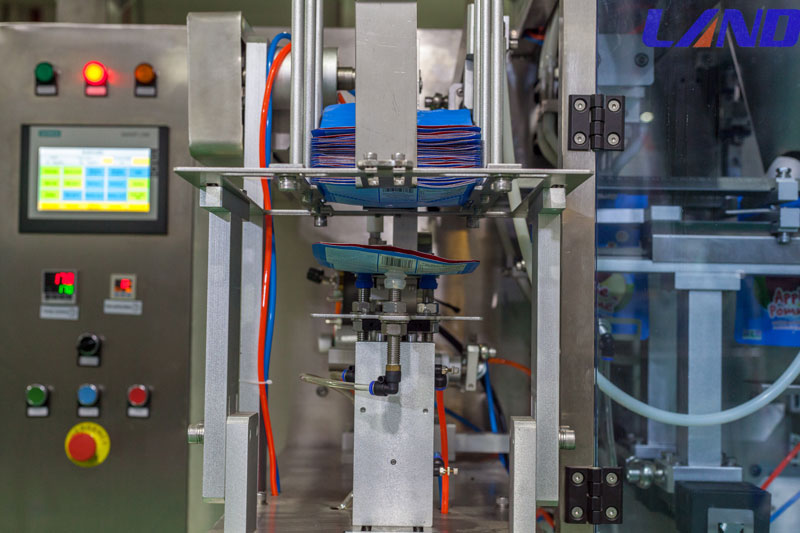

Pouch Feeding System Horizontally transports pouches that have been made between the station and the magazines using precision aligning. The steady transport guarantees a an efficient operation, and also prevents pouch shifting or misplacing.
	Pouch Opening Mechanism Make use of mechanical arms or grippers that are vacuum-assisted to easily open pouches. The horizontal orientation permits the gentle handling of sticky or delicate products, thus reducing spillage and sticking.

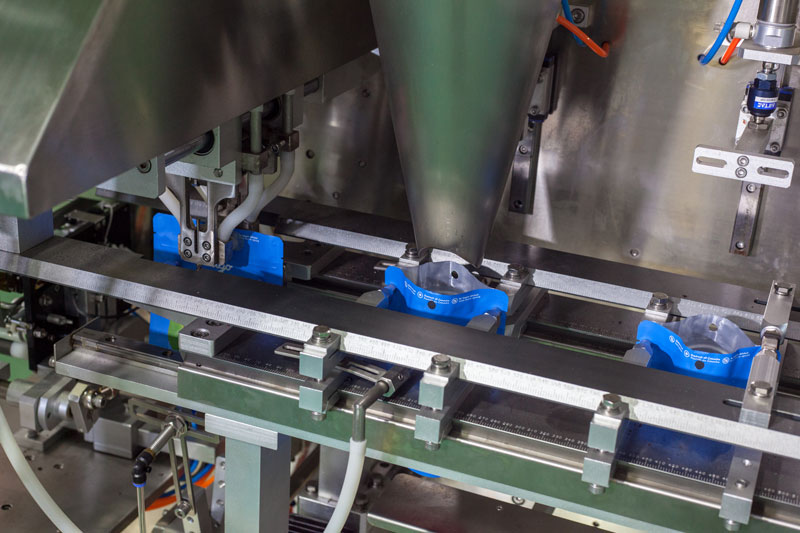

Filling System Made for sticky, soft or small-sized items The filling system allows precise portions to each pouch. The horizontal layout allows for uniform distribution without damaging or crushing the product.

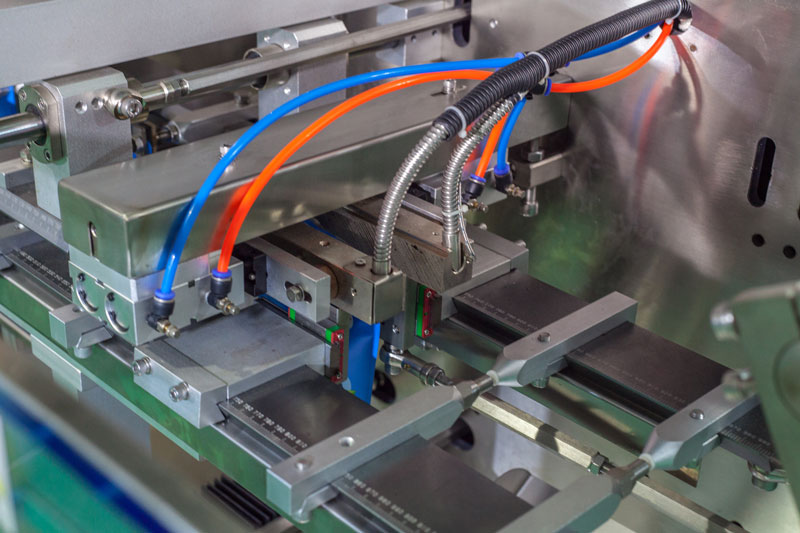

	Sealing Device Zip-seals or heat seals at the tops of all pouches, while retaining its horizontal positioning. This device guarantees tight clean, neat, and attractive packaging that is suitable for retail.
Control Panel (PLC System) The touch screen interface allows for easy operation, continuous monitoring and adjustment of parameters. Operators are able to quickly adjust the filling volume as well as sealing temperature and pouch count for a flexible production.

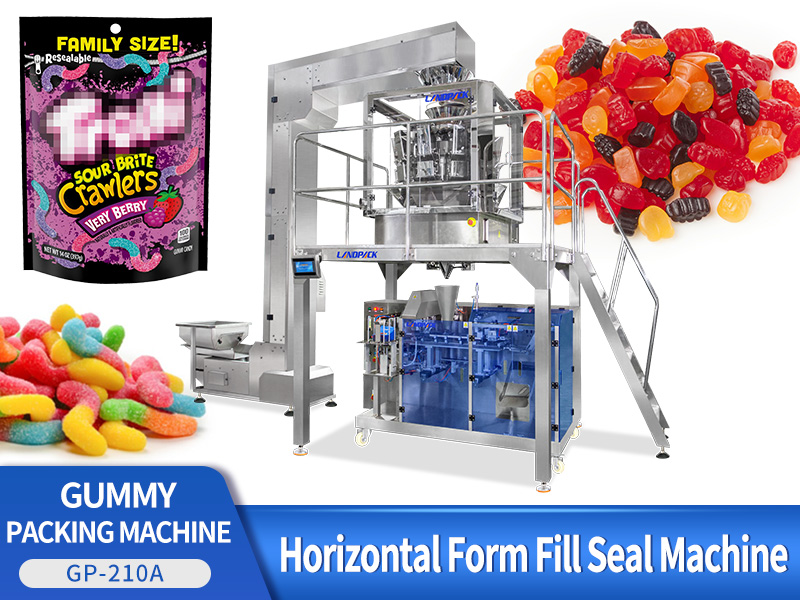

Machine Structure Overview:

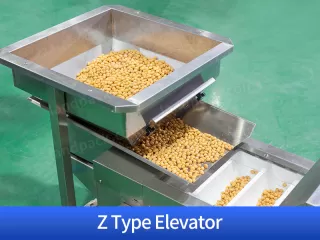

1. Z Type Material Conveyor

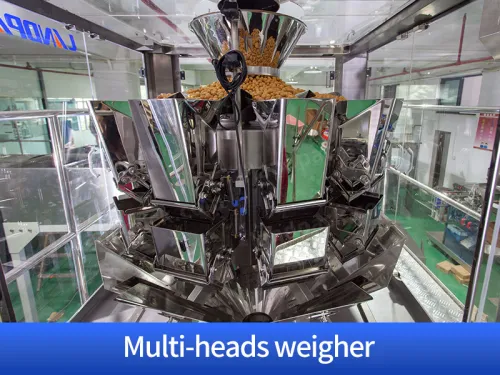

2. Multi-heads Weigher

3. Support Platform

4. Control Panel

5. Timing hopper

Automatic Candy Toffee Jelly Gummy Bear Candy Packing Machine

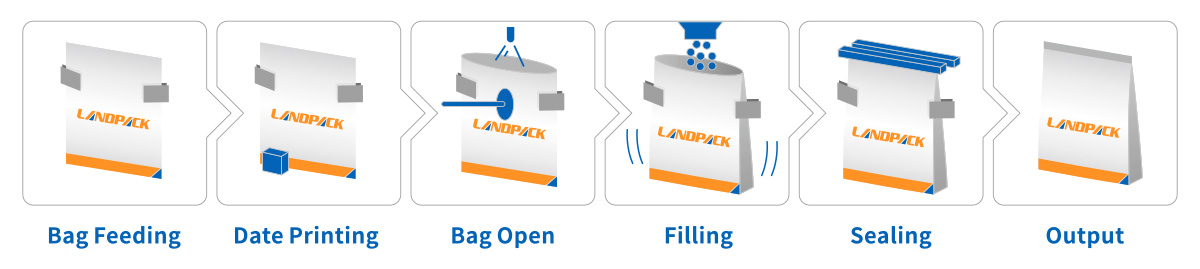

WORKFLOW

Automatic Pouch Feeding

Bag Opening

Bag Filling

Sealing

Finalized bags output

PARAMETER

Gummy Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
