Automatic Mixed Gummies Can Tin Filling Sealing and Labeling Machine

Introduction:

Automate your snack packaging with our versatile granule filling line. Accurately fill up to six different products into tin cans.

Application:

This automated filling and sealing line handles 6 types of granular snacks like nuts, gummies, pet food, dry fruit, oatmeal, etc. It precisely fills tin cans, then uses advanced vacuum nitrogen flushing and sealing technology.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This line is specifically engineered for tin cans (metal canisters, plastic cans), utilizing a robust vacuum nitrogen flushing and sealing process to ensure an ultra-long shelf life for food products like gummies, chocolate, rice, and nuts.

Automatic Mixed Gummies Can Tin Filling Sealing and Labeling Machine

Suitable Products:

Our automated filling line is engineered for high-precision packaging of premium snacks, starting with delicate gummies and crunchy nuts. Beyond this, its multi-product capability is ideal for a vast range of granular and solid items, including: candies and gummies, coffee beans, confections, dried fruit pieces, cereals & granola, rice & beans, loose-leaf tea, small pasta shapes, seeds & spices, pet food, desiccant packets, etc. This system offers versatile, high-speed filling for up to six different materials into airtight tin cans, utilizing vacuum nitrogen flush and sealing technology to guarantee long-lasting freshness and superior product quality.

Automatic Mixed Gummies Can Tin Filling Sealing and Labeling Machine

FEATURES

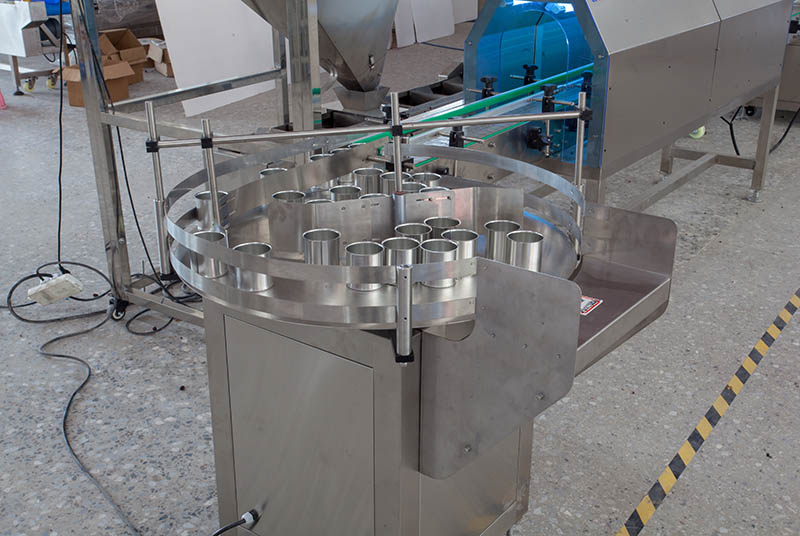

Bottle Unscrambler Fully automatic rotary sorting and single-filing mechanism. Eliminates manual labor and ensures a high-speed, continuous, and steady supply of properly oriented cans to the filling line.
	6 Heads Linear Weigher for weighing mixed gummies High-precision, multi-head linear weighing system with fine-tuning control. Achieves ultra-accurate, consistent target weights for complex mixed products, dramatically minimizing product giveaway and ensuring uniform blend quality.

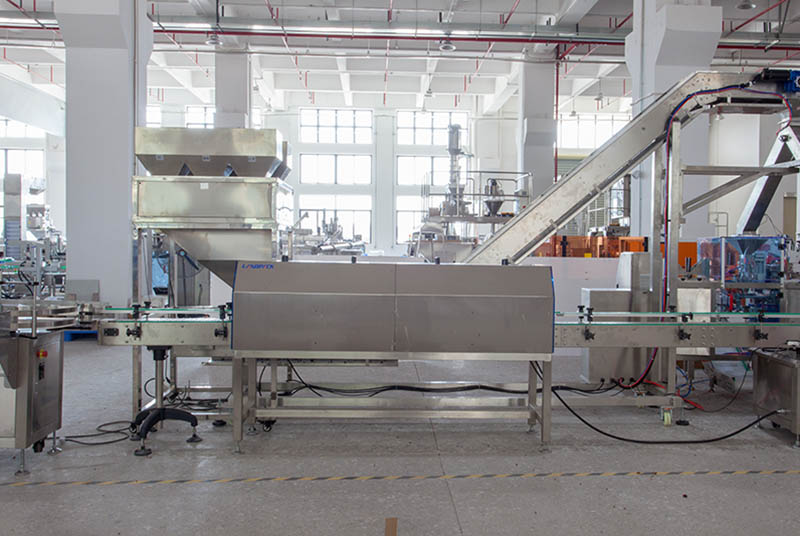

UV Sterilization Channel Integrated UV-C germicidal lamps within an enclosed tunnel. Provides critical pre-fill sanitization of empty containers, guaranteeing a sterile environment and extending the final product’s shelf stability.
	Modular and Quick-Release Filling Zone Feature Designed with a modular layout and sanitary, quick-release change parts. Benefit: Allows for extremely fast and tool-free cleaning and product changeovers between the six different types of granules, dramatically maximizing uptime and production flexibility.
Straight Type Nuts Filling Machine Dedicated straight-line filling mechanism with product-specific tooling. Ensures gentle handling and rapid, efficient transfer of weighed granules into the cans, reducing product breakage and maximizing throughput.
	Compact footprint and high output The rotary layout optimizes the use of space, resulting in an impressive production capacity, while maintaining consistency and stability in packaging.
Finish Can Collection Table Stainless steel accumulation/rotary table with adjustable speed control. Acts as an efficient buffer for finished product, allowing smooth transfer to downstream case-packing, preventing line blockages, and easing operator collection.

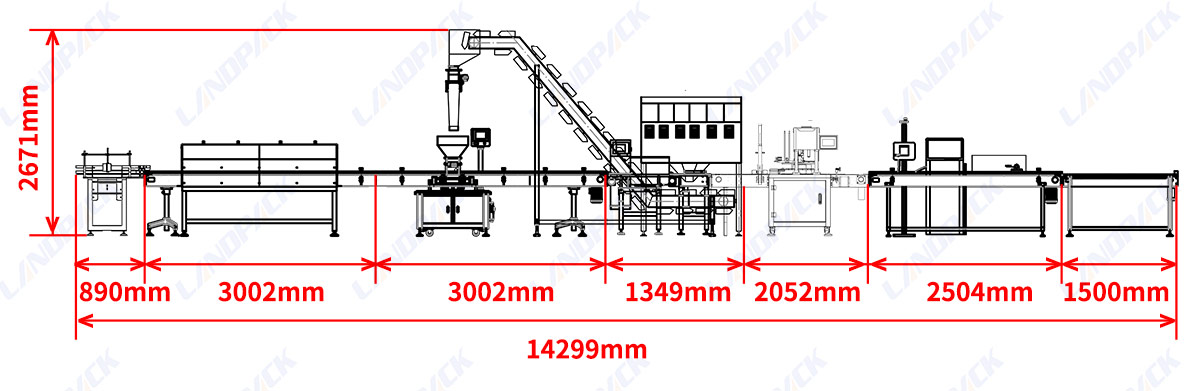

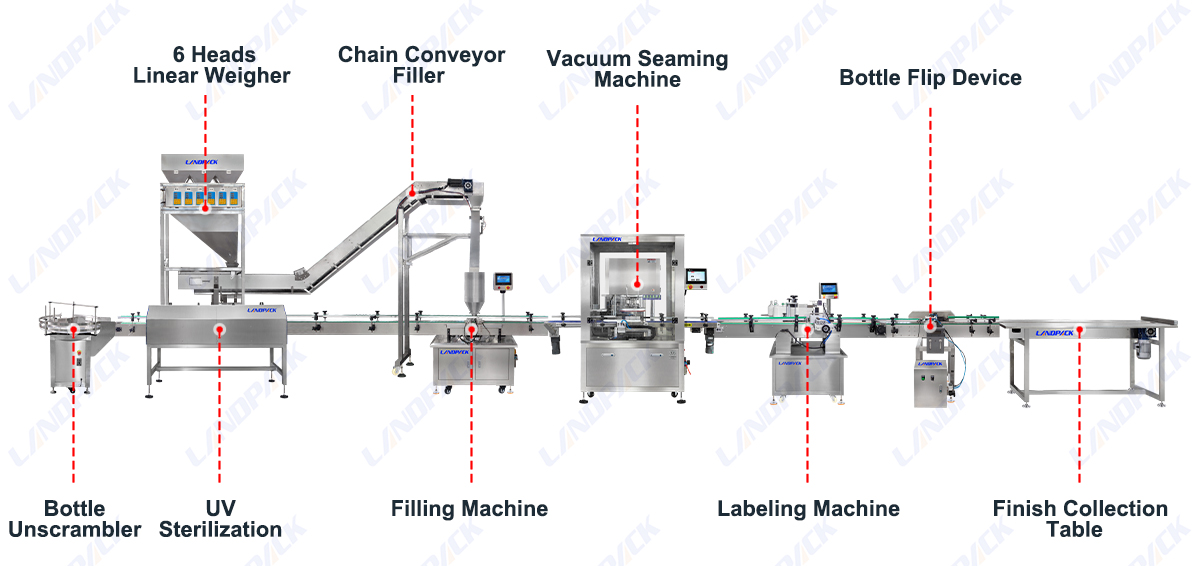

Machine Structure Overview:

1. Bottle Unscrambler

2. UV Sterilization

3. 6 Heads Linear Weigher

4. Chain Conveyor Filler

5. Vacuum Seaming Machine

6. Labeling Machine

7. Bottle Filp Device

8. Finish Collection Table

Automatic Mixed Gummies Can Tin Filling Sealing and Labeling Machine

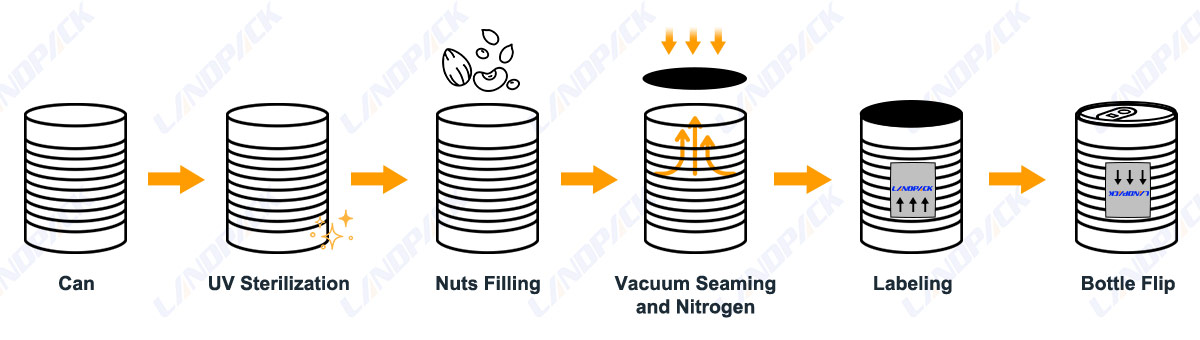

WORKFLOW

Bottle Unscrambler:

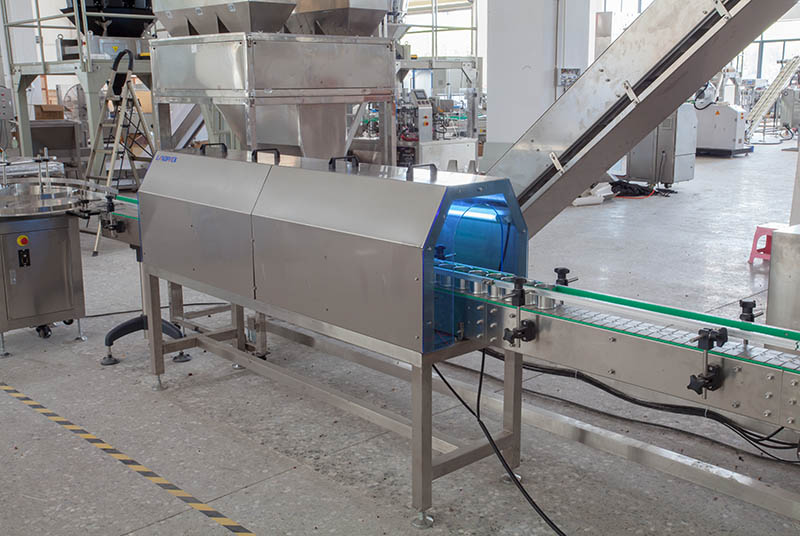

UV Sterilization Channel

6 Heads Linear Weigher for weighing mixed-gummies

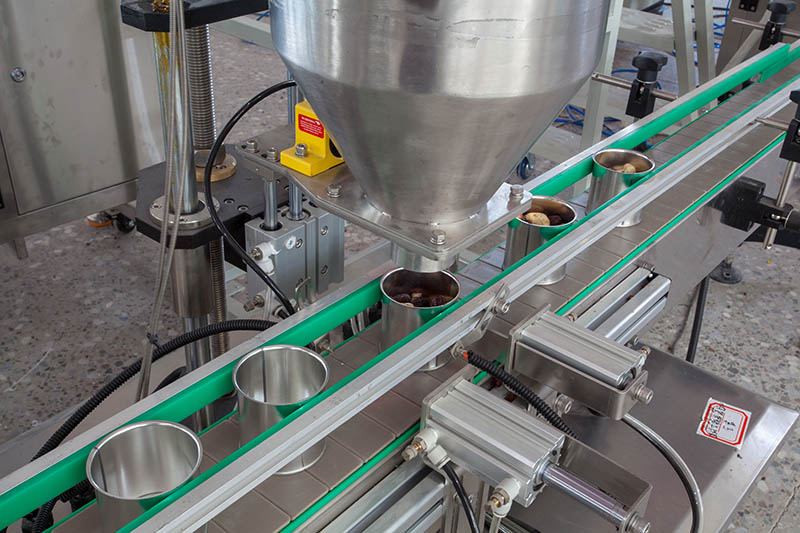

Straight Type Nuts Filling Machine

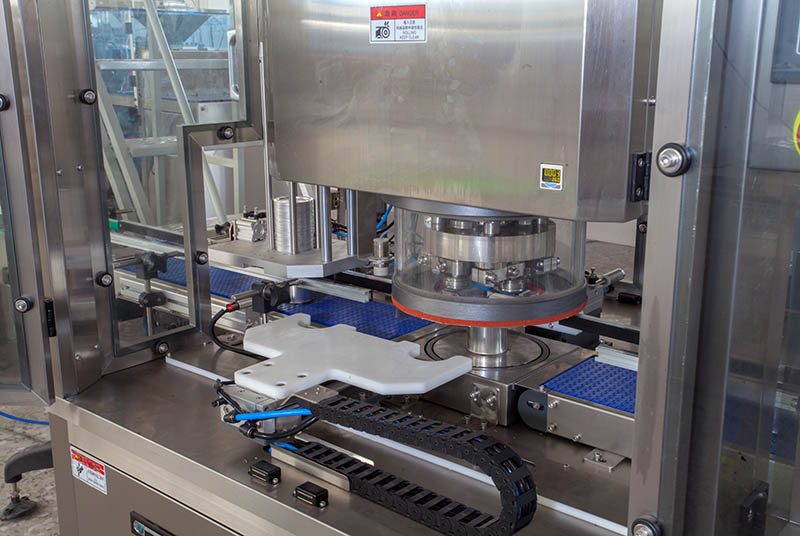

Vacuum Seaming and Nitrogen Filling Machine

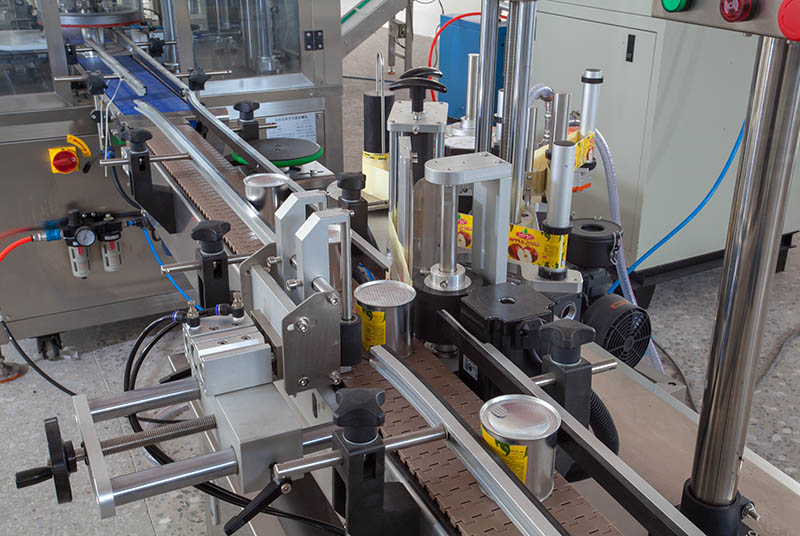

Round Bottle Labeling Machine

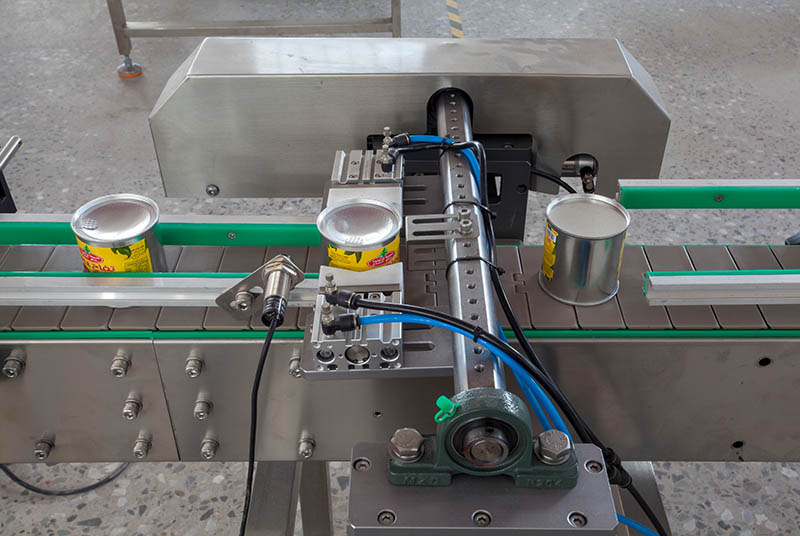

Bottle Flip Device

Finish Can Collection Table

PARAMETER

Linear Type Granule Filling Machine
Item	Specification
Model	LD-6G
Filling Range	50g – 2000g (customizable)
Filling Speed	20 – 50 cans/min (depending on material and container size)
Filling Accuracy	≤ ±1%
Applicable Containers	Tin cans, plastic jars, glass bottles, etc.
Control System	PLC & Touch Screen (English/Chinese interface)
Material Contact Parts	SUS304 stainless steel
Power Supply	AC220V / 50Hz / 1.5kW
Air Pressure Requirement	0.6MPa, 0.3m³/min
Machine Dimension	2000 × 800 × 1800mm
Machine Weight	Approx. 350kg

6 Heads 999g Linear Weigher
Item	Specification
Model	LD-6H
Weighing Range	10g – 999g (per head)
Max. Speed	60 weighs/min
Accuracy	±0.3~1.5g (depends on product characteristics)
Hopper Volume	1.6L / 2.5L (optional)
Feeding Method	Dual vibration feeding with digital load cell
Display System	10” touch screen, programmable target weight & ratio
Material	Full SUS304 stainless steel (food grade)
Power Supply	AC220V / 50Hz / 1.0kW
Machine Weight	Approx. 300kg
Machine Dimension	1500 × 1000 × 1300mm

Vacuum Seaming and Nitrogen Filling Machine
Item	Specification
Model	LD-1
Applicable Container	Tin cans, round cans, aluminum cans, plastic jars
Container Diameter Range	50 – 120 mm
Container Height Range	80 – 200 mm
Seaming Accuracy	±0.1 mm
Nitrogen Filling Accuracy	Residual O₂ ≤ 3%
Production Capacity	15 – 30 cans/min (depending on size and product)
Control System	PLC with Touch Screen (English interface)
Vacuum Pump	High-efficiency industrial vacuum pump
Seaming Heads	1 or 2 heads (optional)
Material Contact Parts	Food-grade stainless steel SUS304
Power Supply	AC220V / 50Hz / 2.2kW
Air Pressure Requirement	0.6 MPa, 0.3 m³/min
Machine Dimension	1800 × 800 × 1500 mm
Machine Weight	Approx. 400 kg
Features	Vacuum + Nitrogen filling, automatic can feeding & seaming, adjustable residual oxygen, hygienic design, easy cleaning

Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
