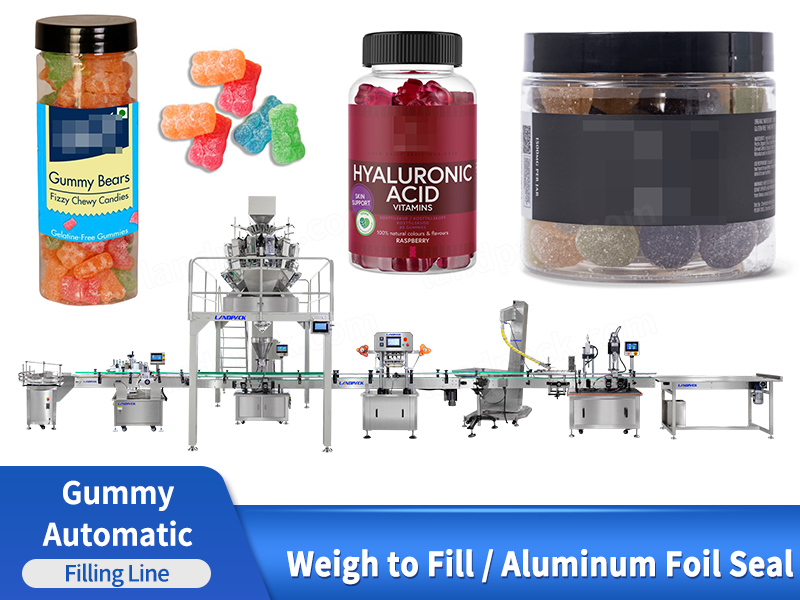

Automatic Gummy Bottle Filling Machine with Aluminum Foil Sealing Labeling Machine

Introduction:

This fully automatic gummy filling line integrates Z-type elevator, bottle arranging machine, multi-head weigher, aluminum foil sealing, servo capping, and labeling system into one continuous process. It is designed for efficient, precise, and hygienic packaging of gummies into bottles. With flexible setup and intelligent control, it’s ideal for large-scale gummy production.

Application:

Widely applied in the food, confectionery, and nutraceutical industries, this line is suitable for packaging gummies, chewable vitamins, and other soft candies into bottles of various shapes and sizes. It ensures consistent weighing, fast filling, tight sealing, and perfect labeling, providing a professional and clean packaging solution.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Mainly used for bottle and jar packaging, suitable for plastic, glass, or aluminum containers. Supports heat induction foil sealing, screw capping, and press capping, offering secure, tamper-evident packaging and a professional retail-ready finish.

Automatic Gummy Bottle Filling Machine with Aluminum Foil Sealing Labeling Machine

Suitable Products:

Perfect for gummy candies, chewable vitamins, and small soft jellies. The system also supports capsules, tablets, or other small-sized confectionery or supplement products. With precise weighing and gentle handling, it keeps gummy texture intact while delivering fast, reliable filling and capping performance for mass production.

Automatic Gummy Bottle Filling Machine with Aluminum Foil Sealing Labeling Machine

FEATURES

Fully Automatic Production Line Integrates labeling, weighing, filling, sealing, and capping into one streamlined process, achieving continuous, high-efficiency production with minimal manual work.
	High Accuracy & Speed Multi-head combination weigher ensures precise gummy counting and fast filling, reducing product giveaway and maintaining consistent output.
Dual Capping System for Flexibility Equipped with both servo capping and cap pressing units, allowing the line to handle small and large bottle types easily — ideal for diversified product packaging.

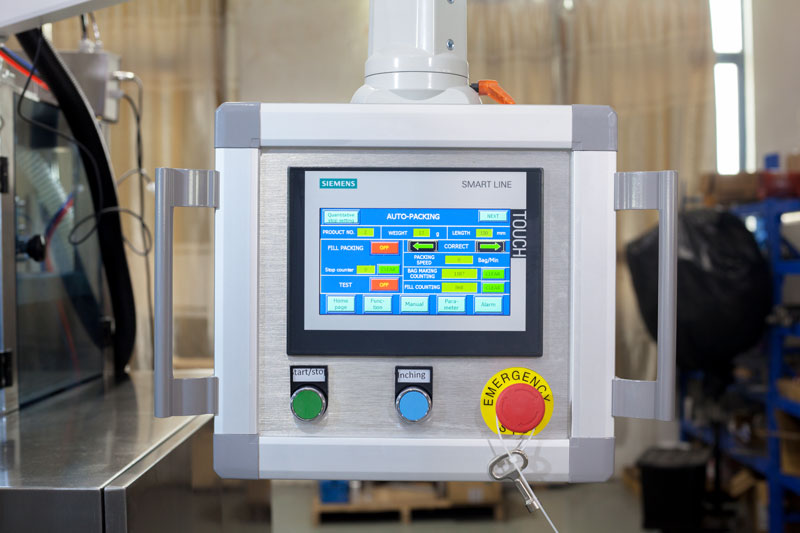

	User-Friendly Operation & Easy Maintenance Compact design, simple installation, and centralized control interface make setup and maintenance quick and convenient, saving time and labor costs.
Stable, Hygienic & Durable Design Constructed from stainless steel with food-grade contact parts, ensuring long service life, corrosion resistance, and compliance with GMP and food safety standards.

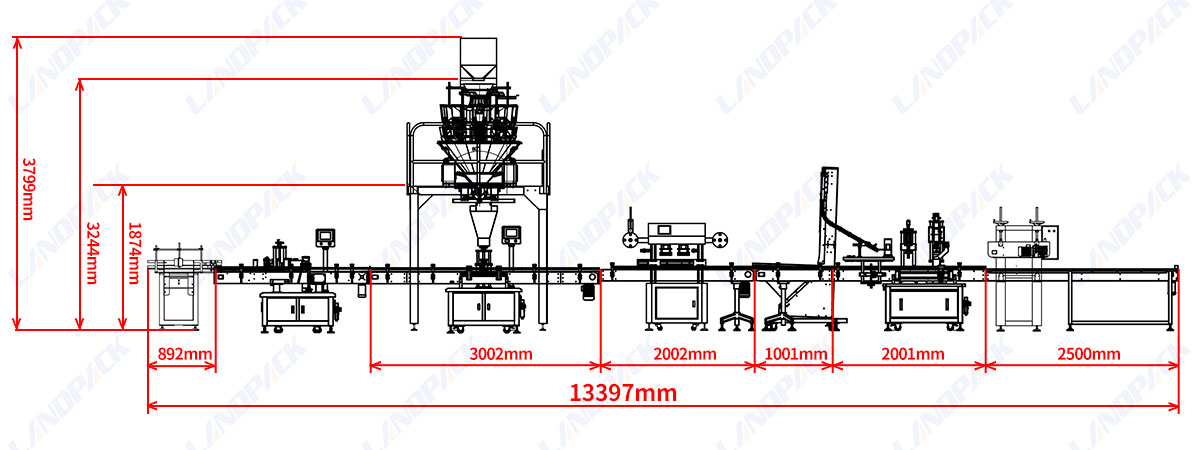

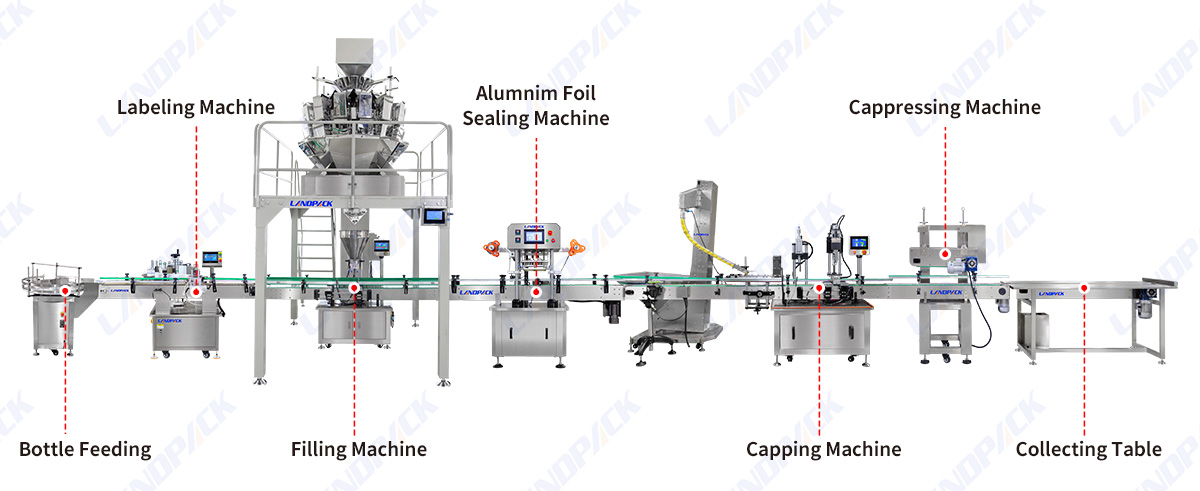

Machine Structure Overview:

1. Labeling Machine

2. Bottle Feeding

3. Filling Machine

4. Alumnim Foil Sealing Machine

5. Cap pressing Machine

6. Capping Machine

7. Collecting Table

Automatic Gummy Bottle Filling Machine with Aluminum Foil Sealing Labeling Machine

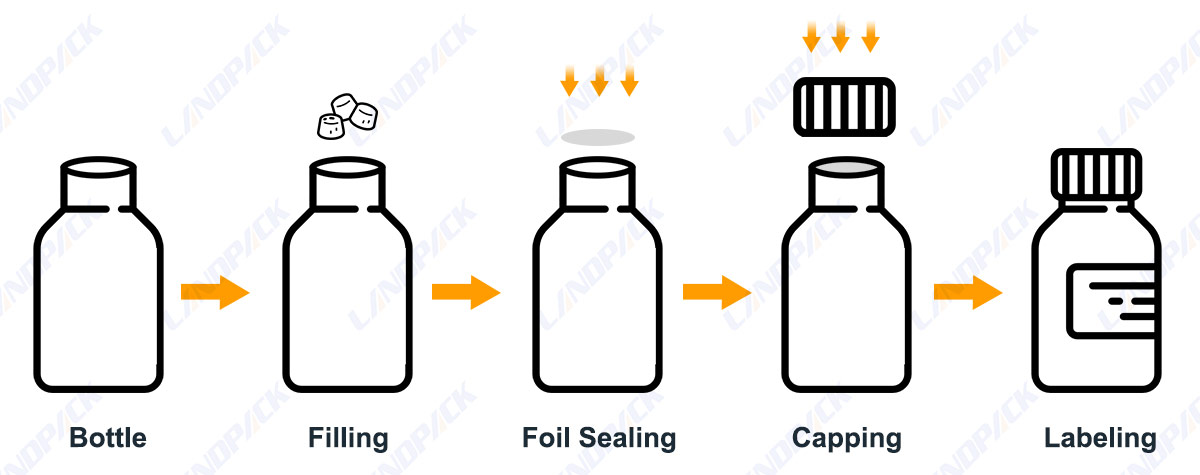

WORKFLOW

Z type elevator

Bottle Arranging machine to auto feeding bottles

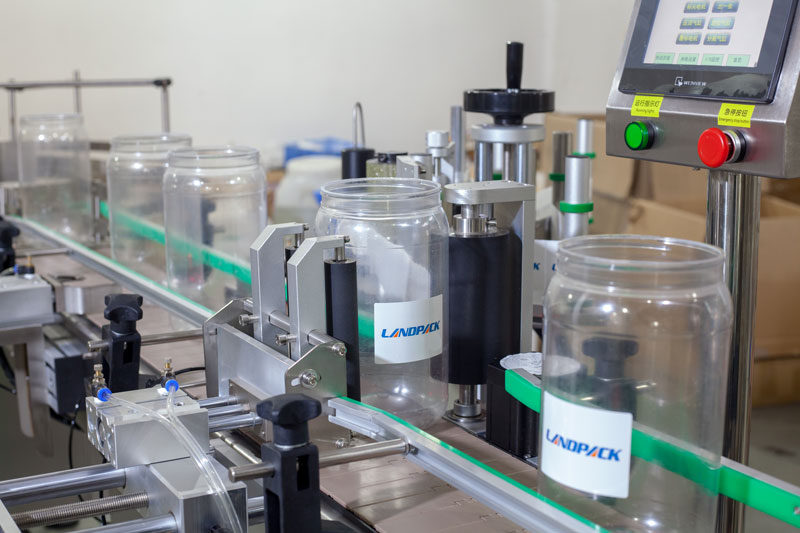

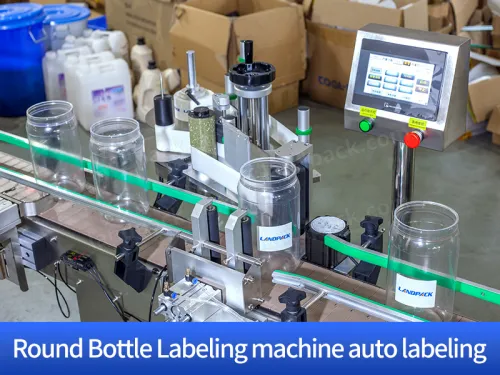

Round Bottle Labeling machine auto labeling

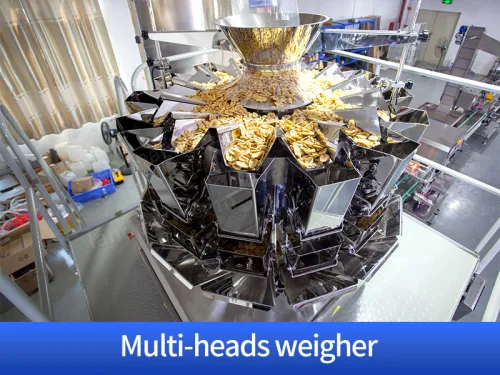

Multi-heads weigher for accuracy weighing and filling

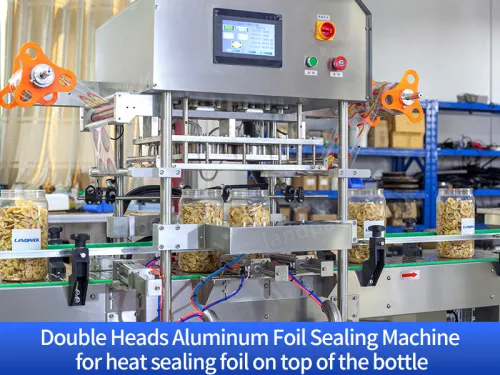

Double Heads Aluminum Foil Sealing Machine for heat sealing foil on top of the bottle

Sevro capping machine for screw type small bottles

Collection table

PARAMETER

	Bottle conveyor feeding device
	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm（Could be customized）
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	40-60bottles/min(（Could be customized）)
	Package Size	123010101260mm（Could be customized）
	Gross Weight	141kg

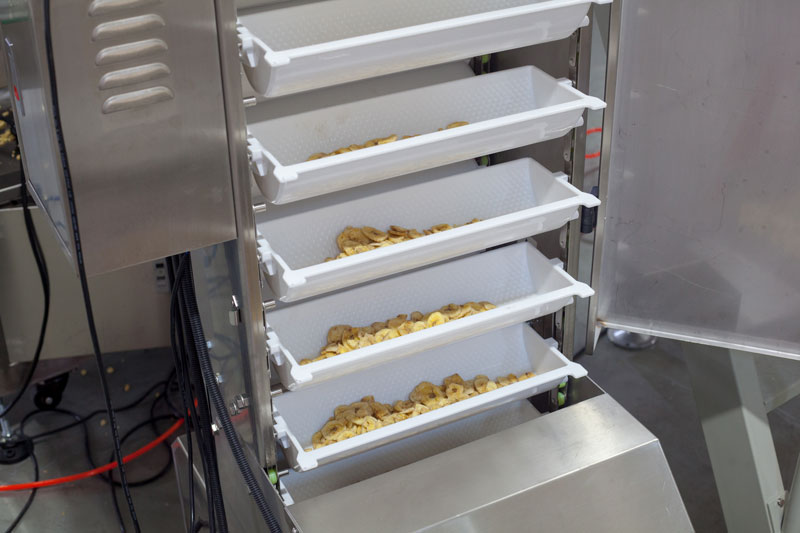

Z Type Elevator
Model	LDBZ-2L	LDBZ-5L
Conveying capacity	0-6m³/h	0-12m³/h
Operating speed	0.18m/s	0.18m/s
Single Hopper capacity	2L	5L

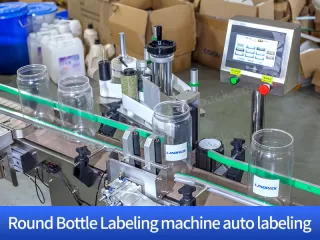

Round Bottle Labeling machine auto labeling
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

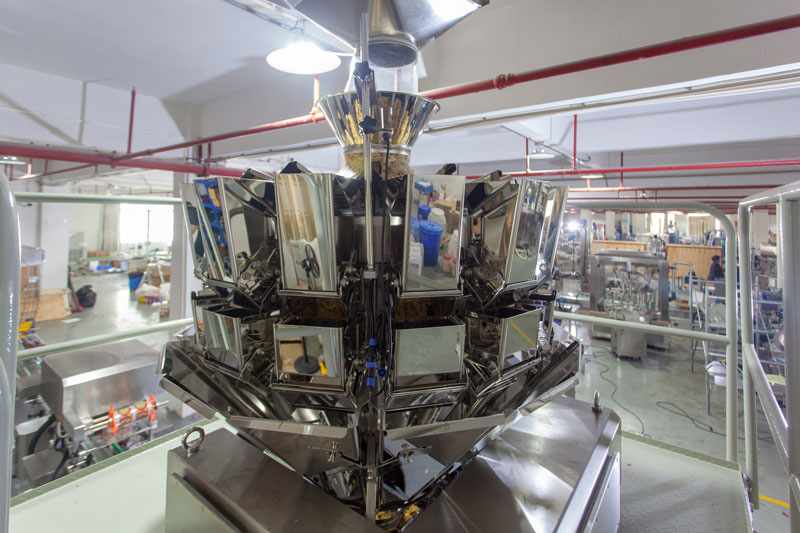

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

	Accuracy weighing and filling
	Model	LF-ZP-008
	Output	20-30 bottles/min
	Bottle diameter	Φ30mm-Φ135mm (customizable)
	Bottle height	40mm-200mm (customizable)
	Power	750W,220V,50Hz
	Weight	200kg

Double Heads Aluminum Foil Sealing Machinefor heat sealing foil on top of the bottle
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

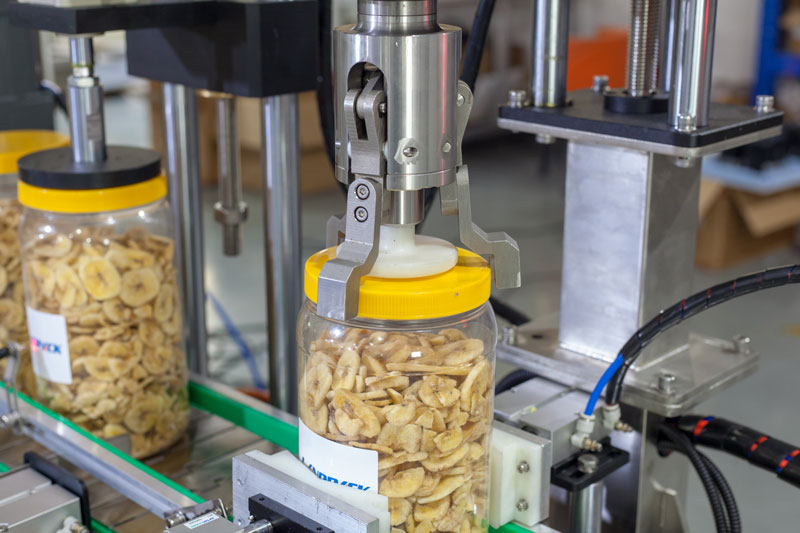

Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg
