Granule Bagging Cartoning Palletising System | Automatic Horizontal Pouch Packing System

Introduction:

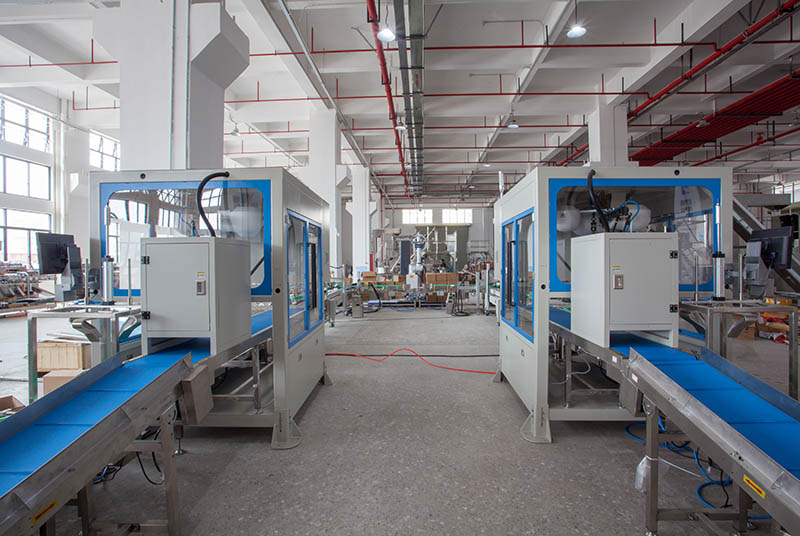

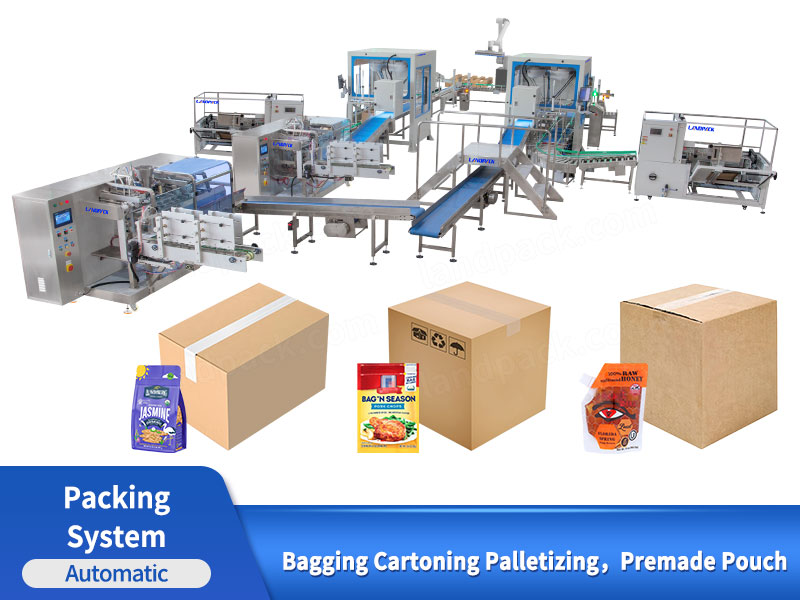

This automated bagging–cartoning–palletizing line integrates two horizontal premade-pouch machines with dual robotic packers, a case erector, case sealer, and an intelligent palletizer.

Application:

The line is suitable for large-scale production of food and non-food pouch products, supporting snacks, powders, granules, daily-use goods, and industrial items. After filling and sealing, pouches are automatically packed into cartons, sealed, and palletized for shipment.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

This complete bagging–cartoning–palletizing line is compatible with a wide range of premade pouches commonly used on horizontal pouch machines, including flat pouches, stand-up pouches (doypacks), zipper resealable pouchs, M shape pouch gusset pouchs, and spout pouches for liquid or semi-liquid products.

These pouch formats maintain stable shape and good stacking strength, making them suitable for automatic carton loading, especially in RSC cases, display cartons, and tray-type boxes.

Granule Bagging Cartoning Palletising System | Automatic Horizontal Pouch Packing System

Suitable Products:

This integrated packaging line is designed for medium- to high-output production of bagged food and non-food products. The horizontal pouch machine handles a wide variety of materials, while the robotic cartoner and palletizer support stable downstream automation. Typical applications include:

-Food Products: snacks, nuts, beans, pasta, grains, dried fruits, powders, sauces in spout pouches, pet food

-Daily & Chemical Products: detergent pods, dishwasher powder, cleaning granules, cosmetic refills

-Industrial & Miscellaneous Goods: small parts, hardware kits, agricultural seeds, chemical granules

Its flexible pouch compatibility and carton loading capability make it suitable for factories producing multiple SKU formats in large volumes.

Granule Bagging Cartoning Palletising System | Automatic Horizontal Pouch Packing System

FEATURES

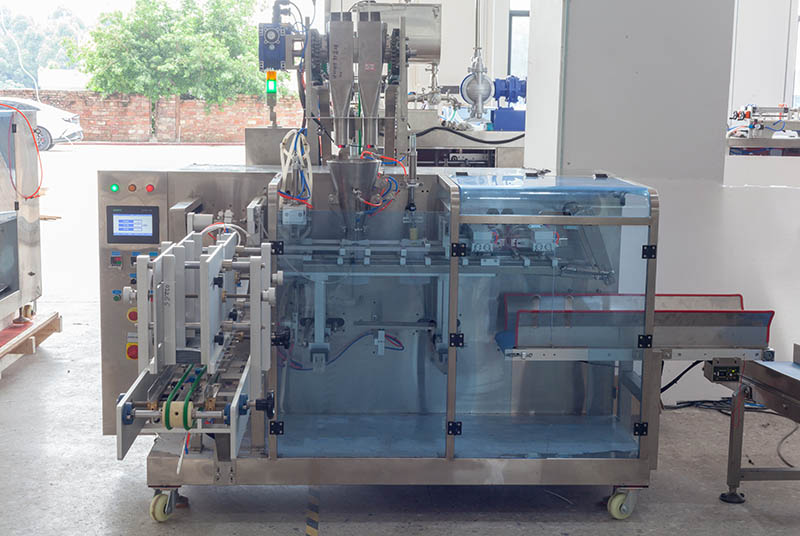

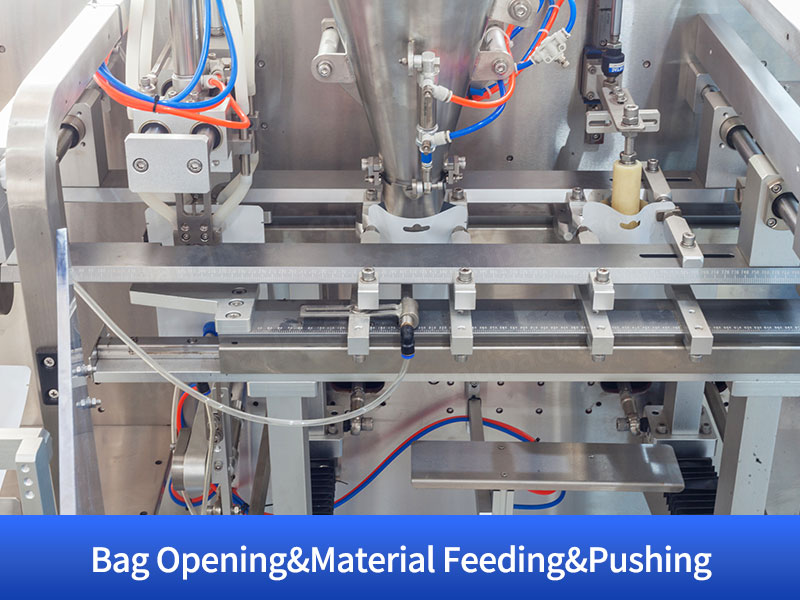

Horizontal Premade Pouch Packing Machine The horizontal pouch unit automatically picks, opens, fills, and seals premade bags with stable, continuous motion.

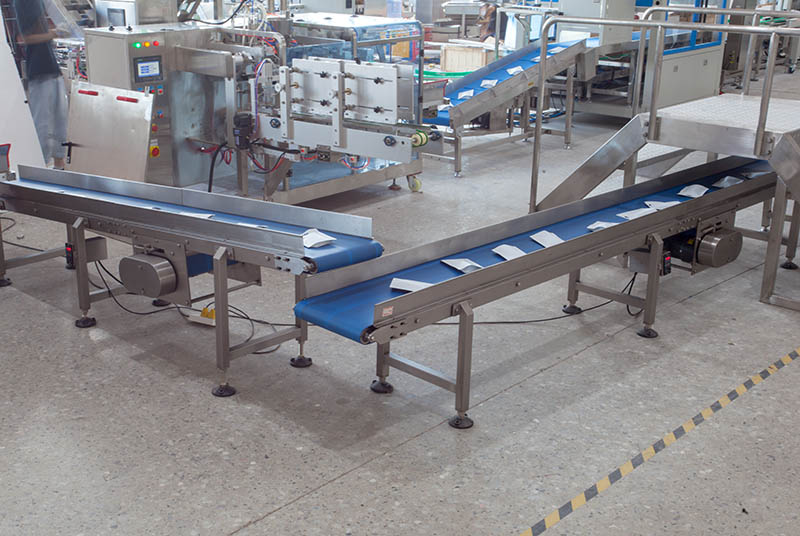

	Finished Product Conveyor The discharge conveyor transfers sealed pouches smoothly to the cartoning section, keeping product orientation stable and ensuring uninterrupted flow between bagging and downstream processes.
Cartoning Workstation The cartoning module manages case erection, bag grouping, and accurate placement of pouches into cartons.

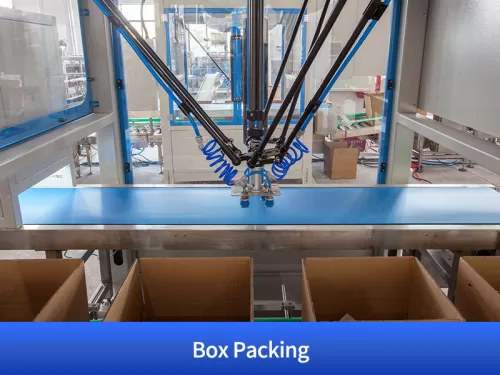

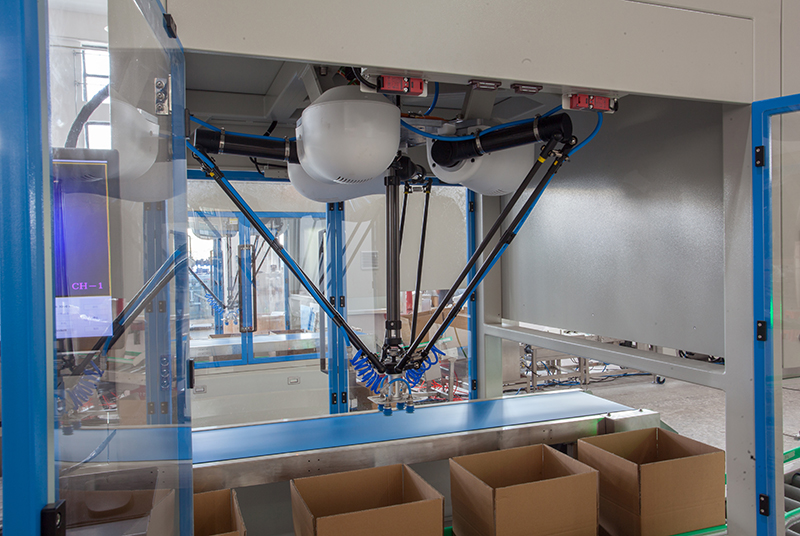

	Parallel Robotic Picker Dual parallel robots handle high-speed bag sorting and loading with precise motion control.

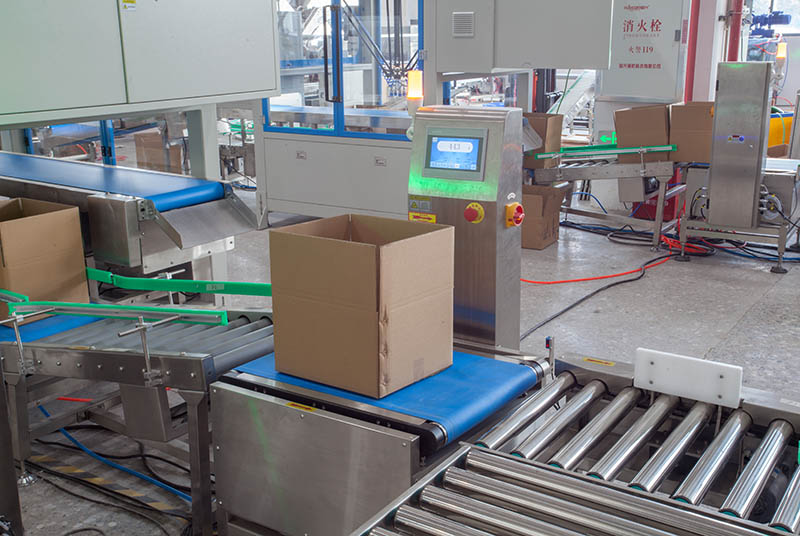

Weighing System Integrated inline checkweighers verify each pouch’s weight before cartoning, rejecting out-of-spec packs automatically.

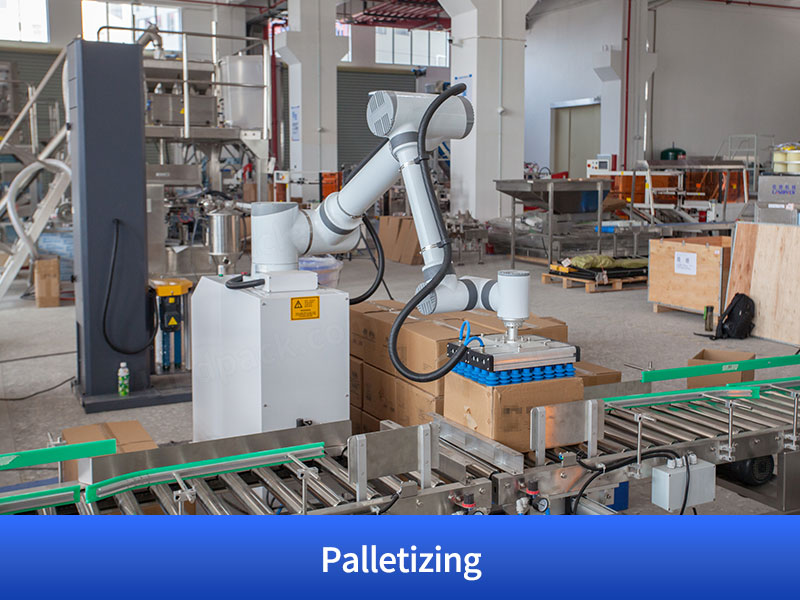

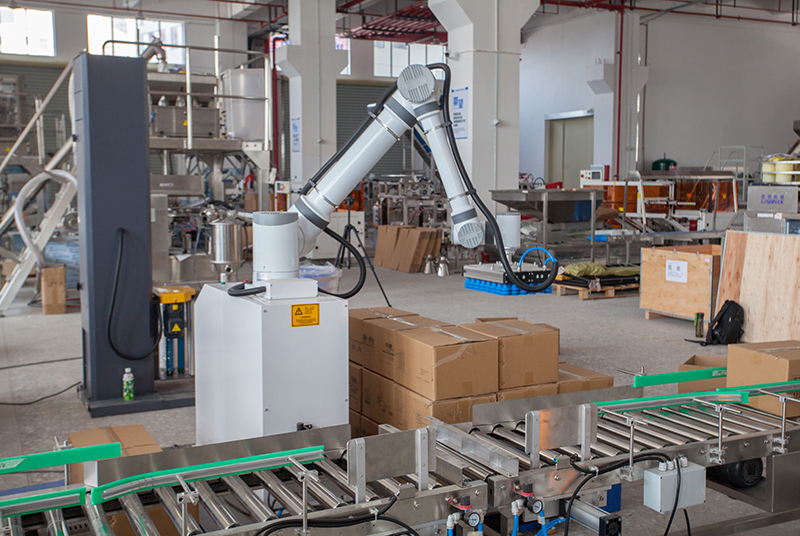

	Palletizing Robot The palletizing robot stacks filled cartons onto pallets with accurate layer formation and adjustable stacking patterns.

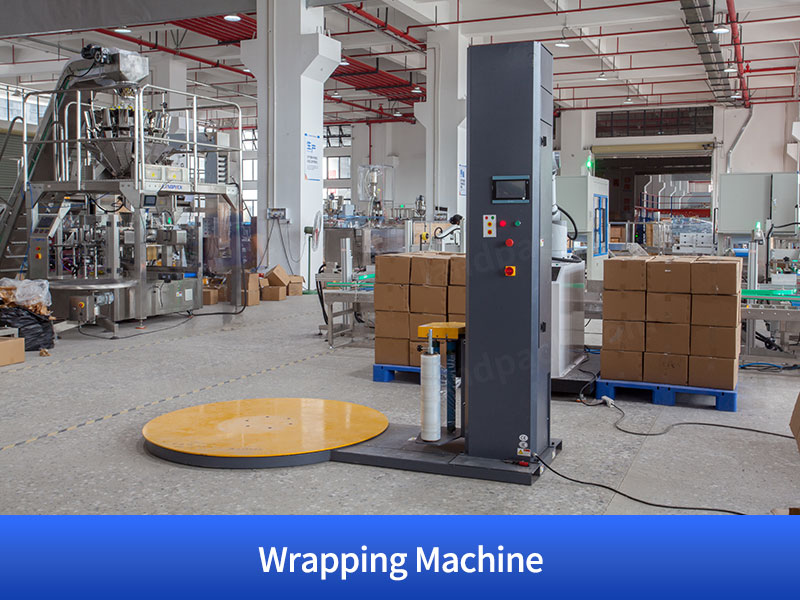

Stretch Film Wrapping Machine The wrapping unit secures finished pallets with uniform stretch film coverage, improving load stability during storage and transport.

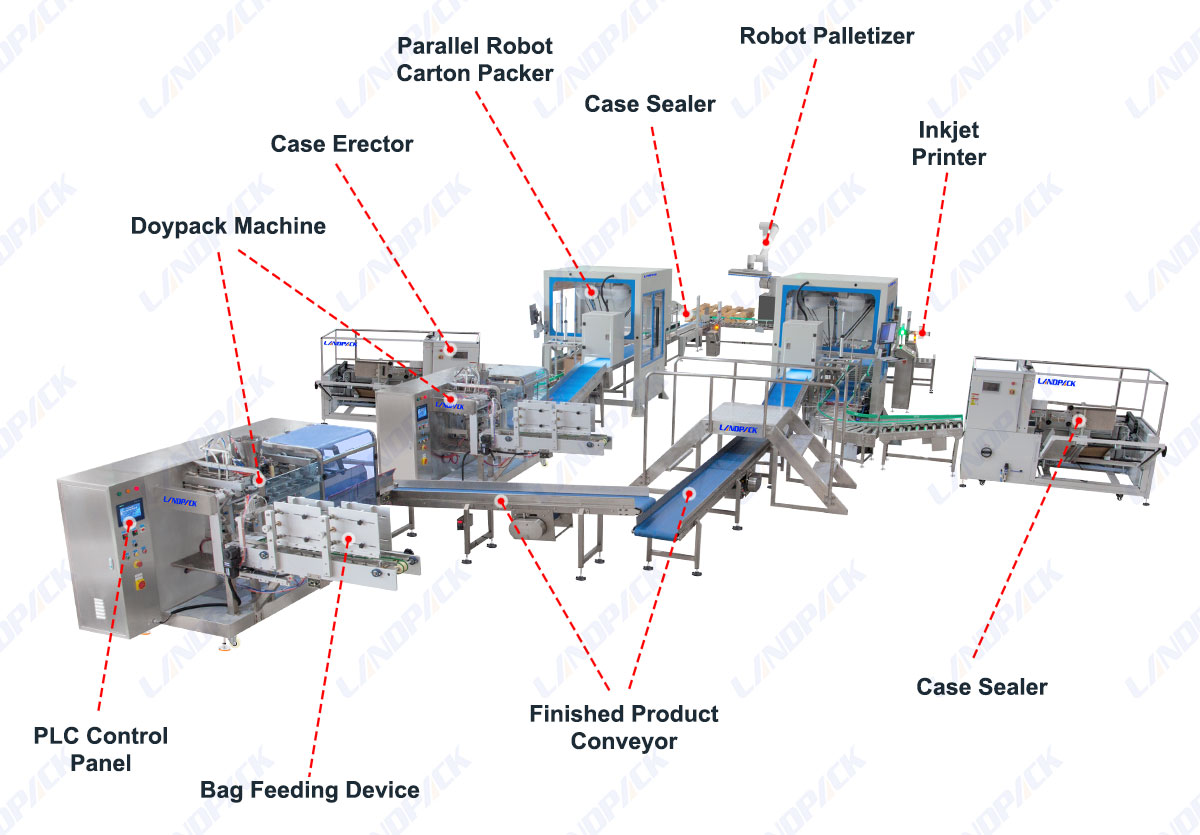

Machine Structure Overview:

1. PLC Control Panel

2. Doypack Machine

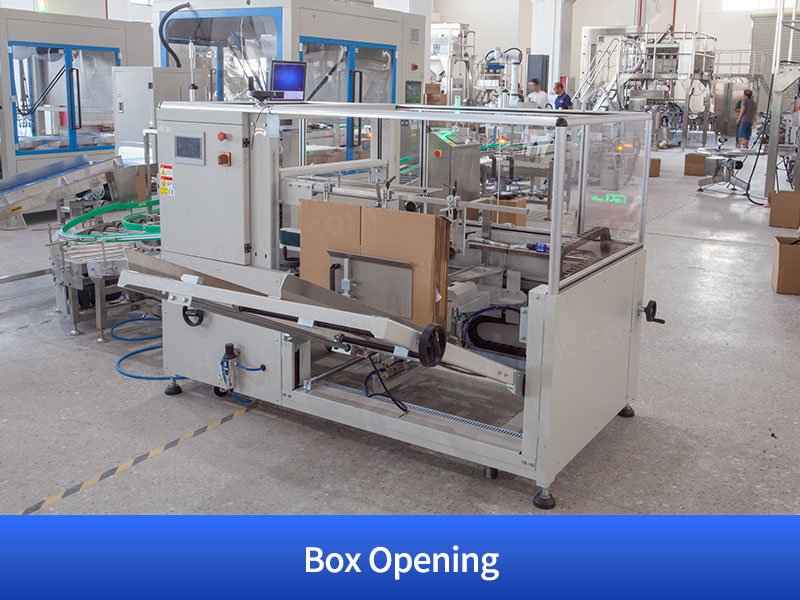

3. Case Erector

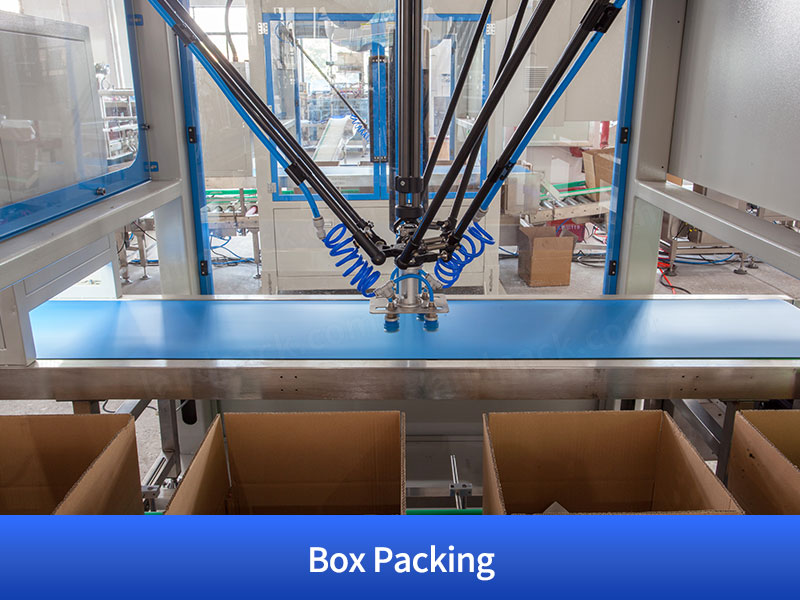

4. Parallel Robot Carton Packer

5. Case sealer

6. Robot Palletizer

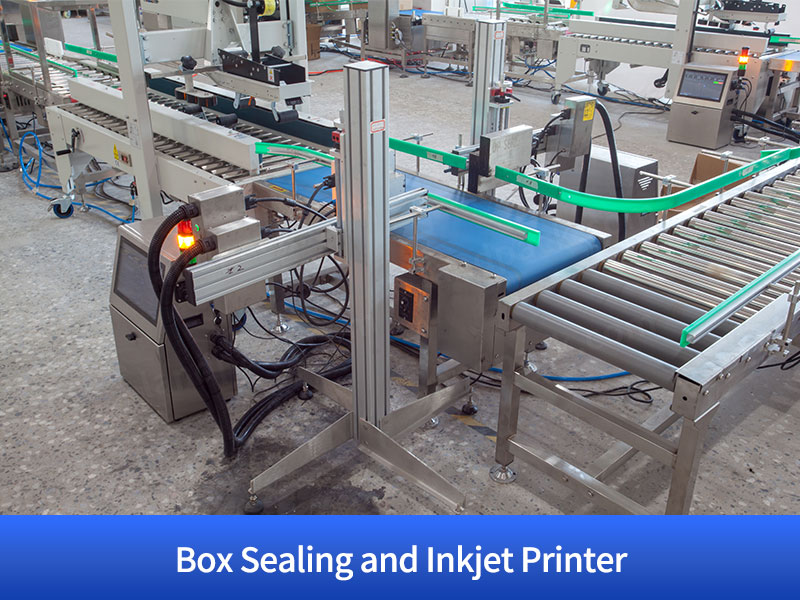

7. Inkjet Printer

8. Case Sealer

Granule Bagging Cartoning Palletising System | Automatic Horizontal Pouch Packing System

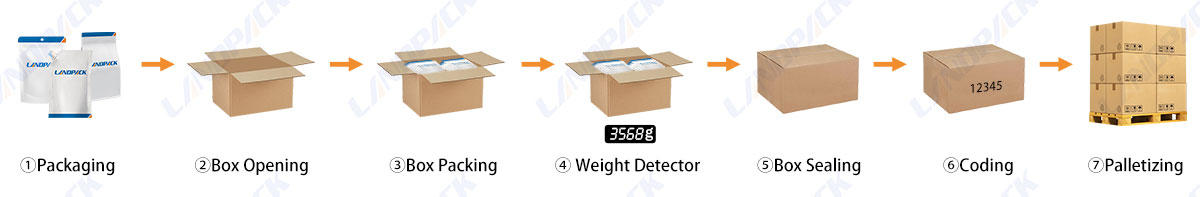

WORKFLOW

Bag Loading

Material Feeding

Automatic Sealing

Automatic Box Packing

Weight Checker

Inkjet Printer

Palletizing

Stretch Wrapping Machine

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min (speed is determined by the product filling quantity)	25-50bags/min (speed is determined by the product fillingquantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mmX1285mmX1360mm(LWH)		2140mmX1366mmX1360mm(LWH)	2140mmX1366mmX1360mm(LWH)
Collocation	Screw metering,screw elevator

	Model	LD-TIP15
	Resolution	1280*800
	Language	17
	Printing Rows	1-4 (57 dot),1-5(55 dot)
	Dot Matrix	5,57,79,1012,1216,1824,24*32
	Printing Contents	Date, time, batch number, serial number, lot number,bar code, QR code, logo, pattem, variable data, and text.
	Speed	285m/min
	Character Height	1.8-15mm
	Printing Head to the Base	3m
	Printing Distance(Printing head to the object)	<30mm (Printing head to the object)
	Temperature and Humidity	5-45°C,30-90%
	Power	220W
	Voltage	200-240V,AC,50/60Hz
	Size	370310510mm
	Net Weight	23kg

Automatic Parallel box packing workstation
Model	LD-D-800-4-1	LD-D-1200-4-1	LD-D-1600-4-1
Number of Axes	3+1	3+1	3+1
Arm Reach	800	1200	1600
Maximum Pickup Height	330	425	750
Rated Load	3	8	8
Maximum Load	5	15	15
Repeatability	R±0.1	R±0.1	R±0.1
Standard Cycle Time	240	200	185

	Automatic case erecting machine
	Model	LD-CF50H
	Power supply	220V 50Hz
	Maximum packing size	450400400mm
	Minimum packing size	250200150mm
	Working height	600mm
	Sealing speed	6-10 boxes/min
	Applicable tape	(W)48-75mm x(L)0-914mm
	MechanicalDimensions	220020501450mm(LWH)
	Machine weight	About 400kg

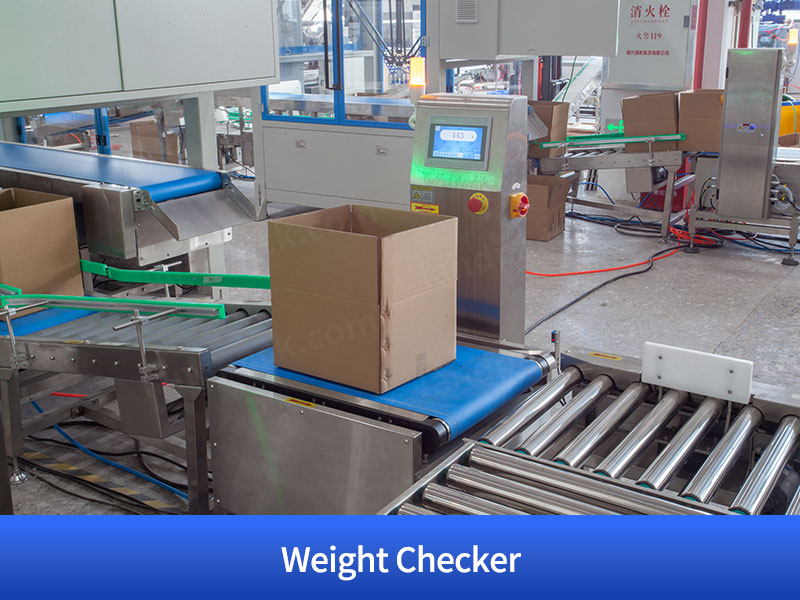

Weight detector
Model	LD10	LD100	LD201	LD401	LD1000
Weight Range	10-99g	100-200g	201-400g	401-999g	1000-10000g
Rate	65bag/min	60bag/min	50bag/min	45bag/min	40bag/min
Precision	±0.5g				±1g
Minimum scale	0.1g
Predesign pattern	10kinds
Size	10506811260
Voltage	220V
Power	300W

Automatic Robot palletizer
Model	LD60-PL	LD120-PL	LD1800-PL
Arm Reach	2000mm	2400mm	3060mm
Maximum Load	60kg	120kg	180kg
Weight	500kg	1050kg	1120kg
Pallet Dimensions	1200*1200	1200*1200	1400*1400
Palletizing Speed	8 cycle/min	8 cycle/min	8 cycle/min

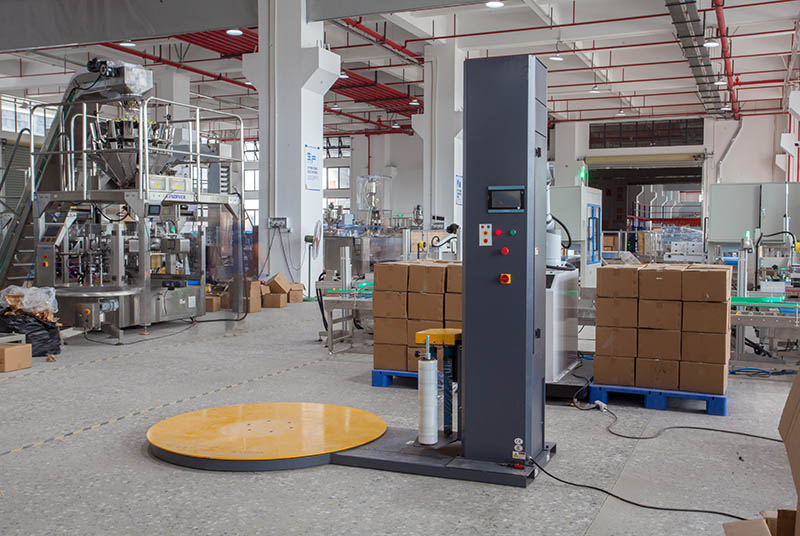

	Stretch Wrapping
	Pallet Size	L1200 × W1200 mm
	Turntable Speed	Variable speed with soft start & stop function
	Wrapping Height	1800 mm
	Loading Weight	MP 303B: 2000 kg; MP 303A: 1000 kg
	Pre-stretch Ratio	150%
	Turntable Height	550 mm
