Automatic Liquid Filling Line | Weighing Filling Capping Labeling Machine

Introduction:

A large barrel filling machine is ideal for efficiently filling liquids into containers ranging from 5L to 200L. It is widely used across various industries for packaging high-volume liquid products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Typical applications include edible oils, soy sauce, vinegar, and juice concentrates in the food industry;

lubricants, solvents, detergents, and chemicals in the industrial sector;

Liquid fertilizers and pesticides in agriculture, as well as personal care products like shampoo and body wash.

Additionally, it can be adapted for pharmaceutical or medical-grade liquids such as disinfectants and alcohol, depending on compliance requirements.

Automatic Liquid Filling Line | Weighing Filling Capping Labeling Machine

FEATURES

1. Precision Filling Accuracy – Advanced weighing technology guarantees precise filling for each bucket, reducing waste and ensuring batch consistency.

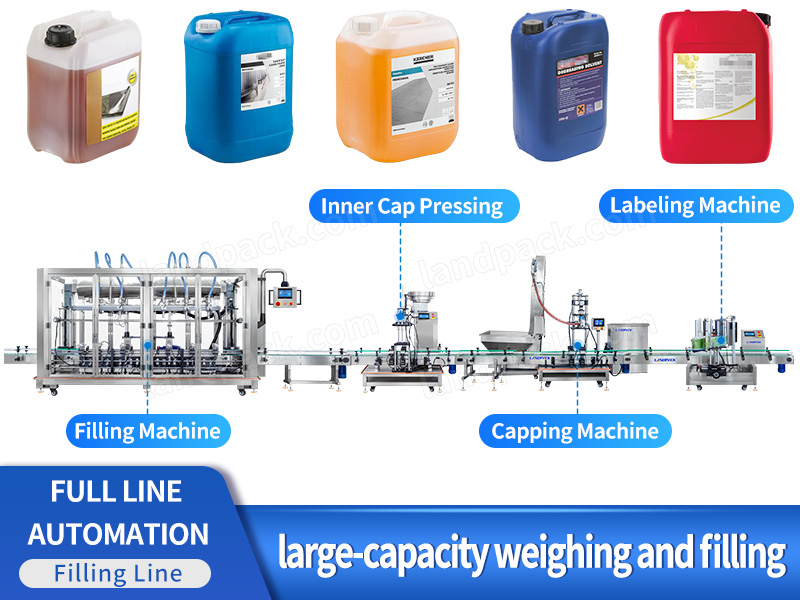

2. Fully Integrated Automation – Incorporates automatic filling, inner lid placement, sealing, and labeling to enhance productivity and cut down on manual operations.

3. Intuitive Touchscreen Interface – Smart PLC system with adjustable settings and live status updates for easy control and minimal training.

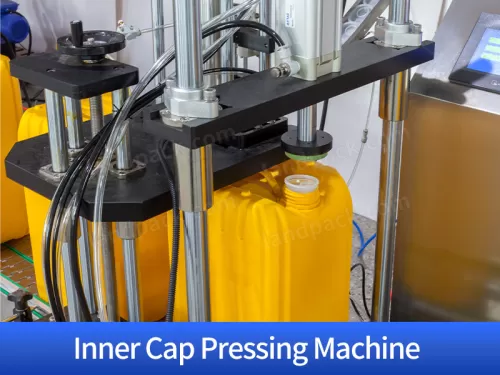

4. Reliable Inner Lid Application – Automatically installs the inner cap securely, enhancing leak prevention and product shelf life.

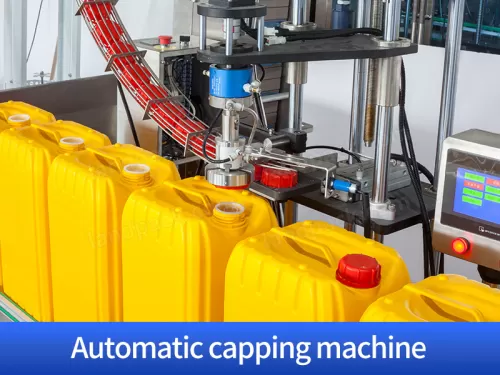

5. Servo-Driven Capping Mechanism – Applies consistent capping force for tight, uniform seals without damaging the container.

6. Versatile Bucket Compatibility – Easily adapts to various large containers, ranging from 5L to 30L, with quick changeovers.

7. Durable, Corrosion-Resistant Build – Built with chemical-resistant materials, suitable for filling corrosive or reactive liquids such as fertilizer solutions.

Automatic Liquid Filling Line | Weighing Filling Capping Labeling Machine

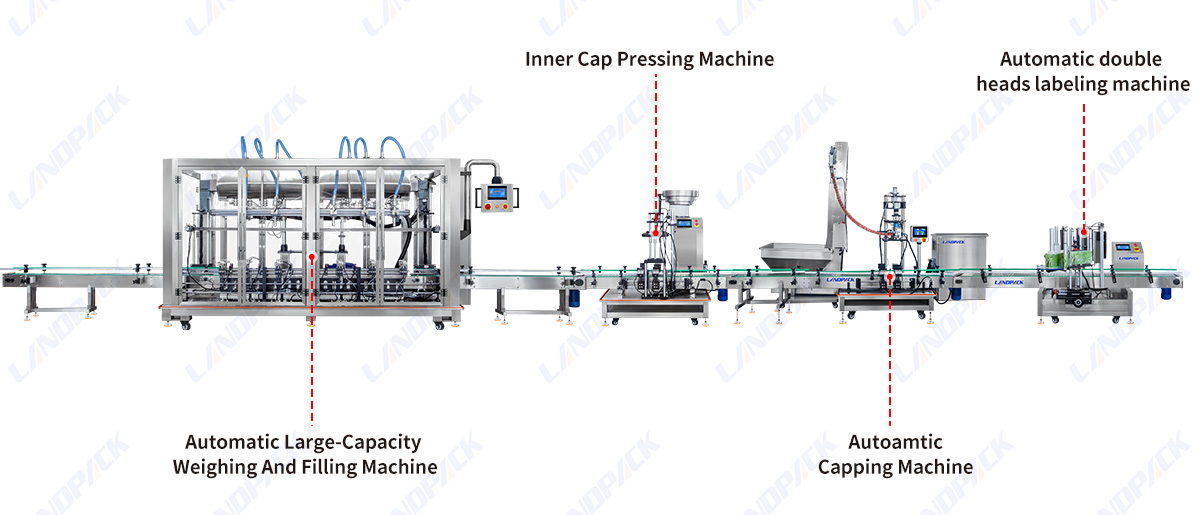

WORKFLOW

1. Unscramble Bottle

2. 4 Head Piston Filling

3. Lifting the Upper Cover

4. Servo Capping

5. Aluminum Foil Sealing

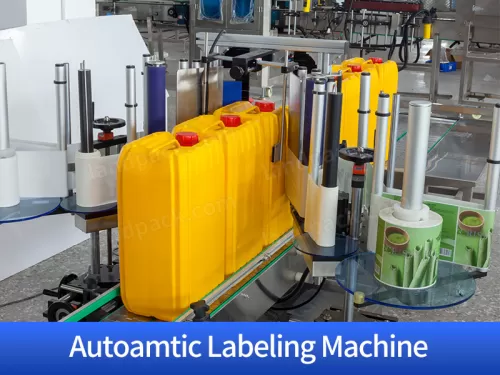

6. Automatic Labeling

7. Receiving Bottle

PARAMETER

	Model	LFH-HX-4
	Filling Range	50-1000ml(customizable)
	Filling Speed	15-25 Bottles/min (100-500ml range)
	Measurement Accuracy	±1%
	Bottle Diameter	Φ30mm-Φ135mm(customizable)
	Bottle Height	40mm-200mm(customizable)
	Control system	PLC
	Total production line power	6.5KW
	Power supply	220V、50Hz
	Airconsumption	0.8-1.2m³/min
	Equipment material	304
	Description of main packaging process:	unscramble bottle → 4 head piston filling → lifting upper cover → servo capping → aluminum foil sealing → labeling → receiving bottle
