Powder Tin Can Jar Filling Seaming Labeling Machine | End of Line Packaging Solutions

Introduction:

This automatic powder filling line is a complete end of line packaging solutions integrating bottle unscrambling, can sterilizing, powder filling, nitrogen flushing sealing, capping, and finished product collection. Designed for hygienic, consistent filling accuracy for powdered food products.

Application:

This end of line packaging solutions for powder specially developed for dairy and nutritional powders.The line integrates accurate dual-head powder filling with multi-station vacuum nitrogen sealing to effectively prevent oxidation and moisture absorption.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Designed for powder filling into a tin/can/jar/bottle, Compatible with different container diameters and heights, ensuring stable conveying, accurate filling, and airtight sealing.

Automatic Powder Tin Can Jar Filling Seaming Labeling Machine Packing System

Suitable Products:

This end of line packaging equipment is suitable for a wide range of powdered products requiring high hygiene and long shelf life:

Dairy Powders: Milk powder, infant formula, goat milk powder

Nutritional Powders: Protein powder, meal replacement powder, vitamin blends

Food Powders: Coffee powder, cocoa powder, creamer powder, seasoning powder

FEATURES

1. It integrates bottle unscrambling and empty container sterilization, powder filling, nitrogen sealing and flushing, capping and output.

2. This ensures high accuracy of filling and a consistent dosing of milk powders and fine powders, helping to reduce weight loss and product deviation.

3. Effectively replaces oxygen in cans to prolong shelf life, stop the formation of oxidation and preserve freshness of powder.

4. With empty can sterilization and cylinder body cleaning and food-grade contact components, that meet strict requirements for food safety.

5. A precise and accurate spoon-feeding system, precise positioning of the can and secure capping assure an uncluttered seal and uniform appearance.

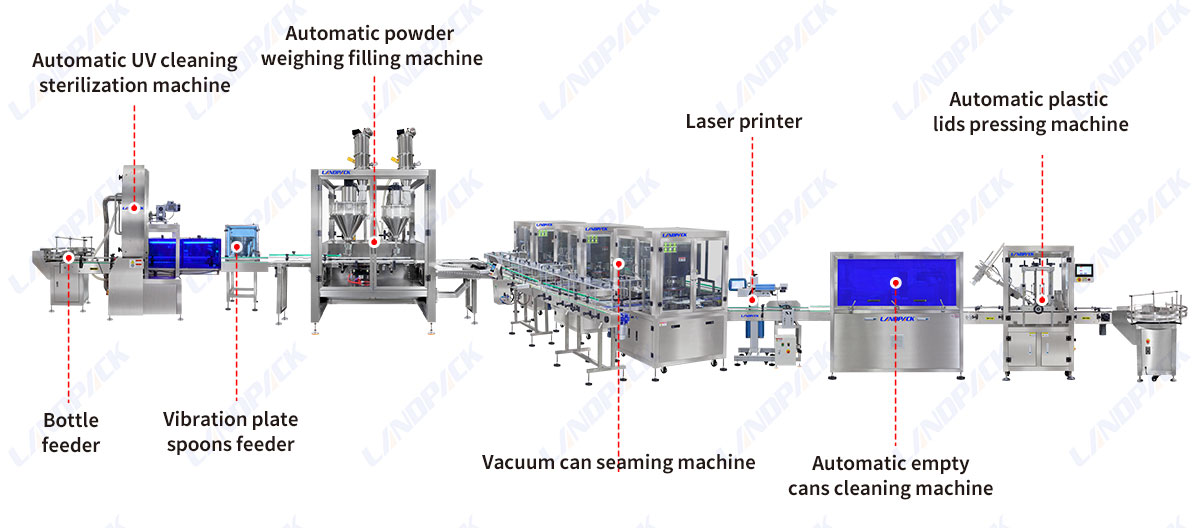

Machine Structure Overview:

Automatic Powder Tin Can Jar Filling Seaming Labeling Machine Packing System

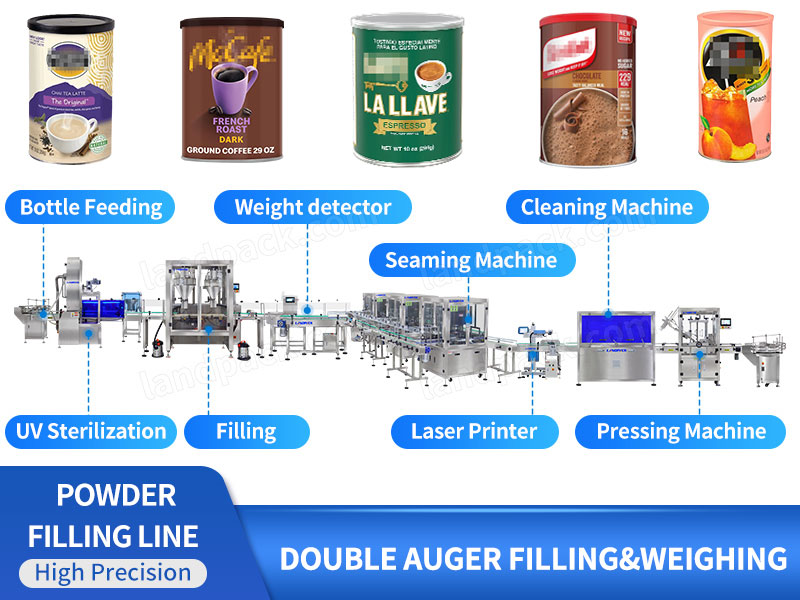

WORKFLOW

Bottle Unscrambling

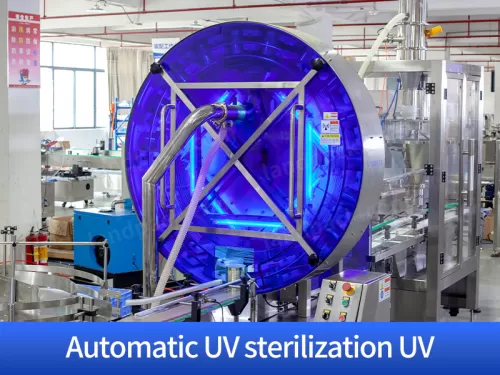

Empty Can Sterilizing

Powder Filling

Spoon Feeding

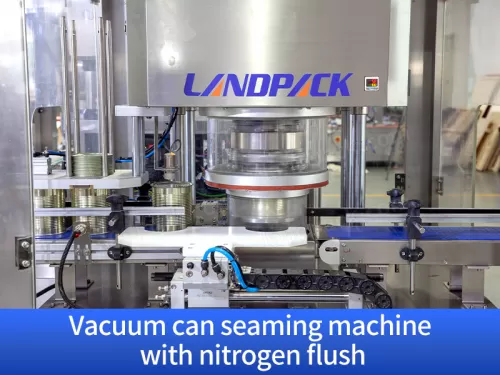

Vacuum Nitrogen Sealing

Can Body Cleaning

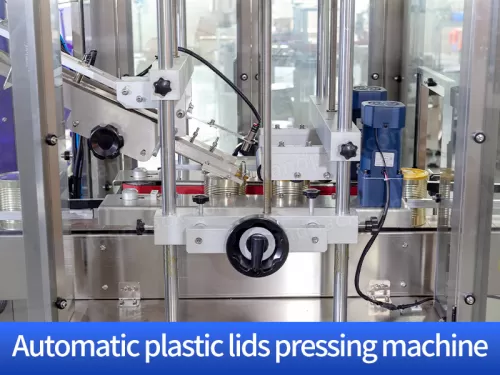

Capping

Finished Can Output

PARAMETER

Model	LD-PAF03
Filling Range	100-2000g (Customizable)
Filling Speed	10-25 bottles/min
Measurement accuracy	±1%
Power	4.5 KW
Working power supply	220V, 50Hz
Working pressure	0.6-0.8MPa
Weight	500kg

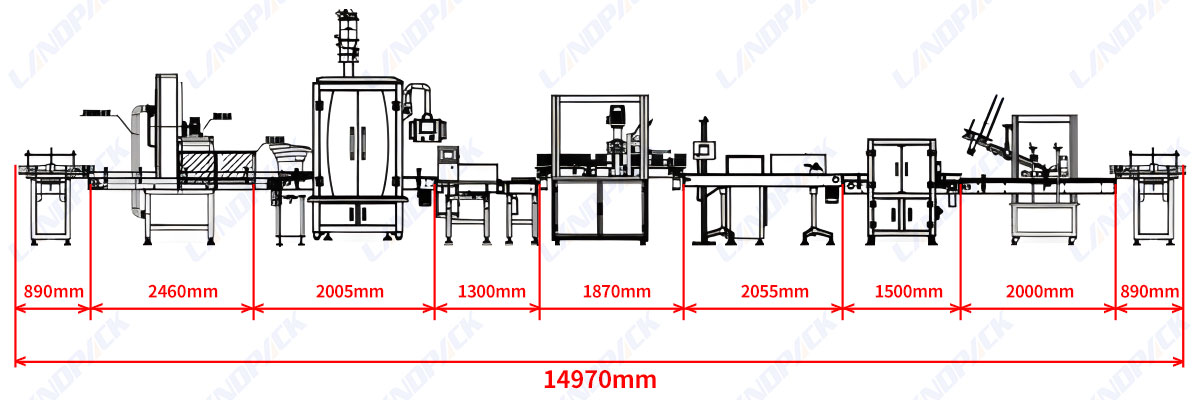

Size	L11782W3465.09H2523.52 (mm)
