End of Line Packaging Solutions (Pouch Packing Machine+Parallel Robot Carton Packer+Palletizing System)

Introduction:

This automatic pouch packing system is a fully integrated end-of-line packaging solution, combining vertical packaging machine, weighing detector, intelligent case packing robot, carton erectors, and palletizer machine.

Application:

Designed for stable handling of pillow bags, premade pouch, and gusseted pouches, Widely used for food grains, seeds, pet food, chemical granules.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Designed for stable handling of pillow bags, premade pouch, and gusseted pouches, Widely used for food grains, seeds, pet food, chemical granules.

Package Type:

This smart packaging system supports pillow pouches, back-sealing bags, gusseted bags, and sachets that have been pre-packed by the vertical packaging machine. Finished bags are automatically counted, arranged, packed into corrugated cartons, sealed, and palletized.

Full Automatic Packing System (Pouch Packing Machine Parallel Robot Carton Packer Palletizing System)

Suitable Products:

This packing system is especially suitable for products requiring high-speed end-of-line packing：

1. Granular Products: Rice, beans, lentils, corn kernels, seeds, coffee beans, nuts, pet food kibbles, plastic pellets, chemical granules, fertilizer particles.

2. Food & Agricultural Products: Sugar, salt, frozen vegetables, dried fruits, grains, cereal mixes, animal feed pellets.

3. Chemical & Industrial Granules: Detergent granules, resin pellets, plastic masterbatch, desiccant beads, mineral particles.

Full Automatic Packing System (Pouch Packing Machine Parallel Robot Carton Packer Palletizing System)

FEATURES

1. Simultaneously forms cartons and transfers finished bags to ensure a continuous, high-speed product flow with synchronized precision.

2. An intelligent packing solution that accurately picks and places bags into boxes, offering seamless flexibility for various sizes and patterns.

3. Delivers consistent, high-durability sealing to enhance package integrity and ensure maximum product safety during transit.

4. Stacks sealed cartons into precise, pre-defined patterns to create sturdy, uniform pallets optimized for storage and shipping.

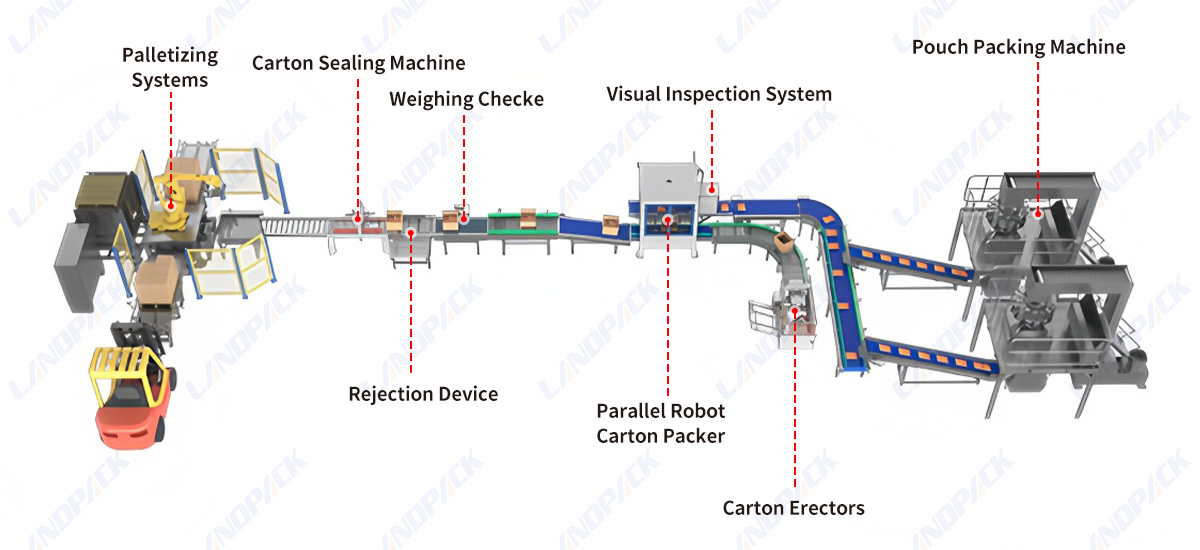

Machine Structure Overview:

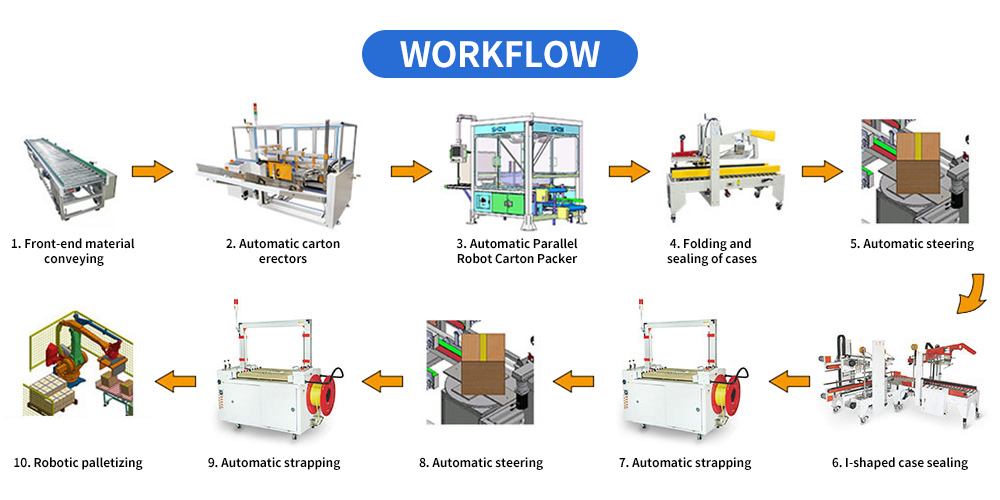

WORKFLOW

Front-end material conveying

Automatic carton erectors

Automatic Parallel Robot Carton Packer

Folding and sealing of cases

Automatic steering

Shaped case sealing

Strapping and steering

Strapping and robotic palletizing

PARAMETER

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
