End of Line Packaging | Automatic Case Packing Robot Packing Systems

Introduction:

Automatic end-of-line packaging system with carton erecting, robotic case packing, real-time printing and labeling, carton sealing and palletizing functions.

Application:

Suitable for food, beverage, pharmaceutical, cosmetic and logistics industries, this packaging line supports continuous carton handling and automated secondary packaging operations.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This automatic end-of-line packaging system is designed for carton erecting, robotic case packing, carton sealing, printing, labeling and palletizing operations. The line is suitable for continuous secondary packaging and logistics handling across multiple industries. It is widely used for bottled beverages, canned drinks and dairy products, cartons, pouches, trays and wrapped products, food products such as snacks, sauces and frozen foods, pharmaceutical and healthcare products, cosmetic and personal care products, household chemical and daily commodity products.

End of Line Packaging | Automatic Case Packing Robot Packing Systems

Package Type:

Suitable for corrugated cartons, shipping cases, display cartons and taped boxes used in secondary packaging applications. Supports various packing layouts for bottles, cans, pouches, trays, bags and boxed products. Carton dimensions and palletizing patterns can be adjusted according to production requirements.

FEATURES

1. Automatic carton erecting system forms cartons continuously from flat blanks.

2. Robotic packing unit automatically loads products into cartons.

3. Servo positioning system supports accurate product arrangement during packing.

4. Real-time printing and labeling module supports barcode and shipping label application.

5. Carton sealing machine supports adhesive tape or hot melt sealing methods.

6. Robotic palletizer automatically stacks finished cartons onto pallets.

7. PLC touchscreen control system supports centralized operation and monitoring.

8. Flexible line configuration supports bottles, cartons, pouches and containers.

9. Safety guards and sensor detection improve operational safety.

10. Modular structure allows integration with filling, labeling and warehouse systems.

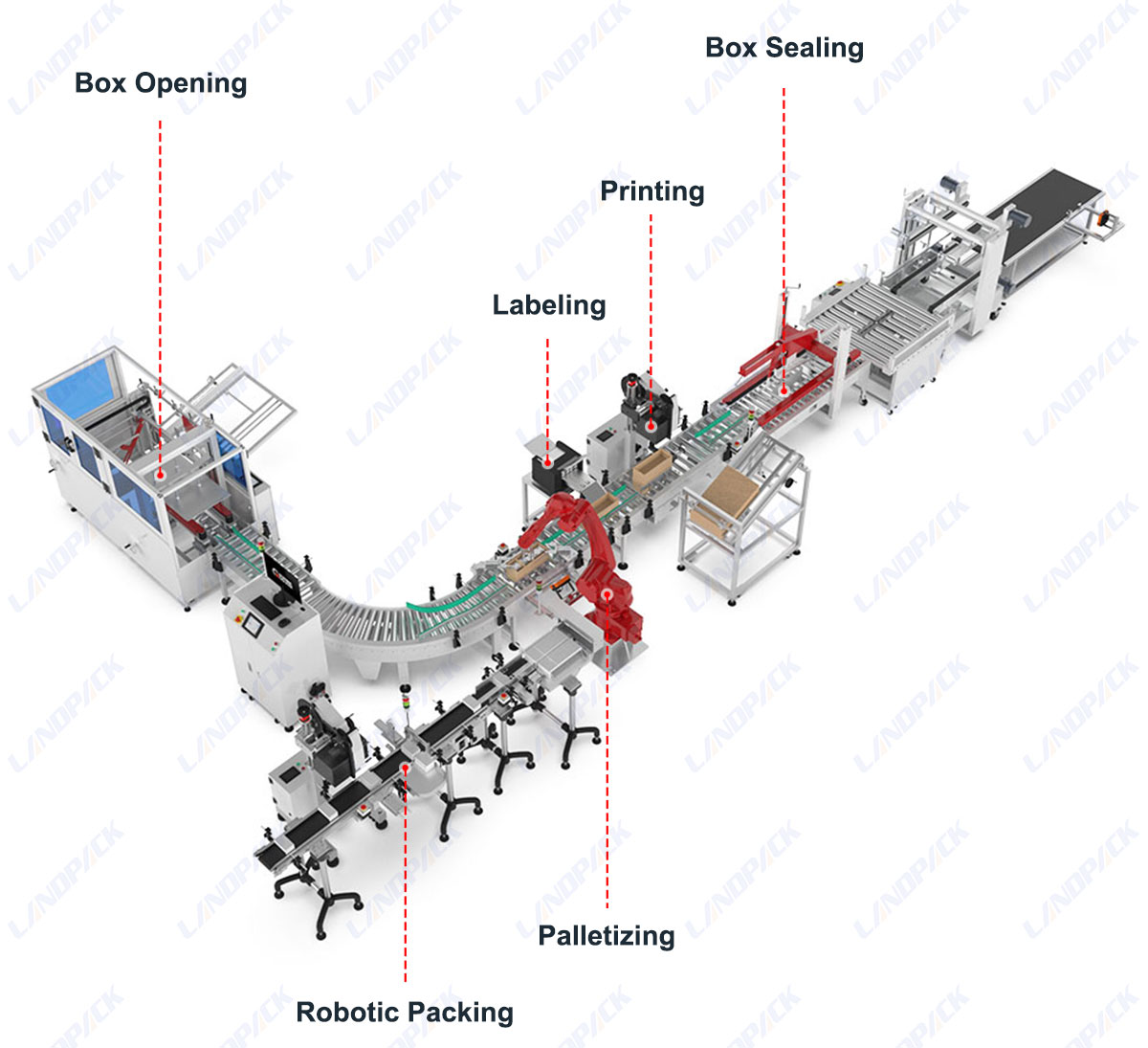

Machine Structure Overview:

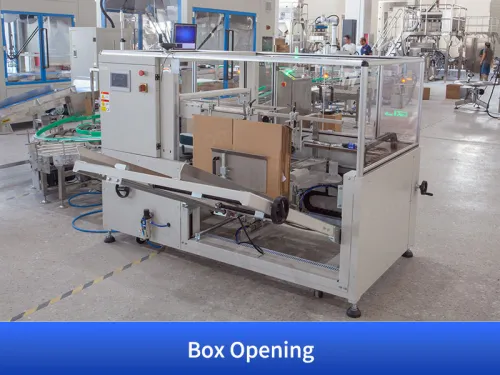

1. Box Opening 2. Palletizing Robot 3. Robotic Packing 4. Printing System 4. Labeling 5. Box Sealing Machine

End of Line Packaging | Automatic Case Packing Robot Packing Systems

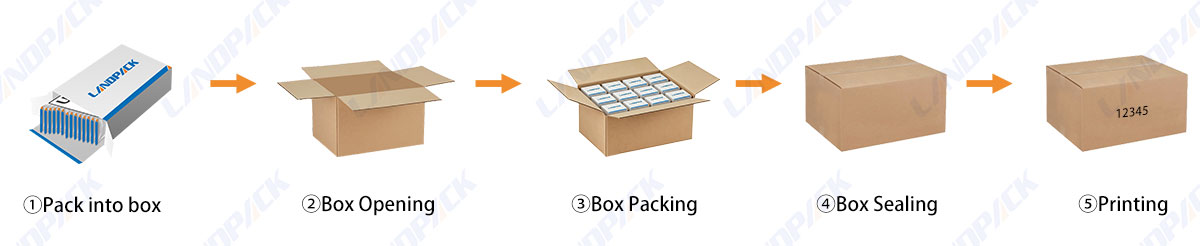

WORKFLOW

Pack into box

Box Opening

Box Packing

Box Sealing

Printing

PARAMETER

	Item	Specification
	Machine Type	Automatic End-of-Line Packaging System
	Packaging Application	Carton Packing / Case Packing / Palletizing
	Product Types	Bottles, Cans, Pouches, Cartons, Trays
	Carton Type	Corrugated Cartons / Shipping Boxes
	Packing Method	Robotic Pick & Place
	Carton Sealing Method	Adhesive Tape / Hot Melt Glue
	Printing Function	Real-Time Inkjet Printing
	Labeling Function	Automatic Print & Apply Labeling
	Palletizing Function	Optional Robotic Palletizer
	Control System	PLC + Touchscreen
	Conveyor Type	Automatic Modular Conveyor System
	Frame Material	Carbon Steel / Stainless Steel Optional
	Production Mode	Continuous Automatic Operation
	Voltage	220V / 380V / Customized
	Air Pressure	0.6–0.8 MPa
