End of line Packaging Case Erector Packer Case Sealer Robotic Case Packing System

Introduction:

It seamlessly integrates box erecting, product loading, and case sealing into one continuous, automated workflow.

Application:

This end-of-line packaging system is suitable for automatic secondary packaging of various products such as snacks, biscuits, frozen food, seasoning products, detergent, tissue, shampoo, cosmetic products, medicine boxes, healthcare products, medical supplies.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

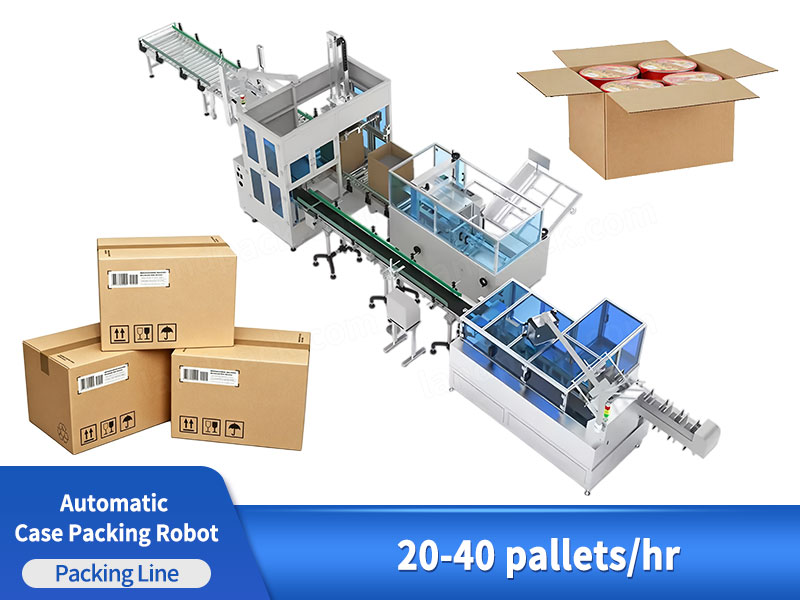

End of line Packaging Case Erector Packer Case Sealer Robotic Case Packing System

Package Type:

The end-of-line packaging system supports various packaged products such as cartons, bottles, cans, stand-up pouches, pillow bags and jars packing into case. It can also connect with robotic palletizing systems to achieve a complete end-of-line packaging solution.

FEATURES

1. Fully automatic carton erecting, packing and sealing greatly improves production efficiency.

2. Flexible adjustment for different carton sizes and packaging requirements.

3. Servo-controlled robotic system ensures accurate and stable product loading.

4. Carton erecting success rate reaches ≥99.9% for smooth and reliable operation.

5. Imported cylinders provide fast, stable and low-noise carton sealing performance.

6. Real-time coding and labeling support product traceability and quality management.

7. Equipped with alarm, emergency stop and safety protection systems for safer operation.

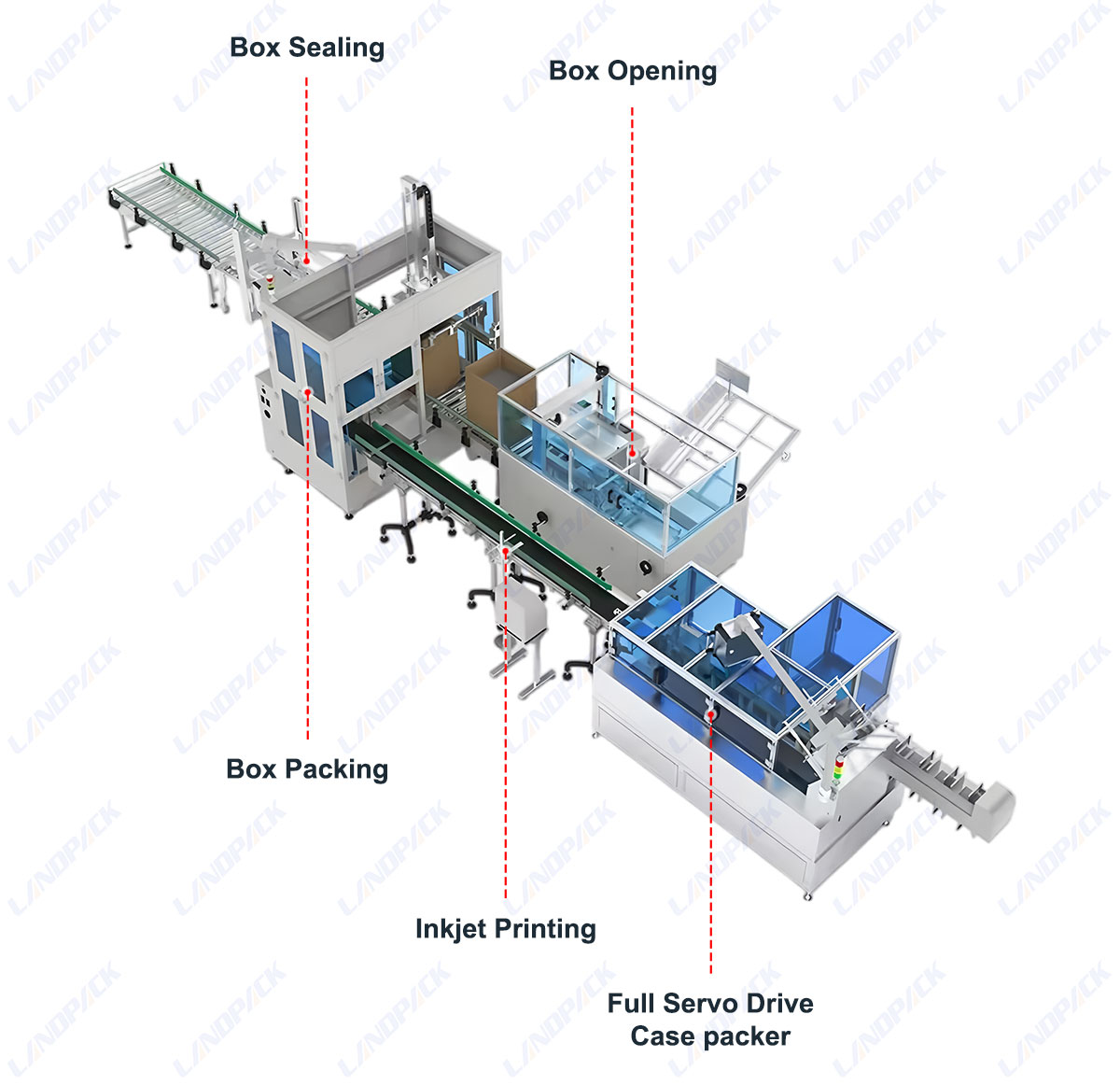

Machine Structure Overview:

1.Box Sealing 2. Box Opening 3. Box Packing 4. Inkjet Printing 4. Full Servo Drive Case packer

End of line Packaging Case Erector Packer Case Sealer Robotic Case Packing System

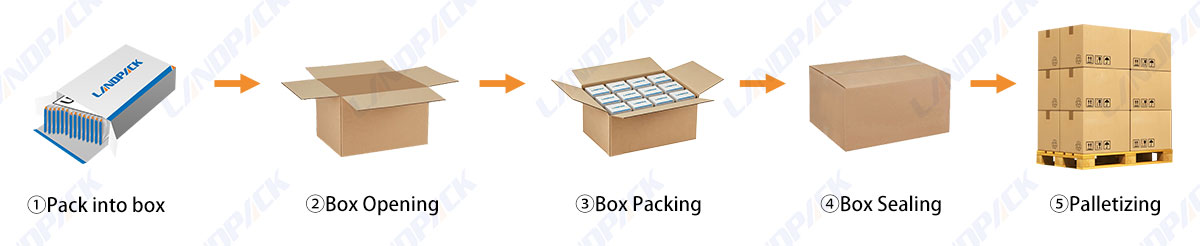

WORKFLOW

Cartoning

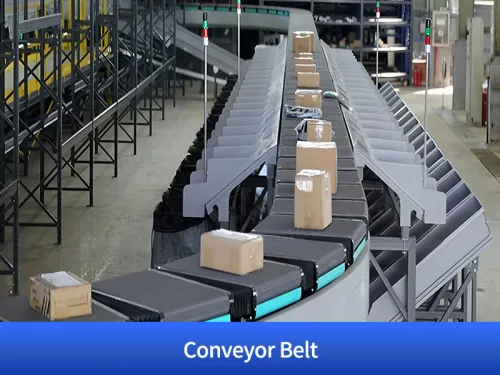

Carton Conveying

Automatic Carton Grouping

Case Erecting

Robotic Case Packing

Case Sealing

Finished Case Output

PARAMETER

Model	LD-60	LD-60L
Cartoning speed	30-60 Cartons/min	20-45 Cartons/min
Quality requirement	250-450g/m² (According to box dimensions)
Carton Dimension range (L×W×H)	L: 70-250mm W: 50-180mm H: 20-90mm	L: 120-360mm W: 50-260mm H: 20-90mm
Customization	Special size can be customized
Working pressure	≥ 0.6Mpa
Air consumption	20m³
Power supply	220V / 50Hz
Motor power	4.5kW	2kW
Machine dimension (L×W×H)	4528mm x 1630mm x 1950mm	5630mm x 1821mm x 1950mm
Machine weight	1000kg	1200kg

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg

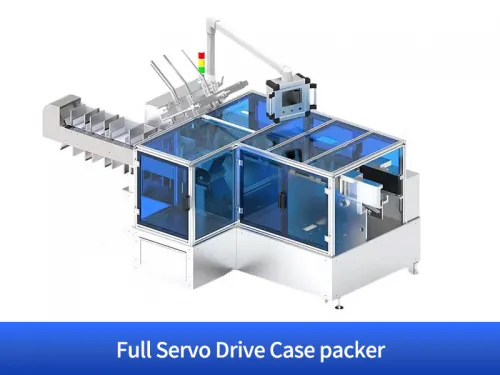

Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
