Premade Pouch Doypack Case Packaging Systems | End of Line Packaging Solutions

Introduction:

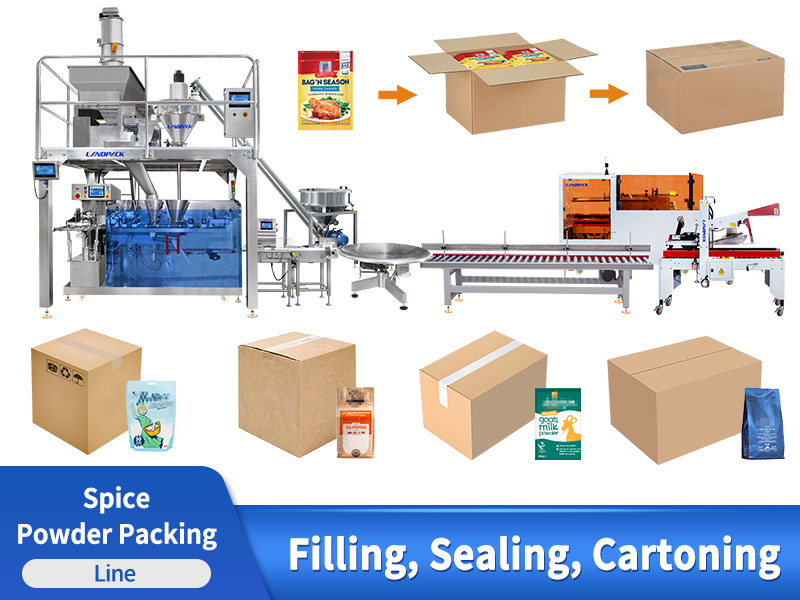

Equipped with a screw feeder, vacuum feeding system, powder filling machine, 4-head linear weigher, check weigher, rotary arranging table, carton erector, and carton sealer, it delivers efficient end of line packaging solutions for pouch packing operations.

Application:

This packing system is suitable for end of line packaging solutions for both granular and powder products, including rice, sugar, salt, seeds, coffee beans, nuts, pet food kibbles, milk powder, protein powder, flour, spice powder, seasoning, feed additives, and chemical powders.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Compatible with premade pouches commonly used for granular and powder products, including flat pouches, stand-up pouches, zipper pouches, spout pouch and gusset pouches.

Powder Horizontal Premade Pouch Doypack Case Packaging Systems

Suitable Products:

Designed for end of line packaging solutions including automatic weighing, filling, and cartoning of both granules and powders：

1. Food products: rice, sugar, salt, coffee beans, nuts, milk powder, protein powder, flour, and spice.

2. Daily chemical products: detergent powder, washing powder, and deodorizer granules.

3. Industrial and agricultural products: feed additives, premixes, seed granules, fertilizer additives, and chemical powders.

Powder Horizontal Premade Pouch Doypack Case Packaging Systems

FEATURES

1. A Siemens PLC and intuitive HMI facilitate dependable operation, exact parameter tuning, and real-time monitoring.

2. Features twin dosing and discharge systems, enabling highly flexible processing of various powders and granules on a single line.

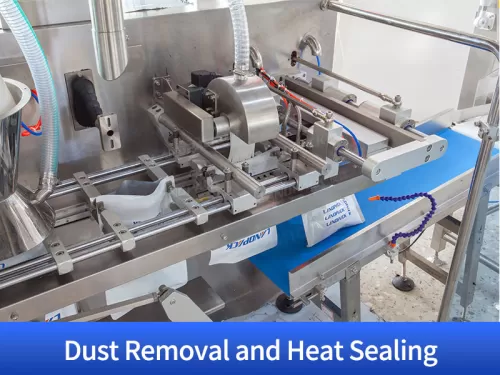

3. Integrated extraction units at the bag mouth and body eliminate residual powder post-fill to ensure clean seals.

4. The chassis and all product-contact parts are fabricated from food-grade SS304 stainless steel.

5. Equipped with automated case erectors and sealers, allowing for seamless, low-labor bag-to-carton transitions.

6. An inline checkweigher automatically identifies and ejects out-of-spec units to guarantee weight consistency and packing quality.

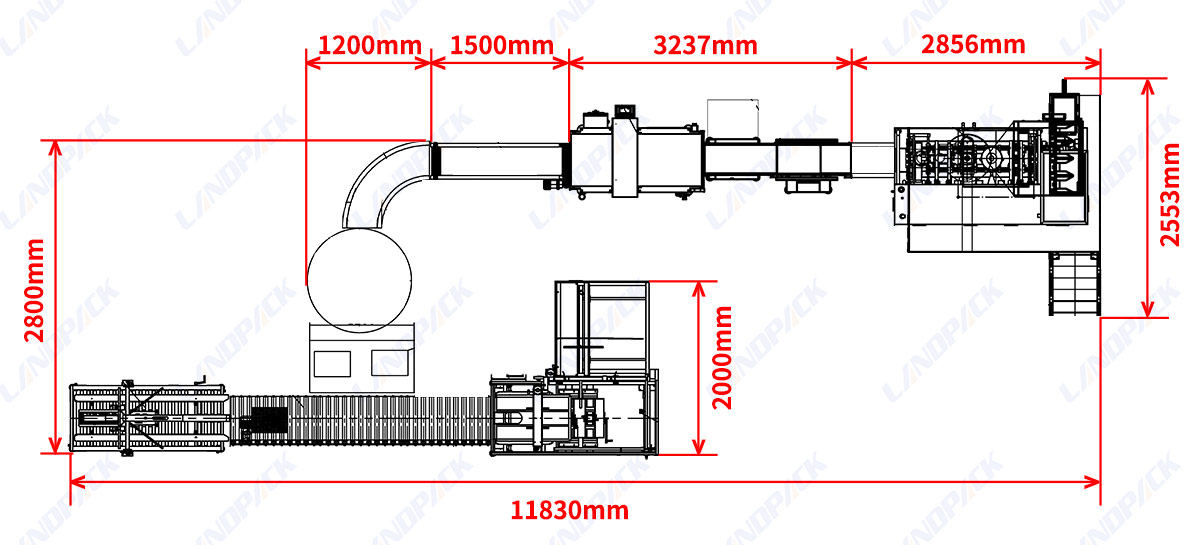

Machine Structure Overview:

Powder Horizontal Premade Pouch Doypack Case Packaging Systems

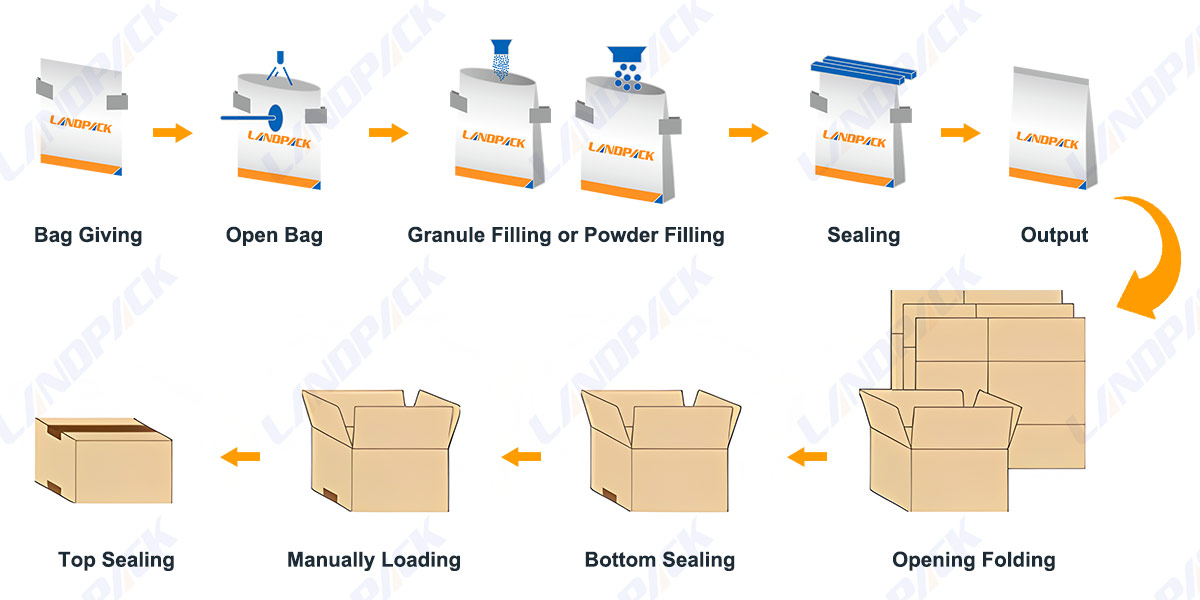

WORKFLOW

Material Feeding

Weighing & Metering

Filling

Weight Inspection

Finished Product Conveying

Carton Erecting

Case Packing

Case Sealing & Output

PARAMETER

Type	LDSP-160	LDSP-160L	LDSP-210L	LDSP-260L
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW

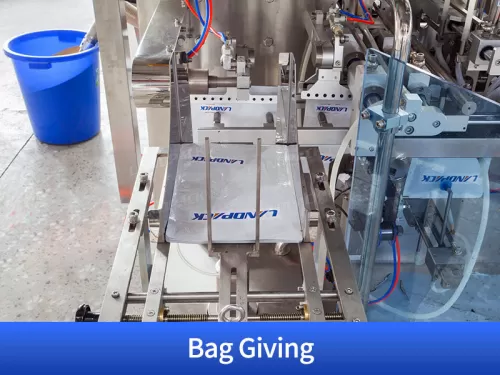

Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Box Case Sealer Sealing Machine
Model	LD-ZHJ300
Power supply	220V, 50Hz, 0.75kW
Air pressure requirement	0.5-0.8MPa
Machine material	Aluminum + stainless steel
Applicable	L: 120-300mm, W: 30-150mm, H: 20-60mm
Size of carton	Customizable
Box material	300-450g cardboard paper, corrugated paper
Working speed	30-50 cartons/min
Machine size	400813541633 mm
Weight	About 1500kg
Carton erecting machine
Carton opening speed	10-12 cartons/min
Carton size range	L: 270-450W: 150-400H: 100-400mm (Min and max cannot exist at the same time)
Power supply	220V, 50/60Hz, 1 Phase
Power	2400W
Adhesive tape width	48/60/75mm
Carton storage quantity	80-100pcs(800-1000mm)
Air consumption	450NL/min
Air compressing	6kg/cm³
Discharge table height	600+30 mm
Machine size	L2100W2100H1450mm
Machine weight	450Kg
Automatic Carton Packing Machine
Model	LD-B8	LD-B18	LD-B30	LD-B42	LD-B48
Capacity	480case/h	1100case/h	1800case/h	2500case/h	2800case/h
Air consumption	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
Power	3.7KW	3.7KW	4.5KW	4.5KW	5.2KW
Suitable products	Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
Packing way	Paper carton packer, plastic boxes(customized)
Packing method	Side push, drop, servo, sprocket, robot, spider hand(customized)
Carton Box Case Sealer
Voltage	220V, 60HZ
Table height	620-900mm
Tape	W: 48-79mm
Carton size	L: 200-600W: 150-500H: 150-500mm
Machine weight	165KG
