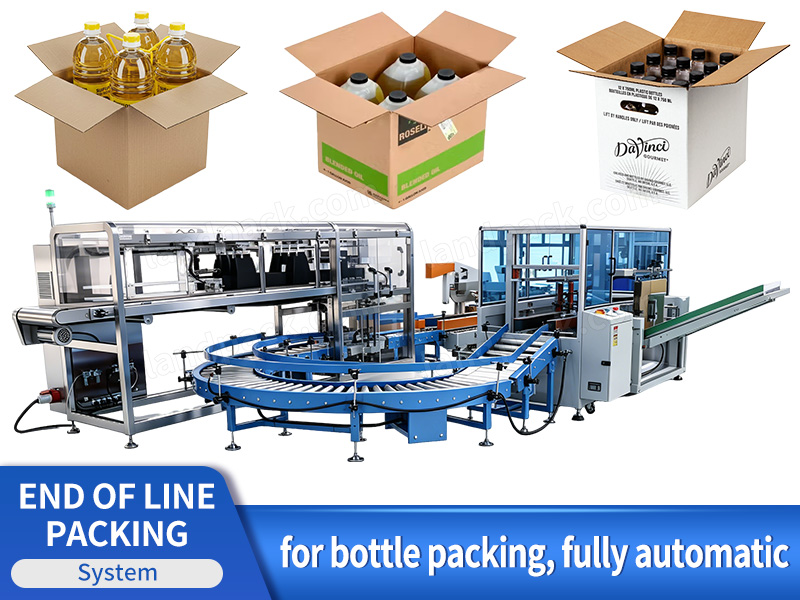

Automatic Case Packing Robot Dropping Type Case Packer for Cans or Bottles

Introduction:

This end‑of‑line bottle case packing solution offers dependable carton formation, automatic product arrangement and high‑consistency case sealing for industrial packaging applications.

Application:

Automatic drop‑type case packer for bottles and cartons packing, suitable for beverage, dairy, pharmaceutical, cosmetic and chemical bottled products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This automatic bottle carton packing line is designed for end‑of‑line secondary packaging of bottles into cases using a gravity / drop‑type method. It is suitable for a wide range of bottle products across multiple industries, including bottled water, juice, tea, and soft drinks, dairy and liquid nutritional products, pharmaceutical bottles and nutraceuticals, cosmetic and personal care bottled products, chemical liquid products in PET, glass or plastic bottles, small containers in food and industrial applications.

Automatic Case Packing Robot Dropping Type Case Packer for Cans or Bottles

Package Type:

Suitable for standard corrugated cartons, heat‑sealed boxes and taped cartons for bottle packaging. Supports a variety of bottle formats including round, square and irregular shapes. Carton size, flap configuration and sealing method are adjustable according to packing requirements.

FEATURES

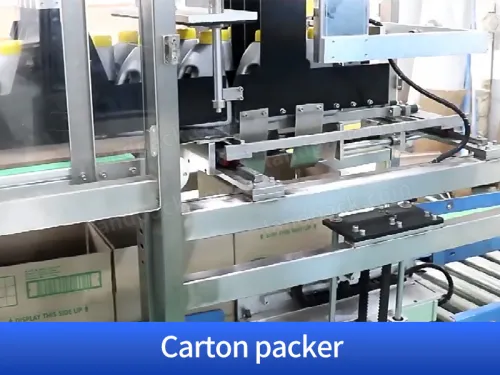

1. Drop‑type carton loading uses gravity to place bottles into cases accurately.

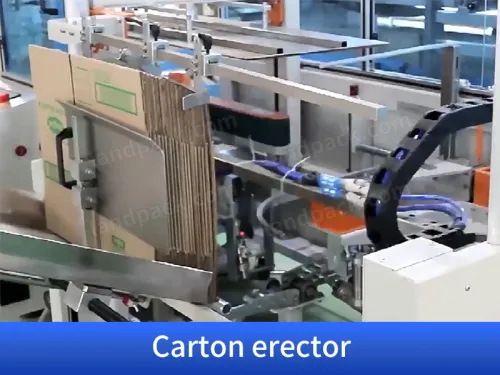

2. Automatic carton forming and erecting process reduces manual handling.

3. Adjustable guides accommodate different bottle shapes and sizes.

4. Servo‑controlled positioning ensures precise bottle arrangement.

5. PLC touch control simplifies parameter setting and line monitoring.

6. Compatible with upstream filling and labeling lines.

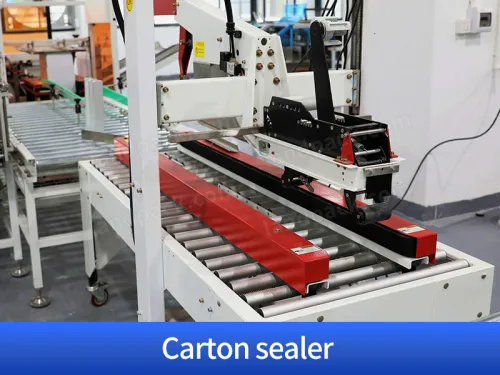

7. High‑consistency carton sealing with adhesive tape or hot melt.

8. Stainless steel frame suitable for hygienic production environments.

9. Safety guards and sensors protect operators during operation.

10. Bottle detection sensors prevent misloads and jams.

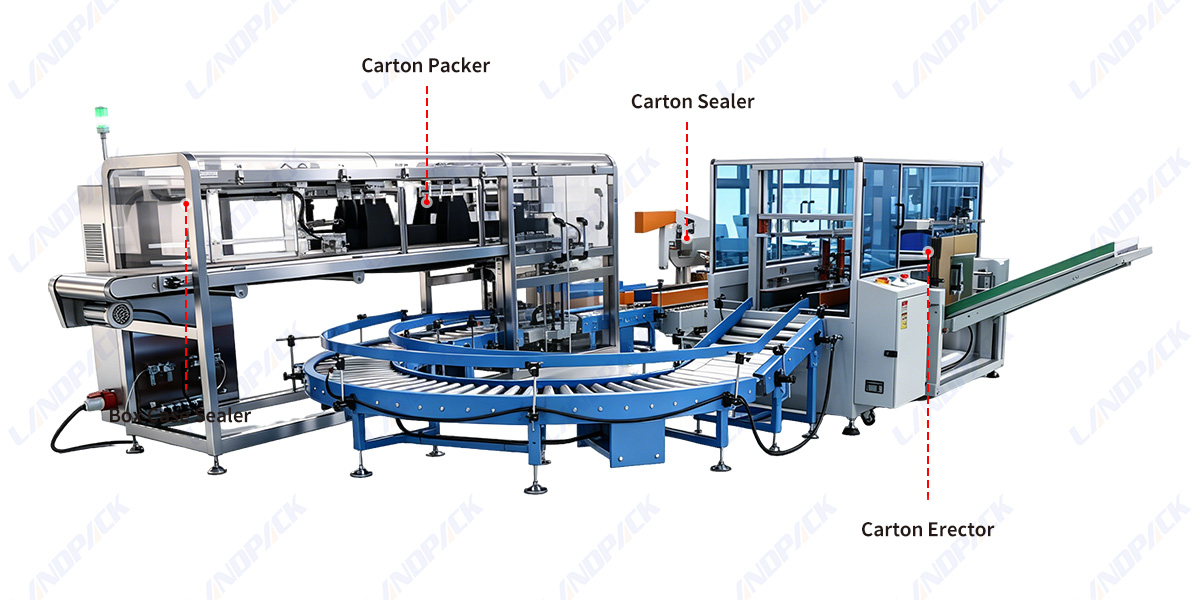

Machine Structure Overview:

Automatic Case Packing Robot Dropping Type Case Packer for Cans or Bottles

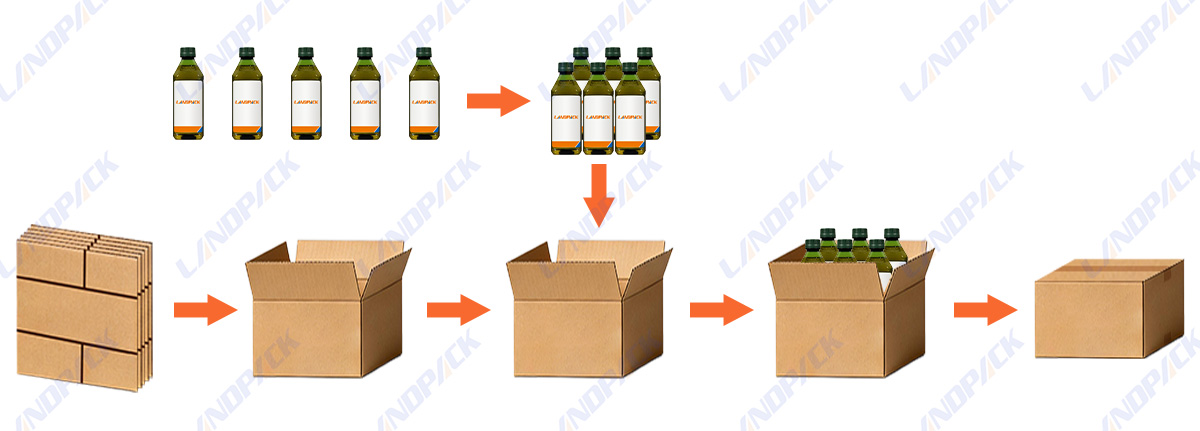

WORKFLOW

Carton Feeding

Carton Forming

Bottle Arrangement

Drop Loading

Flap Folding

Finished Cartons Output

PARAMETER

	Name	Case packing station for bottle
	Feeding speed	5-40m/min, adjustable (2000-16000 bottles/hour according to 550ml round bottle)
	Column width	450mm
	column number	adjustable from 1-10
	Material size	Height 40-300mm, width20-150mm (other sizes are customized)
	Carton size	L250-450×W150-400×H100-400mm (other sizes are customized)
	Packing speed	1-15 boxes/min (can be customized)
	Power	380V/50HZ/2.5kw
	Machine dimension	L3270W8001450mm
	Machine weight	about 750kg
