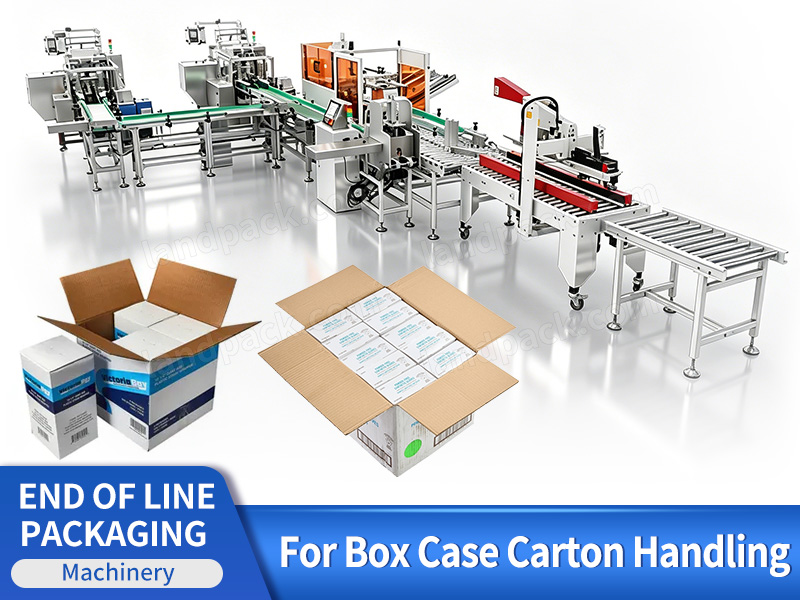

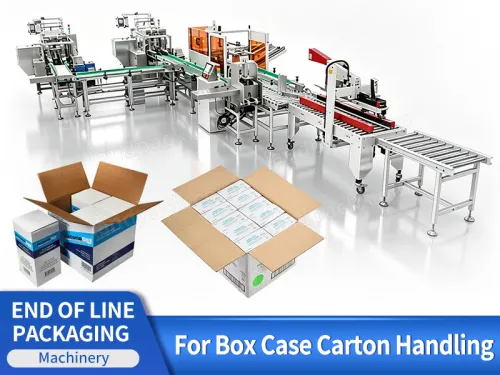

Automatic Carton Case End of Line Packaging Machinery With End Load Cartoner

Introduction:

This automatic carton packing line is designed for secondary packaging after the front packaging process.

Application:

This end of line packaging machinery is designed for automatic cartoning, case packing and palletizing of boxed or bagged products suitable for biscuits, snacks, frozen food, noodles, coffee products, detergent, tissue, cosmetic products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Carton Case End of Line Packaging Machinery With End Load Cartoner

Package Type:

The end of line packaging machinery is designed for automatic case and carton loading and palletizing of various packaged products, including pillow bags, premade pouches, sachets, bottles, tin,can, trays.

FEATURES

1. Fully automatic carton erecting, product loading and carton sealing with compact structure and stable running.

2. Servo motor + PLC + touch screen control system, easy to operate and adjust.

3. Photoelectric tracking system detects empty cartons automatically to reduce material waste.

4. End-load cartoning structure supports fast and continuous automatic packaging.

5. Overload protection and automatic stop function improve operation safety and reliability.

6. Can be connected with case packing and robotic palletizing systems for end of line packaging solutions.

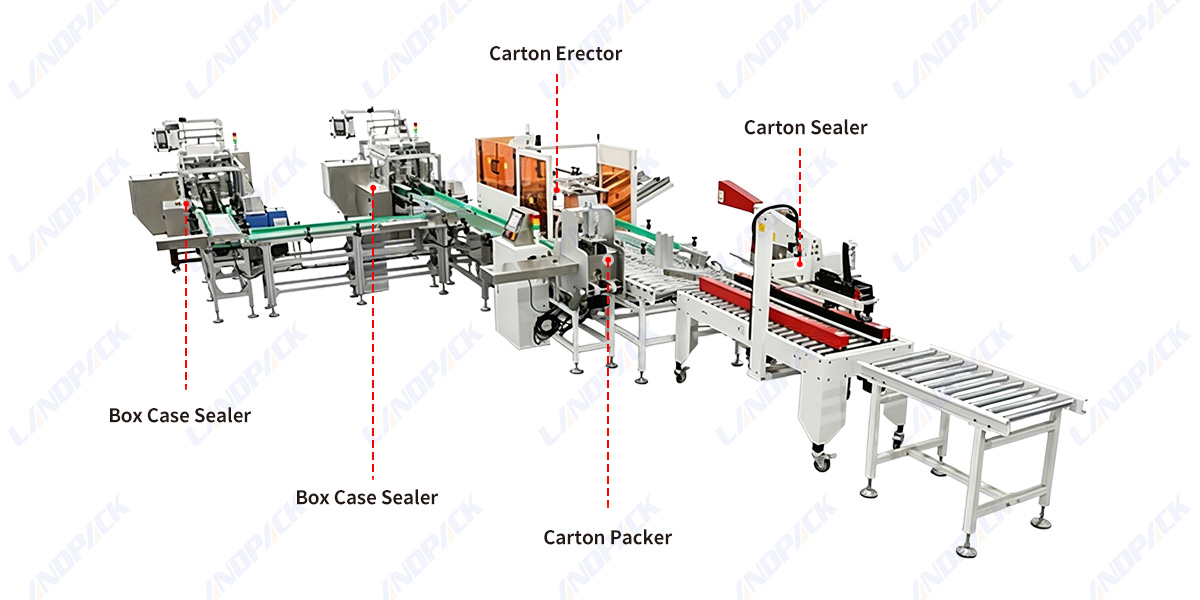

Machine Structure Overview:

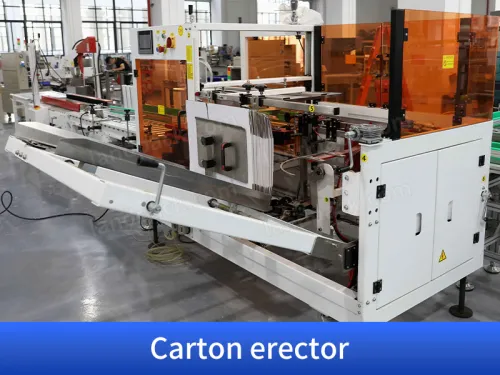

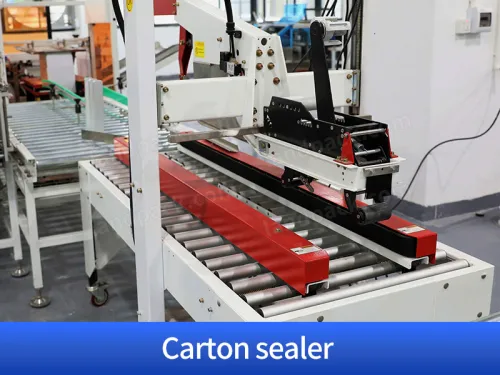

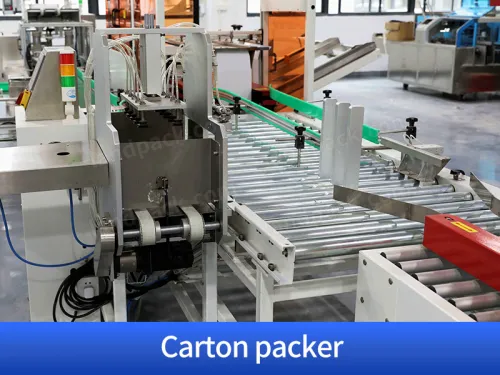

1. Carton Erector 2. Carton Sealer 3. Box Case Sealer 4. Carton Packer

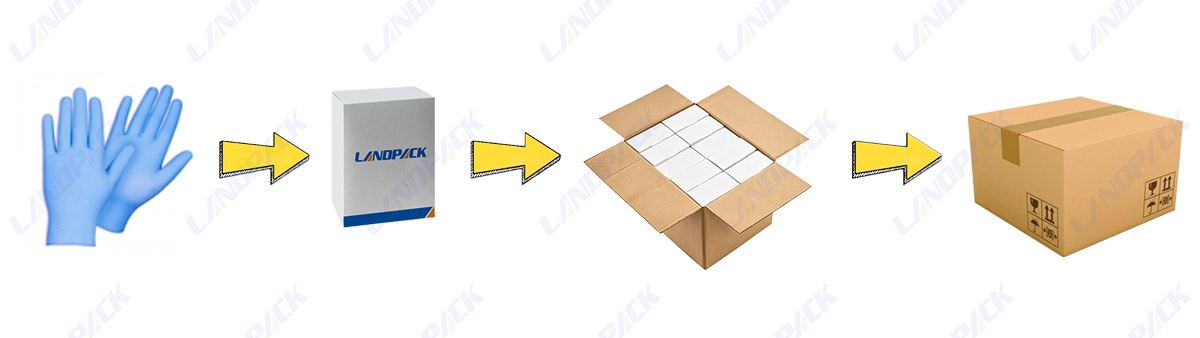

WORKFLOW

Product conveying

End-load cartoning

Automatic stacking

Carton sealing

Robotic palletizing

Finished pallet output

PARAMETER

Model	LD-1990	LD-2620
Packing speed	120box/min	60box/min
Max width of box size	Max 1909040mm/ Min 802015mm	Max 26018080mm/ Min 906020mm
Power	2.075KW	1.5KW
Nosize	≤80dB
Air sources	0.5-0.8Mpa
Machine weight	1500kg	1000kg
Device size	(L)3316*(W)1230(H)1884mm	(L)3825*(W)1592(H)1761mm
Power supply specifications	380V 50HZ
