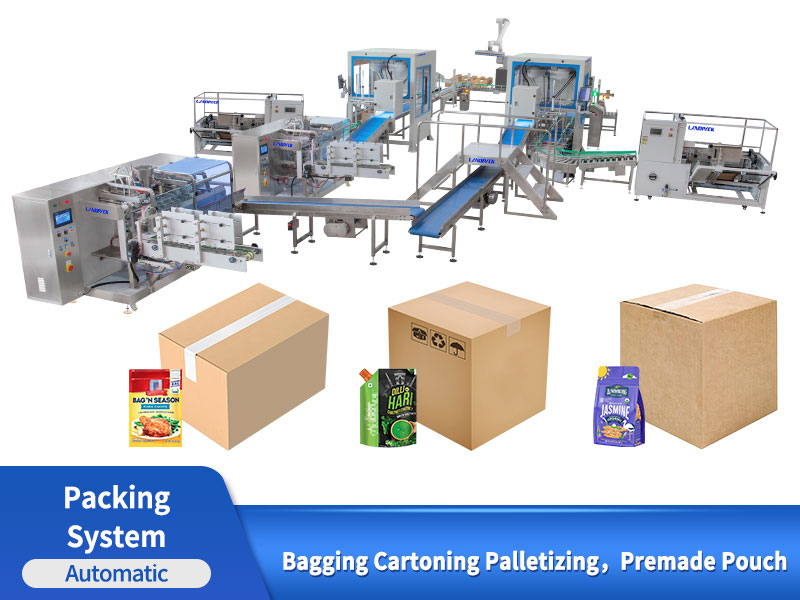

Bagging Cartoning Palletising System | Automatic Horizontal Pouch End Of Line Packaging Machinery

Introduction:

Packaging system that combines doypack pouch loading and packing, end of line packaging systems (packaging cases, cartoning and palletizing). Perfect for food packaging systems as well as production lines that are high-efficiency.

Application:

Packing system has been made for production lines that are high-efficiency that require the use of fully automated doypack pouches, from pouch filling and sealing and output feeding, to end of line packaging including cartoning and robotic case packing through stretching wrapping and palletizing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Package Type:

Designed for versatility, this automated system accommodates various preformed bags and cardboard cases. It is fully compatible with diverse formats, including stand-up doypacks, zippered bags, flat pouches, spout designs, quad-seal bags, and other premade flexible containers.

end of line packaging companies

Suitable Products:

This integrated packaging line is designed for medium to high-output production of bagged food and non-food products. The horizontal pouch machine handles a wide variety of materials, while the robotic cartoner and palletizer end of line packaging equipment support stable downstream automation. Typical applications include:
Food Products: snacks, nuts, beans, pasta, grains, dried fruits, powders, sauces in spout pouches, pet food
Daily & Chemical Products: detergent pods, dishwasher powder, cleaning granules, cosmetic refills
Industrial & Miscellaneous Goods: small parts, hardware kits, agricultural seeds, chemical granules

end of line packaging equipment

FEATURES

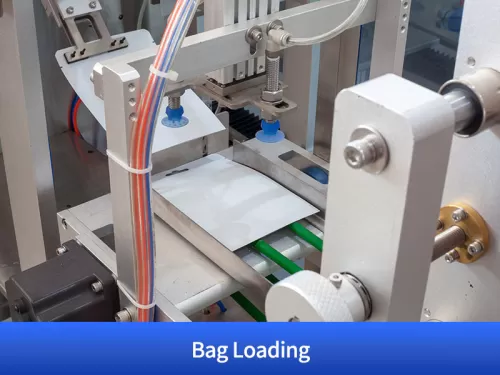

1. Operating with consistent and fluid motion, the horizontal pouching assembly automatically handles the picking, opening, filling, and sealing of pre-made pouches.

2. The exit conveyor transitions sealed bags to the packing zone efficiently, maintaining consistent product alignment and ensuring a seamless transition from the bagging stage to later steps.

3. The cartoning assembly oversees the forming of cases, the grouping of bags, and the precise insertion of pouches into their respective boxes.

4. A pair of parallel robots performs rapid bag sorting and loading, guided by high-precision motion control systems.

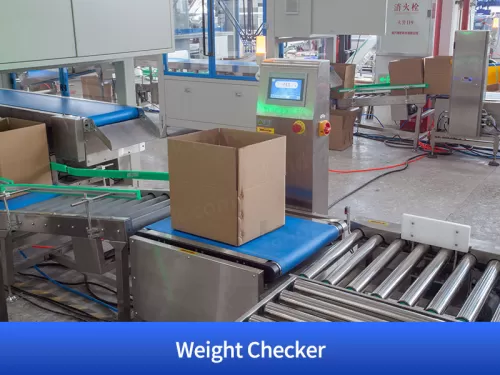

5. Embedded inline scales validate the mass of every pouch prior to boxing, automatically discarding any units that fall outside of set parameters.

6. The palletizing system organizes loaded cartons onto pallets with exact layer alignment and customizable stacking configurations.

7. The wrapping station coats completed pallets with consistent layers of stretch film, enhancing cargo security and stability for warehousing and transit.

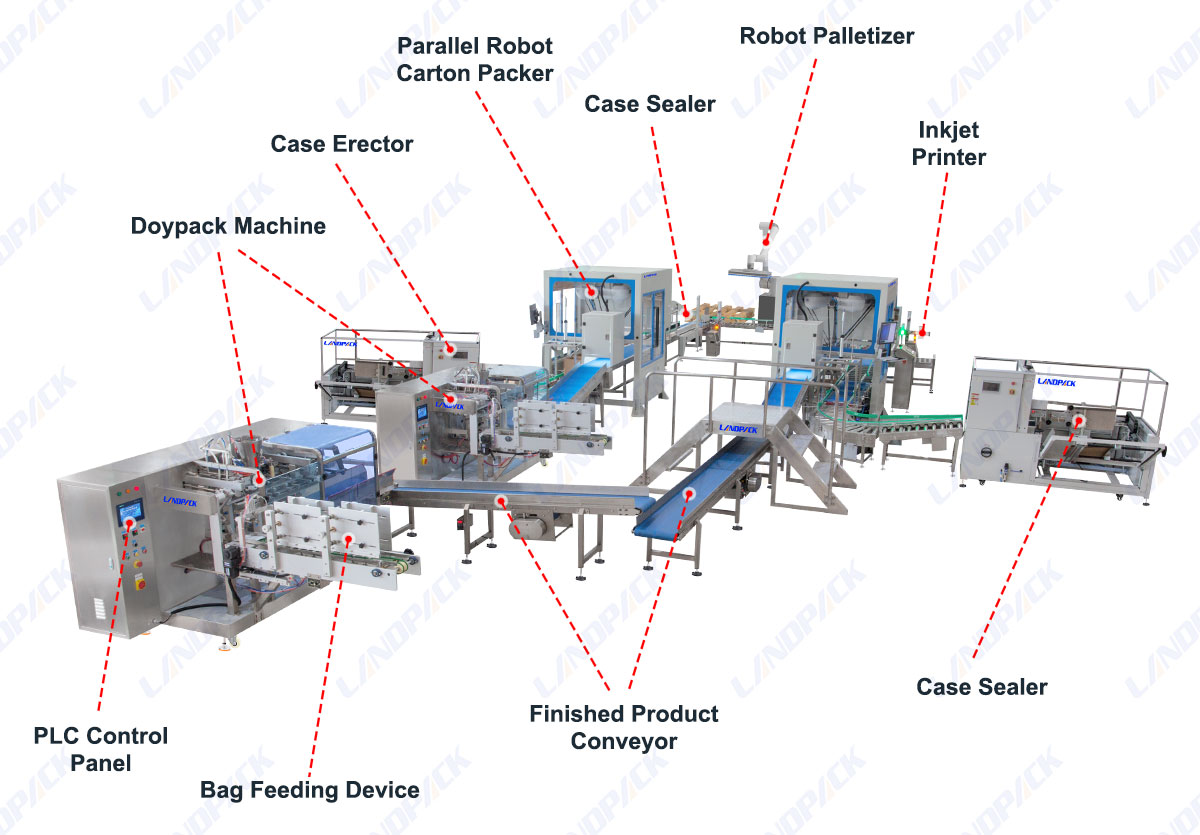

Machine Structure Overview:

end of line packaging systems

end of line packaging machinery

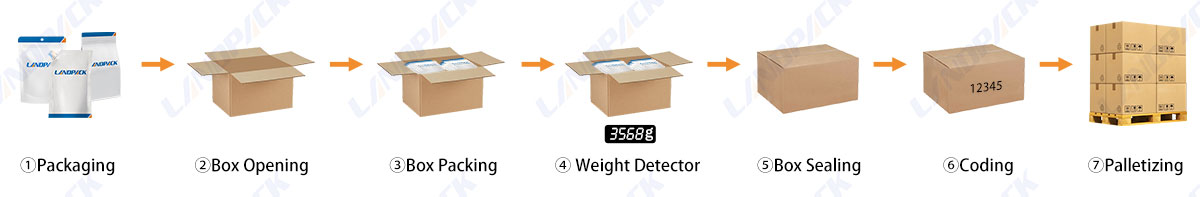

WORKFLOW

Doypack Pouch Packaging

Carton Opening

Carton Packing

Weight Detection

Carton Sealing

Coding

Palletizing

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Coding machine
Resolution	1280*800
Language	17
Printing Rows	1-4 (57 dot),1-5(55 dot)
Dot Matrix	5,57,79,1012,1216,1824,24*32
Printing Contents	Date, time, batch number, serial number, lot number,bar code, QR code, logo, pattem, variable data, and text.
Speed	285m/min
Character Height	1.8-15mm
Printing Head to the Base	3m
Printing Distance(Printing head to the object)	<30mm (Printing head to the object)
Temperature and Humidity	5-45°C,30-90%
Power	220W
Voltage	200-240V,AC,50/60Hz
Size	370310510mm
Net Weight	23kg

Automatic Parallel box packing workstation
Model	LD-D-800-4-1	LD-D-1200-4-1	LD-D-1600-4-1
Number of Axes	3+1	3+1	3+1
Arm Reach	800	1200	1600
Maximum Pickup Height	330	425	750
Rated Load	3	8	8
Maximum Load	5	15	15
Repeatability	R±0.1	R±0.1	R±0.1
Standard Cycle Time	240	200	185

Automatic case erecting machine
Model	LD-CF50H
Power supply	220V 50Hz
Maximum packing size	450400400mm
Minimum packing size	250200150mm
Working height	600mm
Sealing speed	6-10 boxes/min
Applicable tape	(W)48-75mm x(L)0-914mm
MechanicalDimensions	220020501450mm(LWH)
Machine weight	About 400kg

Automatic Carton sealing machine
Machine Model	LD-FXC50
Voltage	220V 50Hz
Power	400W
Case Size	(L)200-600mm(W)150-500mm(H)150-500mm
Tape Width	48-72mm
Conveying Speed	18m/min
Height of Worktable	600-750mm
Machine Size	About 17608901450mm(LWH)

Weight detector
Model	LD10	LD100	LD201	LD401	LD1000
Weight Range	10-99g	100-200g	201-400g	401-999g	1000-10000g
Rate	65bag/min	60bag/min	50bag/min	45bag/min	40bag/min
Precision	±0.5g				±1g
Minimum scale	0.1g
Predesign pattern	10kinds
Size	10506811260
Voltage	220V
Power	300W

Automatic Robot palletizer
Model	LD60-PL	LD120-PL	LD1800-PL
Arm Reach	2000mm	2400mm	3060mm
Maximum Load	60kg	120kg	180kg
Weight	500kg	1050kg	1120kg
Pallet Dimensions	1200*1200	1200*1200	1400*1400
Palletizing Speed	8 cycle/min	8 cycle/min	8 cycle/min

Stretch Wrapping
Pallet Size	L1200 × W1200 mm
Turntable Speed	Variable speed with soft start & stop function
Wrapping Height	1800 mm
Loading Weight	MP 303B: 2000 kg; MP 303A: 1000 kg
Pre-stretch Ratio	150%
Turntable Height	550 mm
